Zona 1
Atmosfera esplosiva per gas probabile durante il normale funzionamento
Zona 2
Atmosfera esplosiva per gas improbabile e di breve durata
Zona 21
Atmosfera esplosiva per polveri probabile durante il normale funzionamento
Zona 22
Atmosfera esplosiva per polveri improbabile e di breve durata
# Generale

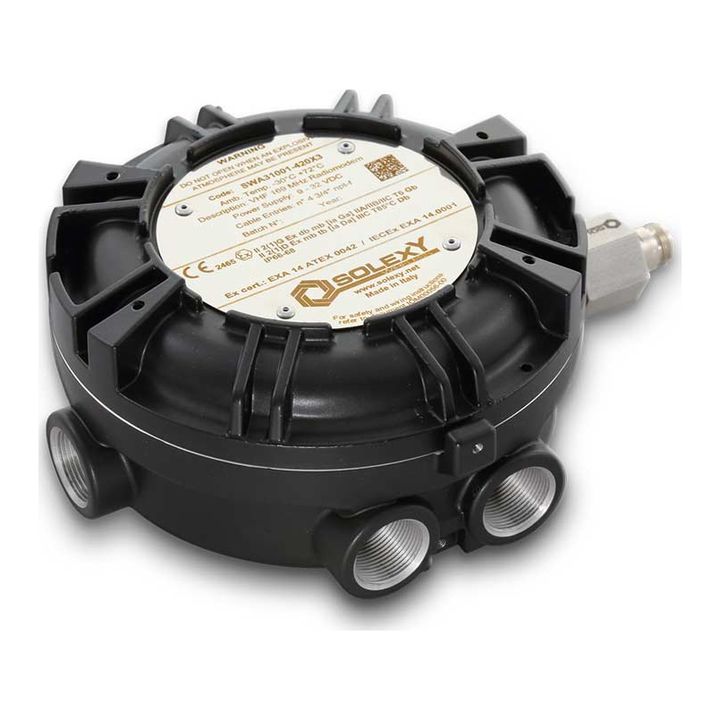

Tipo prodotto: Radiomodem in custodia antideflagrante
Banda: 169,400–169,475 MHz (VHF) · 868–869,65 MHz (UHF)
Potenza RF: 25 / 150 / 500 mW
Canalizzazione: 12,5 · 25 · 50 kHz
Velocità radio: 4.800 – 19.200 bps
Interfacce: Modbus RTU RS485 con I/O (510/540) · RS232/RS485 (512/542) · RS485 + Ethernet (51E/54E)
Barriera antenna: 1 barriera N femmina (RXN, RX1 o SXN)
# Certificazioni
ATEX/IECEx: II 2(1)G Ex db mb [ia Ga] IIC T6…T5 Gb · II 2(1)D Ex mb tb [ia Da] IIIC T80…T100 °C Db · I M2(M1) Ex db mb [ia Ma] I Mb (solo SWS)
# Elettriche
Alimentazione: 9–32 Vdc
Consumo: ≈ 30 mA in ricezione · ≈ 200 mA in trasmissione
# Meccaniche
Custodia: Alluminio verniciato a polvere (SWA) · Inox AISI 316 CF8M elettrolucidato (SWS)
Ingressi cavo: 4 × 3/4" NPT-F · 4 × M25x1,5
Grado di protezione: IP66/68
Montaggio: Kit KM-01 a palo · KM-02 a parete
Peso: 2,3 kg (SWA) · 5,0 kg (SWS) senza antenna
# Ambientali
Temperatura ambiente: -30…+63 °C SWA · -30…+57 °C SWS
{"v":1,"marca":"","colonne":[{"nome":"Custodia","valori":["Alluminio verniciato (SWA)","Inox AISI 316 elettrolucidato (SWS)"]},{"nome":"Dispositivo","valori":["Radiomodem Modbus RTU VHF 169 MHz 500 mW – RS485, 4 DI, 2 DO, 2 AI, 2 AO","Radiomodem VHF 169 MHz 500 mW – RS232/RS485, 1 DI, 1 DO","Radiomodem Ethernet VHF 169 MHz 500 mW – RS485/Ethernet, 1 DI, 1 DO","Radiomodem Modbus RTU UHF 868 MHz 500 mW – RS485, 4 DI, 2 DO, 2 AI, 2 AO","Radiomodem UHF 868 MHz 500 mW – RS232/RS485, 1 DI, 1 DO","Radiomodem Ethernet UHF 868 MHz 500 mW – RS485/Ethernet, 1 DI, 1 DO"]},{"nome":"Barriere antenna","valori":["1 barriera RXN (N femmina) – layout 2","1 barriera RX1 (N femmina, massa isolata) – layout 2","1 barriera SXN (N femmina, prot. sovratensioni) – layout 2"]},{"nome":"Ingressi cavo","valori":["4 × 3/4\" NPT-F","4 × M25x1,5"]},{"nome":"Approvazioni","valori":["ATEX/IECEx gas e polveri","ATEX/IECEx gas, polveri e miniera"]}],"righe":[["SWA51003-421X0-57",0,0,0,0,0,18],["SWA51003-441X0-57",0,0,0,1,0,18],["SWA51006-421X0-57",0,0,1,0,0,18],["SWA51006-441X0-57",0,0,1,1,0,18],["SWA51007-421X0-57",0,0,2,0,0,18],["SWA51007-441X0-57",0,0,2,1,0,18],["SWA51203-421X0-57",0,1,0,0,0,19],["SWA51203-441X0-57",0,1,0,1,0,19],["SWA51206-421X0-57",0,1,1,0,0,19],["SWA51206-441X0-57",0,1,1,1,0,19],["SWA51207-421X0-57",0,1,2,0,0,19],["SWA51207-441X0-57",0,1,2,1,0,19],["SWA51E03-421X0-57",0,2,0,0,0,20],["SWA51E03-441X0-57",0,2,0,1,0,20],["SWA51E06-421X0-57",0,2,1,0,0,20],["SWA51E06-441X0-57",0,2,1,1,0,20],["SWA51E07-421X0-57",0,2,2,0,0,20],["SWA51E07-441X0-57",0,2,2,1,0,20],["SWA54003-421X0-57",0,3,0,0,0,18],["SWA54003-441X0-57",0,3,0,1,0,18],["SWA54006-421X0-57",0,3,1,0,0,18],["SWA54006-441X0-57",0,3,1,1,0,18],["SWA54007-421X0-57",0,3,2,0,0,18],["SWA54007-441X0-57",0,3,2,1,0,18],["SWA54203-421X0-57",0,4,0,0,0,19],["SWA54203-441X0-57",0,4,0,1,0,19],["SWA54206-421X0-57",0,4,1,0,0,19],["SWA54206-441X0-57",0,4,1,1,0,19],["SWA54207-421X0-57",0,4,2,0,0,19],["SWA54207-441X0-57",0,4,2,1,0,19],["SWA54E03-421X0-57",0,5,0,0,0,20],["SWA54E03-441X0-57",0,5,0,1,0,20],["SWA54E06-421X0-57",0,5,1,0,0,20],["SWA54E06-441X0-57",0,5,1,1,0,20],["SWA54E07-421X0-57",0,5,2,0,0,20],["SWA54E07-441X0-57",0,5,2,1,0,20],["SWS51003-42EM0-57",1,0,0,0,1,14],["SWS51006-42EM0-57",1,0,1,0,1,14],["SWS51007-42EM0-57",1,0,2,0,1,14],["SWS51203-42EM0-57",1,1,0,0,1,14],["SWS51206-42EM0-57",1,1,1,0,1,14],["SWS51207-42EM0-57",1,1,2,0,1,14],["SWS51E03-42EM0-57",1,2,0,0,1,14],["SWS51E06-42EM0-57",1,2,1,0,1,14],["SWS51E07-42EM0-57",1,2,2,0,1,14],["SWS54003-42EM0-57",1,3,0,0,1,14],["SWS54006-42EM0-57",1,3,1,0,1,14],["SWS54007-42EM0-57",1,3,2,0,1,14],["SWS54203-42EM0-57",1,4,0,0,1,14],["SWS54206-42EM0-57",1,4,1,0,1,14],["SWS54207-42EM0-57",1,4,2,0,1,14],["SWS54E03-42EM0-57",1,5,0,0,1,14],["SWS54E06-42EM0-57",1,5,1,0,1,14],["SWS54E07-42EM0-57",1,5,2,0,1,14]],"accessori":[["KM-01-57","Kit di montaggio a palo inox per custodie SWA/SWS/HWA/HWS, pali fino a 2\" (50 mm)",24],["KM-02-57","Kit di montaggio universale a parete inox per custodie SWA/SWS/HWA/HWS",24]],"opzioni":[["Antenna","Antenne 868 MHz ANH/ANF disponibili; per 169 MHz contattaci"]],"fonte":"configuratore e datasheet del produttore (ottobre 2026)","sprite":{"url":"https://cdn.prod.website-files.com/6aa55eca30c5bd4a1e486a4c/6ad9046fb5b3225595fa62f0_solexy-varianti-sprite.jpg","colonne":10,"lato":200}}
