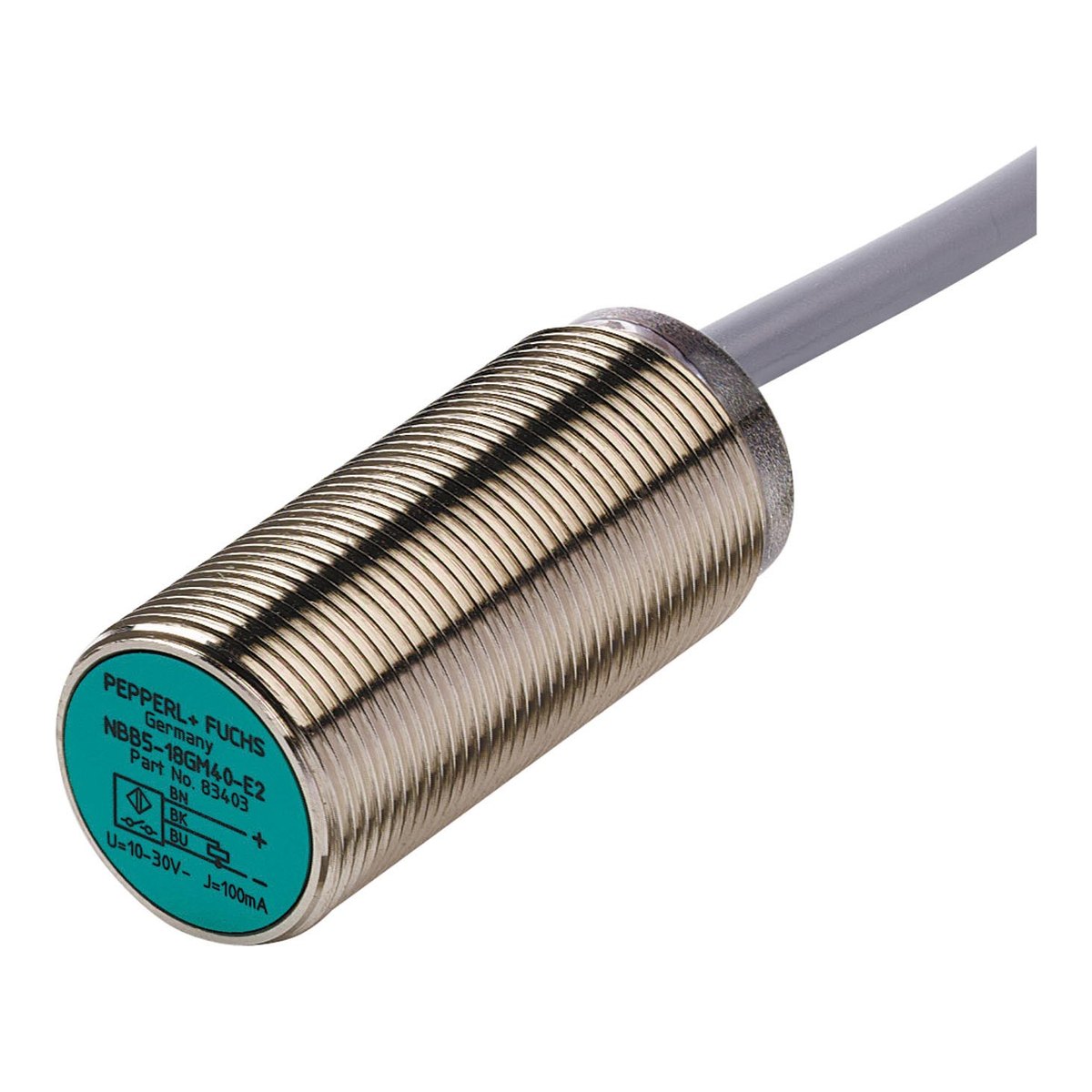

Sensori induttivi cilindrici Ex – Prossimità NAMUR e 3G/3D per aree pericolose

Name: Sensori induttivi cilindrici Ex – Prossimità NAMUR e 3G/3D per aree pericolose
Brand: Pepperl+Fuchs
SKU: NCB · NCN · NJ · NBB-…-3G-3D

NCB · NCN · NJ · NBB-…-3G-3D

Sensori induttivi cilindrici Pepperl+Fuchs certificati ATEX/IECEx: versioni NAMUR a sicurezza intrinseca fino a EPL Ga/Da e versioni -3G-3D per zona 2/22, da Ø 4,5 a 30 mm, fino a SIL 2.

ATEX

IECEx

SIL

EAC

Richiedi offerta Chiama un tecnico Documenti e guide

Descrizione

Specifiche Tecniche

Applicazioni

Download

Schede tecniche

Sensori di prossimità induttivi in custodia cilindrica per il rilevamento senza contatto di parti metalliche in atmosfere potenzialmente esplosive: posizione di valvole e attuatori, finecorsa di macchine, conteggio e controllo di rotazione in impianti di processo.

Due famiglie

NAMUR (NCB, NCN, NJ): uscita a 2 fili secondo EN 60947-5-6, da collegare a un amplificatore separatore o a una barriera a sicurezza intrinseca. Livelli di protezione fino a Ga/Da per l'impiego in zona 0/20, in base al codice.
Versioni -3G-3D: sensori a 3 o 4 fili in DC certificati per zona 2/22 (Ex ec / Ex tc), da collegare direttamente al PLC.

Caratteristiche principali

Diametri da 4,5 a 30 mm, montaggio a filo, non a filo o semi a filo
Distanze di commutazione da 0,8 a 15 mm
Versioni con capacità SIL 2 per funzioni di sicurezza
Collegamento con cavo, con connettore M12 o con cavo e connettore M12
Custodie in acciaio inox od ottone, per ambienti industriali gravosi

Usa i filtri nella sezione Varianti e codici per trovare il codice esatto: per ogni codice trovi il datasheet ufficiale Pepperl+Fuchs e la richiesta d'offerta. Per versioni non in elenco, accessori o disponibilità contattaci.

Zona 0

Atmosfera esplosiva per gas presente in modo continuo o per lunghi periodi

Zona 1

Atmosfera esplosiva per gas probabile durante il normale funzionamento

Zona 2

Atmosfera esplosiva per gas improbabile e di breve durata

Zona 20

Atmosfera esplosiva per polveri presente in modo continuo o per lunghi periodi

Zona 21

Atmosfera esplosiva per polveri probabile durante il normale funzionamento

Zona 22

Atmosfera esplosiva per polveri improbabile e di breve durata

# Generale Tipo prodotto: Sensore di prossimità induttivo cilindrico per aree pericolose Marca: Pepperl+Fuchs Diametro: da Ø 4,5 a Ø 30 mm Distanza di commutazione: da 0,8 a 15 mm # Certificazioni Certificazioni: ATEX, IECEx (variano per codice: vedi datasheet) Livello di protezione: fino a Ga / Da (versioni NAMUR) · Gc / Dc, zona 2/22 (versioni -3G-3D) Sicurezza funzionale: versioni fino a SIL 2 # Elettriche Uscita: NAMUR (EN 60947-5-6) · PNP · 2 fili Alimentazione: 8,2 V DC (NAMUR) · 10…30 V DC (versioni -3G-3D) Funzione: NA, NC o complementare # Meccaniche Montaggio: A filo, non a filo o semi a filo Collegamento: Cavo · connettore M12 · cavo con connettore M12

{"v":1,"colonne":[{"nome":"Ø","valori":["4,5 mm","5 mm","6,5 mm","8 mm","11 mm","12 mm","14 mm","18 mm","22 mm","30 mm"]},{"nome":"Distanza","valori":["0,8 mm · a filo","1,5 mm · a filo","2 mm · a filo","4 mm · a filo","4 mm · non a filo","5 mm · a filo","5 mm · non a filo","6 mm · a filo","8 mm · a filo","8 mm · non a filo","10 mm · a filo","15 mm · a filo","15 mm · non a filo","15 mm · semi a filo"]},{"nome":"Uscita","valori":["NAMUR","PNP","2 fili"]},{"nome":"Funzione","valori":["NC","NA","NA + NC"]},{"nome":"SIL","valori":["SIL 2","—"]},{"nome":"Collegamento","valori":["Cavo","Cavo + M12","Conn. M12"]}],"righe":[["NJ0,8-4,5-N",0,0,0,0,0,0],["NJ0,8-5GM-N",1,0,0,0,0,0],["NJ0,8-5GM-N-10M",1,0,0,0,0,0],["NJ0,8-5GM-N-5M",1,0,0,0,0,0],["NJ1,5-6,5-N",2,1,0,0,0,0],["NJ1,5-6,5-N-15M",2,1,0,0,0,0],["NJ1,5-6,5-N-5M",2,1,0,0,0,0],["NCB1,5-6,5M25-N0",2,1,0,0,1,0],["NCB1,5-6,5M25-N0-10M",2,1,0,0,1,0],["NCB1,5-6,5M25-N0-5M",2,1,0,0,1,0],["NCB1,5-6,5M25-N0-V1",2,1,0,0,1,2],["NJ1,5-8GM-N",3,1,0,0,0,0],["NJ1,5-8GM-N-10M",3,1,0,0,0,0],["NJ1,5-8GM-N-5M",3,1,0,0,0,0],["NJ1,5-8GM-N-V1",3,1,0,0,0,2],["NCB1,5-8GM25-N0",3,1,0,0,1,0],["NCB1,5-8GM25-N0-10M",3,1,0,0,1,0],["NCB1,5-8GM25-N0-5M",3,1,0,0,1,0],["NCB1,5-8GM25-N0-V1",3,1,0,0,1,2],["NJ2-11-N",4,2,0,0,0,0],["NJ5-11-N-15M",4,6,0,0,0,0],["NJ5-11-N-5M",4,6,0,0,0,0],["NJ5-11-N",4,6,0,0,1,0],["NCB2-12GK35-N0",5,2,0,0,0,0],["NCB2-12GM35-N0",5,2,0,0,0,0],["NJ2-12GK-N",5,2,0,0,0,0],["NJ2-12GK-N-5M",5,2,0,0,0,0],["NJ2-12GM-N",5,2,0,0,0,0],["NJ2-12GM-N-10M",5,2,0,0,0,0],["NJ2-12GM-N-25M",5,2,0,0,0,0],["NJ2-12GM-N-5M",5,2,0,0,0,0],["NCB2-12GM35-N0-V1",5,2,0,0,0,2],["NJ2-12GM-N-V1",5,2,0,0,0,2],["NCB2-12GM35-N0-10M",5,2,0,0,1,0],["NCB2-12GM35-N0-21M",5,2,0,0,1,0],["NCB2-12GM35-N0-5M",5,2,0,0,1,0],["NJ2-12GK-N-25M",5,2,0,0,1,0],["NCB2-12GM40-E2-3G-3D",5,2,1,1,1,0],["NCB2-12GM40-E2-3G-3D-5M",5,2,1,1,1,0],["NBB2-12GM60-A2-3G-3D",5,2,1,2,1,0],["NBB2-12GM40-Z0-3G-3D",5,2,2,1,1,0],["NBB2-12GS40-Z4L-3G-3D",5,2,2,1,1,0],["NBB2-12GS40-Z4L-V1-3G-3D",5,2,2,1,1,2],["NCB2-12GM40-Z0-V1-3G-3D",5,2,2,1,1,2],["NCB4-12GM40-N0",5,3,0,0,0,0],["NCB4-12GM40-N0-V1",5,3,0,0,0,2],["NCB4-12GM40-N0-10M",5,3,0,0,1,0],["NCB4-12GM40-N0-5M",5,3,0,0,1,0],["NBB4-12GM50-E2-3G-3D",5,3,1,1,1,0],["NBB4-12GM50-E2-V1-3G-3D",5,3,1,1,1,2],["NCN4-12GK35-N0",5,4,0,0,0,0],["NCN4-12GM35-N0",5,4,0,0,0,0],["NJ4-12GK-N",5,4,0,0,0,0],["NJ4-12GK-N-10M",5,4,0,0,0,0],["NJ4-12GK-N-5M",5,4,0,0,0,0],["NJ4-12GM-N",5,4,0,0,0,0],["NJ4-12GM-N-10M",5,4,0,0,0,0],["NJ4-12GM-N-20M",5,4,0,0,0,0],["NJ4-12GM-N-5M",5,4,0,0,0,0],["NCN4-12GM35-N0-V1",5,4,0,0,0,2],["NJ4-12GM-N-V1",5,4,0,0,0,2],["NCN4-12GM35-N0-10M",5,4,0,0,1,0],["NCN4-12GM35-N0-5M",5,4,0,0,1,0],["NJ4-12GK-N-35M",5,4,0,0,1,0],["NCN4-12GM40-E2-3G-3D",5,4,1,1,1,0],["NCN4-12GM40-E2-V1-3G-3D",5,4,1,1,1,2],["NBN4-12GS40-Z4L-3G-3D",5,4,2,1,1,0],["NCN4-12GM40-Z0-3G-3D",5,4,2,1,1,0],["NBN4-12GS40-Z4L-V1-3G-3D",5,4,2,1,1,2],["NJ2-11-N-G",6,2,0,0,0,0],["NJ2-11-N-G-15M",6,2,0,0,0,0],["NJ2-11-N-G-5M",6,2,0,0,0,0],["NJ2-11-N-G-10M",6,2,0,0,1,0],["NJ5-11-N-G",6,6,0,0,0,0],["NJ5-11-N-G-10M",6,6,0,0,0,0],["NJ5-11-N-G-5M",6,6,0,0,0,0],["NJ5-11-N-G-6M",6,6,0,0,0,0],["NJ5-11-N-G-0,5M-V1",6,6,0,0,0,1],["NJ1,5-18GM-N-D",7,1,0,0,0,0],["NJ1,5-18GM-N-D-10M",7,1,0,0,0,0],["NJ1,5-18GM-N-D-V1",7,1,0,0,0,2],["NCB5-18GK40-N0",7,5,0,0,0,0],["NCB5-18GM40-N0",7,5,0,0,0,0],["NCB5-18GM40-N0-10M",7,5,0,0,0,0],["NCB5-18GM40-N0-15M",7,5,0,0,0,0],["NCB5-18GM40-N0-5M",7,5,0,0,0,0],["NJ5-18GK-N",7,5,0,0,0,0],["NJ5-18GK-N-10M",7,5,0,0,0,0],["NJ5-18GK-N-5M",7,5,0,0,0,0],["NJ5-18GM-N",7,5,0,0,0,0],["NJ5-18GM-N-10M",7,5,0,0,0,0],["NJ5-18GM-N-5M",7,5,0,0,0,0],["NCB5-18GM40-N0-V1",7,5,0,0,0,2],["NJ5-18GM-N-V1",7,5,0,0,0,2],["NCB5-18GM70-N0",7,5,0,0,1,0],["NJ5-18GK-N-150",7,5,0,0,1,0],["NJ5-18GM50-E2-3G-3D",7,5,1,1,1,0],["NJ5-18GM50-E2-3G-3D-5M",7,5,1,1,1,0],["NJ5-18GM50-E2-V1-3G-3D",7,5,1,1,1,2],["NCB5-18GM40-Z1-3G-3D",7,5,2,0,1,0],["NBB5-18GS50-Z4L-3G-3D",7,5,2,1,1,0],["NCB5-18GM40-Z0-3G-3D",7,5,2,1,1,0],["NCB5-18GM40-Z0-3G-3D-10M",7,5,2,1,1,0],["NBB5-18GS50-Z4L-V1-3G-3D",7,5,2,1,1,2],["NCB8-18GM40-N0",7,8,0,0,0,0],["NCB8-18GM40-N0-V1",7,8,0,0,0,2],["NCB8-18GM40-N0-10M",7,8,0,0,1,0],["NCB8-18GM40-N0-5M",7,8,0,0,1,0],["NCB8-18GM70-N0-20M-V1",7,8,0,0,1,0],["NBB8-18GM50-E2-3G-3D",7,8,1,1,1,0],["NBB8-18GM50-E2-3G-3D-5M",7,8,1,1,1,0],["NCN8-18GM40-N0",7,9,0,0,0,0],["NCN8-18GM40-N0-10M",7,9,0,0,0,0],["NCN8-18GM40-N0-5M",7,9,0,0,0,0],["NCN8-18GM40-N0-V1",7,9,0,0,0,2],["NCN8-18GK40-N0",7,9,0,0,1,0],["NCN8-18GM50-E2-3G-3D",7,9,1,1,1,0],["NCN8-18GM50-E2-3G-3D-5M",7,9,1,1,1,0],["NBN8-18GS50-Z4L-3G-3D",7,9,2,1,1,0],["NCN8-18GM40-Z0-3G-3D",7,9,2,1,1,0],["NBN8-18GS50-Z4L-V1-3G-3D",7,9,2,1,1,2],["NJ6-22-N",8,7,0,0,0,0],["NJ6-22-N-5M",8,7,0,0,0,0],["NJ4-30GM-N-200",9,3,0,0,1,0],["NJ4-30GM-N-200-10M",9,3,0,0,1,0],["NCB10-30GM40-N0",9,10,0,0,0,0],["NCB10-30GM40-N0-V1",9,10,0,0,0,2],["NCB10-30GK40-N0",9,10,0,0,1,0],["NCB10-30GM40-N0-10M",9,10,0,0,1,0],["NCB10-30GM40-N0-15M",9,10,0,0,1,0],["NCB10-30GM40-N0-50M",9,10,0,0,1,0],["NCB10-30GM40-N0-5M",9,10,0,0,1,0],["NCB10-30GM40-Z1-3G-3D",9,10,2,0,1,0],["NBB10-30GS50-Z4L-3G-3D",9,10,2,1,1,0],["NCB10-30GM40-Z0-3G-3D",9,10,2,1,1,0],["NCB10-30GM40-Z0-V1-3G-3D",9,10,2,1,1,2],["NBB15-30GM50-E2-3G-3D",9,11,1,1,1,0],["NCN15-30GM40-N0",9,12,0,0,0,0],["NCN15-30GM40-N0-10M",9,12,0,0,0,0],["NCN15-30GM40-N0-V1",9,12,0,0,0,2],["NCN15-30GK40-N0",9,12,0,0,1,0],["NCN15-30GM40-N0-20M",9,12,0,0,1,0],["NCN15-30GM40-N0-30M",9,12,0,0,1,0],["NBN15-30GS50-Z4L-3G-3D",9,12,2,1,1,0],["NCN15-30GM40-Z0-3G-3D",9,12,2,1,1,0],["NCB15-30GM40-N0",9,13,0,0,0,0],["NCB15-30GM40-N0-V1",9,13,0,0,0,2],["NCB15-30GM40-N0-10M",9,13,0,0,1,0],["NCB15-30GM40-N0-5M",9,13,0,0,1,0]],"accessori":[["BF 11","Adattatore di montaggio, 11 mm"],["BF 12","Adattatore di montaggio, 12 mm"],["BF 18","Adattatore di montaggio, 18 mm"],["BF 18-F","Adattatore di montaggio in plastica, 18 mm"],["BF 30","Adattatore di montaggio, 30 mm"],["BF 4.5","Adattatore di montaggio, 4,5 mm"],["BF 40","Adattatore di montaggio, 40 mm"],["BF 5","Adattatore di montaggio, 5 mm"]],"datasheet":{"base":"https://files.pepperl-fuchs.com/webcat/navi/productInfo/pds/","pn":["70133211","70133075","70133324","70133076","70133025","70133218","70133219","70133213","70133214","70133215","70133216","70133080","70133338","70133339","70133081","70133077","70133078","70133331","70133079","70133192","70133204","70133205","70133203","70133226","70133038","70133049","70133234","70133050","70133236","70133237","70133238","70133040","70133051","70133039","70133227","70133228","70133233","70126070","70126071","70126031","70126030","70134926-0001","70134926-0002","70126034","70133041","70133044","70133042","70133043","70126032","70126033","70133229","70133045","70133052","70133241","70133243","70133053","70133249","70133250","70133251","70133048","70133253","70133046","70133047","70133242","70126072","70126073","70134926-0003","70126035","70134926-0004","70133021","70133194","70133195","70133193","70133022","70133207","70133208","70133210","70133206","70133016","70133185","70133017","70133257","70133055","70133259","70133260","70133056","70133061","70133270","70133271","70133062","70133272","70133063","70133057","70133064","70133261","70133018","70126074","70126075","70126076","70126045","70134926-0005","70126041","70126042","70134926-0006","70133058","70133059","70133262","70133264","70129545","70126037","70126038","70133267","70133268","70133269","70133060","70133266","70126047","70126048","70134926-0007","70126046","70134926-0008","70133286","70133288","70133020","70133191","70133068","70133069","70133292","70133293","70133295","70133297","70133298","70126054","70134926-0009","70126052","70126053","70126049","70133303","70133304","70133307","70133302","70133305","70133306","70134926-0011","70126055","70133070","70133071","70133300","70133301"],"apn":["000048","000049","000050","107460","000051","011843","000057","011844"],"noit":["000048","000049","000050","000051","000057","011843","011844","107460"]},"fonte":"Pepperl+Fuchs Industrial Sensors Product Guide (tdoct6719a)"}
