Zona 1
Atmosfera esplosiva per gas probabile durante il normale funzionamento
Zona 2
Atmosfera esplosiva per gas improbabile e di breve durata
Zona 21
Atmosfera esplosiva per polveri probabile durante il normale funzionamento
Zona 22
Atmosfera esplosiva per polveri improbabile e di breve durata
# Generale

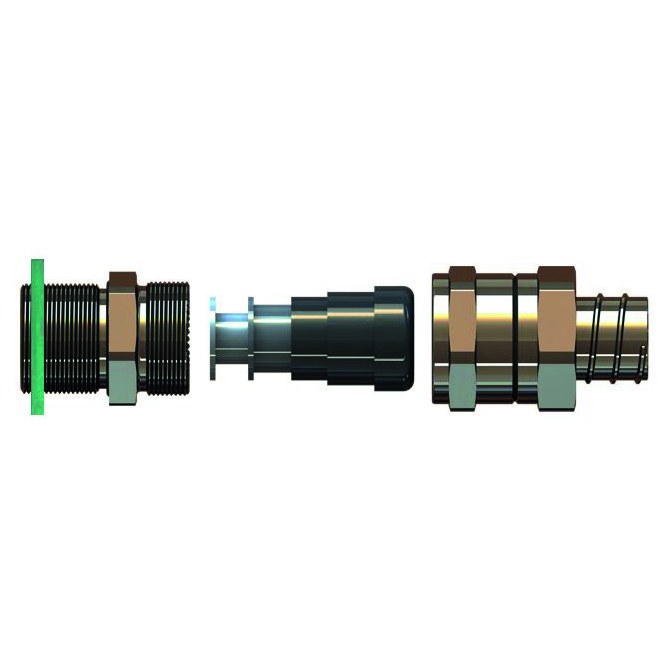

Tipo prodotto: Pressacavo metallico per guaine flessibili
Marca: Pepperl+Fuchs
Serie: CG.CO
Filettature: M12…M75 (ISO passo 1,5); NPT 1/4"…2"
Materiale corpo: Ottone nichelato (versioni inox a listino)
Dotazione kit: Rondella di tenuta, controdado, piastrina di terra
# Certificazioni
ATEX: IMQ 14 ATEX 012X – II 2 GD Ex db IIC Gb / Ex eb IIC Gb / Ex tb IIIC Db
IECEx: IECEx IMQ 14.0004X
UKCA: CML 21 UKEX 11380X
INMETRO: DNV 20.0029 X
CCC: 2021312313000344
# Meccaniche
Campo di serraggio cavo: 3…59 mm secondo taglia
Ø esterno max guaina: 10…75 mm secondo taglia
Guarnizioni: Cloroprene
Grado di protezione: IP66 / IP68
Temperatura ambiente: −40…+80 °C
{"v":1,"colonne":[{"nome":"Taglia","valori":["M12","M16S","M16","M20","M25","M32","M40","M50","M63","M75","NPT1/4","NPT3/8","NPT1/2","NPT3/4","NPT1","NPT1-1/4","NPT1-1/2","NPT2"]},{"nome":"Ø cavo mm","valori":["3–9","4–12","10–18","14–24","22–32","26–35","35–45","46–59","–"]},{"nome":"Ø max guaina","valori":["10 mm","14 mm","22,2 mm","27,5 mm","34,5 mm","43 mm","49,5 mm","62,5 mm","75 mm","–"]},{"nome":"Materiale · tenute","valori":["Ottone Ni · CR","Inox 316 · CR","Inox 316 · silicone"]},{"nome":"Confezione","valori":["Sfuso","1 pz","2 pz","5 pz","10 pz","15 pz"]}],"righe":[["CG.CO.M12.BN.C.16",0,8,9,0,0],["CG.CO.M12.BN.C.16.K01",0,8,9,0,1],["CG.CO.M12.BN.C.16.K15",0,8,9,0,5],["CG.CO.M16S.BN.C.16.K01 (6,3)",1,0,0,0,1],["CG.CO.M16S.BN.C.16.K01 (9,5)",1,0,1,0,1],["CG.CO.M16.BN.C.16",2,1,2,0,0],["CG.CO.M16.BN.C.16.K01",2,1,2,0,1],["CG.CO.M16.BN.C.16.K15",2,1,2,0,5],["CG.CO.M16.SS.S.16.K01",2,1,2,2,1],["CG.CO.M20.BN.C.16",3,1,2,0,0],["CG.CO.M20.BN.C.16.K01",3,1,2,0,1],["CG.CO.M20.BN.C.16.K15",3,1,2,0,5],["CG.CO.M20.SS.C.16.K01",3,1,2,1,1],["CG.CO.M20.SS.C.16.K15",3,1,2,1,5],["CG.CO.M20.SS.S.16",3,1,2,2,0],["CG.CO.M25.BN.C.16",4,2,3,0,0],["CG.CO.M25.BN.C.16.K01",4,2,3,0,1],["CG.CO.M25.BN.C.16.K10",4,2,3,0,4],["CG.CO.M32.BN.C.16",5,3,4,0,0],["CG.CO.M32.BN.C.16.K01",5,3,4,0,1],["CG.CO.M32.BN.C.16.K10",5,3,4,0,4],["CG.CO.M40.BN.C.18",6,4,5,0,0],["CG.CO.M40.BN.C.18.K01",6,4,5,0,1],["CG.CO.M40.BN.C.18.K05",6,4,5,0,3],["CG.CO.M50.BN.C.18",7,5,6,0,0],["CG.CO.M50.BN.C.18.K01",7,5,6,0,1],["CG.CO.M50.BN.C.18.K02",7,5,6,0,2],["CG.CO.M63.BN.C.18",8,6,7,0,0],["CG.CO.M63.BN.C.18.K01",8,6,7,0,1],["CG.CO.M63.BN.C.18.K02",8,6,7,0,2],["CG.CO.M75.BN.C.20",9,7,8,0,0],["CG.CO.M75.BN.C.20.K01",9,7,8,0,1],["CG.CO.M75.BN.C.20.K02",9,7,8,0,2],["CG.CO.NPT1/4.BN.C.16",10,8,9,0,0],["CG.CO.NPT1/4.BN.C.16.K01",10,8,9,0,1],["CG.CO.NPT1/4.BN.C.16.K15",10,8,9,0,5],["CG.CO.NPT3/8.BN.C.16",11,1,2,0,0],["CG.CO.NPT3/8.BN.C.16.K01",11,1,2,0,1],["CG.CO.NPT3/8.BN.C.16.K15",11,1,2,0,5],["CG.CO.NPT1/2.BN.C.16",12,1,2,0,0],["CG.CO.NPT1/2.BN.C.16.K01",12,1,2,0,1],["CG.CO.NPT1/2.BN.C.16.K15",12,1,2,0,5],["CG.CO.NPT1/2.SS.C.16.K01",12,1,2,1,1],["CG.CO.NPT3/4.BN.C.16",13,2,3,0,0],["CG.CO.NPT3/4.BN.C.16.K01",13,2,3,0,1],["CG.CO.NPT3/4.BN.C.16.K10",13,2,3,0,4],["CG.CO.NPT3/4.SS.C.16.K01",13,2,3,1,1],["CG.CO.NPT3/4.SS.S.16.K01",13,2,3,2,1],["CG.CO.NPT1.BN.C.20",14,3,4,0,0],["CG.CO.NPT1.BN.C.20.K01",14,3,4,0,1],["CG.CO.NPT1.BN.C.20.K10",14,3,4,0,4],["CG.CO.NPT1-1/4.BN.C.20",15,4,5,0,0],["CG.CO.NPT1-1/4.BN.C.20.K01",15,4,5,0,1],["CG.CO.NPT1-1/4.BN.C.20.K05",15,4,5,0,3],["CG.CO.NPT1-1/2.BN.C.20",16,5,6,0,0],["CG.CO.NPT1-1/2.BN.C.20.K01",16,5,6,0,1],["CG.CO.NPT1-1/2.BN.C.20.K02",16,5,6,0,2],["CG.CO.NPT2.BN.C.20",17,6,7,0,0],["CG.CO.NPT2.BN.C.20.K01",17,6,7,0,1],["CG.CO.NPT2.BN.C.20.K02",17,6,7,0,2]],"fonte":"Listino Pepperl+Fuchs 2026 / documentazione ufficiale","datasheet":{"base":"https://files.pepperl-fuchs.com/webcat/navi/productInfo/pds/","pn":["","","","322038","70101654","","291370","400773","","","291371","400774","","","","","291372","400775","","291373","400776","","291374","400777","","291375","400778","","291376","400779","","291377","400780","","","","","291437","400840","","303591","921044","","","291439","400842","","","","291440","400843","","291441","400844","","291442","400845","","291443","400846"],"apn":[],"noit":["291370","291371","291372","291373","291374","291375","291376","291377","291437","291439","291440","291441","291442","291443","303591","322038","400773","400774","400775","400776","400777","400778","400779","400780","400840","400842","400843","400844","400845","400846","70101654","921044"]}}
