Zona 2
Atmosfera esplosiva per gas improbabile e di breve durata
Zona 22
Atmosfera esplosiva per polveri improbabile e di breve durata
# Generale

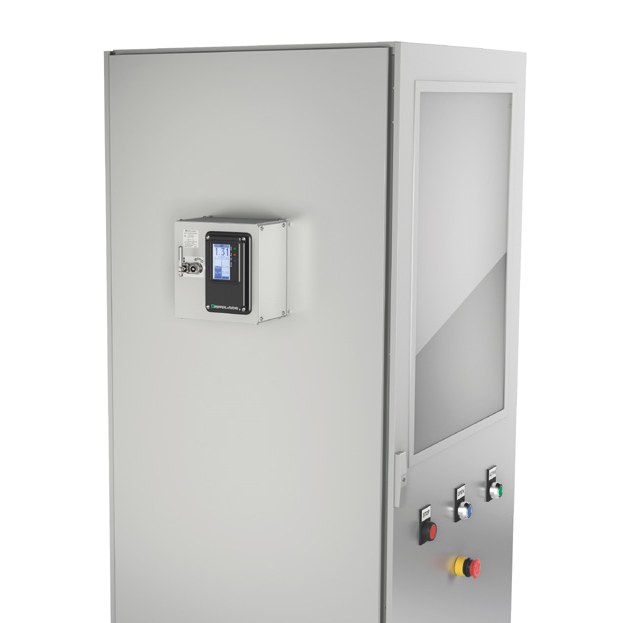

Tipo prodotto: Sistema di purge e pressurizzazione Type Z / Ex pzc
Marca: Pepperl+Fuchs
Serie: Bebco EPS 7500, 5500
Tipo di protezione: Type Z, Ex pzc
Area: Classe I o II, Div. 2 e Zona 2/22 → non pericolosa
Atmosfera: gas e polveri
Volume max custodia: 12,7 m³ (450 ft³) (7500)
Gas di protezione: aria compressa o gas inerte, filtro 40 µm, privo di olio (7500)
Pressione di alimentazione: 1,4…8,2 bar (20…120 psig) (7500)
Pressione custodia 7500: 0…12,9 mbar (0…5" c.a.)
Sfiati: EPV-7500, EPV-5500 in alluminio (AA) o con cappello inox (SS)
Ingressi cavi 5500: PSC/PBC 3 pressacavi M20, PSH 3 ingressi 1/2" NPTF, LSC/LBC 3 pressacavi M12, PNO/LNO senza pressacavi
# Certificazioni
7500: UL, cULus, IECEx, ATEX, CCC; DEMKO 18 ATEX 2025X
Marcatura 7500: II 3 G Ex ec mc nC [pzc Gc] IIC T6…T4 Gc; II 3 D Ex mc tc [pzc Dc] IIIC T60 °C…T80 °C Dc
cULus 7500: Classe I Div. 2 gruppi A, B, C, D; Classe II Div. 2 gruppi F, G
5500: DEMKO 14 ATEX 1282X, IECEx UL 14.0019X, cULus
Marcatura 5500: II 3 (3) G Ex ic ec nC [ic Gc] [pzc Gc] IIC T4 Gc
# Elettriche
Alimentazione 7500: 90…250 V AC, 50…60 Hz; 20…30 V DC
Uscite 7500: K1 contatti custodia e K2 allarme 5 A a 250 V AC / 30 V DC; SV1 elettrovalvola 0,5 A
Alimentazione 5500: 100…240 V AC o 20…30 V DC
Manifold: 5500 a 24 V DC, 120 V AC, 230 V AC; 7500-MAN-BK a 115 V AC (T4), 230 V AC (T6), 24 V DC (T4); 7500-MAN-MV-01 manuale
# Meccaniche
Custodia 7500: alluminio A380, A356 o 6061-T6, Type 4X / IP66
Custodia 5500: inox 316, Type 4X / IP66
Temperatura 7500: −40…+50 °C (T6), −40…+65 °C (T5), −40…+70 °C (T4)
Temperatura 5500: −20…+60 °C (T4)
Massa unità 7500: circa 0,71 kg
{"v":1,"colonne":[{"nome":"Serie","valori":["5500","7500"]},{"nome":"Componente","valori":["Unità di controllo","Sistema premontato","Manifold / valvola"]},{"nome":"Alimentazione","valori":["100–240 V AC","115 V AC","120 V AC","230 V AC","20–30 V DC","24 V DC","AC/DC universale","–"]},{"nome":"Montaggio","valori":["Esterno","Interno","A pannello","Box esterno","–"]},{"nome":"Versione","valori":["PBC/LBC","PNO/LNO","PSC/LBC","PSC/LSC","PSH/LBC","PSH/LSC","PBC/LSC","PSH/LNO","UL (CDUL)","FM (CD01)","ATEX/IECEx (EX01)","EXMI","EXHT","-01 (0–12,9 mbar)","-03 (0–25,8 mbar)","Rettangolare O","Rettangolare W","Quadrato O","Quadrato W","Automatica, T4","Automatica, T6","Manuale (MV)"]}],"righe":[["5500-SS-E-VAC-PBC-LBC",0,0,0,0,0],["5500-SS-E-VAC-PNO-LNO",0,0,0,0,1],["5500-SS-E-VAC-PSC-LBC",0,0,0,0,2],["5500-SS-E-VAC-PSC-LSC",0,0,0,0,3],["5500-SS-E-VAC-PSH-LBC",0,0,0,0,4],["5500-SS-E-VAC-PSH-LSC",0,0,0,0,5],["5500-SS-I-VAC-PBC-LSC",0,0,0,1,6],["5500-SS-I-VAC-PNO-LNO",0,0,0,1,1],["5500-SS-I-VAC-PSC-LBC",0,0,0,1,2],["5500-SS-I-VAC-PSC-LSC",0,0,0,1,3],["5500-SS-I-VAC-PSH-LBC",0,0,0,1,4],["5500-SS-I-VAC-PSH-LSC",0,0,0,1,5],["5500-SS-E-VDC-PBC-LBC",0,0,4,0,0],["5500-SS-E-VDC-PBC-LSC",0,0,4,0,6],["5500-SS-E-VDC-PNO-LNO",0,0,4,0,1],["5500-SS-E-VDC-PSC-LBC",0,0,4,0,2],["5500-SS-E-VDC-PSC-LSC",0,0,4,0,3],["5500-SS-E-VDC-PSH-LBC",0,0,4,0,4],["5500-SS-E-VDC-PSH-LNO",0,0,4,0,7],["5500-SS-E-VDC-PSH-LSC",0,0,4,0,5],["5500-SS-I-VDC-PBC-LBC",0,0,4,1,0],["5500-SS-I-VDC-PBC-LSC",0,0,4,1,6],["5500-SS-I-VDC-PNO-LNO",0,0,4,1,1],["5500-SS-I-VDC-PSC-LBC",0,0,4,1,2],["5500-SS-I-VDC-PSC-LSC",0,0,4,1,3],["5500-SS-I-VDC-PSH-LBC",0,0,4,1,4],["5500-SS-I-VDC-PSH-LSC",0,0,4,1,5],["5500-MAN-CDUL-120VAC",0,2,2,4,8],["5500-MAN-CD01-120VAC",0,2,2,4,9],["5500-MAN-EX01-120VAC",0,2,2,4,10],["5500-MAN-EXMI-120VAC",0,2,2,4,11],["5500-MAN-CDUL-230VAC",0,2,3,4,8],["5500-MAN-CD01-230VAC",0,2,3,4,9],["5500-MAN-EX01-230VAC",0,2,3,4,10],["5500-MAN-EXMI-230VAC",0,2,3,4,11],["5500-MAN-EXHT-230VAC",0,2,3,4,12],["5500-MAN-CDUL-24VDC",0,2,5,4,8],["5500-MAN-CD01-24VDC",0,2,5,4,9],["5500-MAN-EX01-24VDC",0,2,5,4,10],["5500-MAN-EXMI-24VDC",0,2,5,4,11],["7500-01-AA-STD-UNV-PNO",1,0,6,4,13],["7500-03-AA-STD-UNV-PNO",1,0,6,4,14],["7500-MTD-PMRO-01",1,1,6,2,15],["7500-MTD-PMRW-01",1,1,6,2,16],["7500-MTD-PMSO-01",1,1,6,2,17],["7500-MTD-PMSW-01",1,1,6,2,18],["7500-MTD-BXRO-01",1,1,6,3,15],["7500-MTD-BXRW-01",1,1,6,3,16],["7500-MTD-BXSO-01",1,1,6,3,17],["7500-MTD-BXSW-01",1,1,6,3,18],["7500-MAN-BK-115VAC-T4",1,2,1,4,19],["7500-MAN-BK-230VAC-T6",1,2,3,4,20],["7500-MAN-BK-24VDC-T4",1,2,5,4,19],["7500-MAN-MV-01",1,2,7,4,21]],"accessori":[["5000Q-PRE-08-PA","Componente purge 5000Q-PRE-08-PA"],["5000Q-PRE-08-PA-Z22","Componente purge 5000Q-PRE-08-PA, Z22"],["5500-DEMOKIT-01","Kit dimostrativo 5500"],["5500-DEMOKIT-230VAC","Kit dimostrativo 5500, 230 V AC"],["5500-ACC-RTK-01","Kit accessorio 5500 RTK-01"],["7500-Demo-Case-Label","Etichetta valigetta demo 7500"],["7500-ACC-BAGS-01","Kit sacchetti accessori 7500"],["5500-ACC-BAGS-01","Kit sacchetti accessori 5500"],["EPV-5500-AA-01","Sfiato EPV-5500 · Alluminio (AA) · -01"],["EPV-5500-AA-02","Sfiato EPV-5500 · Alluminio (AA) · -02"],["EPV-5500-AA-03","Sfiato EPV-5500 · Alluminio (AA) · -03"],["EPV-5500-SS-01","Sfiato EPV-5500 · Inox (SS) · -01"],["EPV-5500-SS-02","Sfiato EPV-5500 · Inox (SS) · -02"],["EPV-5500-SS-03","Sfiato EPV-5500 · Inox (SS) · -03"],["EPV-7500-AA-01","Sfiato EPV-7500 · Alluminio (AA) · -01"],["EPV-7500-AA-02","Sfiato EPV-7500 · Alluminio (AA) · -02"],["EPV-7500-AA-03","Sfiato EPV-7500 · Alluminio (AA) · -03"],["EPV-7500-AA-04","Sfiato EPV-7500 · Alluminio (AA) · -04"],["EPV-7500-SS-01","Sfiato EPV-7500 · Inox (SS) · -01"],["EPV-7500-SS-02","Sfiato EPV-7500 · Inox (SS) · -02"],["EPV-7500-SS-03","Sfiato EPV-7500 · Inox (SS) · -03"],["EPV-5500 SS Cap only","Solo cappello inox per EPV-5500"]],"datasheet":{"base":"https://files.pepperl-fuchs.com/webcat/navi/productInfo/pds/","pn":["","","","","","","","","","","","","","","","","","","","","","","","","","","","515701","","70165821","","515702","","70165816","","","515700","","70165813","","70145762","","","516098","","516102","","516097","","516101","","","","516106"],"apn":["","","","","","","","","","","","","","","516145","516146","70182269","516134","516148","516149","70182268",""],"noit":["515700","515701","515702","516097","516098","516101","516102","516106","516134","516145","516146","516148","516149","70145762","70165813","70165816","70165821","70182268","70182269"]},"fonte":"Listino Pepperl+Fuchs 2026 / documentazione ufficiale"}
