Zona 0
Atmosfera esplosiva per gas presente in modo continuo o per lunghi periodi
Zona 1
Atmosfera esplosiva per gas probabile durante il normale funzionamento
Zona 2
Atmosfera esplosiva per gas improbabile e di breve durata
Zona 20
Atmosfera esplosiva per polveri presente in modo continuo o per lunghi periodi
Zona 21
Atmosfera esplosiva per polveri probabile durante il normale funzionamento
Zona 22
Atmosfera esplosiva per polveri improbabile e di breve durata
Classe I Divisione 1
Area con gas o vapori infiammabili presenti in condizioni normali
Classe I Divisione 2
Area con gas o vapori infiammabili presenti solo in condizioni anomale
# Certificazioni
Zona: 1/21
Pinza – Certificazione: Ex II 1 GD T6; Ex h IIC T6 Ga; Ex h IIIC T85°C Da; Sira 02ATEX9381; FM 3046346; IECEx EXV 20.0033
Certificazione IECEx: Ex d[ia] IIC T6 Gb(Ga); Ex tb IIIC T80°C IP66 Db – IECEx EXV 19.0052
Certificazione ATEX: Ex II 2(1)GD – Ex d[ia] IIC T6 Gb(Ga); Ex tb IIIC T80°C IP66 Db – ExVeritas 19ATEX0537
Certificazione NEC 500/CEC: Classe I Div 1 Gr. A-D; Classe II Div 1 Gr. E-G; Classe III Div 1 (cCSAus)
Certificazione NEC 505/506: Classe I Zona 1 AEx d[ia] IIC T6 Gb(Ga); Classe II Zona 21 AEx tD [iaD] 21 T80°C
EMC: EN 61000-6-3, EN 61000-6-2; FCC Parte 15 (Classe B)
# Prestazioni
Circuito di monitoraggio: Intrinsecamente sicuro
Resistenza monitorata: ≤ 10 Ohm (± 10%) per canale
Contatti relè di uscita: 3 in scambio a potenziale zero – 250 V CA 5 A 500 VA max; 30 V CC 2 A 60 W max
# Elettriche
Alimentazione: 90 - 265 V CA, 50-60 Hz
Potenza nominale: 10 W

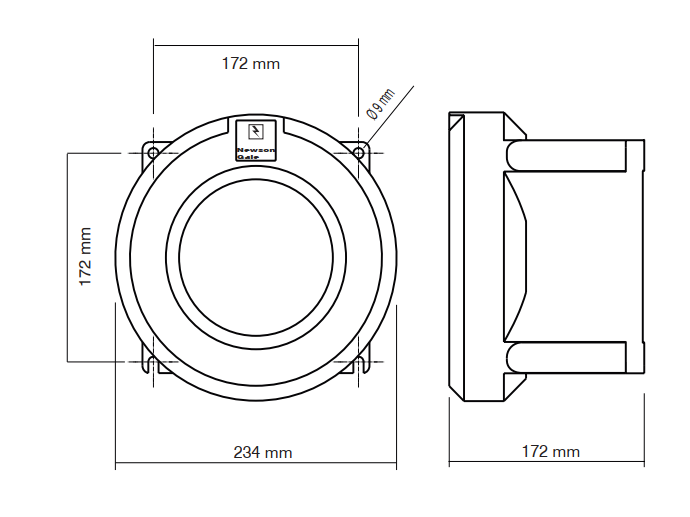

# Meccaniche
Peso: 7 kg
Materiale: Alluminio pressofuso privo di rame
Pressacavi: 7 x M20 (2 con tappo) – 4 lato Ex, 3 lato non Ex
Custodie di derivazione: GRP con carica di carbonio, morsetti 2 x 2,5 mm², pressacavo M20, Quick Connect
Pinze di terra: 2 – punte bipolari in carburo di tungsteno, corpo in acciaio inox 304
Cavo spiralato: Cen-Stat Hytrel blu statico-dissipativo, 2 x 1,00 mm² – 3, 5, 10, 15 m
# Ambientali
Temperatura ambiente: -40 °C / +55 °C
Grado di protezione: IP66
