# Generale
Tipo prodotto: Plafoniera lineare LED per luoghi pericolosi (NEC Class/Division)

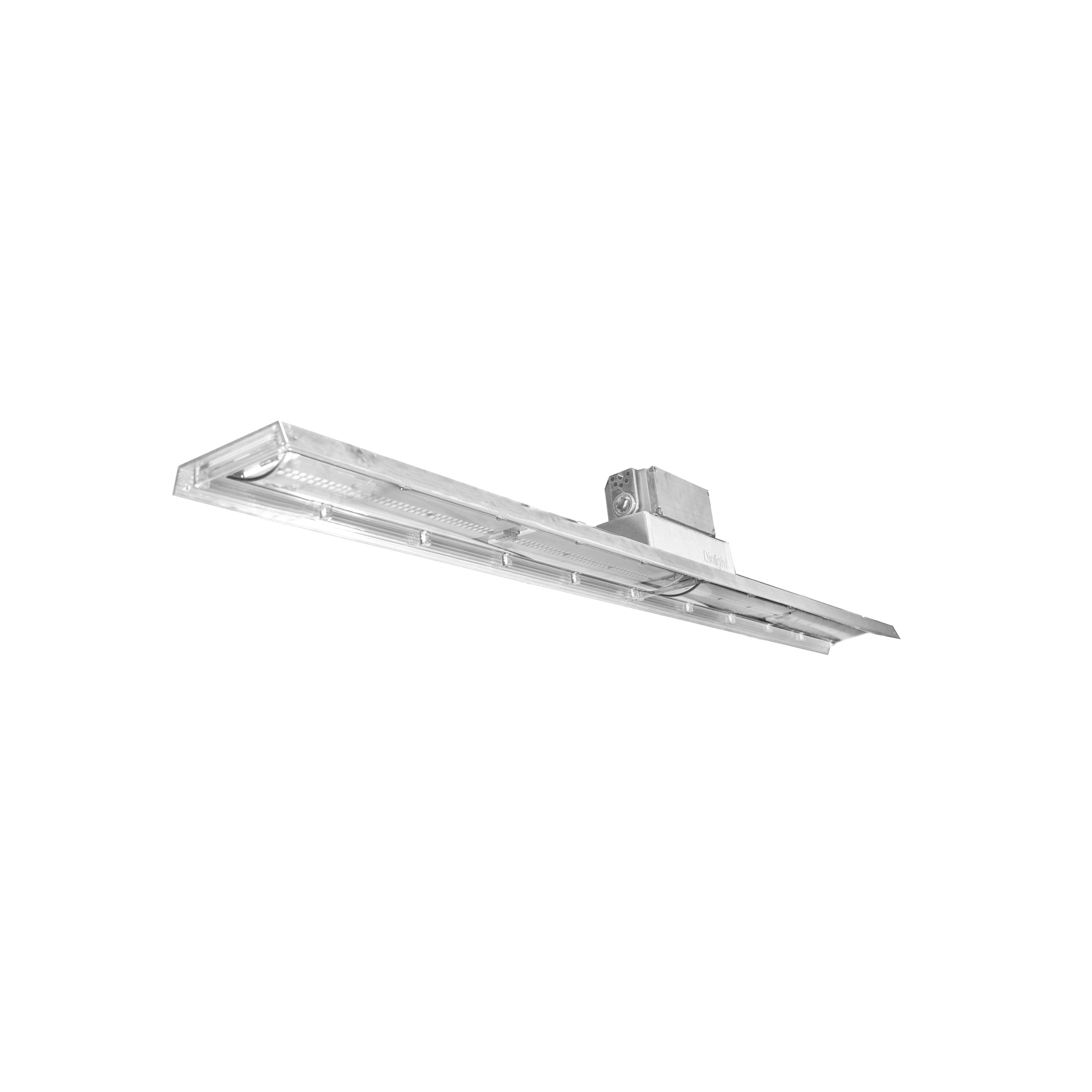

Versioni: Low Profile · Top Conduit
Mercato: Nord America (UL/CSA)
Garanzia: 5 o 10 anni secondo serie
# Certificazioni
Classificazione: Class I Div 2, Gruppi A, B, C, D · Class II Div 1, Gruppi E, F, G · Class II Div 2, Gruppi F, G · Class III (serie 10 anni anche Class I Zone 2, Gruppo IIC)
Classe di temperatura: T4A da -40 °C a +65 °C (-40 °F … +149 °F) · T5 da -40 °C a +45 °C (-40 °F … +113 °F)
Certificazioni: UL 844 · UL 1598/A · CSA C22.2 No. 137 · CSA C22.2 No. 250 · serie 10 anni DLC Premium & Standard
# Illuminotecniche
Flusso luminoso: 2.700 - 9.600 lm secondo versione
Efficienza: fino a 110 lm/W (5 anni) · fino a 139 lm/W (10 anni)
Dimmerazione: 0-10 VDC di serie sulla serie 10 anni (10 V = 100%, 0 V = 5%)
Temperatura di colore: 5000 K, 4000 K (CRI 75 o 80)
Ottica: Media · larga (serie 10 anni)
Durata: L70 > 100.000 h a 25 °C
# Elettriche
Potenza: 33 · 66 W (serie 5 anni) · 37 · 52 · 70 W (serie 10 anni)
Alimentazione: 100-277 VAC, 50/60 Hz · serie 10 anni anche 120-250 VDC
Protezione sovratensioni: 4 kV (5 anni) · 6 kV (10 anni)
# Meccaniche
Lunghezza: 0,6 m (2 ft) · 1,2 m (4 ft)
Diffusore: Policarbonato trasparente o diffuso
Corpo: Doppia verniciatura con primer epossidico resistente agli agenti chimici e finitura in poliestere
Ingressi cavo: 4 x 3/4" NPT (Low Profile) · 3-4 x 3/4" NPT (Top Conduit)
Montaggio: Staffe opzionali LPXW4/LPXW4LP (Low Profile) e LTXW4/LTXW4LP (Top Conduit)
Peso: 0,6 m 3,2 - 3,6 kg (7 - 8 lb) · 1,2 m 4,5 - 5,0 kg (10 - 11 lb)
# Ambientali
Temperatura ambiente: da -40 °C a +65 °C (-40 °F … +149 °F)
Grado di protezione: IP66/67 (Low Profile) · IP66 (Top Conduit) · NEMA 4X
{"v":1,"colonne":[{"nome":"Classificazione","valori":["Class I Div 2 (Gruppi A, B, C, D)","Class II Div 1/Div 2 + Class III"]},{"nome":"Serie","valori":["10 anni (dimmerabile 0-10 V)","5 anni"]},{"nome":"Versione","valori":["Low Profile","Top Conduit"]},{"nome":"Lunghezza","valori":["0,6 m (2 ft)","1,2 m (4 ft)"]},{"nome":"Diffusore","valori":["Trasparente","Diffuso"]},{"nome":"Ottica","valori":["Media","Larga"]},{"nome":"Temperatura colore","valori":["5000 K","4000 K"]},{"nome":"CRI","valori":["75","80","n.d."]},{"nome":"Flusso luminoso","valori":["2.700 lm (33 W)","2.900 lm (33 W)","3.000 lm (33 W)","3.200 lm (33 W)","3.300 lm (33 W)","3.500 lm (33 W)","3.600 lm (33 W)","4.200 lm (37 W)","4.450 lm (37 W)","4.500 lm (37 W)","4.750 lm (37 W)","6.000 lm (66 W)","6.250 lm (52 W)","6.300 lm (66 W)","6.500 lm (66 W)","6.550 lm (52 W)","6.600 lm (66 W)","6.700 lm (66 W)","6.950 lm (52 W)","7.000 lm (66 W)","7.250 lm (52 W)","7.250 lm (66 W)","8.500 lm (70 W)","8.800 lm (70 W)","9.300 lm (70 W)","9.600 lm (70 W)","Da confermare (66 W)","Da confermare (33 W)"]}],"righe":[["LKD-4MC2-9DNN-NGN",0,0,0,1,0,0,0,1,25,0],["LKD-4MN2-9DNN-NGN",0,0,0,1,0,0,1,1,24,0],["LKD-5MC2-9DNN-NGN",0,0,0,1,1,0,0,1,23,0],["LKD-5MN2-9DNN-NGN",0,0,0,1,1,0,1,1,22,0],["LKD-4WC2-9DNN-NGN",0,0,0,1,0,1,0,1,25,0],["LKD-4WN2-9DNN-NGN",0,0,0,1,0,1,1,1,24,0],["LKD-4MC2-7DNN-NGN",0,0,0,1,0,0,0,1,20,0],["LKD-4MN2-7DNN-NGN",0,0,0,1,0,0,1,1,18,0],["LKD-5MC2-7DNN-NGN",0,0,0,1,1,0,0,1,15,0],["LKD-5MN2-7DNN-NGN",0,0,0,1,1,0,1,1,12,0],["LKD-4WC2-7DNN-NGN",0,0,0,1,0,1,0,1,20,0],["LKD-4WN2-7DNN-NGN",0,0,0,1,0,1,1,1,18,0],["LJD-4MC2-5DNN-NGN",0,0,0,0,0,0,0,1,10,0],["LJD-4MN2-5DNN-NGN",0,0,0,0,0,0,1,1,9,0],["LJD-5MC2-5DNN-NGN",0,0,0,0,1,0,0,1,8,0],["LJD-5MN2-5DNN-NGN",0,0,0,0,1,0,1,1,7,0],["LJD-4WC2-5DNN-NGN",0,0,0,0,0,1,0,1,10,0],["LJD-4WN2-5DNN-NGN",0,0,0,0,0,1,1,1,9,0],["LKF-4MC2-9DNN-NGN",1,0,0,1,0,0,0,1,25,0],["LKF-4MN2-9DNN-NGN",1,0,0,1,0,0,1,1,24,0],["LKF-5MC2-9DNN-NGN",1,0,0,1,1,0,0,1,23,0],["LKF-5MN2-9DNN-NGN",1,0,0,1,1,0,1,1,22,0],["LKF-4WC2-9DNN-NGN",1,0,0,1,0,1,0,1,25,0],["LKF-4WN2-9DNN-NGN",1,0,0,1,0,1,1,1,24,0],["LKF-4MC2-7DNN-NGN",1,0,0,1,0,0,0,1,20,0],["LKF-4MN2-7DNN-NGN",1,0,0,1,0,0,1,1,18,0],["LKF-5MC2-7DNN-NGN",1,0,0,1,1,0,0,1,15,0],["LKF-5MN2-7DNN-NGN",1,0,0,1,1,0,1,1,12,0],["LKF-4WC2-7DNN-NGN",1,0,0,1,0,1,0,1,20,0],["LKF-4WN2-7DNN-NGN",1,0,0,1,0,1,1,1,18,0],["LJF-4MC2-5DNN-NGN",1,0,0,0,0,0,0,1,10,0],["LJF-4MN2-5DNN-NGN",1,0,0,0,0,0,1,1,9,0],["LJF-5MC2-5DNN-NGN",1,0,0,0,1,0,0,1,8,0],["LJF-5MN2-5DNN-NGN",1,0,0,0,1,0,1,1,7,0],["LJF-4WC2-5DNN-NGN",1,0,0,0,0,1,0,1,10,0],["LJF-4WN2-5DNN-NGN",1,0,0,0,0,1,1,1,9,0],["LHD-4MC2-9DNN-NGN",0,0,1,1,0,0,0,1,25,0],["LHD-4MN2-9DNN-NGN",0,0,1,1,0,0,1,1,24,0],["LHD-5MC2-9DNN-NGN",0,0,1,1,1,0,0,1,23,0],["LHD-5MN2-9DNN-NGN",0,0,1,1,1,0,1,1,22,0],["LHD-4WC2-9DNN-NGN",0,0,1,1,0,1,0,1,25,0],["LHD-4WN2-9DNN-NGN",0,0,1,1,0,1,1,1,24,0],["LHD-4MC2-7DNN-NGN",0,0,1,1,0,0,0,1,20,0],["LHD-4MN2-7DNN-NGN",0,0,1,1,0,0,1,1,18,0],["LHD-5MC2-7DNN-NGN",0,0,1,1,1,0,0,1,15,0],["LHD-5MN2-7DNN-NGN",0,0,1,1,1,0,1,1,12,0],["LHD-4WC2-7DNN-NGN",0,0,1,1,0,1,0,1,20,0],["LHD-4WN2-7DNN-NGN",0,0,1,1,0,1,1,1,18,0],["LGD-4MC2-5DNN-NGN",0,0,1,0,0,0,0,1,10,0],["LGD-4MN2-5DNN-NGN",0,0,1,0,0,0,1,1,9,0],["LGD-5MC2-5DNN-NGN",0,0,1,0,1,0,0,1,8,0],["LGD-5MN2-5DNN-NGN",0,0,1,0,1,0,1,1,7,0],["LGD-4WC2-5DNN-NGN",0,0,1,0,0,1,0,1,10,0],["LGD-4WN2-5DNN-NGN",0,0,1,0,0,1,1,1,9,0],["LHF-4MC2-9DNN-NGN",1,0,1,1,0,0,0,1,25,0],["LHF-4MN2-9DNN-NGN",1,0,1,1,0,0,1,1,24,0],["LHF-5MC2-9DNN-NGN",1,0,1,1,1,0,0,1,23,0],["LHF-5MN2-9DNN-NGN",1,0,1,1,1,0,1,1,22,0],["LHF-4WC2-9DNN-NGN",1,0,1,1,0,1,0,1,25,0],["LHF-4WN2-9DNN-NGN",1,0,1,1,0,1,1,1,24,0],["LHF-4MC2-7DNN-NGN",1,0,1,1,0,0,0,1,20,0],["LHF-4MN2-7DNN-NGN",1,0,1,1,0,0,1,1,18,0],["LHF-5MC2-7DNN-NGN",1,0,1,1,1,0,0,1,15,0],["LHF-5MN2-7DNN-NGN",1,0,1,1,1,0,1,1,12,0],["LHF-4WC2-7DNN-NGN",1,0,1,1,0,1,0,1,20,0],["LHF-4WN2-7DNN-NGN",1,0,1,1,0,1,1,1,18,0],["LGF-4MC2-5DNN-NGN",1,0,1,0,0,0,0,1,10,0],["LGF-4MN2-5DNN-NGN",1,0,1,0,0,0,1,1,9,0],["LGF-5MC2-5DNN-NGN",1,0,1,0,1,0,0,1,8,0],["LGF-5MN2-5DNN-NGN",1,0,1,0,1,0,1,1,7,0],["LGF-4WC2-5DNN-NGN",1,0,1,0,0,1,0,1,10,0],["LGF-4WN2-5DNN-NGN",1,0,1,0,0,1,1,1,9,0],["LPD3C4M2P",0,1,0,1,0,0,0,0,21,0],["LPD3C4H2W",0,1,0,1,1,0,0,0,17,0],["LPD3B4M2P",0,1,0,1,0,0,0,1,14,0],["LPD3B4H2W",0,1,0,1,1,0,0,1,11,0],["LPD3C4D2P",0,1,0,0,0,0,0,0,6,0],["LPD3C4B2W",0,1,0,0,1,0,0,0,4,0],["LPD3B4D2P",0,1,0,0,0,0,0,1,3,0],["LPD3B4B2W",0,1,0,0,1,0,0,1,1,0],["LPF3C4M2P",1,1,0,1,0,0,0,0,19,0],["LPF3C4H2W",1,1,0,1,1,0,0,0,14,0],["LPF3B4M2P",1,1,0,1,0,0,0,1,13,0],["LPF3B4H2W",1,1,0,1,1,0,0,1,11,0],["LPF3C4D2P",1,1,0,0,0,0,0,0,5,0],["LPF3C4B2W",1,1,0,0,1,0,0,0,4,0],["LPF3B4D2P",1,1,0,0,0,0,0,1,2,0],["LPF3B4B2W",1,1,0,0,1,0,0,1,0,0],["LTD3C4M2P",0,1,1,1,0,0,0,0,21,0],["LTD3C4H2W",0,1,1,1,1,0,0,0,17,0],["LTD3B4M2P",0,1,1,1,0,0,0,1,14,0],["LTD3B4H2W",0,1,1,1,1,0,0,1,11,0],["LTD3C4D2P",0,1,1,0,0,0,0,0,6,0],["LTD3C4B2W",0,1,1,0,1,0,0,0,4,0],["LTD3B4D2P",0,1,1,0,0,0,0,1,3,0],["LTD3B4B2W",0,1,1,0,1,0,0,1,1,0],["LTF3C4M2P",1,1,1,1,0,0,0,0,19,0],["LTF3C4H2W",1,1,1,1,1,0,0,0,16,0],["LTF3B4M2P",1,1,1,1,0,0,0,1,13,0],["LTF3B4H2W",1,1,1,1,1,0,0,1,11,0],["LTF3C4D2P",1,1,1,0,0,0,0,0,5,0],["LTF3C4B2W",1,1,1,0,1,0,0,0,3,0],["LTF3B4D2P",1,1,1,0,0,0,0,1,2,0],["LTF3B4B2W",1,1,1,0,1,0,0,1,0,0],["LPD3N4M2P",0,1,0,1,0,0,1,2,26,0],["LPD3N4H2W",0,1,0,1,1,0,1,2,26,0],["LPD3N4D2P",0,1,0,0,0,0,1,2,27,0],["LPD3N4B2W",0,1,0,0,1,0,1,2,27,0],["LPF3N4M2P",1,1,0,1,0,0,1,2,26,0],["LPF3N4H2W",1,1,0,1,1,0,1,2,26,0],["LPF3N4D2P",1,1,0,0,0,0,1,2,27,0],["LPF3N4B2W",1,1,0,0,1,0,1,2,27,0],["LTD3N4M2P",0,1,1,1,0,0,1,2,26,0],["LTD3N4H2W",0,1,1,1,1,0,1,2,26,0],["LTD3N4D2P",0,1,1,0,0,0,1,2,27,0],["LTD3N4B2W",0,1,1,0,1,0,1,2,27,0],["LTF3N4M2P",1,1,1,1,0,0,1,2,26,0],["LTF3N4H2W",1,1,1,1,1,0,1,2,26,0],["LTF3N4D2P",1,1,1,0,0,0,1,2,27,0],["LTF3N4B2W",1,1,1,0,1,0,1,2,27,0]],"accessori":[["LPXW4","Staffa orientabile in acciaio inox 316 per Low Profile, inclinabile 0°/30°/45°/60°/90°"],["LPXW4LP","Staffa a basso profilo in acciaio inox 316 per Low Profile, inclinabile 0° e 15°"],["LTXW4","Staffa orientabile in alluminio per Top Conduit, inclinabile 0°/30°/45°/60°/90°"],["LTXW4LP","Staffa a basso profilo in alluminio per Top Conduit, inclinabile 0° e 15°"],["LTXW4SS","Staffa orientabile in acciaio inox 316 per Top Conduit, inclinabile 0°/30°/45°/60°/90° (scheda modelli 10 anni)"],["LTXW4LPSS","Staffa a basso profilo in acciaio inox 316 per Top Conduit, inclinabile 0° e 15° (scheda modelli 10 anni)"],["LTXSAFEKIT","Kit fune di sicurezza per ritenuta secondaria"],["LTXENDCAPKIT","Staffa per montaggio a catena e ritenuta secondaria (inox 304 nella scheda 2025, inox 316 nella scheda 2019)"],["LTXLSXW4","Adattatore retrofit per collegare apparecchi Top Conduit a una staffa LSXW4 esistente"]],"opzioni":[["Tensione","Modelli 10 anni anche 120-250 VDC; modelli 5 anni solo 100-277 VAC"],["Staffa montata in fabbrica","Versioni con staffa inox 316 premontata, solo tappi terminali o cavi da 14\" (es. LHD4MC27DANNGN, LKD4MC27DJ7NGN) a richiesta"],["Kit drilling rig","Versioni con kit accessori per impianti di perforazione (suffisso DR, es. LPD3C4D2PDR) a richiesta"],["Altre configurazioni","Per opzioni di ordinazione aggiuntive consultare la fabbrica (scheda 10 anni)"]],"sprite":{"url":"https://cdn.prod.website-files.com/6aa55eca30c5bd4a1e486a4c/6ad61d7b903a2a63d4386d33_dialight-safesite-linear-ul844-sprite.jpg","colonne":2,"lato":200}}
