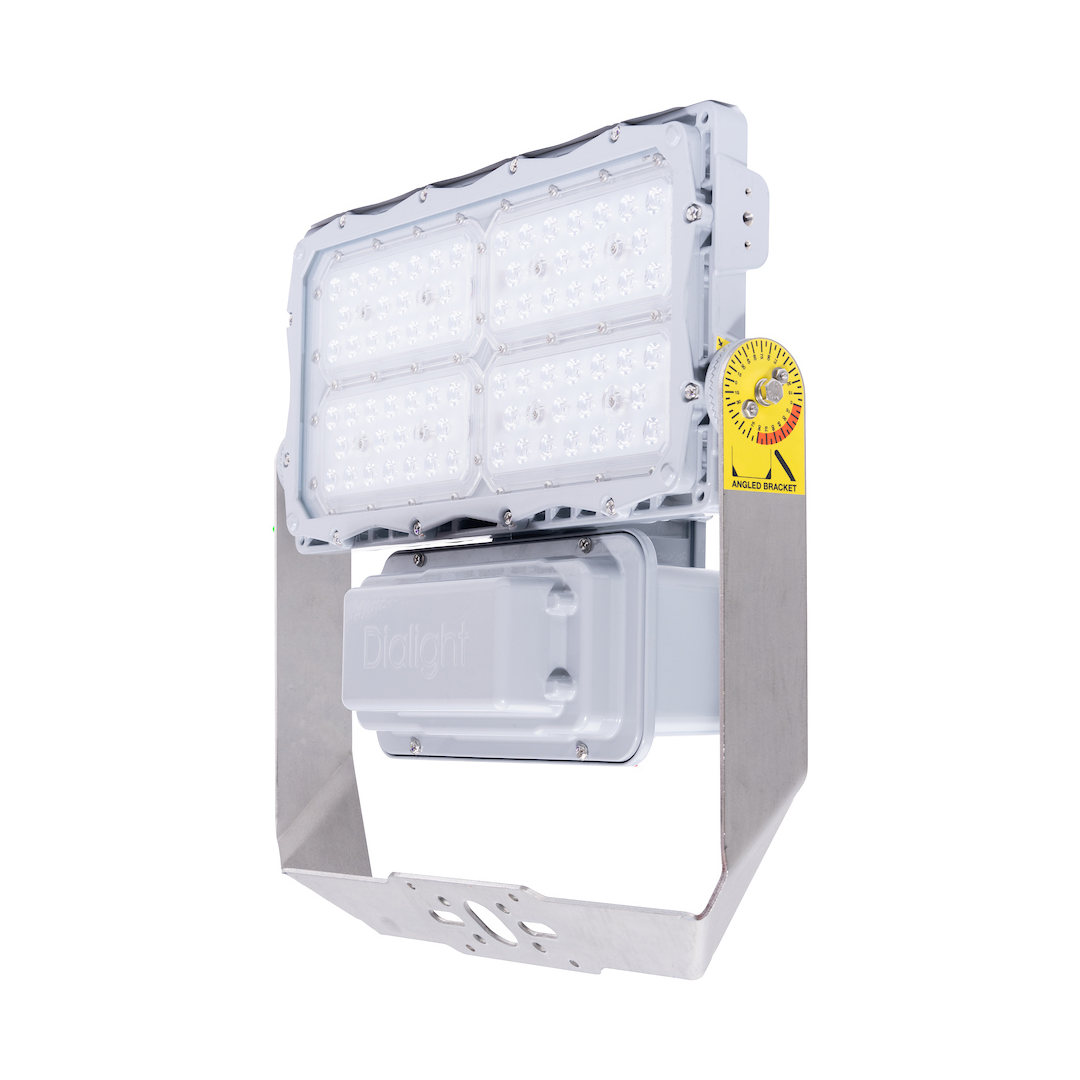

Tipo prodotto: Proiettore LED industriale con batteria di emergenza integrata
Flusso luminoso: 12.000 · 18.000 · 30.000 lm (classi nominali) · in emergenza 1.720 lm (ottica PC) / 1.600 lm (vetro)
Potenza: 87 · 130 · 240 W
Alimentazione: 230-240 VAC, 50/60 Hz
Temperatura di colore: 5000 K e 4000 K (CRI 70) · 2700 K (CRI 80) · 2200 K
Ottiche: Larga 125°, media 56°, asimmetrica
Diffusore: Ottica integrata in PC o vetro
Dimmerazione: DALI 1 / DALI 2, 0-10 VDC
Emergenza: Batteria NiMH 10 W integrata, autonomia 60/90/180 min selezionabile, autotest automatico
Staffe: Angolata inox 316 (standard), diritta inox 316, slipfitter per palo, Heavy-Duty inox 316
Ingressi cavo: 2 x M25
Area: sicura (non classificata)
Certificazioni: CE / ENEC · versione ATEX/IECEx Zona 2/21/22 in fase di certificazione
Temperatura ambiente: da -20 °C a +55 °C
Grado di protezione: IP66/67
Resistenza agli urti: IK10 (ottica integrata in PC) · IK08 (vetro)
Peso: 13 - 16 kg
Mercato: Nord America (UL/CSA)
Versioni: F1U non classificata (UL 1598/A, UL 924) · F1D per luoghi pericolosi (UL 844)
Classificazione: F1D: Class I Div 2 Gruppi A, B, C, D · Class I Zona 2 Gruppo IIC · Class II Div 2 Gruppi F, G · Zone 20, 21, 22 · Class III (Class II Div 1 Gruppi E, F, G con certificazione 'F' fino a 18.000 lm)
Area: sicura (non classificata) per le versioni UL 1598/A (F1U)
Certificazioni: UL 1598/A, CSA C22.2 No. 250, UL 924, CSA C22.2 No. 141 (F1U) · UL 844, CSA C22.2 No. 137 (F1D)
Flusso luminoso: 12.200 - 31.600 lm
Flusso in emergenza: 1.490 - 1.720 lm
Potenza: 87 · 130 · 181 · 240 W
Efficienza: Fino a 152 lm/W
Alimentazione: 120-277 VAC, 50/60 Hz
Emergenza: Batteria integrata, autonomia 90 min di serie (60 o 180 min selezionabili in campo)
Temperatura di colore: 5000 K, 4000 K (CRI 70) · 2700 K (CRI 80) · 2200 K · ambra
Ottiche: NEMA 4, NEMA 6, NEMA 7x6, asimmetrica, asimmetrica larga (solo F1U)
Dimmerazione: DALI 1 e 2, 0-10 VDC
Protezione sovratensioni: 6 kV linea-linea e linea-terra · modulo opzionale 10 kA / 20 kA
Ingressi cavo: 2 x 3/4" NPT
Temperatura ambiente: da -20 °C a +55 °C
Grado di protezione: NEMA 4X
Resistenza agli urti: IK10 (ottica PC e lente PC) · IK08 (vetro)
Durata: L70 > 150.000 h a 25 °C
Superficie esposta al vento (EPA): 0,19 m² (2,00 sq ft)
Peso: 13 - 15 kg
Garanzia: 10 anni (batteria esclusa)
