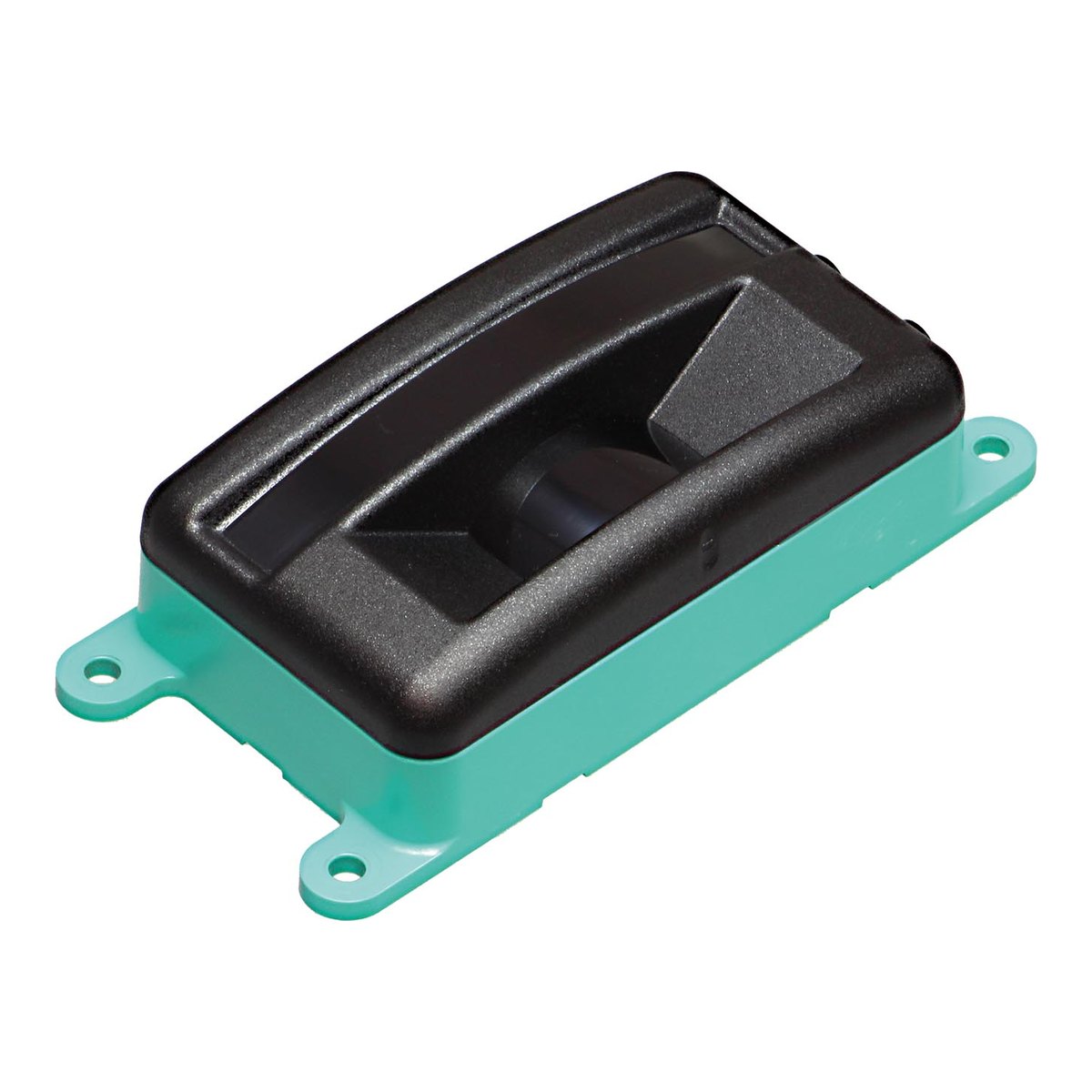

# General
Product type: 2-D / 3-D LiDAR sensor
Brand: Pepperl+Fuchs
Principle: PRT (Pulse Ranging Technology)
Range: 6 … 8 m (R2100) · 10 … 60 m (R2000) · 4 m (R2300)
Light: Red or infrared laser (R2000) · infrared LED (R2100) · infrared laser (R2300)
Measuring angle: 360° (R2000)
# Certifications
Certifications: EAC, UL, UKCA (vary by series)
Area: safe (non-classified)
# Electrical
Supply voltage: 10…30 V DC
Interface: Ethernet · CANopen · RS-232 · 4 I/O
# Mechanical
Dimensions: 106 × 106 × 116.5 mm (R2000) · 157 × 81 × 45 mm (R2100) · 69 × 96 × 57 mm (R2300)
Connection: M12 connectors
{"v":1,"colonne":[{"nome":"Series","valori":["R2000","R2100","R2300"]},{"nome":"Type","valori":["2-D 360°","2-D LED, 11 beams","3-D, 4 layers"]},{"nome":"Range","valori":["4 m","6 m","8 m","10 m","12 m","30 m","60 m"]},{"nome":"Light","valori":["Infrared LED","Infrared laser","Red laser"]},{"nome":"Interface","valori":["4 I/O","CANopen","Ethernet","RS-232"]},{"nome":"Version","valori":["HD","Low temp.","Standard"]}],"righe":[["OBD10M-R2000-4EP-V1V17",0,0,3,2,0,2],["OMD10M-R2000-B23-V1V1D",0,0,3,2,2,2],["OMD12M-R2000-B23-V1V1D-HD-1L",0,0,4,1,2,0],["OBD30M-R2000-4EP-V1V17-T-1L",0,0,5,1,0,1],["OBD30M-R2000-4EP-V1V17-1L",0,0,5,1,0,2],["OMD30M-R2000-B23-V1V1D-HD-1L",0,0,5,1,2,0],["OMD30M-R2000-B23-V1V1D-T-1L",0,0,5,1,2,1],["OMD30M-R2000-B23-V1V1D-1L",0,0,5,1,2,2],["OMD60M-R2000-B23-V1V1D-T-1L",0,0,6,1,2,1],["OMD60M-R2000-B23-V1V1D-1L",0,0,6,1,2,2],["OMD6000-R2100-B16-2V15",1,1,1,0,1,2],["OMD8000-R2100-R2-2V15",1,1,2,0,3,2],["OMD10M-R2300-B23-V1V1D-4S",2,2,0,1,2,2]],"accessori":[["V1-G-2M-PUR","Single-ended female cordset, M12, straight, A-coded, 4-pin, PUR cable, grey"],["V1-G-BK5M-PUR-U","Single-ended female cordset, M12, straight, A-coded, 4-pin, PUR cable, black, UL-approved, suitable for drag chains, torsion-proof"],["V1-W-2M-PUR","Single-ended female cordset, M12, angled, A-coded, 4-pin, PUR cable, grey"],["V1-W-BK5M-PUR-U","Single-ended female cordset, M12, A-coded, 4-pin, PUR cable, black, UL-approved, suitable for drag chains, torsion-proof"],["V15-G-2M-PVC-SUBD9","Adapter cable M12 socket, straight, A-coded 5-pin to Sub-D plug, 9-pin, PVC cable, grey"],["V15-G-5M-PUR-ABG","Single-ended female cordset, M12, straight, A-coded, 5-pin, PUR cable, grey, shielded"],["Functional grounding LS610/VDM1000 accessories","Functional grounding for LS610 / LS611 / VDM100 series"],["MH-R2000","Mounting aid for R2000 series sensors, quick-lock and adjustment device"],["Protective cap LS610 accessories","M12 protective cap set (male + female) for LS610 / LS611 series"],["V1-G-5M-PUR","Single-ended female cordset, M12, straight, A-coded, 4-pin, PUR cable, grey"],["V19-G-5M-PUR-ABG","Single-ended female cordset, M12, straight, A-coded, 8-pin, PUR cable, grey, shielded"],["V1-W-5M-PUR-ABG","Single-ended female cordset, M12, angled, A-coded, 4-pin, PUR cable, grey, shielded"],["V1SD-90-W-3M-PUR-ABG-V45-G","Bus cable, Ethernet, angled M12 plug, D-coded to RJ45, Ethernet-coded, 4-pin, PUR cable, blue, Cat5e, shielded"],["V1SD-G-ABG-PG9","Single-ended male cordset, M12, 4-pin, D-coded, shielded, field-attachable"]],"datasheet":{"base":"https://files.pepperl-fuchs.com/webcat/navi/productInfo/pds/","pn":["70112342","305983","305984","70112346","70112345","305986","305987","305985","317294","317220","70126885","264888","322226"],"apn":["109434","218028","109437","217482","270509","200763","181313","250605","181312","034442","200765","198631","280625","209344"],"noit":["034442","109434","109437","181312","181313","198631","200763","200765","209344","217482","218028","250605","264888","270509","280625","305983","305984","305985","305986","305987","317220","317294","322226","70112342","70112345","70112346","70126885"]},"fonte":"Pepperl+Fuchs Industrial Sensors Product Guide (tdoct6719a)"}
