# General

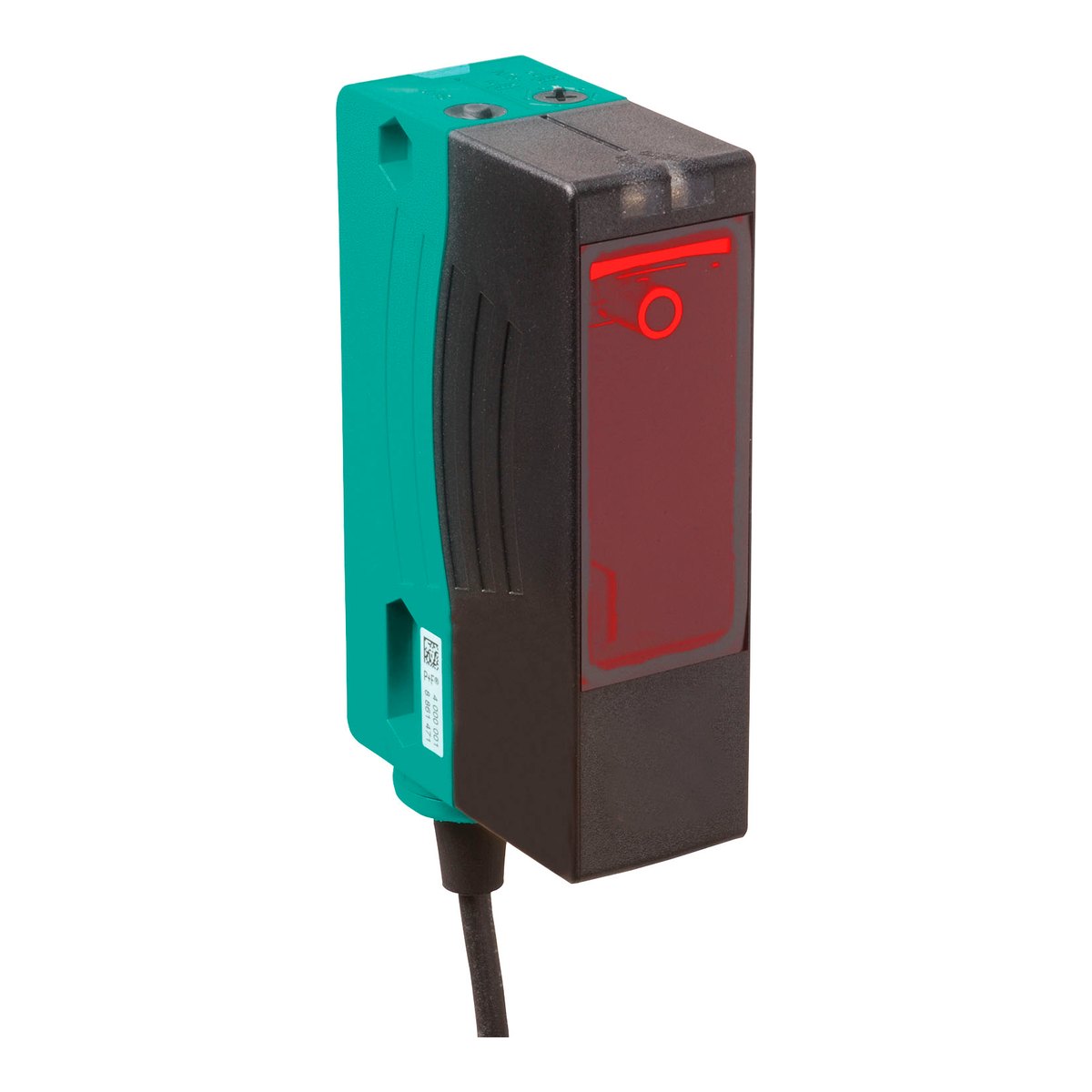

Product type: Laser distance sensor
Brand: Pepperl+Fuchs
Principle: PRT (Pulse Ranging Technology)
Range: 8 m · 15 m (to object) · 50 m (to reflector)
Light: Red or infrared laser (class 1)
Operating elements: Push-button
# Certifications
Certifications: EAC, UL, UKCA
Area: safe (non-classified)
# Electrical
Supply voltage: 10…30 V DC
Output: 1 or 2 push-pull · 0/4…20 mA analogue (IO-Link versions)
Interface: IO-Link (depending on code)
# Mechanical
Dimensions (L × W × H): 54.6 × 25.8 × 88 mm
Connection: M12 connector · cable with M12 connector
{"v":1,"colonne":[{"nome":"Range","valori":["8 m","15 m","50 m"]},{"nome":"Light","valori":["Infrared laser","Red laser"]},{"nome":"Interface","valori":["IO-Link","—"]},{"nome":"Output","valori":["1 × push-pull","2 × push-pull"]},{"nome":"Connection","valori":["Cable + M12","M12 conn."]}],"righe":[["VDM28-8-L1-IR-IO/73C/110/122",0,0,0,0,1],["VDM28-8-L1-IO/110/115b/122",0,1,0,0,0],["VDM28-8-L1-IO/33/110/115b/122",0,1,0,0,0],["VDM28-8-L1-IO/73c/110/122",0,1,0,0,1],["VDM28-8-L1-IO/115b/136",0,1,0,1,0],["VDM28-8-L1-IO/73c/136",0,1,0,1,1],["VDM28-8-L1/73c/136",0,1,1,1,1],["VDM28-15-L1-IO/110/115b/122",1,1,0,0,0],["VDM28-15-L1-IO/73c/110/122",1,1,0,0,1],["VDM28-15-L1/73c/136",1,1,1,1,1],["VDM28-50-R1-IR-IO/73c/110/122",2,0,0,0,1],["VDM28-50-R1-IO/73c/110/122",2,1,0,0,1],["VDM28-50-R1-IO/73c/136",2,1,1,1,1],["VDM28-50-R1/73c/136",2,1,1,1,1]],"accessori":[["ICE1-8IOL-G30L-V1D","Ethernet IO-Link module with 8 inputs/outputs"],["ICE1-8IOL-G60L-V1D","Ethernet IO-Link module with 8 inputs/outputs"],["IO-Link-Master02-USB","IO-Link master, supply via USB port or separate voltage supply, LED indicators, M12 plug for sensor connection"],["OFR-100/100","Reflective tape, 100 mm x 100 mm"],["OMH-05","Mounting aid for circular profiles ø 12 mm or flat profiles 1.5 mm ... 3 mm"],["OMH-07-01","Mounting aid for circular profiles ø 12 mm or flat profiles 1.5 mm ... 3 mm"],["OMH-21","Mounting bracket"],["OMH-22","Mounting bracket"],["OMH-K01","Mounting clamp for sensors with dovetail"],["OMH-K03","Mounting clamp for sensors with dovetail"],["OMH-RL28-C","Protective cover for protection against welding beads"],["OMH-RLK29-HW","Mounting bracket for rear wall mounting"],["OMH-VDM28-01","Metal enclosure for inserting protective panes or diaphragms"],["OMH-VDM28-02","Mounting and fine adjustment device for sensors from the 28 series"]],"datasheet":{"base":"https://files.pepperl-fuchs.com/webcat/navi/productInfo/pds/","pn":["267757","297901","297904","232763","297902","297903","297900","297896","297897","297895","239793","232767","297899","297898"],"apn":["70101643","295313","304074","134196","129638","267578","405584","127828","115635","115637","909350","124291","229571","281662"],"noit":["115635","115637","124291","127828","129638","134196","229571","232763","232767","239793","267578","267757","281662","295313","297895","297896","297897","297898","297899","297900","297901","297902","297903","297904","304074","405584","70101643","909350"]},"fonte":"Pepperl+Fuchs Industrial Sensors Product Guide (tdoct6719a)"}
