Surge protection for instrument loops: FS/FP/FN-LB-I stainless steel field-mount protectors for Zone 1, screwed into the transmitter cable entry, and P-LB modules plugging into the field side of K-System KF modules, up to SIL 3.

ATEX

IECEx

SIL

Request a quote Call an engineer Documents and guides

Description

Technical Specifications

Applications

Download

Datasheets

FS-LB-I, FP-LB-I and FN-LB-I protectors are installed directly on the instrument, in a free cable gland or conduit entry of the transmitter, with M20 x 1.5, PG13.5 or 1/2" NPT thread. The AISI 316 stainless steel IP67 housing and Ex ia IIC T6 certification allow use in Zone 1 and 2; they clamp at 85 V line-to-line and 500 V line-to-earth, also protecting instruments with less than 500 V isolation to earth.

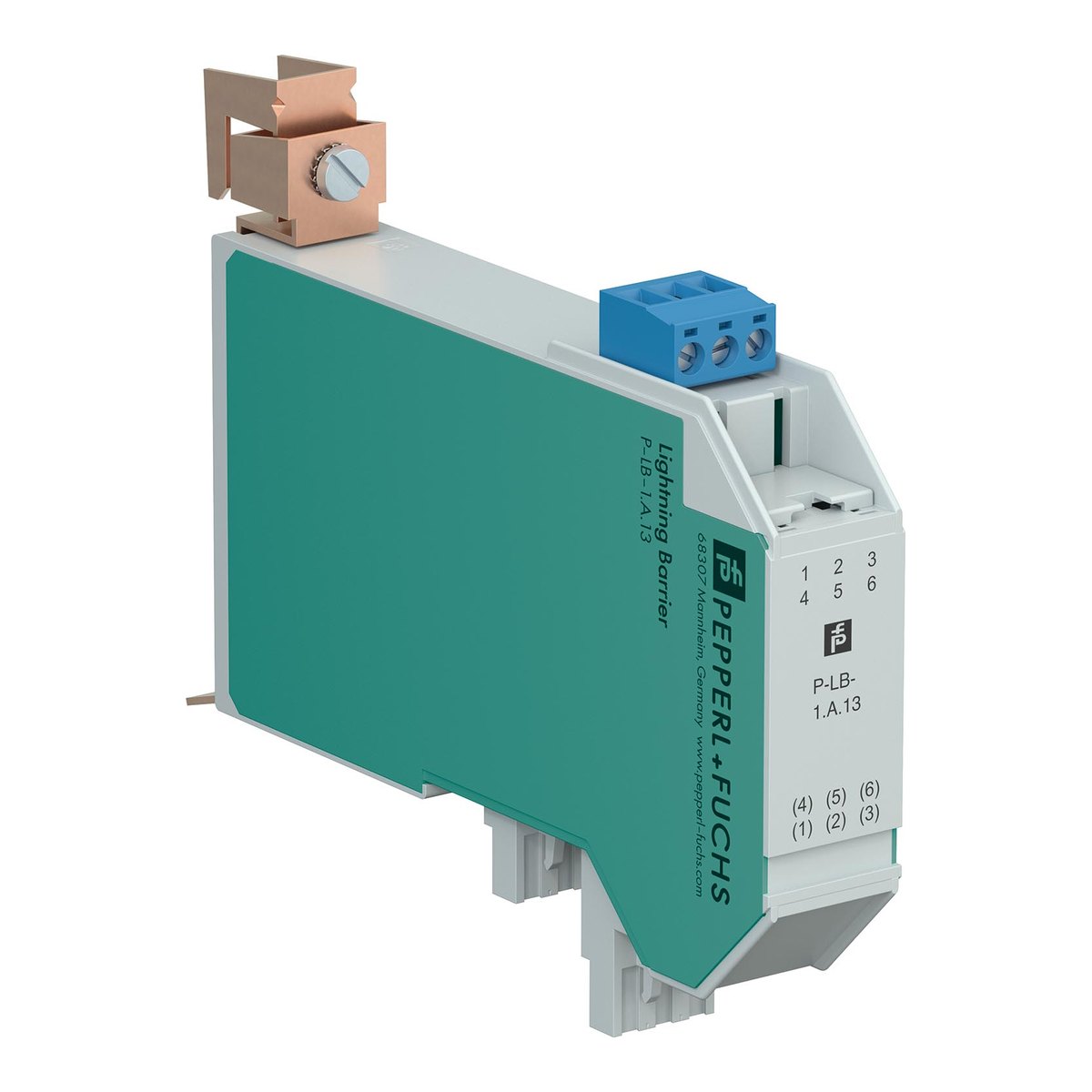

P-LB modules plug into the field side of K-System KF modules and protect the terminals given by the last digits of the order code, with no additional cabinet wiring. Both solutions must be connected to an effective earth at the same equipotential level as the protected instrument.

Key features

F*-LB-I: 1 channel, total discharge current 20 kA (8/20 µs)
F*-LB-I: AISI 316 stainless steel, IP67, ATEX II 2G Ex ia IIC T6, CSA
P-LB: 1 or 2 channels, up to 10 kA per conductor, auto reset
P-LB: for [Ex ia Ga] IIC circuits into Zone 0; Zone 2 installation
Response time 1 ns symmetrical, 100 ns asymmetrical; bandwidth ≥ 40 kHz
Up to SIL 3 acc. to IEC/EN 61508
Operating voltage up to 48 V (F*-LB-I) or 30 V (P-LB)

Use the filters in Variants and codes to find the exact part number: where available you will find the official Pepperl+Fuchs datasheet and, for every code, a quote request. For versions not listed, accessories or availability, contact us.

Zone 0

Explosive gas atmosphere present continuously or for long periods

Zone 1

Explosive gas atmosphere likely to occur in normal operation

Zone 2

Explosive gas atmosphere unlikely to occur and, if it does, only for a short period

# General Product type: Surge protection barrier for signal lines Brand: Pepperl+Fuchs Series: FS/FP/FN-LB-I, P-LB Channels: 1 (F*-LB-I), 1 or 2 (P-LB) Mounting: instrument cable entry (F*-LB-I), field side of KF module (P-LB) Thread: M20 x 1.5 (FS), PG13.5 (FP), 1/2" NPT (FN) # Certifications ATEX F*-LB-I: II 2G Ex ia IIC T6 ATEX P-LB: II (1)G [Ex ia Ga] IIC; II 3G Ex nA IIC T4 Gc IECEx P-LB: [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I CSA: F*-LB-I (cCSAus) SIL: up to SIL 3 acc. to IEC/EN 61508 # Electrical Rated voltage: ≤ 48 V (F*-LB-I), max. 30 V (P-LB) Rated current: ≤ 250 mA Discharge current: 20 kA total (F*-LB-I), 10 kA per conductor (P-LB) Clamping voltage: 85 V line-to-line (F*-LB-I), 45 V (P-LB) Insulation to earth: 500 V Leakage current: ≤ 5 µA Response time: 1 ns symmetrical, 100 ns asymmetrical # Mechanical F*-LB-I housing: stainless steel 1.4401 (AISI 316), AF22, length 77 mm, 0.3 m cable Mass: approx. 200 g (F*-LB-I), 70 g (P-LB) P-LB dimensions: 20 x 104 x 127 mm Degree of protection: IP67 (F*-LB-I), IP20 (P-LB) Ambient temperature: -30 … 60 °C (F*-LB-I), -20 … 60 °C (P-LB)

{"v":1,"colonne":[{"nome":"Channels","valori":["1","2"]},{"nome":"Thread","valori":["1/2\" NPT","M20 x 1.5","PG13.5","–"]},{"nome":"Protects","valori":["Terminals 1, 2","Terminals 1, 2, 3","Terminals 1, 2, 3, 4","Terminals 1, 2, 3, 4, 5, 6","Terminals 1, 2, 3, 6","Terminals 1, 2, 4, 5","Terminals 1, 3","Terminals 1, 3, 4, 6","Terminals 2, 3","Terminals 2, 3, 5, 6","–"]}],"righe":[["FS-LB-I",0,1,10],["FP-LB-I",0,2,10],["FN-LB-I",0,0,10],["P-LB-1.A.13",0,3,6],["P-LB-2.A.1346",1,3,7],["P-LB-1.B.12",0,3,0],["P-LB-2.B.1245",1,3,5],["P-LB-1.C.123",0,3,1],["P-LB-1.D.1234",0,3,2],["P-LB-2.C.2356",1,3,9],["P-LB-1.E.23",0,3,8],["P-LB-1.F.1236",0,3,4],["P-LB-2.D.123456",1,3,3]],"datasheet":{"base":"https://files.pepperl-fuchs.com/webcat/navi/productInfo/pds/","pn":["098916","098917","098918","103637","103638","103639","103640","103641","103642","103643","103645","103646","103647"],"apn":[],"noit":["098916","098917","098918","103637","103638","103639","103640","103641","103642","103643","103645","103646","103647"]},"fonte":"Pepperl+Fuchs price list 2026 / official datasheets"}
