Zone 1
Explosive gas atmosphere likely to occur in normal operation
Zone 2
Explosive gas atmosphere unlikely to occur and, if it does, only for a short period
Zone 21
Explosive dust atmosphere likely to occur in normal operation
Zone 22
Explosive dust atmosphere unlikely to occur and, if it does, only for a short period
# General

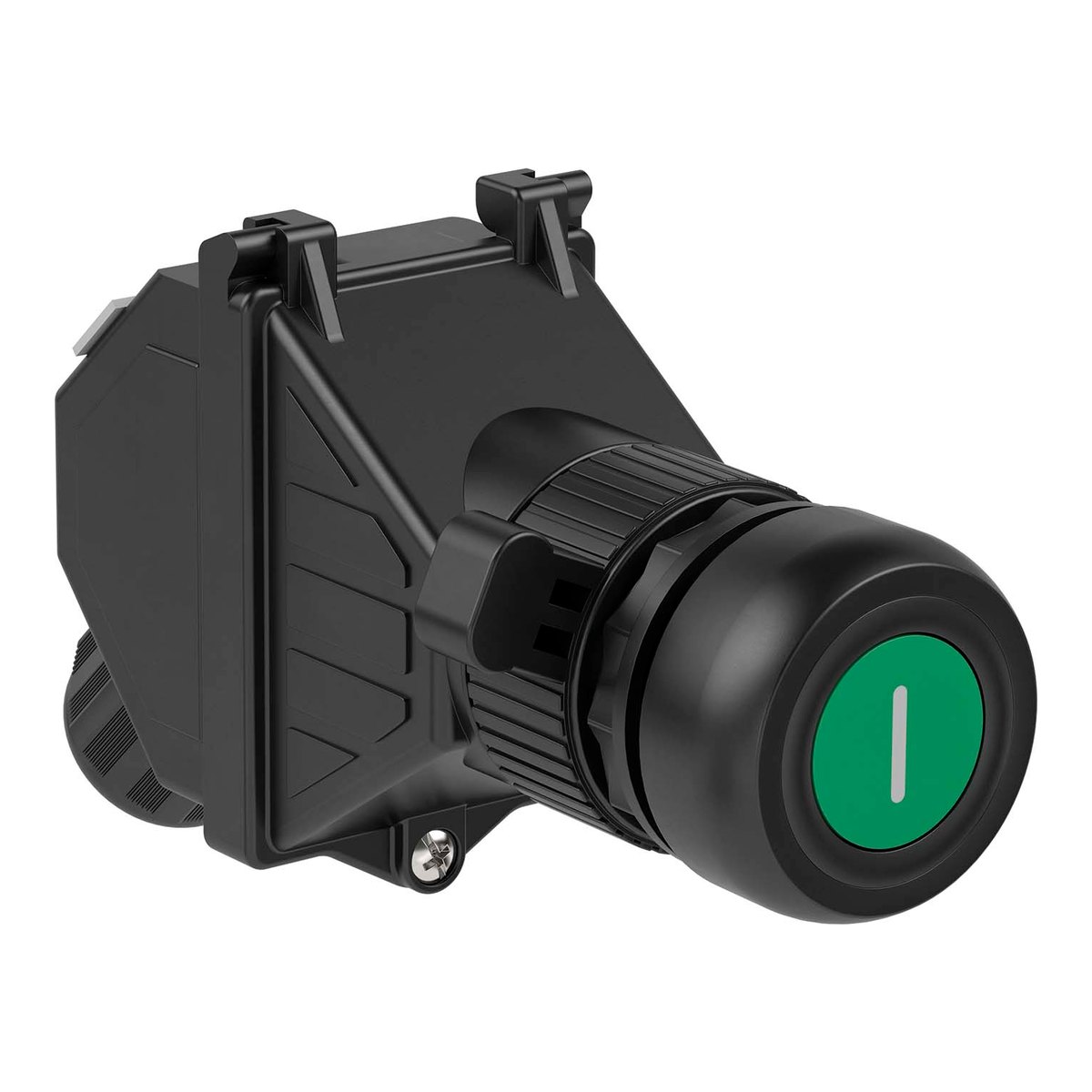

Product type: Ex e panel-mount control unit
Brand: Pepperl+Fuchs
Series: PM (PMP, PMI, PMS, PML, PMR)
Mounting: Panel, 1…6 mm thick, 30.6 mm hole
Material: Polyamide (PA), black
# Certifications
ATEX: CML 16 ATEX 3106X – II 2 GD Ex de IIC T6 Gb / Ex tb IIIC T80 °C Db
IECEx: IECEx CML 16.0046X
UKCA: CML 21 UKEX 21275X
# Electrical
Operating voltage: 250 V max (potentiometers 200 V max)
Operating current: 16 A max
Utilisation categories: AC12 16 A, AC15 10 A (12…250 V AC); DC13 1 A (12…110 V DC)
Terminals: 2 x 2.5 mm²
# Mechanical
Cable entry: 1 M20 cable gland, Ø 5.5…13 mm
Degree of protection: IP66
Ambient temperature: −40…+50 °C
{"v":1,"colonne":[{"nome":"Function","valori":["Pushbutton","Double pushbutton","Illuminated pushbutton","Emergency stop","Selector switch","Key switch","LED indicator","Potentiometer"]},{"nome":"Colour","valori":["Red","Green","Amber","Blue","White","Black","Inserts, 6 colours","Mixed inserts"]},{"nome":"Contacts","valori":["1NO+1NC","2NO","2NC","1NO","1NC","–"]},{"nome":"Detail","valori":["No labelling","Inserts \"0\" / \"I\"","–","Ø 39 mm, key release","Ø 40 mm, twist release","Ø 55 mm, twist release","Positions 0-I","Positions I-II","Positions I-0-II","Positions 0-I-II","20–250 V AC/DC","0.5 kΩ","1 kΩ","2 kΩ","10 kΩ"]}],"righe":[["PMP.PZ1.C.11",0,6,0,0],["PMP.PZ1.C.20",0,6,1,0],["PMP.PZ1.C.02",0,6,2,0],["PMP.DZ3.C.11",1,7,0,1],["PMP.DZ3.C.20",1,7,1,1],["PMP.DZ3.C.02",1,7,2,1],["PMI.IR.I.W.10",2,0,3,2],["PMI.IR.I.W.01",2,0,4,2],["PMI.IG.I.W.10",2,1,3,2],["PMI.IG.I.W.01",2,1,4,2],["PMP.JR.C.11",3,0,0,3],["PMP.E4.C.11",3,0,0,4],["PMP.E5.C.11",3,0,0,5],["PMP.JR.C.02",3,0,2,3],["PMP.E4.C.02",3,0,2,4],["PMP.E5.C.02",3,0,2,5],["PMS.N7.C.11",4,5,0,7],["PMS.N9.C.11",4,5,0,9],["PMS.N6.C.20",4,5,1,6],["PMS.N8.C.20",4,5,1,8],["PMS.K6.C.11",5,5,0,6],["PMS.K6.C.20",5,5,1,6],["PML.LR.L.W.2",6,0,5,10],["PML.LG.L.W.2",6,1,5,10],["PML.LO.L.W.2",6,2,5,10],["PML.LB.L.W.2",6,3,5,10],["PML.LW.L.W.2",6,4,5,10],["PMR.R2.P.0.5K",7,5,5,11],["PMR.R2.P.1K",7,5,5,12],["PMR.R2.P.2K",7,5,5,13],["PMR.R2.P.10K",7,5,5,14]],"fonte":"Pepperl+Fuchs price list 2026 / official documentation","datasheet":{"base":"https://files.pepperl-fuchs.com/webcat/navi/productInfo/pds/","pn":["297339","297341","297340","297348","297350","297349","297351","297352","297353","297354","297346","297342","297344","297347","297343","297345","297356","297358","297355","297357","297360","297359","297362","297363","297364","297366","297365","297367","297368","297369","297370"],"apn":[],"noit":["297339","297340","297341","297342","297343","297344","297345","297346","297347","297348","297349","297350","297351","297352","297353","297354","297355","297356","297357","297358","297359","297360","297362","297363","297364","297365","297366","297367","297368","297369","297370"]}}
