Zone 0
Explosive gas atmosphere present continuously or for long periods
Zone 1
Explosive gas atmosphere likely to occur in normal operation
Zone 2
Explosive gas atmosphere unlikely to occur and, if it does, only for a short period
# General
Product type: Ethernet-APL field switch
Brand: Pepperl+Fuchs
Series: FieldConnex Ethernet-APL Rail Field Switch ARS11 / ARS12
Versions: ARS11 (APL + PROFIBUS PA proxy), ARS12 (APL only)
Spur ports: 8, 16, 24

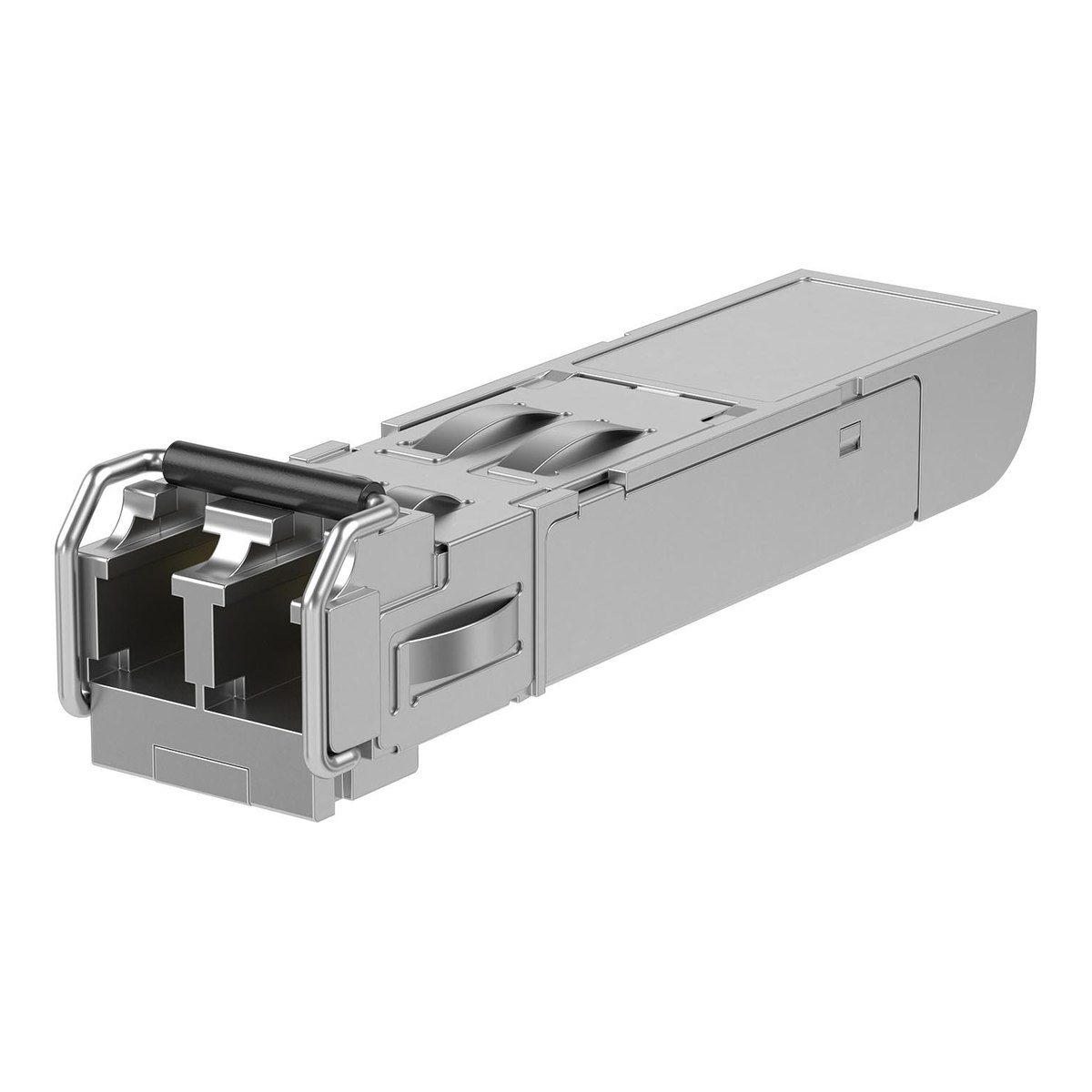

Ethernet ports: 2 x 1000BASE-T, 2 x SFP
PROFINET: Class B, MRP, S2 redundancy, dynamic reconfiguration
Configuration and diagnostics: FDI, web, PROFINET device functions, SNMP
Network security: SNMPv3, HTTPS, locking of unused ports
# Certifications
Switch installation: Zone 2
Spur ports: Ex ic (instruments in Zone 2) or Ex ia (instruments in Zone 0/1), to 2-WISE and FISCO
# Electrical
Power input: redundant, 20…60 V DC
# Mechanical
Spur terminals: screw or spring
ACC-ARS-SW separation wall: 50 mm clearance between non-intrinsically safe circuits and spur terminals, polycarbonate, pack of 2
ACC-PC-45 / ACC-PC-SFP covers: polycarbonate, pack of 10
{"v":1,"colonne":[{"nome":"Series","valori":["ARS11 (APL + PROFIBUS PA proxy)","ARS12 (APL only)"]},{"nome":"Spur ports","valori":["8","16","24"]},{"nome":"Spur protection","valori":["Ex ia (Zone 0/1)","Ex ic (Zone 2)"]},{"nome":"Terminals","valori":["Screw","Spring"]}],"righe":[["ARS11-B2-IC08-1",0,0,1,0],["ARS11-B2-IC16-1",0,1,1,0],["ARS11-B2-IC24-1",0,2,1,0],["ARS12-B2-IC08-1",1,0,1,0],["ARS12-B2-IC16-1",1,1,1,0],["ARS12-B2-IC24-1",1,2,1,0],["ARS11-B2-IC08-2",0,0,1,1],["ARS11-B2-IC16-2",0,1,1,1],["ARS11-B2-IC24-2",0,2,1,1],["ARS12-B2-IC08-2",1,0,1,1],["ARS12-B2-IC16-2",1,1,1,1],["ARS12-B2-IC24-2",1,2,1,1],["ARS11-B2-IA08-1",0,0,0,0],["ARS11-B2-IA16-1",0,1,0,0],["ARS11-B2-IA24-1",0,2,0,0],["ARS12-B2-IA08-1",1,0,0,0],["ARS12-B2-IA16-1",1,1,0,0],["ARS12-B2-IA24-1",1,2,0,0],["ARS11-B2-IA08-2",0,0,0,1],["ARS11-B2-IA16-2",0,1,0,1],["ARS11-B2-IA24-2",0,2,0,1],["ARS12-B2-IA08-2",1,0,0,1],["ARS12-B2-IA16-2",1,1,0,1],["ARS12-B2-IA24-2",1,2,0,1]],"accessori":[["ACC-PC-45","Protective Cover"],["ACC-PC-SFP","Protective Cover"],["ACC-ARS-SW","Separation Wall"],["SFP-1","SFP Transceiver"],["SFP-2","SFP Transceiver"],["ACC-ARS-WMK","Wall Mounting Kit"],["FN-LBAS-IA1","Surge Protector"],["M-LBAS-IA1.DE","Surge Protector"],["FS-LBAS-IA1","Surge Protector"],["M-LBAS-IA1.IE","Surge Protector"],["SFP-3","SFP Transceiver"],["SFP-4","SFP Transceiver"]],"datasheet":{"base":"https://files.pepperl-fuchs.com/webcat/navi/productInfo/pds/","pn":["70121859-100000","70121859-100001","70121859-100002","70121859-100003","70121859-100004","70121859-100005","70121859-100006","70121859-100007","70121859-100008","70121859-100009","70121859-100010","70121859-100011","70121875-100000","70121875-100001","70121875-100002","70121875-100003","70121875-100004","70121875-100005","70121875-100006","70121875-100007","70121875-100008","70121875-100009","70121875-100010","70121875-100011"],"apn":["70111139","70111140","70111141","70125426","70125441","70135356","70146514","70146515","70146555","70146556","70151780","70151781"],"noit":["70111139","70111140","70111141","70121859-100000","70121859-100001","70121859-100002","70121859-100003","70121859-100004","70121859-100005","70121859-100006","70121859-100007","70121859-100008","70121859-100009","70121859-100010","70121859-100011","70121875-100000","70121875-100001","70121875-100002","70121875-100003","70121875-100004","70121875-100005","70121875-100006","70121875-100007","70121875-100008","70121875-100009","70121875-100010","70121875-100011","70125426","70125441","70135356","70146514","70146515","70146555","70146556","70151780","70151781"]},"fonte":"Pepperl+Fuchs price list 2026 / official datasheets"}
