# General

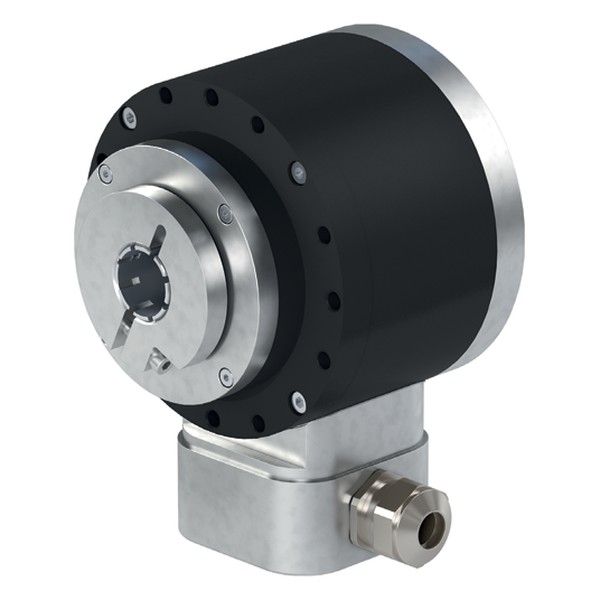

Product type: Heavy-duty optical incremental encoder
Brand: Pepperl+Fuchs
Housing diameter: 93 mm (ENI90HD) · 110 mm (ENI11HD)
Pulse count: up to 5000 (ENI90HD) · up to 2500 (ENI11HD)
Shaft: Recessed hollow Ø 12…17 mm (ENI90HD) · hollow or recessed hollow Ø 16…28 mm (ENI11HD), insulated versions
# Electrical
Output: Push-pull 5…30 V or 10…30 V · RS-422 5 V, 5…30 V or 10…30 V
Dielectric strength: up to 2.5 kV (ENI11HD)
# Mechanical
Connection: 1…10 m cable · M12 connector · M23 · terminal compartment with cable gland
Rotational speed: max. 6000 rpm (ENI90HD) · max. 3000 rpm (ENI11HD)
# Environmental
Degree of protection: IP65 · IP66/IP67 · IP69K (ENI11HD)
Operating temperature: -40…+85 °C (ENI90HD) · -40…+80 °C (ENI11HD)
{"v":1,"colonne":[{"nome":"Series","valori":["ENI90HD · Ø 93","ENI11HD · Ø 110"]},{"nome":"Shaft (Ø mm)","valori":["Recessed 12…17","Hollow 16…28","Recessed 16…20"]},{"nome":"Output","valori":["Push-pull 5…30 V","RS-422 5…30 V","RS-422 5 V","RS-422 10…30 V","Push-pull 10…30 V"]},{"nome":"Pulses","valori":["max 5000","max 2500"]}],"righe":[["ENI90HD-R…-UD1-…",0,0,0,0],["ENI90HD-R…-UD2-…",0,0,1,0],["ENI11HD-H…-RS4-T…",1,1,2,1],["ENI11HD-H…-RS6-T…",1,1,3,1],["ENI11HD-H…-PP5-T…",1,1,4,1],["ENI11HD-R…-RS4-T…",1,2,2,1],["ENI11HD-R…-RS6-T…",1,2,3,1],["ENI11HD-R…-PP5-T…",1,2,4,1]],"accessori":[["ACC-TOR-ENI90HD-120A","Support plate, 120 mm, angled"],["ACC-SET-ENI90HD-GASKET","Seal insert set for cable glands"],["ACC-SET-ENI90HD-EARTH","Grounding set"],["9416","Single-ended female cordset"],["9416L","Single-ended female cordset"],["ACC-SET-ENI11HD-DISMOUNTING","Dismounting set for ENI11HD rotary encoder"],["ACC-SET-ENI11HD-EARTH","Grounding kit for ENI11HD rotary encoder"],["ACC-SET-ENI11HD-GASKET","Seal insert set for cable glands"],["ACC-SET-ENI11HD-R16","Mounting accessory for 16-mm recessed hollow shaft"]],"datasheet":{"base":"https://files.pepperl-fuchs.com/webcat/navi/productInfo/pds/","pn":["","","","","","","",""],"apn":["","","","","","","","",""],"noit":[]},"fonte":"Pepperl+Fuchs Industrial Sensors Product Guide (tdoct6719a)"}
