Cable-pull encoders – Linear distance measurement up to 60 m with modular architecture

Cable-pull encoders convert a linear movement into a position signal via a drum with a measuring cable coupled to a rotary encoder. The modular product architecture allows cable pulls, encoders and accessory components to be perfectly coordinated: scissor lift tables, cranes, stacker cranes and mobile construction machinery such as crane vehicles, excavators, rollers and lifting vehicles.

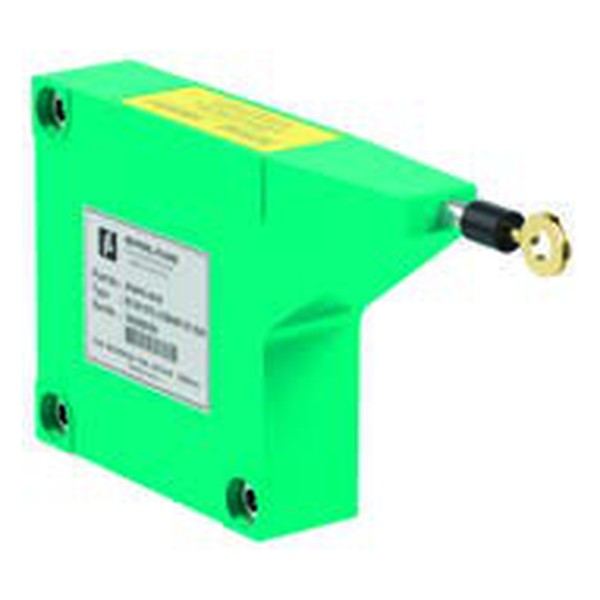

• EC*10TL: the most affordable version, solid and lightweight plastic design, flat housing for confined spaces, coupling-free adaptation
• EC*21IL: rugged and compact aluminium drum housing, bellows with steel tip to prevent ice formation
• EC*30PL: aluminium drum housing (optional Hart Coat coating), drum movement via threaded spindle for high accuracy and very low hysteresis
• EC*40HD: for extremely harsh weather and environmental conditions, open system for easy cleaning

Key features

• Measuring lengths up to 60 m
• Housings from plastic to anodised aluminium
• Accessories for cable mounts, attachments and guide pulleys

These products are ordered via a type code: the codes in the table are partial type codes taken from the Pepperl+Fuchs guide, where “…” marks the options still to be defined (flange, connection, resolution and so on). Tell us the configuration you need in the quote request and we will confirm the full part number and its datasheet.

Use the filters in Variants and codes to find the exact part number: every code links to the official Pepperl+Fuchs datasheet and to a quote request. For versions not listed, accessories or availability, contact us.
