LMK heating jackets for 10-20 L and 50 L gas cylinders and 47 kg propane cylinders: they prevent frosting and keep the gas flow rate constant. For safe areas.

UKCA

Request a quote Call an engineer Documents and guides

Description

Technical Specifications

Applications

Download

Datasheets

When gas is drawn quickly from cylinders that hold it in liquid phase, the cylinder surface cools and may frost over: the flow rate drops and some of the gas is left in the cylinder. LMK heating jackets keep the cylinder at temperature and stabilise the flow rate, which is particularly important with calibration gases, where repeatability is essential.

Models

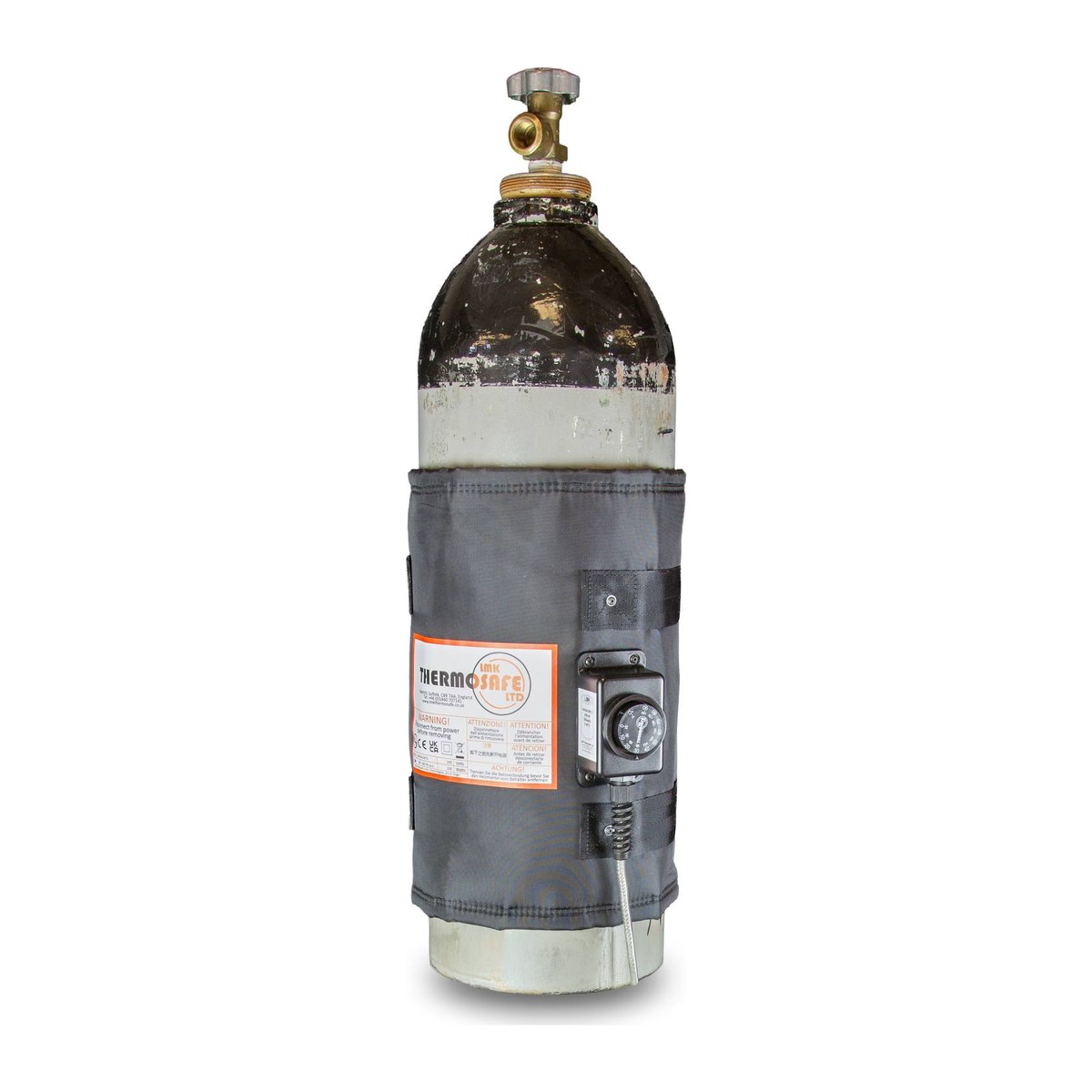

HHGA: for small 10-20 L cylinders (Ø 160-210 mm), 200 W, 0-90 °C thermostat.
HHG: for 50 L cylinders (size K), 450 W, 0-90 °C thermostat or 0-50 °C digital thermostat (HHG DIGI).

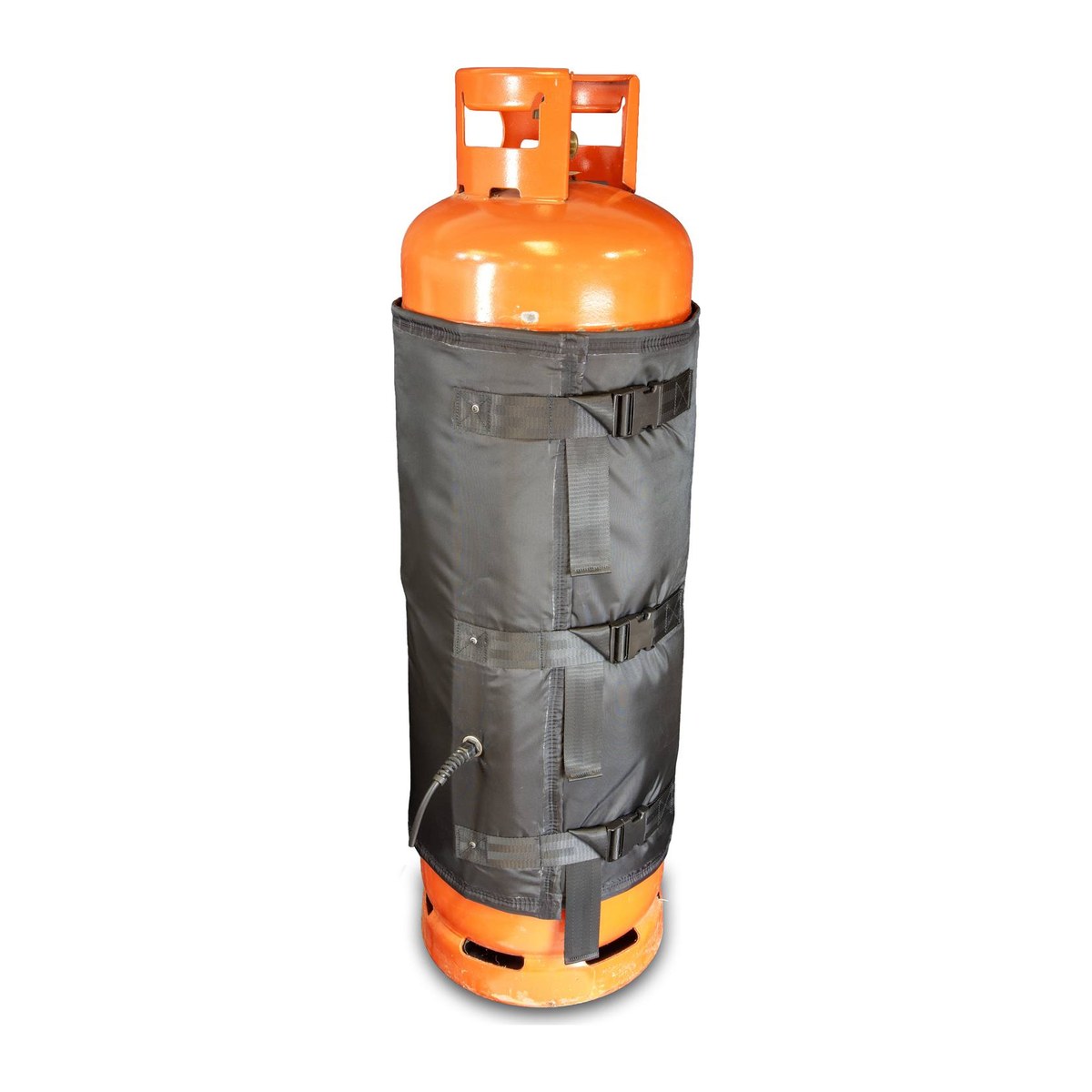

HJWGB: for 47 kg propane cylinders, 690 W, fixed 50 °C thermostat, IP56 ingress protection for outdoor use.

Pressure monitoring systems must always remain active in accordance with safety regulations. For cylinders in hazardous areas, the ATEX/IECEx InteliHeat Flexiplus (IHF/G) versions are available. On request, LMK makes jackets for horizontal cylinders, skids and large ISO tanks.

No items found.

# General Product type: Flexible heating jacket for gas cylinders Installation area: Safe area (non-classified); HJWGB also outdoors Cylinders: 10-20 L (circumference 505-655 mm) · 50 L size K (685-830 mm) · 47 kg propane (1,140-1,270 mm) # Certifications Markings: CE, UKCA # Electrical Power supply: Single-phase 240 V, 50/60 Hz (HHG also 110 V) Power: 200 W (HHGA) · 450 W (HHG) · 690 W (HJWGB) Thermostat: 0-90 °C (HHGA, HHG) · digital 0-50 °C (HHG DIGI) · fixed 50 °C (HJWGB) Power cable: 5 m # Environmental Ingress protection: IP54 (HJWGB: IP56) Ambient temperature: -20 °C to +40 °C (digital: 0 °C to +40 °C)

{"v":1,"marca":"LMK Thermosafe","colonne":[{"nome":"Cylinder","valori":["10-20 L (Ø 160-210 mm)","50 L size K","Propane 47 kg"]},{"nome":"Thermostat","valori":["0-90 °C","Digital 0-50 °C","Fixed 50 °C"]}],"righe":[["1879",0,0,0],["1111",1,0,1],["3807",1,1,2],["1877",2,2,3]],"descrizioni":["HHGA – For Ø 160-210 mm cylinders, 200 W","HHG24090 – For 50 L cylinders, 450 W","HHG24050 DIGI – For 50 L cylinders, digital, 450 W","HJWGB – For 47 kg propane cylinders, IP56, 690 W"],"sprite":{"url":"https://cdn.prod.website-files.com/6aa55eca30c5bd4a1e486a4c/6ad4b6976a6d2025eaedf125_LMK-gas-sprite.jpg","colonne":5,"lato":200},"accessori":[["1560","PVC cover for 50 L gas cylinder, for outdoor use (not for IHF)",null]],"opzioni":[["Hazardous area","ATEX/IECEx IHF/G and IHF-R/G versions in the InteliHeat Flexiplus range"],["Special sizes","Jackets for horizontal cylinders, skids and ISO tanks on request"]]}

Documentation by version

For Ø 160-210 mm cylinders, 200 W

1879 · HHGA

Datasheet Manual Certificate Decl. of conformity

Documentation by version

For 50 L cylinders, 450 W

1111 · HHG24090

Datasheet Manual Certificate Decl. of conformity

Documentation by version

For 50 L cylinders, digital, 450 W

3807 · HHG24050 DIGI

Datasheet Manual Certificate Decl. of conformity
