1301-Z1 – 19" Panel PC for Zone 1/21

Name: 1301-Z1 – 19" Panel PC for Zone 1/21
Brand: HMI Elements
SKU: 1301-Z1

1301-Z1

1000-nit 19" Panel PC for Zone 1 and Zone 21, machined from solid aluminium, IP66, with glove-operable capacitive touchscreen.

ATEX

IECEx

UKEX

NEC/CEC

Request a quote Call an engineer Documents and guides

Description

Technical Specifications

Applications

Download

Datasheets

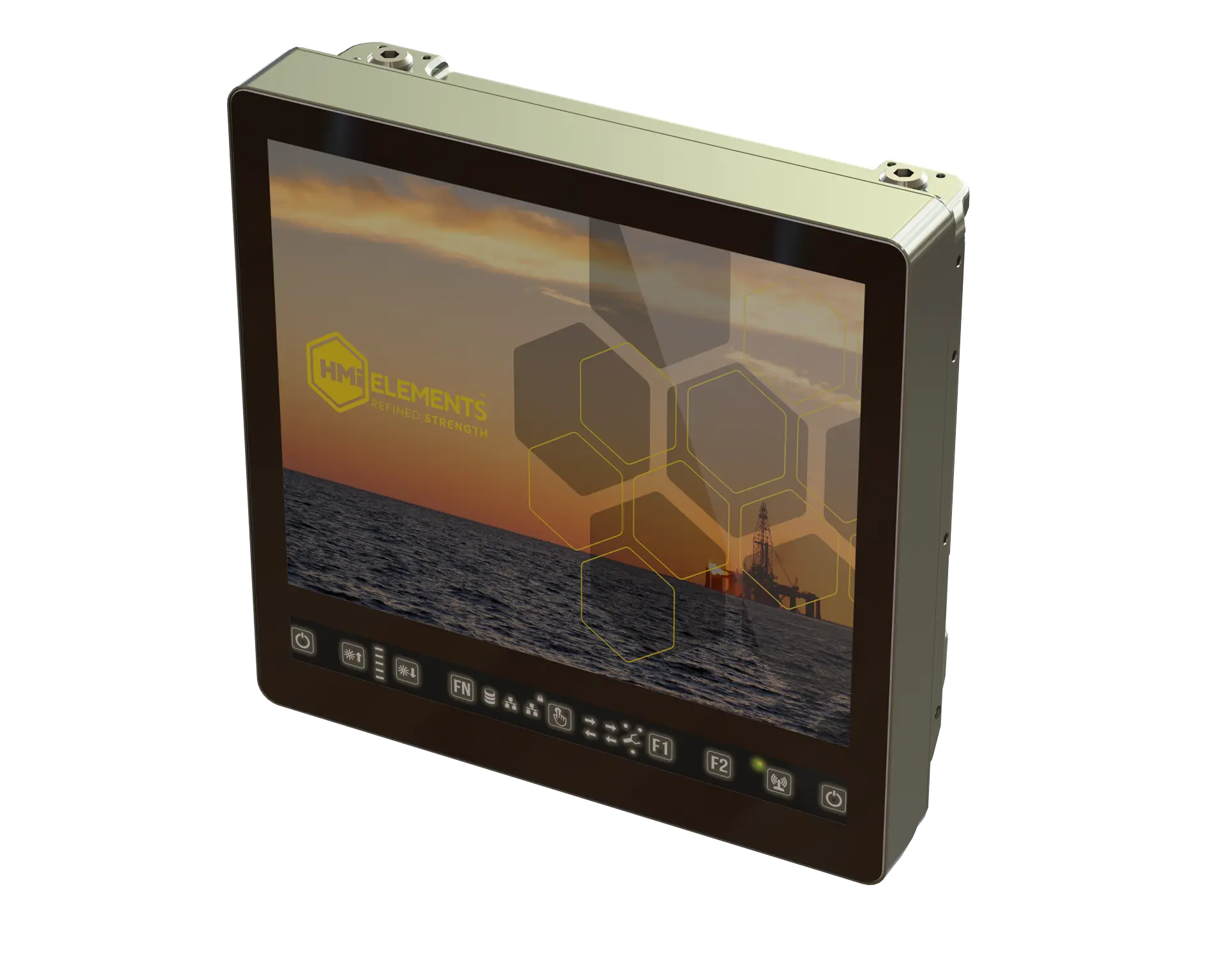

Striking design and uncompromising ruggedness: the 1301-Z1 is a 19" PC designed to withstand the harshest Zone 1 and Zone 21 conditions, with gas and dust.

Machined from a single block of aluminium and rated IP66 on all sides, it is a stand-alone PC ready for integration in hazardous areas, offering long service life and high reliability even in the toughest environments.

Key features

Designed for field maintenance
Multi-touch projected capacitive touchscreen (PCT), glove-operable
19" 1000-nit display readable in direct sunlight
Operating temperature -40 °C to +60 °C as standard
Slim 145 mm (5.7") profile, weight 25.2 kg: can be carried by one person
Intel Core i7 processor running at 100% from -40 °C to +60 °C
Various supply voltages available
Built-in diagnostics
IP66 / NEMA 4X protection
Shock to BS EN 60068-2-27:2009, vibration to BS EN 60068-2-6:2008
ATEX, IECEx, UKEX, NEC 505 (AEx), CEC 22.2 Section 18 and Ordinary Location certified

Available accessories

Desk stand
Panel mounting kit
Sun shade
Yoke bracket

Typical specification: for different requirements, contact us.

Zone 1

Explosive gas atmosphere likely to occur in normal operation

Zone 2

Explosive gas atmosphere unlikely to occur and, if it does, only for a short period

Zone 21

Explosive dust atmosphere likely to occur in normal operation

Zone 22

Explosive dust atmosphere unlikely to occur and, if it does, only for a short period

# Certifications Typical Ex marking: ATEX/UKEX: II 2 GD, Ex eb mb op is [Ib] IIC T4 Gb, Ex tb IIC T90°C · IECEx: Ex eb mb op is [Ib] IIC T4 Gb, Ex tb IIC T90°C · USA: Class I Zone 1 AEx eb db mb op is [ib] IIC T4 Gb, Zone 21 AEx tb IIIC T90°C Db · Canada: Ex db ib mb IIC T4 Gb, Ex tb IIC T90°C Db # Performance Product type: PC Workstation Power supply: Autorange 100-240 Vac, 50-60 Hz, 1.3 A Display: 19", 5:4 format, sunlight-readable, high brightness 1000 nit, anti-glare finish Resolution: SXGA 1280 x 1024, wide viewing angle, 24-bit colour Processor: Intel Core i7 6th gen. Skylake 6600U or Intel Core i7 7th gen. Kaby Lake 7600U Memory: 8 GB (2 x 4), 16 GB (2 x 8), 32 GB (2 x 16) DDR4 2133 MHz Operating system: Windows 10 IoT Enterprise LTSC Interfaces: Standard: USB, Ethernet · Optional: RS232, RS485, IS sounder, Wi-Fi, fibre optic Communication: Wireless (IS): Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4 and 5 GHz, XBee 802.15.4, Microhard IPn920 900 MHz, Bluetooth · Fibre (op is): 1310 nm, 850 nm · Remote interrogation and on-board diagnostics # Mechanical Weight: 25.2 kg (excluding connectors, cables and accessories) Dimensions (W x H x D): 429.5 x 424.5 x 145 mm Mounting: VESA, yoke bracket, desk stand, panel # Environmental Ingress protection: IP66 / NEMA 4X Operating temperature: -40 °C to +60 °C (-40 °C to +55 °C with media converter installed) Storage temperature: -40 °C to +70 °C

Certificates of conformity

CML 19ATEX1320X

ATEX certificate

1301-Z1

Datasheet Manual Certificate Decl. of conformity

Certificates of conformity

CML 19.0096X

IECEx certificate

1301-Z1

Datasheet Manual Certificate Decl. of conformity

Certificates of conformity

QPS LR1377-4R1
