Zone 0
Explosive gas atmosphere present continuously or for long periods
Zone 1
Explosive gas atmosphere likely to occur in normal operation
Zone 2
Explosive gas atmosphere unlikely to occur and, if it does, only for a short period
Zone 20
Explosive dust atmosphere present continuously or for long periods
Zone 21
Explosive dust atmosphere likely to occur in normal operation
Zone 22
Explosive dust atmosphere unlikely to occur and, if it does, only for a short period
Class I Division 1
Area where flammable gases or vapours are present under normal operating conditions
Class I Division 2
Area where flammable gases or vapours are present only under abnormal conditions
# Certifications
Compliance: IEC TS 60079-32-1, NFPA 77
# Performance
Monitored channels: 8
Monitoring circuit: Intrinsically safe
Monitored resistance: ≤ 10 Ohm (± 10%)
Relay outputs: 8 channel contacts, 2 group contacts, 1 fault contact (volt-free)
Contact rating: 240 V AC 5 A 500 VA max; 30 V DC 2 A 60 VA max
# Electrical
Power supply unit (Zone 2/21) – Power supply: 110 or 240 V AC, 50-60 Hz, 200 mA
Power supply unit – Rated power: 10 W
# Mechanical

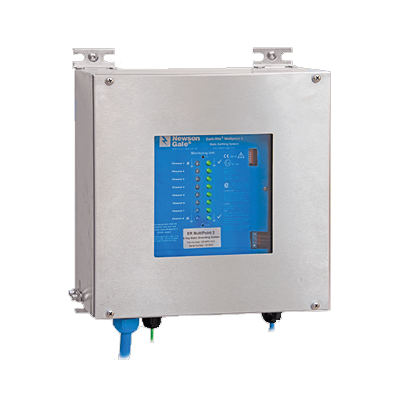

Monitoring unit (Zone 0/20) – Material: AISI 304 stainless steel
Monitoring unit – Cable entries: 3 x M20, 1 x M25
Power supply unit – Material: Carbon-loaded GRP or AISI 304 stainless steel
Power supply unit – Cable entries: 12 x M20

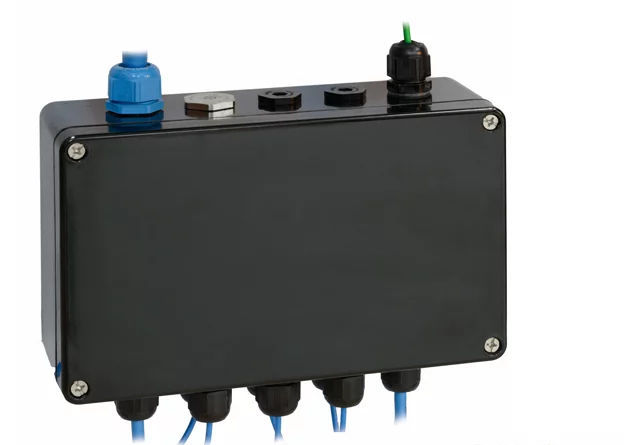

8-way junction box: 10 x M20, 1 x M25 (GRP or stainless steel)
4-way junction box: 6 x M20, 1 x M25 (GRP or stainless steel)

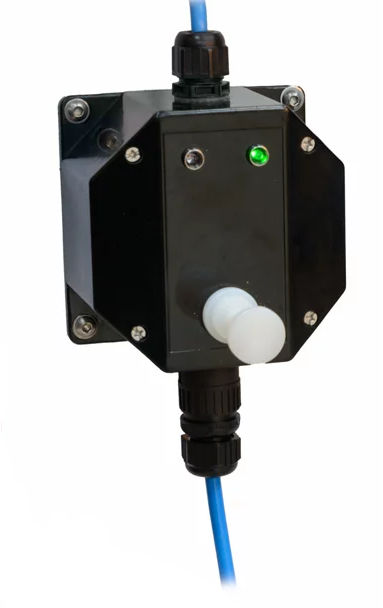

Remote indicator station (Zone 0/20): GRP or stainless steel, 1 x M20
# Environmental
Monitoring unit – Ingress protection: IP66
Ambient temperature: -40 °C / +60 °C
{"v":1,"marca":"Newson Gale","colonne":[{"nome":"Type","valori":["Package","Control unit","Power supply unit","Distribution box","Remote station"]},{"nome":"Material","valori":["GRP","Stainless steel"]},{"nome":"Box ways","valori":["4","8","—"]}],"righe":[["MP2PSUG4MBG",0,0,0,0],["MP2PSUG8MBG",0,0,1,0],["MP2PSUS4MBS",0,1,0,0],["MP2PSUS8MBS",0,1,1,0],["MP2/CU/SS",1,1,2,0],["MP2/PSU/GRP",2,0,2,1],["MP2/PSU/SS",2,1,2,1],["MP2/MBOX4/GRP",3,0,2,2],["MP2/MBOX8/GRP",3,0,2,2],["MP2/MBOX4/SS",3,1,2,2],["MP2/MBOX8/SS",3,1,2,2],["MP2/RIS/GRP",4,0,2,3],["MP2/RIS/SS",4,1,2,3]],"accessori":[["MP2/CU/PCB/SPARE","Spare Earth-Rite MULTIPOINT II monitoring unit board",4],["MP2/PSU/PCB/SPARE","Spare Earth-Rite MULTIPOINT II power supply and relay board",4],["ER2/EXD/ADAPT1","Aluminium Ex de adaptor M20 male → 3/4\" NPT female",null],["ER2/EXD/ADAPT2","Aluminium Ex de adaptor M25 male → 3/4\" NPT female",null],["MC/JBF","Metal female socket with yellow plastic cover",null],["MC/JBM","Metal male plug 20 mm, M6 thread",null],["MC/JBS","Plastic/metal male socket with green/yellow band",null],["SMC","SMC surface-mount connector (male plug only)",5],["SMC/CAP","Stainless steel female cap for SMC connector",5],["SMC/ILQC/CAP","Stainless steel male cap for in-line SMC connector",5],["CAB2B03MH","Coiled cable 3 m with stainless steel SMC female Quick Connect and ILQC8M Quick Connect",5],["CAB2B05MH","Coiled cable 5 m with stainless steel SMC female Quick Connect and ILQC8M Quick Connect",5],["SMC/2BS0.3MH","SMC male + stainless steel SMC female Quick Connect, straight cable 0.3 m and ILQC8M",5],["SMC/2B03MH","SMC male + stainless steel SMC female Quick Connect, coiled cable 3 m and ILQC8M",5],["SMC/2B05MH","SMC male + stainless steel SMC female Quick Connect, coiled cable 5 m and ILQC8M",5],["SMC/2B10MH","SMC male + stainless steel SMC female Quick Connect, coiled cable 10 m and ILQC8M",5],["SMC/2BS02MH","SMC male + stainless steel SMC female Quick Connect, straight cable 2 m and ILQC8M",5],["SMC/2BS05MH","SMC male + stainless steel SMC female Quick Connect, straight cable 5 m and ILQC8M",5],["SMC/2BS10MH","SMC male + stainless steel SMC female Quick Connect, straight cable 10 m and ILQC8M",5],["ER/URT","Universal resistance tester (10 Ω, 100 Ω, 10⁷ Ω and 10⁸ Ω) for Bond-Rite, FIBC, MULTIPOINT and OhmGuard",6]],"opzioni":[],"descrizioni":["8-channel package: stainless steel control unit, GRP power supply unit, GRP 4-way distribution box","8-channel package: stainless steel control unit, GRP power supply unit, GRP 8-way distribution box","8-channel package: stainless steel control unit, stainless steel power supply unit, stainless steel 4-way distribution box","8-channel package: stainless steel control unit, stainless steel power supply unit, stainless steel 8-way distribution box","8-channel stainless steel control unit with window","GRP 8-channel power supply and relay unit, 2 group + 1 fault, 115/230 V AC","Stainless steel 8-channel power supply and relay unit, 2 group + 1 fault, 115/230 V AC","GRP 4-way distribution box","GRP 8-way distribution box","Stainless steel 4-way distribution box","Stainless steel 8-way distribution box","GRP remote indicator station, red/green LED and universal parking point","Stainless steel remote indicator station, red/green LED and universal parking point"],"sprite":{"url":"https://cdn.prod.website-files.com/6aa55eca30c5bd4a1e486a4c/6ad27d15c73ecbbd8997319b_ng-mp2-sprite.jpg","colonne":5,"lato":200}}
