# Europe version (CE)

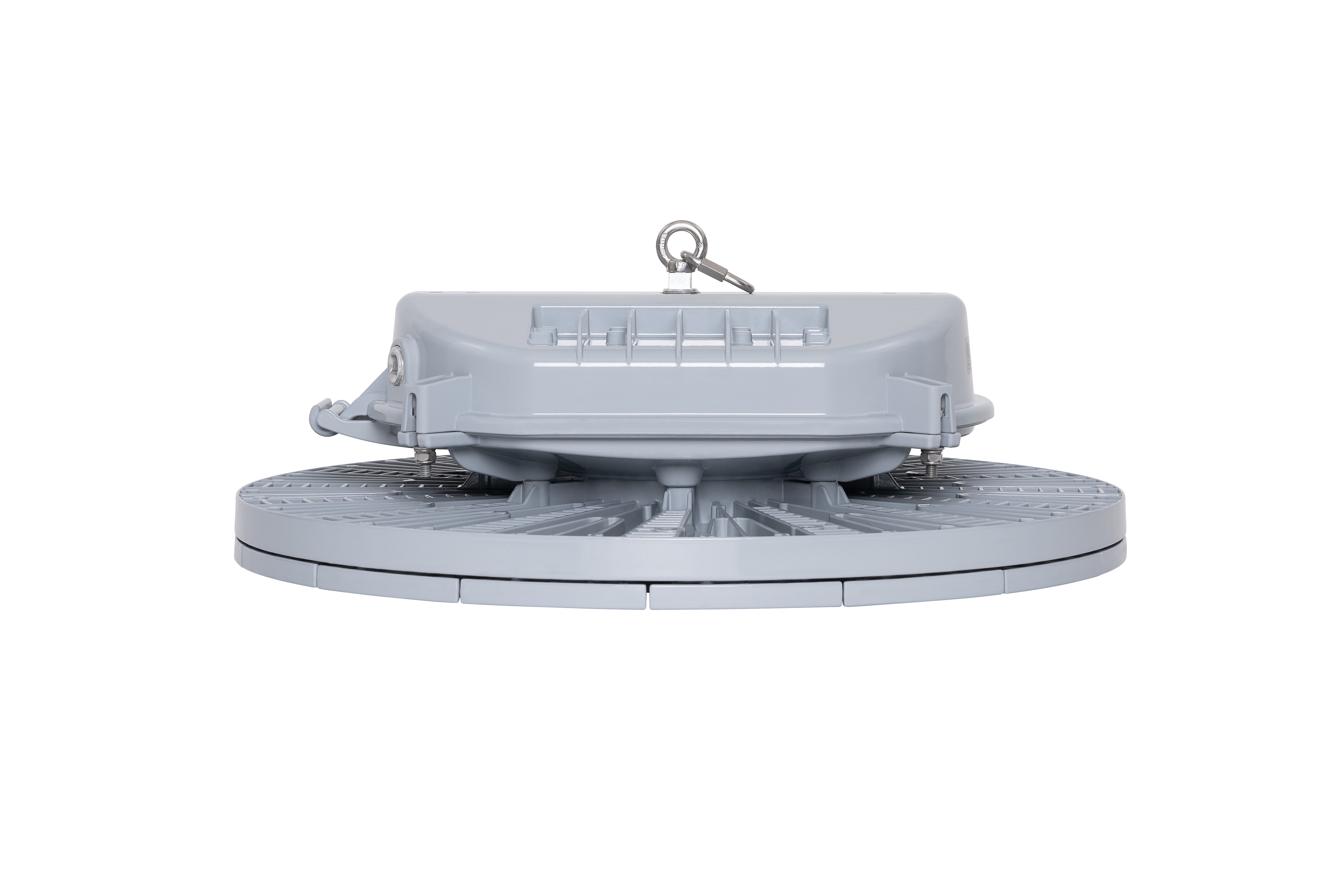

Product type: Industrial high-output LED high bay
Luminous flux: 46,000 · 61,200 · 70,500 lm
Power: 300 · 418 · 485 W
Efficacy: Up to 153 lm/W
Power supply: 120-277 VAC, 50/60 Hz · 415 VAC on request
Colour temperature: 5000 K, 4000 K, CRI 80
Optics: Narrow, medium
Diffuser: Glass
Dimming: 0-10 VDC as standard · DALI optional
Cable entries: 2 x M25
Certifications: CE · ENEC
Area: safe (non-classified)
Ambient temperature: from -40 °C to +65 °C
Ingress protection: IP66/67
Impact resistance: IK10 (polycarbonate) · IK06 (glass)
Surge protection: 6 kV/3 kA (IEC 61000-4-5)
Lifetime: L70 > 150,000 h
Materials: A360 die-cast aluminium body, 316 stainless steel hardware
Mounting: Single suspension ring, factory-fitted secondary retention bracket
Dimensions: Width 610 mm, height approx. 178 mm
Weight: 21.8 kg (120-277 VAC) · 22.2 kg (415 VAC)
# North America version (UL/CSA)
Market: North America (UL/CSA)
UL/CSA certifications: UL 1598/A, CSA C22.2 No. 250 (wet locations), Intertek ETL/cETL
Area: safe (non-classified)
UL codes: H7U
UL power supply: 120-277 VAC or 277-480 VAC, 50/60 Hz (special codes 208, 347 and 480 VAC)
UL luminous flux: 42,900-70,500 lm (300-494 W), up to 153 lm/W
UL ambient temperature: from -40 °C to +65 °C (-40 °F … +149 °F)
UL ingress protection: IP66/67 · IK10 (polycarbonate) · IK06 (glass)
UL entries: 1 x 3/4" NPT top + 2 x 3/4" NPT side
UL surge protection: 6 kV/3 kA (IEEE C62.41)
UL weight: 21.8 kg (48 lb) 120-277 VAC · 22.2 kg (49 lb) 277-480 VAC
{"v":1,"colonne":[{"nome":"Market","valori":["Europe (ATEX/IECEx · CE)","North America (UL/CSA)"]},{"nome":"Optic","valori":["Narrow","Medium"]},{"nome":"Colour temperature","valori":["5000 K","4000 K","2700 K"]},{"nome":"Luminous flux","valori":["46,000 lm (300 W)","61,200 lm (418 W)","70,500 lm (485 W)","65,700 lm (485 W)","57,100 lm (418 W)","42,900 lm (300 W)","70,500 lm (494 W)","65,700 lm (494 W)","61,200 lm (427 W)","57,100 lm (427 W)","46,000 lm (308 W)","42,900 lm (308 W)","52,000 lm (418 W)"]},{"nome":"Diffuser","valori":["—","Clear glass","Clear polycarbonate","Clear polycarbonate + VOC shield","Clear glass + VOC shield"]},{"nome":"Power supply","valori":["—","120-277 VAC","277-480 VAC","347 VAC","480 VAC","208 VAC"]},{"nome":"Mounting","valori":["—","3/4\" NPT pendant","Hook","Hook with retention bracket"]},{"nome":"Controls","valori":["—","0-10 V dimming","IntelliLED wireless","None (non-dimmable)"]},{"nome":"Connection","valori":["—","No cable (3 x 3/4\" NPT entries)","3 m cable + NEMA L5-20 plug","3 m cable","3 m cable + NEMA L7-15 plug","1.8 m cable + NEMA L7-15 plug","1.8 m cable","3 m cable + NEMA L8-20 plug","0.9 m cable + NEMA L7-20 plug","0.9 m cable","3 m cable + NEMA L7-20 plug","7.6 m cable + NEMA L7-20 plug","1.8 m cable + NEMA L8-20 plug"]}],"righe":[["H7E-7MC2-RDHN-NGN",0,1,0,2,0,0,0,0,0,0],["H7E-7MN2-RDHN-NGN",0,1,1,2,0,0,0,0,0,0],["H7E-7NC2-RDHN-NGN",0,0,0,2,0,0,0,0,0,0],["H7E-7NN2-RDHN-NGN",0,0,1,2,0,0,0,0,0,0],["H7E-7MC2-NDHN-NGN",0,1,0,1,0,0,0,0,0,0],["H7E-7MN2-NDHN-NGN",0,1,1,1,0,0,0,0,0,0],["H7E-7NC2-NDHN-NGN",0,0,0,1,0,0,0,0,0,0],["H7E-7NN2-NDHN-NGN",0,0,1,1,0,0,0,0,0,0],["H7E-7MC2-KDHN-NGN",0,1,0,0,0,0,0,0,0,0],["H7E-7MN2-KDHN-NGN",0,1,1,0,0,0,0,0,0,0],["H7E-7NC2-KDHN-NGN",0,0,0,0,0,0,0,0,0,0],["H7E-7NN2-KDHN-NGN",0,0,1,0,0,0,0,0,0,0],["H7U-7NC2-RDNN-NGN",1,0,0,2,1,1,1,1,1,0],["H7U-4NC2-RDNN-NGN",1,0,0,3,2,1,1,1,1,0],["H7U-7MC2-RDNN-NGN",1,1,0,2,1,1,1,1,1,0],["H7U-4MC2-RDNN-NGN",1,1,0,3,2,1,1,1,1,0],["H7U-7NC2-NDNN-NGN",1,0,0,1,1,1,1,1,1,0],["H7U-4NC2-NDNN-NGN",1,0,0,4,2,1,1,1,1,0],["H7U-7MC2-NDNN-NGN",1,1,0,1,1,1,1,1,1,0],["H7U-4MC2-NDNN-NGN",1,1,0,4,2,1,1,1,1,0],["H7U-7NC2-KDNN-NGN",1,0,0,0,1,1,1,1,1,0],["H7U-4NC2-KDNN-NGN",1,0,0,5,2,1,1,1,1,0],["H7U-7MC2-KDNN-NGN",1,1,0,0,1,1,1,1,1,0],["H7U-4MC2-KDNN-NGN",1,1,0,5,2,1,1,1,1,0],["H7U-7NC5-RDNN-NGN",1,0,0,6,1,2,1,1,1,0],["H7U-4NC5-RDNN-NGN",1,0,0,7,2,2,1,1,1,0],["H7U-7MC5-RDNN-NGN",1,1,0,6,1,2,1,1,1,0],["H7U-4MC5-RDNN-NGN",1,1,0,7,2,2,1,1,1,0],["H7U-7NC5-NDNN-NGN",1,0,0,8,1,2,1,1,1,0],["H7U-4NC5-NDNN-NGN",1,0,0,9,2,2,1,1,1,0],["H7U-7MC5-NDNN-NGN",1,1,0,8,1,2,1,1,1,0],["H7U-4MC5-NDNN-NGN",1,1,0,9,2,2,1,1,1,0],["H7U-7NC5-KDNN-NGN",1,0,0,10,1,2,1,1,1,0],["H7U-4NC5-KDNN-NGN",1,0,0,11,2,2,1,1,1,0],["H7U-7MC5-KDNN-NGN",1,1,0,10,1,2,1,1,1,0],["H7U-4MC5-KDNN-NGN",1,1,0,11,2,2,1,1,1,0],["H7U-7NN2-RDNN-NGN",1,0,1,2,1,1,1,1,1,0],["H7U-4NN2-RDNN-NGN",1,0,1,3,2,1,1,1,1,0],["H7U-7MN2-RDNN-NGN",1,1,1,2,1,1,1,1,1,0],["H7U-4MN2-RDNN-NGN",1,1,1,3,2,1,1,1,1,0],["H7U-7NN2-NDNN-NGN",1,0,1,1,1,1,1,1,1,0],["H7U-4NN2-NDNN-NGN",1,0,1,4,2,1,1,1,1,0],["H7U-7MN2-NDNN-NGN",1,1,1,1,1,1,1,1,1,0],["H7U-4MN2-NDNN-NGN",1,1,1,4,2,1,1,1,1,0],["H7U-7NN2-KDNN-NGN",1,0,1,0,1,1,1,1,1,0],["H7U-4NN2-KDNN-NGN",1,0,1,5,2,1,1,1,1,0],["H7U-7MN2-KDNN-NGN",1,1,1,0,1,1,1,1,1,0],["H7U-4MN2-KDNN-NGN",1,1,1,5,2,1,1,1,1,0],["H7U-7NN5-RDNN-NGN",1,0,1,6,1,2,1,1,1,0],["H7U-4NN5-RDNN-NGN",1,0,1,7,2,2,1,1,1,0],["H7U-7MN5-RDNN-NGN",1,1,1,6,1,2,1,1,1,0],["H7U-4MN5-RDNN-NGN",1,1,1,7,2,2,1,1,1,0],["H7U-7NN5-NDNN-NGN",1,0,1,8,1,2,1,1,1,0],["H7U-4NN5-NDNN-NGN",1,0,1,9,2,2,1,1,1,0],["H7U-7MN5-NDNN-NGN",1,1,1,8,1,2,1,1,1,0],["H7U-4MN5-NDNN-NGN",1,1,1,9,2,2,1,1,1,0],["H7U-7NN5-KDNN-NGN",1,0,1,10,1,2,1,1,1,0],["H7U-4NN5-KDNN-NGN",1,0,1,11,2,2,1,1,1,0],["H7U-7MN5-KDNN-NGN",1,1,1,10,1,2,1,1,1,0],["H7U-4MN5-KDNN-NGN",1,1,1,11,2,2,1,1,1,0],["H7U-4MC2-KDHW-4GN",1,1,0,5,2,1,2,1,2,0],["H7U-4MC2-KDHW-NGN",1,1,0,5,2,1,2,1,3,0],["H7U-4MC2-KDNW-NGN",1,1,0,5,2,1,1,1,3,0],["H7U-4MC2-NDHW-8GN",1,1,0,4,2,1,2,1,4,0],["H7U-4MC2-NDHW-NGN",1,1,0,4,2,1,2,1,3,0],["H7U-4MC2-NDNW-NGN",1,1,0,4,2,1,1,1,3,0],["H7U-4MC2-RDHW-4GN",1,1,0,3,2,1,2,1,2,0],["H7U-4MC2-RDHW-NGN",1,1,0,3,2,1,2,1,3,0],["H7U-4MC2-RDNN-NHN",1,1,0,3,3,1,1,1,1,0],["H7U-4MC2-RDNW-NGN",1,1,0,3,2,1,1,1,3,0],["H7U-4MC2-RDNW-NHN",1,1,0,3,3,1,1,1,3,0],["H7U-4MC5-KDNW-NGN",1,1,0,11,2,2,1,1,3,0],["H7U-4MC5-NDNN-NHN",1,1,0,9,3,2,1,1,1,0],["H7U-4MC5-RDNN-NHN",1,1,0,7,3,2,1,1,1,0],["H7U-4MC5-RDNW-NGN",1,1,0,7,2,2,1,1,3,0],["H7U-4MC5-RDNW-NHN",1,1,0,7,3,2,1,1,3,0],["H7U-4MCB-NDNN-NGN",1,1,0,9,2,3,1,1,1,0],["H7U-4MCB-NDNN-NHN",1,1,0,9,3,3,1,1,1,0],["H7U-4MCB-RDNN-NGN",1,1,0,7,2,3,1,1,1,0],["H7U-4MCB-RDNN-NHN",1,1,0,7,3,3,1,1,1,0],["H7U-4MCD-KDNN-NGN",1,1,0,11,2,4,1,1,1,0],["H7U-4MCD-RDHW-NGN",1,1,0,7,2,4,2,1,3,0],["H7U-4MN2-RJHW-NGN",1,1,1,3,2,1,2,2,3,0],["H7U-4MN5-RDHW-NGN",1,1,1,7,2,2,2,1,3,0],["H7U-4NC5-NDHW-NGN",1,0,0,9,2,2,2,1,3,0],["H7U-4NC5-RDHW-NGN",1,0,0,7,2,2,2,1,3,0],["H7U-4NC5-RJHN-NGN",1,0,0,7,2,2,2,2,1,0],["H7U-4NC5-RJHW-NGN",1,0,0,7,2,2,2,2,3,0],["H7U-4NC5-RJNW-NGN",1,0,0,7,2,2,1,2,3,0],["H7U-4NCB-NDNN-NGN",1,0,0,9,2,3,1,1,1,0],["H7U-4NCD-NDNN-NGN",1,0,0,9,2,4,1,1,1,0],["H7U-4NN2-RJHW-NGN",1,0,1,3,2,1,2,2,3,0],["H7U-7MC2-KDHN-NGN",1,1,0,0,1,1,2,1,1,0],["H7U-7MC2-KDHW-NGN",1,1,0,0,1,1,2,1,3,0],["H7U-7MC2-KDHW-NHN",1,1,0,0,4,1,2,1,3,0],["H7U-7MC2-KDNW-NGN",1,1,0,0,1,1,1,1,3,0],["H7U-7MC2-KDNW-NHN",1,1,0,0,4,1,1,1,3,0],["H7U-7MC2-KJNN-NGN",1,1,0,0,1,1,1,2,1,0],["H7U-7MC2-NDHN-NGN",1,1,0,1,1,1,2,1,1,0],["H7U-7MC2-NDHW-NGN",1,1,0,1,1,1,2,1,3,0],["H7U-7MC2-NDHW-NHN",1,1,0,1,4,1,2,1,3,0],["H7U-7MC2-NDNV-8GN",1,1,0,1,1,1,1,1,5,0],["H7U-7MC2-NDNW-NGN",1,1,0,1,1,1,1,1,3,0],["H7U-7MC2-NJHN-NGN",1,1,0,1,1,1,2,2,1,0],["H7U-7MC2-NJNN-NGN",1,1,0,1,1,1,1,2,1,0],["H7U-7MC2-RDHN-NGN",1,1,0,2,1,1,2,1,1,0],["H7U-7MC2-RDHV-8GN",1,1,0,2,1,1,2,1,5,0],["H7U-7MC2-RDHW-NGN",1,1,0,2,1,1,2,1,3,0],["H7U-7MC2-RDNV-8GN",1,1,0,2,1,1,1,1,5,0],["H7U-7MC2-RDNW-NGN",1,1,0,2,1,1,1,1,3,0],["H7U-7MC2-RJHN-NGN",1,1,0,2,1,1,2,2,1,0],["H7U-7MC2-RJHW-NGN",1,1,0,2,1,1,2,2,3,0],["H7U-7MC2-RJNN-NGN",1,1,0,2,1,1,1,2,1,0],["H7U-7MC3-RDNW-NGN",1,1,0,2,1,5,1,1,3,0],["H7U-7MC5-KDHW-NGN",1,1,0,10,1,2,2,1,3,0],["H7U-7MC5-KDNW-NGN",1,1,0,10,1,2,1,1,3,0],["H7U-7MC5-NDHW-NGN",1,1,0,8,1,2,2,1,3,0],["H7U-7MC5-NDNN-NHN",1,1,0,8,4,2,1,1,1,0],["H7U-7MC5-NDNW-NGN",1,1,0,8,1,2,1,1,3,0],["H7U-7MC5-NDRV-NGN",1,1,0,8,1,2,3,1,6,0],["H7U-7MC5-RDHW-NGN",1,1,0,6,1,2,2,1,3,0],["H7U-7MC5-RDNN-NHN",1,1,0,6,4,2,1,1,1,0],["H7U-7MC5-RDNW-NGN",1,1,0,6,1,2,1,1,3,0],["H7U-7MC5-RDNW-XGN",1,1,0,6,1,2,1,1,7,0],["H7U-7MCB-KDNN-NGN",1,1,0,10,1,3,1,1,1,0],["H7U-7MCB-NDNN-NGN",1,1,0,8,1,3,1,1,1,0],["H7U-7MCB-RDNN-NGN",1,1,0,6,1,3,1,1,1,0],["H7U-7MCD-KDHW-XGN",1,1,0,10,1,4,2,1,7,0],["H7U-7MCD-KDNN-NGN",1,1,0,10,1,4,1,1,1,0],["H7U-7MCD-NDHV-NGN",1,1,0,8,1,4,2,1,6,0],["H7U-7MCD-NDHW-NGN",1,1,0,8,1,4,2,1,3,0],["H7U-7MCD-NDHW-XGN",1,1,0,8,1,4,2,1,7,0],["H7U-7MCD-NDNN-NGN",1,1,0,8,1,4,1,1,1,0],["H7U-7MCD-RDHW-NGN",1,1,0,6,1,4,2,1,3,0],["H7U-7MCD-RDNN-NGN",1,1,0,6,1,4,1,1,1,0],["H7U-7MCD-RJHN-NGN",1,1,0,6,1,4,2,2,1,0],["H7U-7MN2-NDHW-NGN",1,1,1,1,1,1,2,1,3,0],["H7U-7MN2-NDNW-NGN",1,1,1,1,1,1,1,1,3,0],["H7U-7MN2-RDHN-NGN",1,1,1,2,1,1,2,1,1,0],["H7U-7MN2-RDHU-9GN",1,1,1,2,1,1,2,1,8,0],["H7U-7MN2-RDHU-NGN",1,1,1,2,1,1,2,1,9,0],["H7U-7MN2-RDHW-9GN",1,1,1,2,1,1,2,1,10,0],["H7U-7MN2-RNHY-9GN",1,1,1,2,1,1,2,3,11,0],["H7U-7MN3-RDNN-NGN",1,1,1,2,1,5,1,1,1,0],["H7U-7MN5-NDHW-NGN",1,1,1,8,1,2,2,1,3,0],["H7U-7MN5-NDNW-NGN",1,1,1,8,1,2,1,1,3,0],["H7U-7MN5-RDHW-NGN",1,1,1,6,1,2,2,1,3,0],["H7U-7MN5-RDNW-NGN",1,1,1,6,1,2,1,1,3,0],["H7U-7MND-NDNW-NGN",1,1,1,8,1,4,1,1,3,0],["H7U-7MW2-NDNN-NGN",1,1,2,12,1,1,1,1,1,0],["H7U-7NC2-KDHW-NGN",1,0,0,0,1,1,2,1,3,0],["H7U-7NC2-KDNW-NGN",1,0,0,0,1,1,1,1,3,0],["H7U-7NC2-KDNW-NHN",1,0,0,0,4,1,1,1,3,0],["H7U-7NC2-KDRW-9GN",1,0,0,0,1,1,3,1,10,0],["H7U-7NC2-NDHN-NGN",1,0,0,1,1,1,2,1,1,0],["H7U-7NC2-NDHW-NGN",1,0,0,1,1,1,2,1,3,0],["H7U-7NC2-NDNW-NGN",1,0,0,1,1,1,1,1,3,0],["H7U-7NC2-NDRW-NGN",1,0,0,1,1,1,3,1,3,0],["H7U-7NC2-RDHN-NGN",1,0,0,2,1,1,2,1,1,0],["H7U-7NC2-RDHW-8GN",1,0,0,2,1,1,2,1,4,0],["H7U-7NC2-RDHW-NGN",1,0,0,2,1,1,2,1,3,0],["H7U-7NC2-RDNW-NGN",1,0,0,2,1,1,1,1,3,0],["H7U-7NC5-KDHV-XGN",1,0,0,10,1,2,2,1,12,0],["H7U-7NC5-KDHW-NGN",1,0,0,10,1,2,2,1,3,0],["H7U-7NC5-NDHV-NGN",1,0,0,8,1,2,2,1,6,0],["H7U-7NC5-NDHV-XGN",1,0,0,8,1,2,2,1,12,0],["H7U-7NC5-NDRV-NGN",1,0,0,8,1,2,3,1,6,0],["H7U-7NC5-NDRW-XGN",1,0,0,8,1,2,3,1,7,0],["H7U-7NC5-NJNN-NGN",1,0,0,8,1,2,1,2,1,0],["H7U-7NC5-RDHV-NGN",1,0,0,6,1,2,2,1,6,0],["H7U-7NC5-RDHV-XGN",1,0,0,6,1,2,2,1,12,0],["H7U-7NC5-RDHW-NGN",1,0,0,6,1,2,2,1,3,0],["H7U-7NC5-RDNN-NHN",1,0,0,6,4,2,1,1,1,0],["H7U-7NC5-RDNW-NGN",1,0,0,6,1,2,1,1,3,0],["H7U-7NCB-NDNN-NGN",1,0,0,8,1,3,1,1,1,0],["H7U-7NCB-RJHN-NGN",1,0,0,6,1,3,2,2,1,0],["H7U-7NCD-KDHW-XGN",1,0,0,10,1,4,2,1,7,0],["H7U-7NCD-KDNN-NGN",1,0,0,10,1,4,1,1,1,0],["H7U-7NCD-NDHV-XGN",1,0,0,8,1,4,2,1,12,0],["H7U-7NCD-NDHW-NGN",1,0,0,8,1,4,2,1,3,0],["H7U-7NCD-NDNN-NGN",1,0,0,8,1,4,1,1,1,0],["H7U-7NCD-NDNW-XGN",1,0,0,8,1,4,1,1,7,0],["H7U-7NCD-RDHW-NGN",1,0,0,6,1,4,2,1,3,0],["H7U-7NCD-RDHW-XGN",1,0,0,6,1,4,2,1,7,0],["H7U-7NCD-RDNN-NGN",1,0,0,6,1,4,1,1,1,0],["H7U-7NCD-RDNW-NGN",1,0,0,6,1,4,1,1,3,0],["H7U-7NN2-RDNW-NGN",1,0,1,2,1,1,1,1,3,0],["H7U-7NN5-NDNW-NGN",1,0,1,8,1,2,1,1,3,0],["H7U-7NND-NDHV-XGN",1,0,1,8,1,4,2,1,12,0]],"accessori":[["H6XCAB72","72\" (1,829 mm) stainless steel safety cable, 1-cable kit (2 cables required per fixture)"],["H6XCAB60","60\" (1,524 mm) stainless steel safety cable, 1-cable kit (2 cables required per fixture)"],["H6XDIFFUSER","Additional diffuser"],["H6X-H","Suspension hook"]],"opzioni":[["Voltage","415 VAC, 50/60 Hz on request"],["Dimming","DALI on request"],["Diffuser","Clear polycarbonate or acrylic on request"],["Colour temperature (UL version)","4000 K: replace the 6th character C with N (e.g. H7U-7MC2-RDNN-NGN → H7U-7MN2-RDNN-NGN); codes expanded in the variants, flux as per the datasheet for 5000 K"],["Dimming (UL version)","DALI (Controls = A) and IntelliLED wireless (J) on request"],["Power supply (UL version)","Fused options on request; 208, 347 and 480 VAC listed as special codes on the Dialight website"],["Cables and plugs (UL version)","3 m cable and NEMA plugs (L5-20, L7-15, L7-20, L8-20) on request"],["VOC shield (UL version)","VOC protective shield available on some codes (12th character H)"]],"sprite":{"url":"https://cdn.prod.website-files.com/6aa55eca30c5bd4a1e486a4c/6ad61d7daccaaab4388f3923_dialight-vigilant-high-output-low-profile-sprite.jpg","colonne":2,"lato":200}}
