Sensors

sensori-induttivi

sensori-capacitivi

sensori-magnetici

pepperl-fuchs-sensori-induttivi-cilindrici-ex

# General Product type: Cylindrical inductive proximity sensor for hazardous areas Brand: Pepperl+Fuchs Diameter: Ø 4.5 to Ø 30 mm Sensing range: 0.8 to 15 mm # Certifications Certifications: ATEX, IECEx (vary by code: see datasheet) Equipment protection level: up to Ga / Da (NAMUR versions) · Gc / Dc, zone 2/22 (-3G-3D versions) Functional safety: versions up to SIL 2 # Electrical Output: NAMUR (EN 60947-5-6) · PNP · two-wire Supply voltage: 8.2 V DC (NAMUR) · 10…30 V DC (-3G-3D versions) Function: NO, NC or complementary # Mechanical Mounting: Flush, non-flush or semi-flush Connection: Cable · M12 connector · cable with M12 connector

Zones: 0, 1, 2, 20, 21, 22 (by code) Output: NAMUR, PNP or two-wire Diameter: Ø 4.5 … 30 mm Range: 0.8 … 15 mm Safety: up to SIL 2

pepperl-fuchs-sensori-induttivi-cubici-ex

# General Product type: Rectangular inductive proximity sensor for hazardous areas Brand: Pepperl+Fuchs Sensing range: 1.5 to 50 mm Housings: from 8 × 8 mm (miniature) to 83 × 83 × 40 mm, VariKont 40 × 40 mm # Certifications Certifications: ATEX, IECEx (vary by code: see datasheet) Equipment protection level: up to Ga / Da (NAMUR versions) · Gc / Dc, zone 2/22 (-3G-3D versions) Functional safety: versions up to SIL 2 # Electrical Output: NAMUR · PNP · two-wire Supply voltage: 8.2 V DC (NAMUR) · 10…30 V DC Function: NO, NC or complementary # Mechanical Mounting: Flush or non-flush Connection: Cable · M12 connector · terminal compartment · Faston · stranded wires

Zones: 0, 1, 2, 20, 21, 22 (by code) Output: NAMUR, PNP or two-wire Range: 1.5 … 50 mm Safety: up to SIL 2 Connection: cable, M12 or terminals

pepperl-fuchs-sensori-doppi-attuatori-valvole

# General Product type: Dual inductive sensor for rotary valve actuators Brand: Pepperl+Fuchs Series: F31 · F31K2 (outdoor) Sensing range: 2.5 – 3 mm Accessories: BT65 / BT115 position indicators, protective cover # Certifications Certifications: ATEX and IECEx for zone 2/22 (Ex versions), UL, CCC, EAC (vary by code) Functional safety: versions up to SIL 2 # Electrical Output: PNP · NAMUR · two-wire · AS-Interface Supply voltage: 10…30 V DC · 20…253 V AC/DC · 8.2 V DC (NAMUR) · AS-i bus Function: NO, NC or selectable NO/NC # Mechanical Mounting: Directly on standard actuators Connection: Cable · M12 or M18 connector · terminal compartment

Mounting: directly on standard actuators Output: PNP, NAMUR, two-wire or AS-i Zones: 2/22 in ATEX/IECEx versions Safety: up to SIL 2 F31K2 series: outdoor use

industriale

pepperl-fuchs-sensori-capacitivi-ex-namur

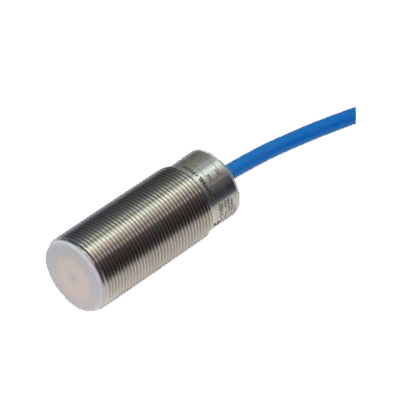

# General Product type: Cylindrical NAMUR capacitive proximity sensor for hazardous areas Brand: Pepperl+Fuchs Diameter: Ø 12 · 18 · 30 mm Sensing range: 1 to 10 mm # Certifications Certifications: ATEX, UL (vary by code: see datasheet) Equipment protection level: up to Ga / Da # Electrical Output: NAMUR, two-wire (EN 60947-5-6) Supply voltage: 8.2 V DC Function: NO # Mechanical Mounting: Flush or non-flush Connection: PVC/PUR cable 2–15 m · M12 connector # Ambient Ambient temperature: -25 °C to +70 °C

Output: NAMUR Zones: 0, 1, 2, 20, 21, 22 (by code) Diameter: Ø 12, 18, 30 mm Range: 1 … 10 mm Detects: liquids, granules, powders

pepperl-fuchs-sensori-induttivi-alta-temperatura

# General Product type: High-temperature inductive proximity sensor with separate electronics Brand: Pepperl+Fuchs Sensing range: 4 to 25 mm # Certifications Certifications: ATEX and IECEx (NAMUR versions), UL, EAC (vary by code) # Electrical Output: Complementary PNP (F35 series) · NAMUR Supply voltage: 10…30 V DC · 8.2 V DC (NAMUR) # Mechanical Connection: Interface with M12 connector · high-temperature cable 2–15 m # Ambient Sensor head temperature: up to +150, +200 or +250 °C depending on code

Temperature: up to +250 °C Output: PNP or NAMUR Range: 4 … 25 mm Electronics: separate, outside the hot zone Ex: ATEX/IECEx NAMUR versions

industriale

pepperl-fuchs-sensori-campo-magnetico

# General Product type: Magnetic field sensor Brand: Pepperl+Fuchs Sensing range: 2.5 to 80 mm (with reference magnet) Accessories: Permanent magnets, magnetic actuators, mounting adapters # Certifications Certifications: ATEX and IECEx (NAMUR versions), UL (vary by code) # Electrical Output: PNP · NPN · PNP/NPN · NAMUR Supply voltage: 10…30 V DC · 8.2 V DC (NAMUR) Function: NO or complementary # Mechanical Housings: Cylindrical Ø 8, 12, 18 mm · rectangular Connection: Cable · M12 connector # Ambient Ambient temperature: down to -40 °C … up to +100 °C depending on code

Range: up to 80 mm with magnet Detects: through stainless steel, aluminium, plastic Output: PNP, NPN or NAMUR Ex: ATEX/IECEx NAMUR versions Temperature: up to +100 °C

industriale

pepperl-fuchs-sensori-induttivi-varikont

# General Product type: Rectangular inductive proximity sensor with rotatable head Brand: Pepperl+Fuchs Series: VariKont U1 / U4 Sensing range: 15 to 50 mm # Certifications Certifications: UL, CCC, EAC (vary by code) Area: safe (non-classified); Ex versions in the "Ex cubic inductive sensors" series # Electrical Output: PNP · NPN · two-wire Supply voltage: 10…30 V DC · 5…60 V DC · 20…275 V AC/DC Function: NO, NC, complementary or selectable # Mechanical Housing: 118 × 40 × 40 mm · 128 × 55 × 55 mm Sensor head: Rotatable in 5 directions Connection: Terminal compartment · M12 connector

Range: 15 … 50 mm Head: rotatable in 5 directions Supply: DC or AC/DC up to 275 V Connection: terminals or M12 Output: PNP, NPN or two-wire

industriale

pepperl-fuchs-sensori-induttivi-varikont-l

# General Product type: Compact rectangular inductive proximity sensor Brand: Pepperl+Fuchs Series: VariKont L2 / L3 Sensing range: 20 to 50 mm # Certifications Certifications: UL, EAC (vary by code) Area: safe (non-classified) # Electrical Output: PNP · NPN · two-wire Supply voltage: DC, up to 30 V Function: NO, NC or complementary # Mechanical Housing: 67 × 40 × 40 mm Connection: M12 connector

Range: 20 … 50 mm Housing: 67 × 40 × 40 mm Connection: M12 connector Output: PNP, NPN or two-wire Head: rotatable

industriale

pepperl-fuchs-sensori-induttivi-cilindrici-m12

# General Product type: Cylindrical inductive proximity sensor Brand: Pepperl+Fuchs Thread: M12 × 1 Sensing range: 2 to 10 mm # Certifications Certifications: UL, UKCA, CCC, EAC (vary by code) Area: safe (non-classified); Ex versions in the "Ex cylindrical inductive sensors" series # Electrical Output: PNP · NPN · two-wire · digital current · analogue Supply voltage: DC (typically 10…30 V; up to 5…60 V depending on code) Function: NO, NC or complementary # Mechanical Mounting: Flush, non-flush or semi-flush Connection: M12 or M8 connector · PVC/PUR cable · cable with connector

Thread: M12 Range: 2 … 10 mm Output: PNP, NPN, two-wire or analogue Connection: connector or cable Approvals: UL, UKCA, CCC, EAC

industriale

pepperl-fuchs-sensori-induttivi-cilindrici-m18

# General Product type: Cylindrical inductive proximity sensor Brand: Pepperl+Fuchs Thread: M18 × 1 Sensing range: 5 to 20 mm # Certifications Certifications: UL, UKCA, CCC, EAC (vary by code) Area: safe (non-classified); Ex versions in the "Ex cylindrical inductive sensors" series # Electrical Output: PNP · NPN · two-wire · digital current · analogue Supply voltage: DC (typically 10…30 V; up to 5…60 V depending on code) Function: NO, NC or complementary # Mechanical Mounting: Flush, non-flush or semi-flush Connection: M12 connector · PVC/PUR cable · cable with connector

Thread: M18 Range: 5 … 20 mm Output: PNP, NPN, two-wire or analogue Connection: connector or cable Approvals: UL, UKCA, CCC, EAC

industriale

pepperl-fuchs-sensori-induttivi-cilindrici-m30

# General Product type: Cylindrical inductive proximity sensor Brand: Pepperl+Fuchs Thread: M30 × 1 Sensing range: 8 to 40 mm # Certifications Certifications: UL, UKCA, CCC, EAC (vary by code) Area: safe (non-classified); Ex versions in the "Ex cylindrical inductive sensors" series # Electrical Output: PNP · NPN · two-wire · digital current · analogue Supply voltage: DC (typically 10…30 V; up to 5…60 V depending on code) Function: NO, NC or complementary # Mechanical Mounting: Flush, non-flush or semi-flush Connection: M12 connector · PVC/PUR cable · cable with connector

Thread: M30 Range: 8 … 40 mm Output: PNP, NPN, two-wire or analogue Connection: connector or cable Approvals: UL, UKCA, CCC, EAC

industriale

pepperl-fuchs-sensori-induttivi-metal-face

# General Product type: Inductive proximity sensor with stainless steel active face Brand: Pepperl+Fuchs Diameter: Ø 8 · 12 · 18 · 30 mm Sensing range: 1.5 to 20 mm # Certifications Certifications: UL, CCC (vary by code) Area: safe (non-classified) # Electrical Output: PNP · NPN · two-wire Supply voltage: 10…30 V DC · 20…300 V AC/DC Function: NO # Mechanical Housing: Stainless steel, metal sensing face Connection: M8 · M12 · 1/2" connector · PUR/TPE cable

Housing: all stainless steel Withstands: impacts, chips, washdowns Diameter: Ø 8 … 30 mm Range: 1.5 … 20 mm Supply: DC or AC/DC

industriale

pepperl-fuchs-sensori-induttivi-a-forcella

# General Product type: Inductive slot sensor Brand: Pepperl+Fuchs Slot width: 3.5 · 10 · 15 · 30 mm # Certifications Certifications: UL, CCC (vary by code) Area: safe (non-classified) # Electrical Output: PNP · NPN · two-wire Supply voltage: 10…30 V DC · 20…253 V AC Function: NO or complementary # Mechanical Connection: PVC cable · cable with M8 connector · M12 connector · stranded wires

Slot: 3.5 … 30 mm Output: PNP, NPN or two-wire Supply: DC or AC Use: positioning and counting Connection: cable or connector

industriale

pepperl-fuchs-sensori-capacitivi-cilindrici

# General Product type: Cylindrical capacitive proximity sensor Brand: Pepperl+Fuchs Diameter: Ø 12 · 18 · 30 mm Sensing range: 4 to 15 mm (adjustable) # Certifications Certifications: UL, CCC (vary by code) Area: safe (non-classified); Ex NAMUR versions in the "Ex NAMUR capacitive sensors" series # Electrical Output: PNP · NPN · two-wire Supply voltage: 10…30 V DC · 10…36 V DC · 10…60 V DC · 20…253 V AC Function: NO, NC or complementary # Mechanical Mounting: Flush or non-flush Connection: M12 connector · PVC/PUR cable 2 m # Ambient Ambient temperature: -25 °C to +70/+85 °C depending on code

Detects: liquids, granules, plastics Diameter: Ø 12, 18, 30 mm Range: 4 … 15 mm, adjustable Output: PNP, NPN or two-wire Connection: M12 or cable

industriale

pepperl-fuchs-sensori-induttivi-cubici-compatti-f1-f7-f9-f10-f11

# General Product type: Compact rectangular inductive proximity sensor Brand: Pepperl+Fuchs Series: F1, F7, F76, F79, F9, F10, F11 Sensing range: 1.5 to 15 mm # Certifications Certifications: UL, CCC, EAC (vary by code) Area: safe (non-classified) # Electrical Output: PNP · NPN · two-wire Supply voltage: 5…30 V DC · 10…30 V DC · 20…253 V AC/DC (two-wire) Function: NO, NC or complementary # Mechanical Mounting: Flush or non-flush Dimensions: 16 × 8 × 4.7 mm to 38.5 × 30 × 30.5 mm Connection: PVC cable · cable with M8 connector · M8, 8 mm or M12 connector

Series: F1, F7, F76, F79, F9, F10, F11 Range: 1.5 … 15 mm Output: PNP, NPN or two-wire Connection: cable or M8/M12 connector Approvals: UL, CCC, EAC

industriale

pepperl-fuchs-sensori-induttivi-cubici-f141-f148-v3

# General Product type: Rectangular inductive proximity sensor Brand: Pepperl+Fuchs Series: F141, F148, V3 Sensing range: 0.8 to 15 mm # Certifications Certifications: UL, CCC (vary by code); e1 approval for some F148 versions Area: safe (non-classified) # Electrical Output: PNP · NPN · two-wire · relay Supply voltage: 5…30 V DC · 10…30 V DC · 10…60 V DC Function: NO or NC # Mechanical Mounting: Flush or non-flush Dimensions: 25 × 5 × 5 mm (F141) · 16 × 27.8 × 10.2 mm (V3) · 50 × 35 × 20 mm (F148) Connection: PVC/PUR cable · M8 connector · Faston

Series: F141, F148, V3 Range: 0.8 … 15 mm Output: PNP, NPN, two-wire or relay Housing: from 5 × 5 mm Approvals: UL, CCC

industriale

pepperl-fuchs-sensori-induttivi-cubici-f23-f29-f33-f41-fp-fps

# General Product type: Rectangular inductive proximity sensor Brand: Pepperl+Fuchs Series: F23, F29, F33/F33M, F41/F41A, FP, FPS Sensing range: 1.5 to 100 mm # Certifications Certifications: UL, CCC, EAC (vary by code) Area: safe (non-classified) # Electrical Output: PNP · NPN · two-wire Supply voltage: 4.75…30 V DC · 10…30/60 V DC · AC and AC/DC versions up to 265 V Function: NO, NC, complementary or selectable NO/NC # Mechanical Mounting: Flush, non-flush or semi-flush Dimensions: 40 × 8 × 8 mm to 177 × 177 × 60.5 mm Connection: PVC cable · M8/M12 connector · cable with connector · terminal compartment

Series: F23, F29, F33, F41, FP, FPS Range: 1.5 … 100 mm Output: PNP, NPN or two-wire Connection: cable, M8/M12 or terminal box Approvals: UL, CCC, EAC

industriale

pepperl-fuchs-sensori-induttivi-cilindrici-miniatura-3-4-5-6-5-mm

# General Product type: Miniature cylindrical inductive proximity sensor Brand: Pepperl+Fuchs Diameter: Ø 3 · 4 · 5 · 6.5 mm Sensing range: 0.6 to 6 mm # Certifications Certifications: UL, EAC (vary by code) Area: safe (non-classified) # Electrical Output: PNP · NPN (three-wire) Supply voltage: 5…30 V DC or 10…30 V DC Function: NO or NC Switching frequency: up to 6000 Hz # Mechanical Mounting: Flush, non-flush or semi-flush Connection: PVC/PUR cable · M8/M12 connector · cable with M8 connector

Diameter: Ø 3 … 6.5 mm Range: 0.6 … 6 mm Output: PNP or NPN Supply: 5/10…30 V DC Connection: cable or M8/M12 connector

industriale

pepperl-fuchs-sensori-induttivi-cilindrici-8-mm

# General Product type: Cylindrical inductive proximity sensor Brand: Pepperl+Fuchs Diameter: Ø 8 mm (M8 × 1 threaded or smooth) Sensing range: 1.5 to 6 mm # Certifications Certifications: UL, CCC (vary by code) Area: safe (non-classified) # Electrical Output: PNP · NPN · two-wire Supply voltage: 5…30 V DC · 10…30 V DC · 5…60 V DC Function: NO, NC or complementary Switching frequency: up to 6000 Hz # Mechanical Mounting: Flush, non-flush or semi-flush Housing length: 16 to 65 mm Connection: M8/M12 connector · PVC/PUR cable · cable with M8/M12 connector

Diameter: Ø 8 mm Range: 1.5 … 6 mm Output: PNP, NPN or two-wire Connection: M8, M12 or cable Approvals: UL, CCC

industriale

pepperl-fuchs-sensori-induttivi-cilindrici-ac-dc-250-v

# General Product type: Two-wire AC/DC cylindrical inductive proximity sensor Brand: Pepperl+Fuchs Diameter: M12 · M18 · M30 Sensing range: 2 to 25 mm # Certifications Certifications: UL, CCC (vary by code) Area: safe (non-classified) # Electrical Output: Two-wire Supply voltage: 20…250/253 V AC · 20…300 V AC/DC Function: NO or NC # Mechanical Mounting: Flush, non-flush or semi-flush Connection: PVC/PUR cable · 1/2" or 7/8" connector · M12 connector · terminal compartment

Diameter: M12, M18, M30 Range: 2 … 25 mm Output: two-wire AC or AC/DC Supply: up to 300 V Connection: cable, 1/2", 7/8" or M12

industriale

pepperl-fuchs-sensori-induttivi-fattore-di-riduzione-1

# General Product type: Inductive proximity sensor with reduction factor 1 Brand: Pepperl+Fuchs Housings: cylindrical Ø 6.5…30 mm · cubic up to 118 × 40 × 40 mm and 84 × 84 × 40 mm Sensing range: 2 to 75 mm Reduction factor: 1 for all metals # Certifications Certifications: UL, EAC (vary by code) Area: safe (non-classified) # Electrical Output: PNP · NPN Supply voltage: 10…30 V DC Function: NO, NC or complementary # Mechanical Mounting: Flush, non-flush or semi-flush Connection: M8/M12 connector · PVC cable · terminal compartment # Environmental Degree of protection: up to IP68/IP69K (depending on model)

Reduction factor: 1 for all metals Range: 2 … 75 mm Housing: Ø 6.5 … 30 mm or cubic Output: PNP or NPN Protection: up to IP68/IP69K

industriale

pepperl-fuchs-sensori-induttivi-a-prova-di-saldatura

# General Product type: Weld-proof inductive proximity sensor Brand: Pepperl+Fuchs Housings: cylindrical Ø 8…30 mm · cubic up to 118 × 40 × 40 mm and 84 × 84 × 40 mm Sensing range: 1.5 to 75 mm Versions: standard and reduction factor 1 # Certifications Certifications: UL, CCC (vary by code) Area: safe (non-classified) # Electrical Output: PNP · NPN Supply voltage: 10…30 V DC (versions up to 60 V DC) Function: NO, NC or complementary # Mechanical Mounting: Flush, non-flush or semi-flush Connection: M12/M8 connector · PVC/PUR cable · cable with M12 connector · terminal compartment # Environmental Degree of protection: IP67 / IP68 Resistance: welding magnetic fields, weld spatter

Use: welding cells Immunity: welding magnetic fields Housing: PTFE or weld-proof plastic Range: 1.5 … 75 mm Protection: IP67/IP68

industriale

pepperl-fuchs-sensori-induttivi-metal-face-cubici-e-antisaldatura

# General Product type: Metal Face inductive proximity sensor Brand: Pepperl+Fuchs Housings: cubic 32 × 20 × 8 mm (F104M) · cylindrical Ø 8, 12, 18, 30 mm (C series) Sensing range: 1.5 to 15 mm # Certifications Certifications: UL, CCC (vary by code) Area: safe (non-classified) # Electrical Output: PNP · two-wire Supply voltage: 10…30 V DC · 20…300 V AC/DC Function: NO # Mechanical Mounting: Flush Housing material: stainless steel, metal sensing face Connection: M12 or 1/2" connector · PUR cable

Housing: one-piece stainless steel Versions: F104M cubic and weld-proof C series Range: 1.5 … 15 mm Output: PNP or two-wire AC/DC Connection: M12, 1/2" or cable

industriale

pepperl-fuchs-sensori-induttivi-temperatura-estesa-100-c

# General Product type: Extended temperature inductive proximity sensor Brand: Pepperl+Fuchs Housings: cylindrical Ø 8…30 mm · cubic 67 × 40 × 40 mm … 128 × 55 × 55 mm Sensing range: 1 to 40 mm # Certifications Certifications: UL, EAC (vary by code) Area: safe (non-classified) # Electrical Output: PNP · NPN · two-wire Supply voltage: 10…30 V DC (versions up to 60/65 V DC) Function: NO, NC or complementary # Mechanical Mounting: Flush or non-flush Connection: M8/M12 connector · PUR cable · terminal compartment # Environmental Ambient temperature: up to +100 °C (minimum −25 °C or −40 °C by code)

Temperature: up to +100 °C Range: 1 … 40 mm Housing: Ø 8 … 30 mm or cubic Output: PNP, NPN or two-wire Connection: M12, cable or terminal box

industriale

pepperl-fuchs-sensori-induttivi-io-link

# General Product type: Inductive proximity sensor with IO-Link Brand: Pepperl+Fuchs Housings: cylindrical Ø 12, 18, 30 mm · cubic 67 × 40 × 40 and 118 × 40 × 40 mm Sensing range: 4 to 40 mm Reduction factor: 1 # Certifications Certifications: UL Area: safe (non-classified) # Electrical Output: PNP (three-wire) with IO-Link Supply voltage: 10…30 V DC Function: Selectable NO/NC # Mechanical Mounting: Flush or non-flush Connection: M12 connector · PVC/PUR cable · terminal compartment

Interface: IO-Link Reduction factor: 1 Range: 4 … 40 mm Output: PNP, selectable NO/NC Supply: 10…30 V DC

industriale

pepperl-fuchs-sensori-induttivi-resistenti-alla-pressione

# General Product type: Pressure-resistant inductive proximity sensor Brand: Pepperl+Fuchs Diameter: M12 · M18 Sensing range: 1.5 mm · 3 mm Pressure resistance: 350 bar or 500 bar (by code) # Certifications Certifications: UL, CCC (vary by code) Area: safe (non-classified) # Electrical Output: PNP Supply voltage: 10…30 V DC · 10…60 V DC Function: NO or NC # Mechanical Mounting: Flush Materials: stainless steel housing, ceramic sensing face Connection: M12 connector · cable

Pressure: up to 500 bar Diameter: M12, M18 Range: 1.5 … 3 mm Output: PNP Application: hydraulic cylinders

industriale

pepperl-fuchs-sensori-induttivi-mobile-equipment-e1

# General Product type: Inductive proximity sensor for mobile equipment Brand: Pepperl+Fuchs Housings: cylindrical M12, M18, M30 · cubic up to 118 × 40 × 40 mm Sensing range: 4 to 40 mm # Certifications Certifications: e1 type approval, UL, CCC, EAC (vary by code) Area: safe (non-classified) # Electrical Output: PNP · NPN · digital current Supply voltage: 5/7/9/10…30 V DC · up to 60 V DC Function: NO, NC or complementary # Mechanical Mounting: Flush or non-flush Connection: M12 connector · PUR cable · terminal compartment # Environmental Ambient temperature: −40 to +85 °C (typical for the family)

Approval: e1 (road use) Temperature: −40 … +85 °C Range: 4 … 40 mm Output: PNP, NPN or digital current Supply: up to 60 V DC

industriale

pepperl-fuchs-sensori-induttivi-ad-anello-e-per-power-clamps

# General Product type: Inductive proximity sensor in special housing (ring-shaped / for power clamps) Brand: Pepperl+Fuchs Series: RJ21, RJ43 (ring) · F58 (power clamps) Ring diameter: 21 mm · 43 mm F58 sensing range: 2 mm # Certifications Certifications: UL Area: safe (non-classified) # Electrical Output: PNP · NPN Supply voltage: 10…30 V DC Function: NO # Mechanical Connection: PVC cable · cable with M12 connector · M12 connector (F58)

Designs: ring Ø 21/43 mm and F58 Output: PNP or NPN Supply: 10…30 V DC Connection: cable or M12 connector F58: halogen- and silicone-free

industriale

pepperl-fuchs-sensori-induttivi-di-sicurezza-ossd-sil2-pld

# General Product type: Inductive safety proximity sensor Brand: Pepperl+Fuchs Housings: cylindrical Ø 12, 18, 30 mm · cubic 67 × 40 × 40 mm Sensing range: 2 to 20 mm # Certifications Certifications: TÜV, UL, EAC; e1 approval for some versions Functional safety: SIL 2 · PL d (SIL 3 / PL e with redundancy) Area: safe (non-classified) # Electrical Output: OSSD, PNP (four-wire) Supply voltage: 18…30 V DC # Mechanical Mounting: Flush or non-flush Connection: M12 connector · PVC/PUR cable

Safety: SIL 2 / PL d Output: OSSD Range: 2 … 20 mm Housing: Ø 12 … 30 mm or 40 × 40 mm Supply: 18…30 V DC

industriale

pepperl-fuchs-sensori-induttivi-di-sicurezza-namur-ex-sil3

# General Product type: NAMUR inductive safety proximity sensor for hazardous areas Brand: Pepperl+Fuchs Sensing range: 2 to 40 mm # Certifications Certifications: ATEX, IECEx, UL, EAC (vary by code: see datasheet) Equipment protection level: up to Ga / Da (by code) Functional safety: SIL 3 # Electrical Output: NAMUR with safety function (two-wire) Supply voltage: 8.2 V DC Function: NC (NO versions) # Mechanical Mounting: Flush or non-flush Connection: Silicone cable 0.3 to 40 m · stranded wires · terminal compartment

Zones: 0, 1, 2, 20, 21, 22 (by code) Output: safety NAMUR Safety: SIL 3 Range: 2 … 40 mm Certifications: ATEX, IECEx

pepperl-fuchs-sensori-induttivi-ex-ad-anello-e-a-forcella-namur

# General Product type: Ring-shaped / slot NAMUR inductive proximity sensor for hazardous areas Brand: Pepperl+Fuchs Ring diameter: 10 to 15 mm Slot width: 2 to 30 mm # Certifications Certifications: ATEX, IECEx, UL, EAC (vary by code: see datasheet) Equipment protection level: rings Gb (zone 1/2) · slots up to Ga / Da Functional safety: SIL 2 versions # Electrical Output: NAMUR (two-wire) Supply voltage: 8.2 V DC Function: NC # Mechanical Connection: PVC cable · stranded wires

Zones: 0, 1, 2, 20, 21, 22 (by code) Designs: ring Ø 10 … 15 mm, slot 2 … 30 mm Output: NAMUR Safety: SIL 2 versions Certifications: ATEX, IECEx

pepperl-fuchs-sensori-doppi-f25-attuatori-valvole

# General Product type: Dual inductive sensor for valve actuators Brand: Pepperl+Fuchs Series: F25, F25K Sensing range: 3 mm · 4 mm # Certifications Certifications: UL, EAC; ATEX and IECEx for NAMUR versions (see datasheet) Equipment protection level: up to Ga / Da (NAMUR versions) # Electrical Output: PNP · two-wire · NAMUR Supply voltage: 5/10…30 V DC · 8.2 V DC (NAMUR) Function: NO or NC # Mechanical Housing width: 52 mm Connection: PVC cable · M12 connector · terminal compartment

Zones: 0, 1, 2, 20, 21, 22 (NAMUR versions only) Output: PNP, two-wire or NAMUR Range: 3 … 4 mm Mounting: directly on the actuator Connection: cable, M12 or terminal box

pepperl-fuchs-sensori-capacitivi-cubici-f46-f64-fp

# General Product type: Rectangular capacitive proximity sensor Brand: Pepperl+Fuchs Series: F46/F46A, F64, FP Sensing range: 2 to 40 mm # Certifications Certifications: UL (vary by code) Area: safe (non-classified) # Electrical Output: PNP · NPN · digital current Supply voltage: 10…30 V DC · 10…60 V DC (FP) Function: NO, NC or complementary # Mechanical Mounting: Non-flush Dimensions: flat housings up to 50 mm wide · F64 40 × 25 × 12 mm · FP 40 × 80 × 80 mm Connection: PVC/PUR/FEP cable · cable with M8/M12 connector · M8 connector · terminal compartment # Environmental Ambient temperature: −25 °C (−40 °C) to +70 °C (+85 °C by code)

Series: F46/F46A, F64, FP Range: 2 … 40 mm Output: PNP, NPN or digital current Connection: cable, M8/M12 or terminal box Temperature: up to +70 °C

industriale

pepperl-fuchs-fotocellule-miniaturizzate-serie-r2

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: R2 Function principles: Thru-beam · Polarised retroreflective · Background suppression · Background evaluation Detection range: Thru-beam 1…10 m · Polarised retroreflective 1…2 m · Background suppression 15…80 mm · Background evaluation 15…50 mm Light type: Red LED · Red laser diode # Certifications Certifications: CE, UL, EAC, UKCA (vary by code: see datasheet) # Electrical Output: NPN · PNP Operating voltage: 10…30 V DC · 12…24 V DC # Mechanical Housing dimensions: L 11.2 mm × W 7.5 mm × H 24 mm Connection: Cable · Cable with M8 connector · Other (see datasheet)

Principles: Thru-beam, polarised retroreflective, background suppression, background evaluation Range: 15 mm…10 m Output: NPN, PNP Light: red LED, red laser diode Connection: cable, cable with M8 connector, other (see datasheet)

industriale

pepperl-fuchs-fotocellule-piatte-serie-r2f

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: R2F Function principles: Thru-beam · Polarised retroreflective · Background suppression Detection range: Thru-beam 500 mm…1.5 m · Polarised retroreflective 1.5 m · Background suppression 15…30 mm Light type: Red LED · Red laser diode # Certifications Certifications: CE, UL (vary by code: see datasheet) # Electrical Output: NPN · PNP Operating voltage: 12…24 V DC · 10…30 V DC # Mechanical Housing dimensions: L 4.1 mm × W 12 mm × H 25.5 mm Connection: Cable · Cable with M8 connector

Principles: Thru-beam, polarised retroreflective, background suppression Range: 15 mm…1.5 m Output: NPN, PNP Light: red LED, red laser diode Connection: cable, cable with M8 connector

industriale

pepperl-fuchs-fotocellule-miniaturizzate-serie-r3

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: R3 Function principles: Thru-beam · Polarised retroreflective · Background suppression · Background evaluation Detection range: Thru-beam 1…10 m · Polarised retroreflective 1…2 m · Background suppression 15…80 mm · Background evaluation 15…50 mm Light type: Red LED · Red laser diode # Certifications Certifications: CE, UL, EAC, UKCA (vary by code: see datasheet) # Electrical Output: NPN · PNP Operating voltage: 10…30 V DC · 12…24 V DC # Mechanical Housing dimensions: L 13.8 mm × W 7.5 mm × H 26 mm Connection: Cable · Cable with M8 connector

Principles: Thru-beam, polarised retroreflective, background suppression, background evaluation Range: 15 mm…10 m Output: NPN, PNP Light: red LED, red laser diode Connection: cable, cable with M8 connector

industriale

pepperl-fuchs-fotocellule-piatte-serie-r3f

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: R3F Function principles: Thru-beam · Polarised retroreflective · Background suppression Detection range: Thru-beam 500 mm…1.5 m · Polarised retroreflective 1.5 m · Background suppression 15…30 mm Light type: Red LED · Red laser diode # Certifications Certifications: CE, UL (vary by code: see datasheet) # Electrical Output: NPN · PNP Operating voltage: 12…24 V DC · 10…30 V DC # Mechanical Housing dimensions: L 4.1 mm × W 16 mm × H 25.5 mm Connection: Cable · Cable with M8 connector

Principles: Thru-beam, polarised retroreflective, background suppression Range: 15 mm…1.5 m Output: NPN, PNP Light: red LED, red laser diode Connection: cable, cable with M8 connector

industriale

pepperl-fuchs-fotocellule-compatte-serie-r100-io-link

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: R100 Function principles: Thru-beam · Retroreflective · Polarised retroreflective · Glass detection · Energetic diffuse · Background suppression · Background evaluation · Multiple switch points Detection range: Thru-beam 12…20 m · Retroreflective 7…10 m · Polarised retroreflective 7.5…12 m · Glass detection 3.5 m · Energetic diffuse 1…1.1 m · Background suppression 100…350 mm · Background evaluation 100…350 mm · Multiple switch points 150 mm Light type: Red LED · Infrared LED · Red laser diode # Certifications Certifications: CE, UL, EAC, UKCA (vary by code: see datasheet) # Electrical Output: PNP · 1× push-pull · 2× push-pull Interface: IO-Link (120 of 121 codes) Operating voltage: 10…30 V DC Operating elements: Potentiometer · Push-button # Mechanical Housing dimensions: L 21.5 mm × W 11 mm Connection: Cable · Cable with M8 connector · Cable with M12 connector · M8 connector

Principles: Thru-beam, retroreflective, polarised retroreflective, glass detection… Range: 100 mm…20 m Output: PNP, 1× push-pull, 2× push-pull · IO-Link Light: red LED, infrared LED, red laser diode Connection: cable, cable with M8 connector, cable with M12 connector, M8 connector

industriale

pepperl-fuchs-fotocellule-compatte-serie-r101-io-link

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: R101 Function principles: Thru-beam · Retroreflective · Polarised retroreflective · Glass detection · Energetic diffuse · Background suppression · Background evaluation · Multiple switch points Detection range: Thru-beam 12…20 m · Retroreflective 7…10 m · Polarised retroreflective 5…12 m · Glass detection 3.5 m · Energetic diffuse 1…1.1 m · Background suppression 20…350 mm · Background evaluation 100…350 mm · Multiple switch points 150 mm Light type: Red LED · Infrared LED · Red laser diode # Certifications Certifications: CE, UL (vary by code: see datasheet) # Electrical Output: PNP · 1× push-pull · 2× push-pull Interface: IO-Link (126 of 128 codes) Operating voltage: 10…30 V DC Operating elements: Potentiometer · Push-button # Mechanical Housing dimensions: L 18.3 mm × W 13.9 mm Connection: Cable · Cable with M8 connector · Cable with M12 connector · M8 connector

Principles: Thru-beam, retroreflective, polarised retroreflective, glass detection… Range: 20 mm…20 m Output: PNP, 1× push-pull, 2× push-pull · IO-Link Light: red LED, infrared LED, red laser diode Connection: cable, cable with M8 connector, cable with M12 connector, M8 connector

industriale

pepperl-fuchs-fotocellule-compatte-serie-r102-io-link

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: R102 Function principles: Thru-beam · Glass detection · Background suppression Detection range: Thru-beam 12…20 m · Glass detection 3.5 m · Background suppression 20…80 mm Light type: Red LED · Infrared LED · Red laser diode # Certifications Certifications: CE, UL (vary by code: see datasheet) # Electrical Output: NPN · 1× push-pull · 2× push-pull Interface: IO-Link (30 of 31 codes) Operating voltage: 10…30 V DC Operating elements: Potentiometer · Push-button # Mechanical Housing dimensions: L 18.3 mm × W 13.9 mm × H 31.9 mm / 33.8 mm / 41.4 mm Connection: Cable · Cable with M12 connector · M8 connector

Principles: Thru-beam, glass detection, background suppression Range: 20 mm…20 m Output: NPN, 1× push-pull, 2× push-pull · IO-Link Light: red LED, infrared LED, red laser diode Connection: cable, cable with M12 connector, M8 connector

industriale

pepperl-fuchs-fotocellule-serie-r103-io-link

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: R103 Function principles: Thru-beam · Polarised retroreflective · Glass detection · Energetic diffuse · Background suppression · Background evaluation · Multiple switch points Detection range: Thru-beam 10…20 m · Polarised retroreflective 6…12 m · Glass detection 3.5 m · Energetic diffuse 800 mm · Background suppression 80…300 mm · Background evaluation 80…300 mm · Multiple switch points 120 mm Light type: Red LED · Red laser diode # Certifications Certifications: CE, UL (vary by code: see datasheet) # Electrical Output: 1× push-pull · 2× push-pull Interface: IO-Link Operating voltage: 10…30 V DC Operating elements: Potentiometer · Push-button # Mechanical Housing dimensions: L 26.7 mm × W 15 mm Connection: Cable · Cable with M8 connector · Cable with M12 connector · M8 connector

Principles: Thru-beam, polarised retroreflective, glass detection, energetic diffuse… Range: 80 mm…20 m Output: 1× push-pull, 2× push-pull · IO-Link Light: red LED, red laser diode Connection: cable, cable with M8 connector, cable with M12 connector, M8 connector

industriale

pepperl-fuchs-fotocellule-serie-r200-io-link

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: R200 Function principles: Thru-beam · Polarised retroreflective · Glass detection · Energetic diffuse · Background suppression · Background evaluation · Multiple switch points Detection range: Thru-beam 25…40 m · Polarised retroreflective 15…25 m · Glass detection 5.6 m · Energetic diffuse 1.4 m · Background suppression 300…650 mm · Background evaluation 300…650 mm · Multiple switch points 350…400 mm Light type: Red LED · Red laser diode # Certifications Certifications: CE, UL, EAC, UKCA (vary by code: see datasheet) # Electrical Output: PNP · 1× push-pull · 2× push-pull Interface: IO-Link Operating voltage: 10…30 V DC Operating elements: Potentiometer · Push-button # Mechanical Housing dimensions: L 41.7 mm × W 15 mm × H 50.6 mm Connection: Cable · Cable with M8 connector · Cable with M12 connector · M8 connector · M12 connector

Principles: Thru-beam, polarised retroreflective, glass detection, energetic diffuse… Range: 300 mm…40 m Output: PNP, 1× push-pull, 2× push-pull · IO-Link Light: red LED, red laser diode Connection: cable, cable with M8 connector, cable with M12 connector, M8 connector

industriale

pepperl-fuchs-fotocellule-serie-r201-io-link

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: R201 Function principles: Thru-beam · Polarised retroreflective · Glass detection · Energetic diffuse · Background suppression · Background evaluation · Multiple switch points Detection range: Thru-beam 25…40 m · Polarised retroreflective 15…25 m · Glass detection 5.6 m · Energetic diffuse 1.4 m · Background suppression 300…650 mm · Background evaluation 300…650 mm · Multiple switch points 350…400 mm Light type: Red LED · Red laser diode # Certifications Certifications: CE, UL, EAC, UKCA (vary by code: see datasheet) # Electrical Output: 1× push-pull · 2× push-pull Interface: IO-Link Operating voltage: 10…30 V DC Operating elements: Potentiometer · Push-button # Mechanical Housing dimensions: L 41.7 mm × W 15 mm × H 61.7 mm Connection: Cable · Cable with M8 connector · Cable with M12 connector · M8 connector · M12 connector

Principles: Thru-beam, polarised retroreflective, glass detection, energetic diffuse… Range: 300 mm…40 m Output: 1× push-pull, 2× push-pull · IO-Link Light: red LED, red laser diode Connection: cable, cable with M8 connector, cable with M12 connector, M8 connector

industriale

pepperl-fuchs-fotocellule-serie-rl28-rele-ac-dc

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: RL28 · RLK28 · LA28/LK28 · LD28/LV28 Function principles: Thru-beam · Retroreflective · Polarised retroreflective · Glass detection · Background suppression Detection range: Thru-beam 10…120 m · Retroreflective 3 m · Polarised retroreflective 13…30 m · Glass detection 5.6 m · Background suppression 400 mm…2 m Light type: Red LED · Infrared LED · Red laser diode # Certifications Certifications: CE, UL, EAC, UKCA, CCC (vary by code: see datasheet) # Electrical Output: PNP · PNP/NPN · 1× push-pull · relay Operating voltage: 10…30 V DC · 12…240 V AC/DC Operating elements: Potentiometer # Mechanical Housing dimensions: W 25.8 mm × H 88 mm Connection: Cable · Cable with M12 connector · M12 connector · M18 connector · Terminal compartment

Principles: Thru-beam, retroreflective, polarised retroreflective, glass detection… Range: 400 mm…120 m Output: PNP, PNP/NPN, 1× push-pull, relay Light: red LED, infrared LED, red laser diode Connection: cable, cable with M12 connector, M12 connector, M18 connector

industriale

pepperl-fuchs-fotocellule-serie-rl29

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: RL29 · RLK29 · LA29/LK29 Function principles: Thru-beam · Polarised retroreflective · Energetic diffuse · Background suppression Detection range: Thru-beam 65 m · Polarised retroreflective 6…12 m · Energetic diffuse 2 m · Background suppression 1.2 m Light type: Red LED # Certifications Certifications: CE, UL, EAC, UKCA, CCC (vary by code: see datasheet) # Electrical Output: 2× push-pull · relay Operating elements: Potentiometer # Mechanical Housing dimensions: W 25.8 mm × H 88 mm Connection: Cable · Cable with M12 connector · M12 connector · Terminal compartment

Principles: Thru-beam, polarised retroreflective, energetic diffuse, background suppression Range: 1.2…65 m Output: 2× push-pull, relay Light: red LED Connection: cable, cable with M12 connector, M12 connector, terminal compartment

industriale

pepperl-fuchs-fotocellule-serie-rl31

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: RL31 · RLK31 · LA31/LK31 · LD31/LV31 Function principles: Thru-beam · Retroreflective · Polarised retroreflective · Energetic diffuse · Background suppression · Measurement core Detection range: Thru-beam 43 m · Retroreflective 16.5 m · Polarised retroreflective 9 m · Energetic diffuse 1.2…2.5 m · Background suppression 800 mm · Measurement core 800 mm Light type: Red LED · Infrared LED # Certifications Certifications: CE, UL, EAC, CCC (vary by code: see datasheet) # Electrical Output: 2× push-pull · relay Interface: IO-Link (2 of 39 codes) Operating voltage: 24…240 V AC/DC · 10…30 V DC Operating elements: Potentiometer # Mechanical Housing dimensions: L 35 mm × W 18 mm × H 62 mm Connection: Cable · Cable with M12 connector · M12 connector

Principles: Thru-beam, retroreflective, polarised retroreflective, energetic diffuse… Range: 800 mm…43 m Output: 2× push-pull, relay · IO-Link Light: red LED, infrared LED Connection: cable, cable with M12 connector, M12 connector

industriale

pepperl-fuchs-fotocellule-serie-mlv41

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: MLV41 Function principles: Retroreflective · Polarised retroreflective · Glass detection · Background suppression Detection range: Retroreflective 9.5 m · Polarised retroreflective 7…8 m · Glass detection 4 m · Background suppression 350 mm Light type: Red LED · Infrared LED # Certifications Certifications: CE, UL, EAC, UKCA (vary by code: see datasheet) # Electrical Output: NPN · PNP · 1× push-pull · 2× push-pull Interface: IO-Link (7 of 42 codes) Operating voltage: 10…30 V DC Operating elements: Potentiometer # Mechanical Housing dimensions: L 13.6 mm × W 31 mm × H 56.5 mm Connection: Cable · Cable with M12 connector · M8 connector · M9 connector · M12 connector

Principles: Retroreflective, polarised retroreflective, glass detection, background suppression Range: 350 mm…9.5 m Output: NPN, PNP, 1× push-pull, 2× push-pull · IO-Link Light: red LED, infrared LED Connection: cable, cable with M12 connector, M8 connector, M9 connector

industriale

pepperl-fuchs-sensori-distanza-fotoelettrici-serie-r300

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: R300 Function principles: Energetic diffuse · Distance sensor Detection range: Energetic diffuse 8 m · Distance sensor 8…50 m Light type: Red LED # Certifications Certifications: CE, UL, EAC, UKCA (vary by code: see datasheet) # Electrical Output: 2× push-pull · 1× push-pull + 1× analogue Operating voltage: 10…30 V DC Operating elements: Potentiometer · Push-button # Mechanical Housing dimensions: L 54.3 mm × W 25.8 mm × H 88 mm Connection: M12 connector

Principles: Energetic diffuse, distance sensor Range: 8…50 m Output: 2× push-pull, 1× push-pull + 1× analogue Light: red LED Connection: M12 connector

industriale

pepperl-fuchs-barriere-sbarramento-sottili-serie-ml29

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: ML29 Function principles: Thru-beam Detection range: Thru-beam 2.5…6 m Light type: Infrared LED # Certifications Certifications: CE, EAC (vary by code: see datasheet) # Electrical Output: NPN · PNP Operating voltage: 11…30 V DC · 10…32 V DC # Mechanical Housing dimensions: L 9.2 mm × W 11.6 mm × H 85.2 mm Connection: Cable · Other (see datasheet)

Principles: Thru-beam Range: 2.5…6 m Output: NPN, PNP Light: infrared LED Connection: cable, other (see datasheet)

industriale

pepperl-fuchs-fotocellule-compatte-serie-ml100

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: ML100 · M100/MV100 Function principles: Thru-beam · Retroreflective · Polarised retroreflective · Energetic diffuse · Background suppression · Background evaluation · Convergent beam Detection range: Thru-beam 10…20 m · Retroreflective 5 m · Polarised retroreflective 2.5…5 m · Energetic diffuse 200 mm…1 m · Background suppression 100…350 mm · Background evaluation 350 mm · Convergent beam 100 mm Light type: Red LED · Infrared LED # Certifications Certifications: CE, UL, EAC, UKCA (vary by code: see datasheet) Vehicle approval: e1 (some codes) # Electrical Output: NPN · PNP Operating voltage: 10…30 V DC Operating elements: Potentiometer # Mechanical Housing dimensions: L 20 mm × W 11 mm × H 31 mm Connection: Cable · Cable with M8 connector · Cable with M12 connector · M8 connector

Principles: Thru-beam, retroreflective, polarised retroreflective, energetic diffuse… Range: 100 mm…20 m Output: NPN, PNP Light: red LED, infrared LED Connection: cable, cable with M8 connector, cable with M12 connector, M8 connector

industriale

pepperl-fuchs-fotocellule-serie-ml17

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: ML17 · MD17/MV17 Function principles: Thru-beam · Polarised retroreflective · Energetic diffuse · Background suppression Detection range: Thru-beam 15 m · Polarised retroreflective 3.5 m · Energetic diffuse 450 mm · Background suppression 50…100 mm Light type: Red LED · Infrared LED # Certifications Certifications: CE, UL, EAC, UKCA (vary by code: see datasheet) # Electrical Output: 2× push-pull Operating voltage: 10…30 V DC Operating elements: Potentiometer # Mechanical Housing dimensions: L 29.3 mm × W 15 mm × H 34.5 mm Connection: Cable · Cable with M12 connector · M8 connector · M12 connector

Principles: Thru-beam, polarised retroreflective, energetic diffuse, background suppression Range: 50 mm…15 m Output: 2× push-pull Light: red LED, infrared LED Connection: cable, cable with M12 connector, M8 connector, M12 connector

industriale

pepperl-fuchs-barriere-sbarramento-cilindriche-serie-bb10

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: BB10 Function principles: Thru-beam Detection range: Thru-beam 3…6 m Light type: Infrared LED # Certifications Certifications: CE (vary by code: see datasheet) # Electrical Output: NPN · PNP Operating voltage: 10…30 V DC # Mechanical Housing diameter: Ø 12.5 mm Housing length: 22 mm Connection: Cable · Cable with M8 connector · Other (see datasheet)

Principles: Thru-beam Range: 3…6 m Output: NPN, PNP Light: infrared LED Connection: cable, cable with M8 connector, other (see datasheet)

industriale

pepperl-fuchs-fotocellule-cilindriche-filettate-m12

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: OBD/OBR/OBE…-12GM40 Function principles: Thru-beam · Polarised retroreflective · Energetic diffuse Detection range: Thru-beam 6 m · Polarised retroreflective 2.5 m · Energetic diffuse 300 mm Light type: Red LED # Certifications Certifications: CE, UL (vary by code: see datasheet) # Electrical Output: NPN · PNP Operating voltage: 10…30 V DC Operating elements: Potentiometer # Mechanical Housing diameter: Ø 12 mm Connection: Cable · M12 connector

Principles: Thru-beam, polarised retroreflective, energetic diffuse Range: 300 mm…6 m Output: NPN, PNP Light: red LED Connection: cable, M12 connector

industriale

pepperl-fuchs-fotocellule-cilindriche-filettate-m18

# General Product type: Photoelectric sensor Brand: Pepperl+Fuchs Series: OBE/OBG/OBR/OBD/OBT…-18GM Function principles: Thru-beam · Polarised retroreflective · Glass detection · Energetic diffuse · Background suppression Detection range: Thru-beam 15…25 m · Polarised retroreflective 5…5.5 m · Glass detection 3…3.5 m · Energetic diffuse 450…600 mm · Background suppression 150…300 mm Light type: Red LED # Certifications Certifications: CE, UL, UKCA (vary by code: see datasheet) # Electrical Output: NPN · PNP Operating voltage: 10…30 V DC Operating elements: Potentiometer # Mechanical Housing diameter: Ø 18 mm Connection: Cable · M12 connector

Principles: Thru-beam, polarised retroreflective, glass detection, energetic diffuse… Range: 150 mm…25 m Output: NPN, PNP Light: red LED Connection: cable, M12 connector

industriale

pepperl-fuchs-sensori-distanza-r100

# General Product type: Photoelectric distance sensor Brand: Pepperl+Fuchs Principle: MPT triangulation (Multi Pixel Technology) Range: 50 to 200 mm Light: Red LED or red laser Operating elements: Push-button # Certifications Certifications: EAC, UL, UKCA Area: safe (non-classified) # Electrical Supply voltage: 10…30 V DC Output: 1 or 2 push-pull outputs Interface: IO-Link # Mechanical Dimensions (L × W × H): 21.5 × 11 × 44.5 mm Connection: Cable, cable with M8 or M12 connector, M8 connector

Technology: MPT (triangulation) Range: 50 … 200 mm Light: red LED or laser Interface: IO-Link Output: 1 or 2 push-pull

industriale

pepperl-fuchs-sensori-distanza-r101

# General Product type: Photoelectric distance sensor Brand: Pepperl+Fuchs Principle: MPT triangulation (Multi Pixel Technology) Range: 50 to 200 mm Light: Red LED or red laser Operating elements: Push-button # Certifications Certifications: UL Area: safe (non-classified) # Electrical Supply voltage: 10…30 V DC Output: 1 or 2 push-pull outputs Interface: IO-Link # Mechanical Dimensions (L × W × H): 18.3 × 13.9 × 41.4 mm Connection: Cable, cable with M8 or M12 connector, M8 connector

Technology: MPT (triangulation) Range: 50 … 200 mm Light: red LED or laser Interface: IO-Link Output: 1 or 2 push-pull

industriale

pepperl-fuchs-sensori-distanza-r103

# General Product type: Photoelectric distance sensor Brand: Pepperl+Fuchs Principle: MPT triangulation (Multi Pixel Technology) Range: 45 to 150 mm Light: Red LED or red laser Operating elements: Push-button # Certifications Certifications: UL Area: safe (non-classified) # Electrical Supply voltage: 10…30 V DC Output: 1 or 2 push-pull outputs Interface: IO-Link # Mechanical Dimensions (L × W × H): 26.7 × 15 × 36.5/43.9 mm Connection: Cable, cable with M8 or M12 connector, M8 connector

Technology: MPT (triangulation) Range: 45 … 150 mm Light: red LED or laser Interface: IO-Link Output: 1 or 2 push-pull

industriale

pepperl-fuchs-sensori-distanza-r200

# General Product type: Photoelectric distance sensor Brand: Pepperl+Fuchs Principle: MPT triangulation (Multi Pixel Technology) Range: 300 to 600 mm Light: Red LED or red laser Operating elements: Push-button # Certifications Certifications: EAC, UL, UKCA Area: safe (non-classified) # Electrical Supply voltage: 10…30 V DC (18…30 V DC for analogue versions) Output: 1 or 2 push-pull outputs; versions with 4…20 mA or 0…10 V analogue output Interface: IO-Link # Mechanical Dimensions (L × W × H): 41.7 × 15 × 50.6 mm Connection: Cable, cable with M8 or M12 connector, M8 or M12 connector

Technology: MPT (triangulation) Range: 300 … 600 mm Light: red LED or laser Interface: IO-Link Output: push-pull or analogue

industriale

pepperl-fuchs-sensori-distanza-r201

# General Product type: Photoelectric distance sensor Brand: Pepperl+Fuchs Principle: MPT triangulation (Multi Pixel Technology) Range: 300 to 600 mm Light: Red LED or red laser Operating elements: Push-button # Certifications Certifications: EAC, UL, UKCA Area: safe (non-classified) # Electrical Supply voltage: 10…30 V DC (18…30 V DC for analogue versions) Output: 1 or 2 push-pull outputs; versions with 4…20 mA or 0…10 V analogue output Interface: IO-Link # Mechanical Dimensions (L × W × H): 41.7 × 15 × 61.7 mm Connection: Cable, cable with M8 or M12 connector, M8 or M12 connector

Technology: MPT (triangulation) Range: 300 … 600 mm Light: red LED or laser Interface: IO-Link Output: push-pull or analogue

industriale

pepperl-fuchs-sensori-distanza-laser-vdm18

# General Product type: Laser distance sensor Brand: Pepperl+Fuchs Range: 100 mm · 300 mm Light: Red laser (class 2) Operating elements: Potentiometer # Certifications Certifications: UL Area: safe (non-classified) # Electrical Supply voltage: 18…30 V DC Analogue output: 4…20 mA Switching outputs: 2 × PNP · 2 × NPN · PNP + control input Interface: RS485 (/88 versions) # Mechanical Dimensions (L × W × H): 50 × 17 × 50 mm Connection: M12 connector

Range: 100 or 300 mm Light: red laser Analogue output: 4…20 mA Outputs: PNP or NPN Connection: M12

industriale

pepperl-fuchs-sensori-distanza-laser-vdm28

# General Product type: Laser distance sensor Brand: Pepperl+Fuchs Principle: PRT (Pulse Ranging Technology) Range: 8 m · 15 m (to object) · 50 m (to reflector) Light: Red or infrared laser (class 1) Operating elements: Push-button # Certifications Certifications: EAC, UL, UKCA Area: safe (non-classified) # Electrical Supply voltage: 10…30 V DC Output: 1 or 2 push-pull · 0/4…20 mA analogue (IO-Link versions) Interface: IO-Link (depending on code) # Mechanical Dimensions (L × W × H): 54.6 × 25.8 × 88 mm Connection: M12 connector · cable with M12 connector

Technology: PRT (time of flight) Range: up to 50 m Light: class 1 laser Interface: IO-Link Output: push-pull and analogue

industriale

pepperl-fuchs-misuratori-distanza-laser-r1000

# General Product type: Laser distance sensor for positioning Brand: Pepperl+Fuchs Principle: PRT (Pulse Ranging Technology) Range: 50 m · 150 m (to reflector) Light: Red laser Operating elements: Push-buttons and display # Certifications Certifications: UL Area: safe (non-classified) # Electrical Supply voltage: 10…30 V DC Interface: SSI / RS-422 # Mechanical Dimensions (L × W × H): 80.6 × 55 × 106.6 mm Connection: M12 connectors # Environmental Versions: standard · low temperature (-T)

Range: 50 or 150 m Accuracy: millimetre Interface: SSI / RS-422 Technology: PRT Versions: incl. low temperature

industriale

pepperl-fuchs-sensori-lidar-2d-3d

# General Product type: 2-D / 3-D LiDAR sensor Brand: Pepperl+Fuchs Principle: PRT (Pulse Ranging Technology) Range: 6 … 8 m (R2100) · 10 … 60 m (R2000) · 4 m (R2300) Light: Red or infrared laser (R2000) · infrared LED (R2100) · infrared laser (R2300) Measuring angle: 360° (R2000) # Certifications Certifications: EAC, UL, UKCA (vary by series) Area: safe (non-classified) # Electrical Supply voltage: 10…30 V DC Interface: Ethernet · CANopen · RS-232 · 4 I/O # Mechanical Dimensions: 106 × 106 × 116.5 mm (R2000) · 157 × 81 × 45 mm (R2100) · 69 × 96 × 57 mm (R2300) Connection: M12 connectors

Technology: PRT (time of flight) Scanning: 2-D 360°, multi-ray, 3-D Range: 4 … 60 m Interfaces: Ethernet, CANopen, I/O Applications: AGVs, robotics, warehouses

industriale

pepperl-fuchs-griglie-ottiche-automazione

# General Product type: Automation light grid Brand: Pepperl+Fuchs Principle: Thru-beam (LGM, LGS) · retroreflective with polarisation filter (RLG28) Range: 6 m (LGM/LGS) · 0.6 or 4 m (RLG28) Light: Infrared LED (LGM/LGS) · red LED (RLG28) Beam spacing: 8 · 17 · 25 · 50 · 100 mm # Certifications Certifications: UL (LGM, RLG28) Area: safe (non-classified) # Electrical Supply voltage: 18…30 V DC (LGM/LGS) · 12…30 V DC (RLG28) Output: 1 or 2 push-pull Interface: IO-Link (LGM/LGS) # Mechanical Connection: Cable with M12 connector · M12 connector

Type: thru-beam and retroreflective grids Range: up to 6 m Beam spacing: 8 … 100 mm Interface: IO-Link Output: push-pull

industriale

pepperl-fuchs-accoppiatori-ottici-dati

# General Product type: Optical data coupler Brand: Pepperl+Fuchs Principle: Thru-beam Range: 1.5 · 2.5 m (DAD15) · 150 · 300 m (LS682/LS684) Light: Infrared LED (DAD15) · red or infrared laser (LS682/LS684) # Certifications Certifications: EAC, UKCA, UL (LS682/LS684) Area: safe (non-classified) # Electrical Supply voltage: 10…30/60 V DC (DAD15) · 18…30 V DC (LS682/LS684) Interface: 8-bit parallel (DAD15) · Fast Ethernet 100 Mbit/s (LS682/LS684) # Mechanical Connection: Terminal compartment (DAD15) · M12 connectors (LS682/LS684) # Environmental Versions: standard · low temperature (/146)

Function: optical data transmission Range: up to 300 m Interface: 100 Mbit/s Ethernet or 8-bit Protocols: PROFINET, EtherCAT… Versions: incl. low temperature

industriale

pepperl-fuchs-forcelle-ottiche-miniatura

# General Product type: Miniature slot sensor Brand: Pepperl+Fuchs Principle: Thru-beam Slot width: 1.8 · 3.1 · 5 mm Light: Infrared LED # Certifications Certifications: EAC, UL (vary by code) Area: safe (non-classified) # Electrical Supply voltage: 5…30 V DC (GL2/GL3) · 5…24 V DC (GL5) Output: NPN · PNP # Mechanical Designs: F, J, L, P, R, T, U, Y Connection: Cable · cable with M8 connector · flat connector · cable with JST connector

Slot width: 1.8 · 3.1 · 5 mm Light: infrared Output: NPN or PNP Designs: 8 housing versions Application: small parts

industriale

pepperl-fuchs-forcelle-ottiche-metallo-gl

# General Product type: Slot sensor Brand: Pepperl+Fuchs Principle: Thru-beam Slot width: 10 … 220 mm Light: Red or infrared LED Operating elements: Potentiometer # Certifications Certifications: EAC, UL, UKCA Area: safe (non-classified) # Electrical Supply voltage: 10…30 V DC Output: PNP · NPN # Mechanical Housing: Powder-coated diecast zinc Connection: M8 connector # Environmental Degree of protection: IP67

Housing: diecast zinc Slot width: 10 … 220 mm Light: red or infrared Output: PNP or NPN Protection: IP67

industriale

pepperl-fuchs-forcelle-ottiche-plastica-glp

# General Product type: Slot sensor Brand: Pepperl+Fuchs Principle: Thru-beam Slot width: 30 · 50 · 80 · 120 mm Light: Red LED Operating elements: Push-button # Certifications Certifications: UL Area: safe (non-classified) # Electrical Supply voltage: 10…30 V DC Output: NPN · PNP # Mechanical Housing: Plastic Connection: M8 connector

Housing: plastic Slot width: 30 … 120 mm Light: red Output: NPN or PNP Connection: M8

industriale

pepperl-fuchs-forcelle-griglie-ottiche-gl-es-ral

# General Product type: Slot sensor / slot grid sensor Brand: Pepperl+Fuchs Principle: Thru-beam Slot width: 24 mm (GL-ES) · 50 · 70 · 100 · 150 mm (RAL) Light: Infrared LED # Certifications Certifications: EAC, UKCA (GL-ES) Area: safe (non-classified) # Electrical Supply voltage: 10…30 V DC (GL-ES) · 19.2…28.8 V DC (RAL) Output: PNP # Mechanical RAL dimensions (L × H): 81 × 90 to 185 × 190 mm, width 20 mm Connection: Cable (GL-ES) · M8 connector (RAL)

Slot width: 24 … 150 mm Light: infrared Output: PNP Application: small falling parts Connection: cable or M8

industriale

pepperl-fuchs-sensori-contrasto

# General Product type: Print mark contrast sensor Brand: Pepperl+Fuchs Principle: Diffuse mode Range: 9.5 · 11 · 25 · 50 mm · 300 · 800 mm · 10 m (DK10) Light: RGB LED · red LED · red laser (DK10) Operating elements: Potentiometer (DK10, DK12) · push-button/teach-in (DK20, DK21, DK34) # Certifications Certifications: EAC, UKCA, UL (vary by series) Area: safe (non-classified) # Electrical Supply voltage: 10…30 V DC Output: 1 × push-pull · 2 × push-pull · PNP/NPN Interface: IO-Link (DK12-…-IO) # Mechanical Dimensions: 60.8 × 33 × 85.6 mm (DK10, DK2x, DK34) · 15 × 41.5 × 49 mm (DK12) Connection: M12 connector

Function: print marks Light: RGB or laser Response: 30–50 µs Teach-in: static or dynamic Interface: IO-Link (DK12)

industriale

pepperl-fuchs-sensori-colore

# General Product type: Print mark colour sensor Brand: Pepperl+Fuchs Principle: Diffuse mode, three-range method Range: 9.5 · 11 · 25 mm Light: RGB LED (green, red, blue) Operating elements: Potentiometer and teach-in (DF12) · teach-in button (DF20) # Certifications Certifications: EAC, UKCA, UL (DF12) Area: safe (non-classified) # Electrical Supply voltage: 10…30 V DC Output: 3 × push-pull (DF12) · PNP/NPN (DF20) # Mechanical Dimensions: 15 × 41.5 × 49 mm (DF12) · 60.8 × 33 × 85.5 mm (DF20) Connection: M12 connector

Function: coloured marks Light: RGB, three-range Channels: up to 3 (DF12) Teach-in: automatic Connection: M12

industriale

pepperl-fuchs-sensori-fibra-ottica

# General Product type: Fibre optic sensor (amplifier) Brand: Pepperl+Fuchs Range: 36 … 460 mm (depending on amplifier and fibre) Light: Red LED · infrared LED (MLV41-LL) Operating elements: Potentiometer · push-button/teach-in Compatible fibres: Glass and plastic (see datasheet) # Certifications Certifications: UL, EAC and UKCA (MLV41-LL) Area: safe (non-classified) # Electrical Supply voltage: 10…30 V DC Output: NPN · PNP · 1 or 2 push-pull Interface: IO-Link (MLV41-LL-…-IO) # Mechanical Dimensions: 62.3 × 9 × 34.5 mm (SU18/SU19) · 13.6 × 31 × 56.5 mm (MLV41-LL) · Ø 18 × 65 mm (VL18-LL) Connection: Cable · cable with M8 connector · M8, M9 or M12 connector

Fibres: glass and plastic Mounting: DIN rail, M18 or rugged housing Adjustment: potentiometer or teach-in Interface: IO-Link (MLV41-LL) Output: NPN, PNP or push-pull

industriale

pepperl-fuchs-barriere-sicurezza-monoraggio

# General Product type: Single-beam safety light barrier Brand: Pepperl+Fuchs Principle: Thru-beam Range: 12 · 30 m (SLA12) · 30 · 65 m (SLA29) Light: Red laser (SLA12) · red LED (SLA29) # Certifications Certifications: TÜV, UL (depending on code) Functional safety: SIL 3 · type 4 (SLA29) · PL e (SLA12) Area: safe (non-classified) # Mechanical Dimensions: 41.5 × 15 × 49 mm (SLA12) · 54.3/65.5 × 25.8 × 88 mm (SLA29) Connection: M12 connector · terminal compartment (SLA29) # Environmental Degree of protection: IP67 (SLA29)

Safety: SIL 3, TÜV Range: up to 65 m Light: red laser or LED Evaluation: SB4 units Connection: M12 or terminals

industriale

pepperl-fuchs-barriere-sicurezza-multiraggio

# General Product type: Safety light curtain Brand: Pepperl+Fuchs Principle: Thru-beam Range: up to 8 m Light: Infrared LED Resolution: 14 · 30 · 60 · 90 mm # Certifications Certifications: TÜV, UL Functional safety: Type 4, SIL 3 (SLCS) · type 2, SIL 1 (SLCT) Area: safe (non-classified) # Electrical Supply voltage: 19.2…31.2 V DC # Mechanical Profile cross-section: 30 × 20 mm Connection: M12 connector # Environmental Degree of protection: IP67 Ambient temperature: from -35 °C

Safety: type 4/SIL 3 or type 2/SIL 1 Resolution: 14 … 90 mm Range: up to 8 m Protection: IP67 Certification: TÜV

industriale

pepperl-fuchs-unita-controllo-sicurezza-sb4

# General Product type: Safety control unit Brand: Pepperl+Fuchs Compatible sensors: SLA12, SLA29 safety light barriers Configuration: Complete units · individual modules # Certifications Certifications: TÜV, UL Functional safety: SIL 3 · type 4 Area: safe (non-classified) # Electrical Supply voltage: 19.2…28.8 V DC Outputs: Relay or PNP OSSD # Mechanical Dimensions (L × W × H): 100.5 × 22.6 × 99 mm (modules) · 112.7 × 45 × 99 mm (complete units) Connection: Screw or spring terminals

Safety: SIL 3, type 4 For barriers: SLA12, SLA29 Outputs: relay or PNP OSSD System: modular Certification: TÜV

industriale

pepperl-fuchs-sensori-ultrasuoni-cilindrici-m12-12gm

# General Product type: Cylindrical diffuse mode ultrasonic sensor Brand: Pepperl+Fuchs Housing: Cylindrical M12, length 70 mm Detection range: 120 · 200 · 400 mm Dead band: 15…30 mm # Certifications Approvals: UL, CE # Electrical Output: NPN · PNP · analogue current · analogue voltage Function: NO/NC selectable (switching outputs) Supply voltage: 10…30 V DC (voltage output versions 15…30 V DC) Response time: 9…50 ms # Mechanical Connection: M12 connector Degree of protection: IP67

Range: 120 … 400 mm Output: NPN, PNP or analogue Housing: M12 × 70 mm Protection: IP67 Setup: teach-in

industriale

pepperl-fuchs-sensori-ultrasuoni-cilindrici-m18-corti-18gm40-18gm60

# General Product type: Cylindrical M18 ultrasonic sensor (diffuse mode and thru-beam) Brand: Pepperl+Fuchs Housing: Cylindrical M18, straight or angled head Detection range: 300 · 800 mm (diffuse mode) · 1000 mm (thru-beam) Dead band: 35…50 mm (diffuse mode) # Certifications Approvals: UL, CE · EAC on some codes · e1 type approval (18GM60) # Electrical Output: NPN · PNP · analogue current · analogue voltage Function: NO/NC selectable · NO (thru-beam) Supply voltage: 10…30 V DC (voltage output versions 15…30 V DC) # Mechanical Length: 40…57 mm (18GM40) · 51…69 mm (18GM60) Connection: M12 connector Degree of protection: IP67

Range: 300 … 1000 mm Output: NPN, PNP or analogue Head: straight or angled Housing: short M18, from 40 mm Protection: IP67

industriale

pepperl-fuchs-sensori-ultrasuoni-cilindrici-m18-18gm75-18gs

# General Product type: Cylindrical M18 diffuse mode ultrasonic sensor Brand: Pepperl+Fuchs Detection range: 500 · 1000 mm Dead band: 30…70 mm Sound beam: Adjustable # Certifications Approvals: UL, CE · EAC (18GS and some 18GM75 codes) # Electrical Output: NPN · PNP · 2 × NPN · 2 × PNP · analogue current/voltage · IO-Link Function: NO/NC selectable Supply voltage: 10…30 V DC (voltage output versions 15…30 V DC) Response time: 20…125 ms # Mechanical Head: Straight or angled (18GM75) Length: 75…102.5 mm (18GM75) · 90 mm (18GS) Connection: M12 connector

Range: 500 … 1000 mm Output: NPN, PNP, analogue or IO-Link Sound beam: adjustable Synchronisation: yes Housing: M18

industriale

pepperl-fuchs-sensori-ultrasuoni-cilindrici-m30-ub-30gm

# General Product type: Cylindrical M30 ultrasonic sensor (diffuse mode and thru-beam) Brand: Pepperl+Fuchs Detection range: 500…6000 mm (diffuse mode) · 4000 mm (thru-beam) Dead band: 30…350 mm # Certifications Approvals: UL, CE · EAC on some codes # Electrical Output: NPN · PNP · 2 × PNP (thru-beam) Function: NO/NC selectable Supply voltage: 10…30 V DC (thru-beam 18…30 V DC) Response time: 50…650 ms # Mechanical Housing: Cylindrical M30, straight head Connection: M12 connector Degree of protection: IP65

Range: 500 … 6000 mm Output: NPN or PNP Principle: diffuse mode or thru-beam Synchronisation: yes Protection: IP65

industriale

pepperl-fuchs-sensori-ultrasuoni-cilindrici-m30-uc-30gm

# General Product type: Cylindrical M30 diffuse mode ultrasonic sensor Brand: Pepperl+Fuchs Detection range: 300…6000 mm Dead band: 15…350 mm # Certifications Approvals: UL, CE · EAC on some codes # Electrical Output: 2 × PNP · 2 × NPN · analogue current and voltage Function: NO/NC selectable Supply voltage: 10…30 V DC # Mechanical Head: Straight or remote transducer Connection: M12 connector

Range: 300 … 6000 mm Output: 2 × PNP/NPN or analogue I/U Head: straight or remote Supply: 10 … 30 V DC Housing: M30

industriale

pepperl-fuchs-sensori-ultrasuoni-cilindrici-m30-30gm70

# General Product type: Cylindrical M30 diffuse mode ultrasonic sensor Brand: Pepperl+Fuchs Detection range: 500 · 2000 · 3500 · 6000 mm Dead band: 45…350 mm # Certifications Approvals: UL, EAC, UKCA, CE # Electrical Output: 2 × PNP · PNP + analogue current · PNP + analogue voltage Function: NO/NC selectable Supply voltage: 12…30 V DC (2 × PNP) · 20…30 V DC (analogue versions) Response time: 60…275 ms # Mechanical Head: Straight or swivel Length: 99.3…143.5 mm Connection: M12 connector

Range: 500 … 6000 mm Output: 2 × PNP or PNP + analogue Head: straight or swivel Parameterisation: infrared Housing: M30

industriale

pepperl-fuchs-sensori-ultrasuoni-cilindrici-m30-io-link-30gm-io

# General Product type: Cylindrical M30 diffuse mode ultrasonic sensor with IO-Link Brand: Pepperl+Fuchs Detection range: 500 · 2000 · 4000 · 6000 mm Dead band: 30…350 mm # Certifications Approvals: UL, CE # Electrical Output: IO-Link + push-pull · IO-Link + push-pull + analogue current Function: NO/NC selectable Supply voltage: 10…30 V DC Response time: 25…140 ms # Mechanical Housing: Cylindrical M30, straight head Connection: M12 connector Degree of protection: IP67

Range: 500 … 6000 mm Interface: IO-Link Output: push-pull, opt. analogue I Protection: IP67 Housing: M30

industriale

pepperl-fuchs-sensori-ultrasuoni-miniaturizzati-f77

# General Product type: Miniature rectangular ultrasonic sensor (diffuse mode, reflex, thru-beam) Brand: Pepperl+Fuchs Detection range: 100…800 mm Dead band: 10…60 mm (diffuse mode) # Certifications Approvals: UL, EAC, UKCA, CE # Electrical Output: NPN · PNP · PNP + frequency output · IO-Link + push-pull · IO-Link + analogue I/U Function: NO · NC · NO/NC selectable Supply voltage: 20…30 V DC · 10…30 V DC (IO-Link push-pull) · 18…30 V DC (analogue) Response time: 5…75 ms # Mechanical Dimensions: 23 × 12 × 31 mm (side-looker width 21 mm) Connection: M8 connector · cable · 0.2 m cable with M12 connector

Range: 100 … 800 mm Principle: diffuse, reflex, thru-beam Output: NPN, PNP, IO-Link, analogue Housing: 23 × 12 × 31 mm Connection: M8 or cable

industriale

pepperl-fuchs-sensori-ultrasuoni-cubici-testa-orientabile-l2

# General Product type: Cubic diffuse mode ultrasonic sensor with rotatable head Brand: Pepperl+Fuchs Detection range: 500 · 2000 · 4000 mm Dead band: 35…200 mm # Certifications Approvals: UL, CE · EAC on some codes # Electrical Output: NPN · PNP · 2 × NPN · 2 × PNP · analogue current · analogue voltage Function: NO/NC selectable Supply voltage: 10…30 V DC (voltage output versions 12…30 V DC) # Mechanical Dimensions: 40 × 40 × 40 mm Connection: M12 connector · 2 m cable # Environmental Temperature: Extended range for -T models

Range: 500 … 4000 mm Output: NPN, PNP or analogue Housing: 40 × 40 × 40 mm Head: rotatable Compatibility: VariKont L

industriale

pepperl-fuchs-sensori-ultrasuoni-rettangolari-piatti-f54

# General Product type: Rectangular ultrasonic sensor (diffuse mode and thru-beam) Brand: Pepperl+Fuchs Detection range: 500 · 2000 mm (diffuse mode) · 15 m (UBE15M thru-beam) Dead band: 30…80 mm (diffuse mode) # Certifications Approvals: UL, CE · EAC on some codes # Electrical Output: NPN · PNP · analogue current · analogue voltage · NPN + pulse (UBE15M receiver) Function: NO/NC selectable Supply voltage: 10…30 V DC (voltage output versions 15…30 V DC) # Mechanical Dimensions: 25 × 105 × 31 mm Connection: M12 connector Degree of protection: IP65

Range: 500 … 2000 mm (15 m thru-beam) Output: NPN, PNP or analogue Housing: flat 25 × 105 × 31 mm Synchronisation: yes Protection: IP65

industriale

pepperl-fuchs-sensori-ultrasuoni-rettangolari-f42

# General Product type: Rectangular diffuse mode ultrasonic sensor Brand: Pepperl+Fuchs Detection range: 400…6000 mm Dead band: 30…350 mm # Certifications Approvals: UL (DC versions), EAC (relay versions and some DC codes), CE # Electrical Output: NPN · PNP · 2 × NPN · 2 × PNP · analogue current · analogue voltage · relay Function: NO/NC selectable · NO (relay) Supply voltage: 10…30 V DC (analogue voltage 17…30 V DC) · 22…253 V AC/DC (relay) Response time: 50…650 ms # Mechanical Housing height: 80 mm Beam exit: Front-looker or side-looker Connection: M12 connector · 7/8" connector

Range: 400 … 6000 mm Output: NPN, PNP, analogue or relay Supply: DC or 22 … 253 V AC/DC Beam exit: front or side Connection: M12 or 7/8"

industriale

pepperl-fuchs-sensori-ultrasuoni-livello-contenitori-f65

# General Product type: Diffuse mode ultrasonic sensor for fill level in containers Brand: Pepperl+Fuchs Detection range: 500 · 1500 · 2500 mm Dead band: 60…250 mm # Certifications Approvals: UL, CE # Electrical Output: 2 × PNP · PNP + analogue current · PNP + analogue voltage Function: NO Supply voltage: 12…30 V DC (2 × PNP) · 15…30 V DC (analogue versions) # Mechanical Dimensions: 64.4 × 125 × 30 mm Connection: M12 connector Degree of protection: IP65

Range: 500 … 2500 mm Output: PNP + analogue I/U Mounting: O-ring sealed Protection: IP65 Application: container fill level

industriale

pepperl-fuchs-sensori-ultrasuoni-heavy-duty-10-m-f260

# General Product type: Heavy-duty diffuse mode ultrasonic sensor Brand: Pepperl+Fuchs Detection range: 10000 mm Dead band: 800 mm # Certifications Approvals: UL, CE # Electrical Output: 2 × PNP + analogue current · 2 × PNP + analogue voltage Function: NO · NC Supply voltage: 15…30 V DC # Mechanical Dimensions: L 112 mm · Ø 160 mm Connection: Terminal compartment

Range: up to 10 m Output: 2 × PNP + analogue Adjustment: potentiometer Connection: terminal compartment Use: heavy-duty, outdoor

industriale

pepperl-fuchs-sensori-ultrasuoni-igienici-acciaio-inox-umc3000-umb800

# General Product type: Hygienic diffuse mode ultrasonic sensor Brand: Pepperl+Fuchs Detection range: 3000 mm (UMC3000) · 800 mm (UMB800) Dead band: 200 mm (UMC3000) · 70 mm (UMB800) Material: AISI 316L (1.4404) stainless steel # Certifications Approvals: CE · ATEX 3G/3D (-3G-3D versions, zone 2/22) Hygienic compliance: FDA-compliant materials # Electrical Output: PNP · NPN · analogue current · analogue voltage Function: NO/NC selectable (switching outputs) Supply voltage: 10…30 V DC (UMB800 voltage output 15…30 V DC) Response time: 200 ms (UMC3000) · 100 ms (UMB800) # Mechanical Dimensions: Ø 30 × 100 mm (UMC3000) · Ø 18 × 55 mm (UMB800) Connection: Fixed cable 5 m (UMC3000) · 2 m (UMB800) Degree of protection: IP68 / IP69K

Range: 800 or 3000 mm Material: AISI 316L stainless steel Protection: IP68 / IP69K Output: PNP, NPN or analogue ATEX: 3G/3D versions

industriale

pepperl-fuchs-sensori-ultrasuoni-chimicamente-resistenti-ucc-ubc

# General Product type: Chemically resistant ultrasonic sensor (diffuse mode and thru-beam) Brand: Pepperl+Fuchs Diameter: Ø 12 · 18 · 30 mm Detection range: 250…6000 mm Material: V2A or V4A stainless steel, coated transducer # Certifications Approvals: UL, CE · EAC and UKCA (UCC…-30GH70 series) # Electrical Output: PNP · 2 × PNP · PNP + analogue current · analogue current · analogue current and voltage Function: NO/NC selectable · NO (thru-beam) Supply voltage: 10…30 V DC (UCC…-30GH70 20…30 V DC) # Mechanical Head: Straight or swivel (UCC) Connection: M12 connector Degree of protection: IP68 / IP69K (UBC)

Range: 250 … 6000 mm Material: V2A/V4A stainless steel Transducer: coated Protection: IP68 / IP69K Diameter: Ø 12 … 30 mm

industriale

pepperl-fuchs-sensore-ultrasuoni-wireless-livello-wilsen-sonic-level

# General Product type: Wireless ultrasonic level sensor Brand: Pepperl+Fuchs Sensing range: 150…2500 mm · 250…4000 mm # Certifications Marking: CE # Electrical Power supply: Battery-operated Communication: LoRaWAN · Bluetooth LE (commissioning) Transmitted data: Level, position, temperature, battery status # Mechanical Dimensions: 182 × 81 mm (L × W)

Range: up to 2.5 or 4 m Communication: LoRaWAN Set-up: Bluetooth LE + app Power: battery Extra: geolocation

industriale

pepperl-fuchs-sistema-ultrasuoni-sicurezza-usi-safety-f262

# General Product type: Ultrasonic safety sensor system (evaluation unit and transducers) Brand: Pepperl+Fuchs Components: USI-F262 evaluation unit · USI2500-27X13E transducer Sound field: Elliptical, opening angles ±17° / ±5° # Certifications Functional safety: Category 3 PL d (EN ISO 13849) Marking: CE # Electrical Supply voltage: 21…28 V DC (evaluation unit) Connection: M12 connector (unit) · 1.5 m cable (transducer) # Mechanical Unit dimensions: 125 × 91 × 41 mm Transducer dimensions: 21 × 12.6 × 26.6 mm

Safety: category 3 PL d Transducers: 1 or 2 per unit Sound field: elliptical ±17° / ±5° Supply: 21 … 28 V DC Application: AGVs and mobile machines

industriale

pepperl-fuchs-sensori-ultrasuoni-doppio-foglio-etichette-giunte

# General Product type: Thru-beam ultrasonic sensor for double sheet, label and splice detection Brand: Pepperl+Fuchs Detection range: 60 mm (UDC-18GS, ULB/UGB) · 150 mm (UDC/UDCM-30GS) # Certifications Approvals: UL, CE · EAC and UKCA (UDC/UDCM) # Electrical Output: IO-Link + push-pull (UDC/UDCM) · 2 × NPN · 2 × PNP (ULB/UGB) Function: NO · NC Supply voltage: 18…30 V DC # Mechanical Housing: Cylindrical M18 / M30 Connection: 0.2 m cable with M12 connector (UDC/UDCM) · fixed cable (ULB/UGB)

Application: double sheet, labels, splices Principle: thru-beam Interface: IO-Link (UDC/UDCM) Supply: 18 … 30 V DC Materials: paper, metal, wood, film

industriale

pepperl-fuchs-interfacce-di-controllo-rfid-identcontrol

# General Product type: Control interface for RFID systems Brand: Pepperl+Fuchs System: IDENTControl (up to 4 heads) · IDENTControl Compact (1 or 2 heads) Supported frequencies: LF, HF, UHF # Certifications Certifications: CE, UL, EAC # Electrical Interfaces: PROFIBUS · PROFINET · EtherNet/IP · Modbus TCP · TCP/IP · EtherCAT · DeviceNet · CC-Link · RS-232 · RS-485 Connection: M12 connectors · D-sub 9-pin · AIDA (RJ45) · Mini-style 7/8" # Mechanical Dimensions: 148 × 105 × 73 mm (IDENTControl) · 137/142 × 62 × 42 mm (Compact) Degree of protection: IP67 (IP40 D-sub version) # Environmental Ambient temperature: -25 … +70 °C

Heads: up to 4 (LF, HF, UHF) Bus: PROFIBUS, PROFINET, EtherNet/IP, EtherCAT Versions: IDENTControl and Compact Protection: IP67 Temperature: -25 … +70 °C

industriale

pepperl-fuchs-testine-rfid-lf-125-khz

# General Product type: LF RFID read/write head Brand: Pepperl+Fuchs Frequency: LF 125 kHz Max. read distance: 45 … 155 mm (by model) Interface: IDENTControl # Certifications Certifications: CE, UL, EAC # Mechanical Housings: M18 / M30 cylindrical · cubic · special roller-conveyor designs Connection: M12 connector · terminals Degree of protection: IP67 · IP69K (terminal version) # Environmental Ambient temperature: -25 … +70 °C (+55 °C for some models)

Frequency: LF 125 kHz Range: up to 155 mm Housings: M18, M30, cubic Connection: M12 or terminals Protection: IP67 / IP69K

industriale

pepperl-fuchs-testine-rfid-hf-13-56-mhz

# General Product type: HF RFID read/write head Brand: Pepperl+Fuchs Frequency: HF 13.56 MHz Protocol: ISO 15693 Max. read distance: 50 … 150 mm (by model) # Certifications Certifications: CE, EAC · UL (by code) # Electrical Interface: IDENTControl · IO-Link · RS-485 # Mechanical Housings: M18 cylindrical · cubic · ring-shaped (F198) Connection: M12 connector · terminals Degree of protection: IP67 · IP69K (terminal version) # Environmental Ambient temperature: -25 … +70 °C

Frequency: HF 13.56 MHz Protocol: ISO 15693 Interface: IDENTControl, IO-Link, RS-485 Range: up to 150 mm Protection: IP67 / IP69K

industriale

pepperl-fuchs-testine-rfid-uhf

# General Product type: UHF RFID read/write head Brand: Pepperl+Fuchs Frequency: UHF 865 … 928 MHz Detection range: up to 6 m Transmission power: from 3 mW up to 4000 mW (by version and licence) # Certifications Certifications: CE · UL, EAC (by code) # Electrical Interface: IDENTControl · RS-485 · EtherNet/IP and PROFINET # Mechanical Dimensions: 114 × 112 × 63 mm (F190) · 268 × 270 × 81 mm (F192) Connection: M12 connector Degree of protection: IP67 # Environmental Ambient temperature: -20 (-25) … +70 °C

Frequency: UHF 865 … 928 MHz Range: up to 6 m Interface: IDENTControl, RS-485, Ethernet Licences: by country Protection: IP67

industriale
