Lighting

raytec-spartan-bulkhead

# General Product type: LED bulkhead luminaire for hazardous areas (SPARTAN) and industrial environments (WARRIOR) Versions: SPARTAN Zone 1/21 ATEX/IECEx (SPX) · SPARTAN Zone 2/22 ATEX/IECEx (SPZ) · SPARTAN Class I Div 2 (CID2) · WARRIOR industrial, non-classified area (SPI) # Lighting Luminous flux: Standard 2,500 lm · High Output 4,230 lm (Zone 1/21) or 4,650 lm (Zone 2/22, CID2, industrial) Symmetric and circular optics: 10°×10°, 30°×30°, 50°×50°, 80°×80°, 90°×90°, 100°×100°, 120°×120°, 140°×140°, diffuse (depending on version) Asymmetric and elliptical optics: 120°×50°, 80°×30°, 60°×25°, 35°×10°, PP2, PP3, Wide Beam, AR1 (depending on version) Emergency: Intelligent emergency 25% (EMX25) · 100% on versions with low-output exit kit (EMX100) Power supply: Low-voltage (-LV) and 110-277 V (-277) options, non-emergency versions only Dimming: Optional DALI2 (-DA) # Mechanical Cable entries: M20 as standard, others on request Stopping plugs: ATEX-certified nylon as standard, nickel-plated brass optional (-BNP)

industriale

raytec-spartan-linear

# General Product type: LED linear luminaire for hazardous areas (SPARTAN) and industrial environments (WARRIOR, URBAN) Versions: SPARTAN Zone 1/21 (SPX) · SPARTAN Zone 21 dust (SPZ-…-Z21) · SPARTAN Zone 2/22 (SPZ) · SPARTAN Class I Div 2 (CID2) · WARRIOR industrial (SPI) · URBAN industrial (UB) Models: WL84 (80 LEDs, replaces 2×18 W) · WL168 (160 LEDs, replaces 2×36 W), Standard or High Output # Certifications Protection concept Zone 1/21: II 2 G D · Ex eb mb IIC T4 Gb · Ex tb IIIC T80°C Db # Lighting Power supply: 110-254 V 50/60 Hz AC/DC as standard; 110-277 V (-277) and low-voltage 18-48 V AC / 18-69 V DC (-LV) options Emergency: Intelligent self-test emergency 25% (EMX25); URBAN 20% (WL84) or 10% (WL168) Colour temperature: 6500 K as standard (URBAN 4000 K), CRI 80+ # Mechanical Construction: Epoxy powder-coated marine-grade aluminium, UV-stabilised polycarbonate, marine-grade stainless steel fixings and brackets Cable entries: 2 × M20 per side (4 in total) as standard, others on request Fixing: M8/M6 threaded holes with the same centres as fluorescent fittings # Environmental Ingress protection: IP66 & IP67, IK10 Ambient temperature: -40 °C to +60 °C (-20 °C to +50 °C emergency versions)

industriale

raytec-spartan-recess

# General Product type: Recessed LED luminaire for hazardous areas (SPARTAN) and industrial environments (WARRIOR) Versions: SPARTAN Zone 1/21 (SPX) · SPARTAN Zone 2/22 (SPZ) · WARRIOR industrial (SPI) # Certifications Protection concept Zone 2/22: II 3 G D · Ex ec mc IIC T4 Gc · Ex tc IIIC T95°C Dc # Lighting Luminous flux: Up to 3,700 lm (Standard) or 7,400 lm (High Output) on the 600×600 Zone 2/22 Power supply: 110-277 V AC 50/60 Hz; low-voltage option (-LV) on non-emergency versions Emergency: Intelligent emergency 25% (EMX25), 13% on the 600×1200 (EMX13) Optics: 120°×120° as standard, other beams on request Colour temperature: 6500 K as standard, CRI 80+ # Mechanical Formats: Modular 600×600 · 600×1200 · 300×1200 mm · Plank 275×800 · 275×1400 mm Cable entries: 2 × M20 loop-in/loop-out as standard Mounting: Recessed into T-grid suspended ceiling as standard; concealed and surface mounting kits available # Environmental Ingress protection: IP65, IK10 Ambient temperature: -40 °C to +60 °C (-20 °C to +50 °C emergency versions)

industriale

raytec-spartan-high-power-flood

# General Product type: High-power LED floodlight for hazardous areas (SPARTAN) and industrial environments (WARRIOR) Versions: SPARTAN Zone 1/21 (SPX) · SPARTAN Zone 21 dust (SPZ-…-Z21) · SPARTAN Zone 2/22 (SPZ) · WARRIOR industrial (SPI) Models: HPFL100 167 W · HPFL200 200 W · HPFL300 240 W · HPFL400 290 W (WARRIOR only) # Certifications Protection concept Zone 1/21: II 2 G D · Ex eb mb IIC T4 Gb · Ex tb IIIC T99°C Db # Lighting Luminous flux: Up to 34,500 lm (Zone 1/21), 38,600 lm (Zone 2/22 and 21), 45,000 lm (WARRIOR), depending on optics Power supply: 110-277 V 50/60 Hz AC (SPARTAN) · 150-264 V AC/DC (WARRIOR) Dimming: Optional DALI 2.0 (-DA), standard on WARRIOR LED: 384 Platinum Elite SMT LEDs, 6500 K, CRI 80+ # Mechanical Construction: Marine-grade aluminium with CX Shield coating, marine-grade stainless steel fixings and brackets Weight: 18.5 kg Cable entries: 2 × M20 as standard, others on request Mounting: Adjustable U-bracket # Environmental Ingress protection: IP66/IP67, IK09 Ambient temperature: -40 °C to +70 °C (HPFL100), +65 °C (HPFL200), +60 °C (HPFL300)

industriale

lineari-incasso

# General Product type: Recessed linear LED luminaire for T-grid ceilings in hazardous areas Sizes: 300×600 mm (HRL3060) · 300×1200 mm (HRL3012) · 600×600 mm (HRL6060) Fluorescent equivalent: 2×18 W (HRL3060) · 2×36 W (HRL3012) · 4×18 W (HRL6060) # Certifications ATEX/IECEx protection concept: Ex e mb IIC T6 Gb · Ex tb IIIC T80 °C Db Safety switch version: Ex d e mb IIC T6 Gb · Ex tb IIIC T80 °C Db Zones: Zone 1, 2, 21, 22 · Class I Division 2 # Electrical Power supply: 100-240 V AC 50/60 Hz · 108-250 V DC Power: 26 W (HRL3060) · 52 W (HRL3012, HRL6060) · emergency versions 30 W / 60 W Inrush current: 15 A for 0.2 ms Power factor: 0.95 at 230 V Harmonic distortion (THD): < 10% at 230 V Surge protection: 4 kV Control: Optional DALI-2 # Lighting Luminous flux: 2,900 lm (HRL3060) · 5,800 lm (HRL3012) · 6,000 lm (HRL6060) Efficacy: 112 lm/W (HRL3060, HRL3012) · 115 lm/W (HRL6060) Colour temperature: 5700 K as standard; 3000, 4000 and 5000 K on request Colour rendering: CRI > 70 (cool white) · CRI > 80 (warm white) Emergency: Integrated self-contained battery, 1.5 h at 25% output Switching: Instant on, suitable for frequent switching # Mechanical Enclosure: White-painted steel; stainless steel on request Diffuser: Translucent polycarbonate External hardware: Stainless steel Cable entries: M20 · single-ended 2×M20 or through wiring 4×M20 Mounting: Recessed into T-grid ceiling Weight: 8.4 kg (HRL3060) · 15.0 kg (HRL3012) · 15.5 kg (HRL6060) Fire rating: B0 and B15 # Environmental Ingress protection: IP66 Ambient temperature: -40 °C to +55 °C (-25 °C to +55 °C emergency versions) Temperature class: T6 at +55 °C (100-240 V AC versions) Rated life: 5 years at +55 °C

Certified for Zone 1, 2, 21, 22 and Class I Div 2 300×600, 300×1200 and 600×600 mm sizes 2,900 to 6,000 lm, up to 115 lm/W Self-contained emergency 1.5 h at 25% IP66, -40 °C to +55 °C

raytec-spartan-mid-power-flood

# General Product type: Mid-power LED floodlight for hazardous areas (SPARTAN) and industrial environments (WARRIOR) Versions: SPARTAN Zone 1/21 (SPX) · SPARTAN Zone 2/22 (SPZ) · SPARTAN Class I Div 2 (CID2) · WARRIOR industrial (SPI) # Certifications Protection concept Zone 1/21: Certificates CML 21ATEX3317 and IECEx CML 21.0037 # Lighting Luminous flux: From 5,000 to 20,000 lm nominal (see the flux-per-optic table in the datasheet) Emergency: Intelligent self-test emergency 90 min (EMX90) or 3 h (EMX180) LED: 192 Platinum Elite SMT LEDs, 6500 K, CRI 80+ # Electrical Power supply: 110-277 V 50/60 Hz AC Power: 50 W (5K) · 60 W (7.5K) · 80 W (10K) · 100 W (12.5K) · 120 W (15K) # Mechanical Construction: Powder-coated marine-grade aluminium, toughened glass, marine-grade stainless steel fixings Weight: 13.2 kg (16 kg emergency version) Cable entries: 2 × M20 as standard, others on request # Environmental Ingress protection: IP66 & IP67 Ambient temperature: -40 °C to +60 °C (-20 °C to +50 °C emergency versions)

industriale

raytec-spartan-mid-power-bay

# General Product type: LED high bay luminaire for hazardous areas (SPARTAN) and industrial environments (WARRIOR) Versions: SPARTAN Zone 1/21 (SPX) · SPARTAN Zone 2/22 (SPZ) · SPARTAN Class I Div 2 (CID2) · WARRIOR industrial (SPI) # Lighting Luminous flux: From 5,000 to 20,000 lm nominal (see the flux-per-optic table in the datasheet) Emergency: Intelligent self-test emergency 90 min (EMX90) or 3 h (EMX180) LED: 192 Platinum Elite SMT LEDs, 6500 K, CRI 80+ # Electrical Power supply: 110-277 V 50/60 Hz AC Power: 50 W (5K) · 60 W (7.5K) · 80 W (10K) · 100 W (12.5K) · 120 W (15K) # Mechanical Construction: Powder-coated marine-grade aluminium, toughened glass, marine-grade stainless steel fixings Weight: 13.2 kg (16 kg emergency version) Mounting: 4 angle brackets supplied Cable entries: 2 × M20 as standard, others on request # Environmental Ingress protection: IP66 & IP67 Ambient temperature: -40 °C to +60 °C (-20 °C to +50 °C emergency versions)

industriale

raytec-spartan-flood

# General Product type: LED floodlight for hazardous areas (SPARTAN) and industrial environments (WARRIOR) Versions: SPARTAN Zone 1/21 (SPX) · SPARTAN Zone 2/22 (SPZ) · SPARTAN Class I Div 2 (CID2) · WARRIOR industrial (SPI) Models: FL48 (48 LEDs) · FL24 (24 LEDs) · BL24 Bulkhead Flood Standard and High Output on U-bracket (SB30) # Lighting Luminous flux: FL48 16,900 lm (Zone 1/21) or 18,600 lm · FL24 8,450 lm (Zone 1/21) or 9,300 lm · BL24 2,500 lm, HO 4,230 lm (Zone 1/21) or 4,650 lm Emergency: FL48 25% (EM25) · FL24 50% (EM50), up to 90 min · BL24 25% (EMX25), up to 3 h Colour temperature: 6000 K+ (FL) · 6500 K (BL24), CRI 80+ # Electrical Power supply: FL 110-254 V 50/60 Hz AC, 18-48 V AC / 18-69 V DC and 12 V AC/DC options · BL24 110-254 V AC/DC, 110-277 V option Power: FL24 68 W (71 W emergency) · FL48 136 W (139 W emergency) # Mechanical Ingress protection: IP66 & IP67 Construction: Epoxy powder-coated marine-grade aluminium, toughened glass, marine-grade stainless steel fixings and brackets Weight: FL24 8-10 kg · FL48 16-20 kg · BL24 5-6 kg Mounting: U-bracket with locking screw Cable entries: M20 as standard, others on request

industriale

raytec-spartan-crane-flood

# General Product type: LED crane floodlight for hazardous areas (SPARTAN) and industrial environments (WARRIOR) Versions: SPARTAN Zone 1/21 (SPX) · SPARTAN Zone 2/22 (SPZ) · SPARTAN Class I Div 2 (CID2) · WARRIOR industrial (SPI) # Lighting Circular optics: 10°×10°, 30°×30°, 50°×50°, 80°×80°, 120°×120° Elliptical optics: 35°×10°, 60°×25°, 80°×30°, 120°×50° Colour temperature: 6000 K+, CRI 80+ # Electrical Power supply: 110-254 V 50/60 Hz AC; low-voltage option 18-48 V AC / 18-69 V DC (-LV) Power: 136 W # Mechanical Construction: Epoxy powder-coated marine-grade aluminium, toughened glass, marine-grade stainless steel fixings and brackets Weight: 25 kg Mounting: 3 M12 bolts (not supplied), 2 anchor points for safety wire

industriale

raytec-warrior-conveyor

# Lighting Product type: Industrial LED floodlight for conveyors and walkways (non-classified area) Luminous flux: 3,890 lm Optics: 20°×155° (standard) · 60°×60° · 90°×90° Emergency: Intelligent self-test emergency 25%, up to 3 h (EMX25) Colour temperature: 4000 K as standard, amber optional, CRI 70+ # Electrical Power supply: 150-264 V AC · 186-264 V DC Power: 31 W (34 W emergency version) # Mechanical Construction: Epoxy powder-coated marine-grade aluminium, UV-stabilised polycarbonate, marine-grade stainless steel fixings Weight: 4.4 kg (5.5 kg with emergency) Mounting: Pole mount for 32-45 mm tubes Cable entries: M25 as standard # Environmental Ingress protection: IP66, IK10 Ambient temperature: -40 °C to +55 °C (-20 °C to +50 °C emergency version)

industriale

raytec-spartan-street

# General Product type: LED street light for hazardous areas Versions: SPARTAN Zone 1/21 (SPX) · SPARTAN Zone 2/22 (SPZ) # Lighting Optics: PP1 · PP2 · PP3 (perimeters and pathways) Colour temperature: 4000 K, CRI ≥80 # Electrical Power: 53 W as standard · 35 W Reduced Power (-RP) · 20 W Low Output (-LO) Power supply: 110-254 V AC 50/60 Hz Wiring: Pre-wired with 12 m of cold-resistant 3-core outdoor PVC cable # Mechanical Construction: Epoxy powder-coated marine-grade aluminium, marine-grade stainless steel fixings Weight: 6.5 kg Mounting: Integrated adjustable pole mount, Ø 76 mm (48 and 60 mm adapters) # Environmental Ingress protection: IP66, IK07 Ambient temperature: -40 °C to +50 °C

raytec-urban-x-street

# General Product type: Industrial LED street light (non-classified area) Models: URBAN-X Mini 20/30/40 W · URBAN-X Pro 30/40/60/80/100 W · URBAN Plus 120/150/170 W # Lighting Luminous flux: URBAN-X Mini 2,200-4,400 lm · URBAN-X Pro up to 14,000 lm Optics: PP2 Colour temperature: 4000 K, CRI ≥70 Control: Intelligent driver with ID1 programme; optional photocell (ID1PC) # Electrical Power supply: 220-240 V AC 50/60 Hz (URBAN Plus 186-240 V AC) Wiring: No cable as standard; 8 m or 12 m cable, also DALI, on request # Mechanical Ingress protection: IP66 (URBAN Plus IP65), IK08 Finish: Silver RAL 9006 (URBAN-X), grey (URBAN Plus), polyester powder coating Weight: URBAN-X Mini 2 kg · URBAN-X Pro < 4 kg · URBAN Plus 8.5 kg

industriale

torce-portatili

floodlight-portatile

dialight-safesite-high-bay-he

# Europe version (CE / ATEX) Product type: LED high bay for hazardous areas Luminous flux: 10,950 · 14,000 · 18,600 · 25,900 lm Power: 80 · 100 · 130 · 185 W Efficacy: Up to 143 lm/W Power supply: 100-277 VAC, 120-250 VDC Colour temperature: 5000 K, CRI 80 Optics: Narrow, medium, wide Connection: Integral junction box (2 x M25 or 2 x M20) or 3 m pre-wired SWB cable Dimming: DALI 1.0 and 2.0 (junction box versions) Zones: Zone 1, 2, 21, 22 Marking: Ex db eb IIB T5 Gb / Ex tb IIIC T100°C Db · hydrogen versions Ex db eb IIB+H2 T5 Gb Certificates: Sira 18ATEX1001X · IECEx SIR 18.0001X Ambient temperature: from -40 °C to +60 °C Ingress protection: IP66 Diffuser: Clear tempered glass Mounting: HBXW3 adjustable aluminium bracket included Weight: 14.6 - 15.5 kg # North America version (UL/CSA) Market: North America (UL/CSA) Series: HEC · HEM (Class I Div 1) · HED (Class I Div 2) · VED · VCD (Ultra-Efficient, Class I Div 2) Classification: HEC/HEM: Class I Div 1 Groups C, D · Class I Zone 1 Group IIB · Class I Div 2 Groups C, D · Class II Div 1 Groups E, F, G · Class II Div 2 Groups F, G (Group B HEP versions only) · HED/VED/VCD: Class I Div 2 Groups A, B, C, D · Class I Zone 2 Group IIC · Class II Div 1 Groups E, F, G (cable versions only) · Class II Div 2 Groups F, G · Class III Div 1 and 2 Temperature class: T4 from -40 °C to +65 °C · T5 from -40 °C to +50 °C · battery versions T4A from -20 °C to +55 °C Standards: UL 844 (wet locations), CSA C22.2 No. 137, UL 8750 · battery versions also UL 924 · Intertek (ETL) certification Luminous flux: Class I Div 1 from 10,700 to 25,900 lm · Class I Div 2 from 10,900 to 27,500 lm · Ultra-Efficient from 23,500 to 38,200 lm Power: 80 · 100 · 130 · 140 · 165 · 185 · 195 · 230 W Efficacy: Up to 170 lm/W (Ultra-Efficient) Power supply: 100-277 VAC / 120-250 VDC or 347-480 VAC · battery versions 120-277 VAC Colour temperature: 5000 K or 4000 K, CRI 80 Optics: Medium, wide, narrow Diffuser: Clear tempered glass · clear or diffusing polycarbonate (Class I Div 2 only) Connection: 3 m 18 AWG (0.82 mm²) STOOW/SOOW pre-wired cable or integral wiring box with 2 x 3/4" NPT entries Dimming: 0-10 V (10 V = 100%, 0 V = <10%) Ingress protection: IP66/67, NEMA 4X Ambient temperature: from -40 °C to +65 °C (battery versions from -20 °C to +55 °C) Mounting: 3/4" NPT pendant (top entry), safety tabs, 316 stainless steel brackets, hook (wiring box versions) Weight: Class I Div 1 14 kg · Class I Div 2 8.2 kg (cable) / 9 kg (wiring box) · with battery up to 17.7 kg Lifetime: L70 > 150,000 h · 10-year warranty

dialight-safesite-floodlight

# Europe version (CE / ATEX) Product type: LED floodlight for hazardous areas Luminous flux: Standard IIB 10,950 - 25,900 lm · Hydrogen IIB+H2 up to 23,500 lm (FLH) / 25,900 lm (FSH) Power: 80 - 212 W depending on version Efficacy: Up to 143 lm/W Power supply: 100-277 VAC, 120-250 VDC (Hydrogen FLH 110-277 VAC) Colour temperature: 5000 K and 4000 K, CRI 80 Optics: Narrow, medium, wide, NEMA 7x6 Dimming: 0-10 V · DALI 2.0 (FSA) Diffuser: Tempered glass, also with anti-shatter film Connection: Factory-fitted junction box, 2 x M20x1.5 or 2 x M25x1.5 Zones: Zone 1, 2, 21, 22 Marking: Ex II 2 GD Ex db eb IIB T5 Gb / Ex tb IIIC T100°C Db · Hydrogen FLH Ex d e IIB+H2 T4 Gb · Hydrogen FSH Ex db eb IIB+H2 T5 Gb Certificates: Sira 18ATEX1001X · IECEx SIR 18.0001X · Baseefa 12ATEX0070X · IECEx BAS 12.0044X Ambient temperature: from -40 °C to +60 °C Ingress protection: IP66 Mounting: 316 stainless steel bracket included, also with safety retention tabs Dimensions: 429 x 453 x 281 mm Weight: 15.4 kg # North America version (UL/CSA) Market: North America (UL/CSA) Series: FLD (legacy codes FLD…N/S…, new codes FLD7…/FLD4…) Classification: Class I Div 2 Groups A, B, C, D · Class II Div 1 Groups E, F, G · Class II Div 2 Groups F, G · Class III (models with yoke bracket and glass); slipfitter models and models with polycarbonate diffuser Class I Div 2 only Temperature class: T4A from -40 °C to +65 °C (13,500-15,000 lm) · T5 from -40 °C to +65 °C (10,750-11,500 lm) Standards: UL 844, CSA C22.2 No. 137 · DLC Luminous flux: From 9,500 to 15,000 lm Power: 106 · 112 · 135 · 140 W Efficacy: Up to 111 lm/W Power supply: 100-277 VAC 50/60 Hz or 347-480 VAC 50/60 Hz Colour temperature: 5000 K (4000 K on request), CRI 75 Optics: NEMA 2 (23°), NEMA 4 (52°), NEMA 5 (93°), NEMA 6 (115°), NEMA 7x6 (140° x 115°), NEMA 6x7 (115° x 140°) Diffuser: Tempered glass (IK07) or polycarbonate (IK10) Connection: 2 x 3/4" NPT cable entries (models with yoke bracket), isolated wiring compartment Ingress protection: IP66/67, NEMA 4X Ambient temperature: from -40 °C to +65 °C Mounting: 304 stainless steel yoke bracket (standard) or integral slipfitter for 2" pole (60.3 mm OD) Weight: 13.6 kg Effective projected area (EPA): 0.15 m² (1.66 ft²) Lifetime: L70 > 100,000 h at 25 °C · 10-year warranty

dialight-prosite-floodlight

Product type: LED floodlight for Zone 2/21/22 hazardous areas and non-classified industrial areas Luminous flux: 12,000 · 18,000 · 30,000 lm (F1, nominal classes) · 60,000 lm (F2, industrial only) Power: 81 · 124 · 234 W (F1) · 484 W / 499 W at 347-480 VAC (F2) Power supply: 120-277 VAC, 120-250 VDC · industrial version also 347-415-480 VAC Colour temperature: 5000 K and 4000 K (CRI 70) · 2700 K (CRI 80) · 2200 K Optics: Wide 125° (NEMA 6), medium 56° (NEMA 4), asymmetric Diffuser: Glass (Ex and industrial) · integrated PC optic (industrial only) Dimming: DALI 1 / DALI 2, 0-10 VDC Brackets: Angled 316 stainless steel (standard), straight 316 stainless steel, pole slipfitter (F1 only), anti-vibration 316 stainless steel Heavy-Duty Cable entries: 2 x M25 Zones: Zone 2, 21, 22 (Ex version F1B) · safe area (industrial version F1E/F2E) Marking: Ex ec IIC T4 Gc / Ex tb IIIC T125°C Db (Ex version) Certificates: ETL25ATEX0528X · ETL25ATEX0529X · IECEx ETL 22.0001X · industrial version CE / ENEC · DNV TAE00004GM Ambient temperature: -40 °C to +65 °C (F2 60,000 lm: up to +55 °C) Ingress protection: IP66/67 Impact resistance: IK08 (glass) · IK10 (integrated PC optic) Weight: F1 10.9 - 13.6 kg · F2 19.5 - 24.5 kg Market: North America (UL/CSA) Versions: F1 and F2 non-classified (UL 1598/A, codes F1U/F2U) · F1 and F2 for hazardous locations (UL 844, codes F1D/F2D and F1F/F2F) Classification: F_D: Class I Div 2 Groups A, B, C, D · Class I Zone 2 Group IIC · Class II Div 2 Groups F, G · Zone 20, 21, 22 · Class III; F_F: additionally Class II Div 1 Groups E, F, G (F1 up to 18,000 lm, F2 up to 36,000 lm) Temperature class: T4 with Ta from -40 °C to +65 °C · T4A with Ta from -40 °C to +55 °C Area: safe (non-classified) for UL 1598/A versions (F1U/F2U) Certifications: UL 1598/A, CSA C22.2 No. 250.0, NOM (non-classified versions) · UL 844, CSA C22.2 No. 137 (hazardous location versions) · ABS · DLC/DLC Premium for some models; Intertek (ETL) certification Luminous flux: F1 12,000 - 31,600 lm · F2 30,200 - 65,000 lm Power: F1 81 - 237 W · F2 200 - 499 W Efficacy: Up to 163 lm/W Power supply: 120-277 VAC / 120-250 VDC · 277-480 VAC Colour temperature: 5000 K, 4000 K (CRI 70) · 2700 K (CRI 80) · 2200 K · amber (non-classified only) Optics: NEMA 4, NEMA 6, NEMA 7x6, asymmetric, wide asymmetric Dimming: DALI 2.0, 0-10 VDC · optional Dialight IntelliLED wireless (non-classified only) Surge protection: 6 kV line-line and line-earth · optional 10 kA / 20 kA module Cable entries: 2 x 3/4" NPT Ambient temperature: -40 °C to +65 °C (F2 60,000 lm: up to +55 °C) Ingress protection: IP66/67, NEMA 4X Impact resistance: IK10 (PC optic and PC lens) · IK08 (glass) Lifetime: L70 > 150,000 h at 25 °C Body: A360 die-cast aluminium, 316 stainless steel screws, dual epoxy and polyester coating Effective projected area (EPA): F1 0.19 m² (2.00 sq ft) · F2 0.31 m² (3.33 sq ft) Weight: F1 11.0 - 18.3 kg · F2 19.4 - 27.3 kg Warranty: 10 years

industriale

dialight-safesite-area-light

Product type: LED area light for hazardous areas Luminous flux: From 2,000 to 7,500 lm depending on version Power: 22 · 38 · 47 · 58 · 69 W Power supply: 100-277 VAC, 50/60 Hz Colour temperature: 5000 K, 4000 K, amber (590 nm) Optics: 360° or 180° distribution (45° mounting) Connection: 3 m pre-wired 3-pole armoured cable or 2 x 20 mm junction box Zones: Zone 1, 2, 21, 22 (HZA/HZJA versions) · Zone 2, 22 (HZB/HZJB versions) Marking: Zone 1/21: Ex d e IIC T4 Gb / Ex t IIIC T135°C Db · Zone 2/22: Ex nA nC IIC T4 Gc / Ex tc IIIC T130°C Dc Certificates: SIRA 11ATEX1357 · IECEx SIR 11.0156 · SIRA 12ATEX4097X · IECEx SIR 14.0042X Ambient temperature: -40 °C to +65 °C Ingress protection: IP66 Diffuser: Tempered glass Mounting: Yoke bracket included Weight: 7.5 - 9.5 kg Market: North America (UL/CSA) Series: ALD (Class I Div 2) · ALC (Class I Div 1) Classification: ALD: Class I Div 2 Groups A, B, C, D · Class I Zone 2 Group IIC · Class II Div 1 Groups E, F, G · Class II Div 2 Groups F, G · Class III Div 1 and 2 · Zone 20, 21, 22 · ALC: Class I Div 1 Groups B-D · Class I Zone 1 Group IIB + hydrogen · Class II Div 1 Groups E-G · Zone 21, 22 (or Class I Div 1 Groups C-D · Zone 1 IIB) Temperature class: T4A from -40 °C to +65 °C · T5 from -40 °C to +45 °C Standards: UL 844, UL 1598/A, CSA C22.2 No. 250, CSA C22.2 No. 137-M81 · ETL (Intertek) certification Luminous flux: Class I Div 2 from 3,800 to 13,000 lm · Class I Div 1 from 2,900 to 8,600 lm · 347/480 VAC from 3,800 to 7,200 lm Power: 24 · 30 · 38 · 40 · 52 · 58 · 64 · 66 · 68 · 72 · 74 · 77 W Efficacy: Up to 169 lm/W Power supply: 120-277 VAC 50/60 Hz, 120-250 VDC (Class I Div 1: 100-277 VAC) · 347/480 VAC Colour temperature: 5000 K, 4000 K, 2700 K, CRI 80 (347/480 VAC: 5000 K, CRI 70) Optics: 360°, 180° for 45° mounting, round, wide for 0° mounting Diffuser: Clear tempered glass (IK07) or diffusing polycarbonate (IK10) Connection: 3 m STOOW 18 AWG (0.82 mm²) cable or 356 mm leads in the UMA hub or retrofit adaptor Ingress protection: IP66/67/69, NEMA 4X Ambient temperature: -40 °C to +65 °C (+55 °C for 8,500 lm wide, 11,000 and 13,000 lm) Mounting: 3/4" NPT pendant, 316 stainless steel adjustable bracket, UMA hub with wall, ceiling or stanchion brackets, retrofit adaptors Weight: 4.5-8.6 kg depending on diffuser and mount (Class I Div 1: 6.8 kg) Lifetime: L70 > 150,000 h at 65 °C · 10-year warranty (347/480 VAC: 5 years)

dialight-prosite-streetlight

Product type: LED street light for Zone 2/21/22 hazardous areas and non-classified industrial areas Luminous flux: 12,000 · 18,000 · 24,000 · 30,000 lm (nominal classes) Power: 81 · 124 · 175 · 234 W Power supply: 120-277 VAC, 120-250 VDC · industrial version also 347-415-480 VAC Colour temperature: 5000 K and 4000 K (CRI 70) · 2700 K (CRI 80) Optics: Type III medium (roadway), Type V (symmetric) Diffuser: Glass (Ex version) · integrated PC optic, with optional additional glass (industrial version) Dimming: DALI 1 / DALI 2, 0-10 VDC Cable entries: 1 x M25 Zones: Zone 2, 21, 22 (Ex version S1B) · safe area (industrial version S1E) Marking: Ex ec IIC T4 Gc / Ex tb IIIC T125°C Db (Ex version) Certificates: ETL25ATEX0528X · ETL25ATEX0529X · IECEx ETL 22.0001X · industrial version CE / ENEC Ambient temperature: -40 °C to +65 °C Ingress protection: IP66/IP67 Impact resistance: IK08 (glass) · IK10 (integrated PC optic) Mounting: Die-cast aluminium arm/pole bracket, Ø 42.2-60.3 mm pipe · slipfitter for vertical pole (industrial version) Weight: 11.0 - 15.5 kg Market: North America (UL/CSA) Versions: S1U non-classified (UL 1598/A) · S1D for hazardous locations (UL 844) Classification: S1D: Class I Div 2 Groups A, B, C, D · Class I Zone 2 Group IIC · Class II Div 2 Groups F, G · Zone 20, 21, 22 · Class III (Class II Div 1 Groups E, F, G with 'F' certification up to 18,000 lm) Area: safe (non-classified) for UL 1598/A versions (S1U) Certifications: UL 1598/A, CSA C22.2 No. 250, NOM (S1U) · UL 844, CSA C22.2 No. 137 (S1D) · DLC/DLC Premium for some models Luminous flux: S1U 11,900 - 29,500 lm · S1D 10,300 - 25,300 lm Power: 81 - 237 W Efficacy: Up to 152 lm/W Power supply: 120-277 VAC / 120-250 VDC · 347-480 VAC Colour temperature: 5000 K, 4000 K (CRI 70) · 2700 K (CRI 80) · 2200 K · amber (S1U only) Optics: Type II medium, Type III medium, Type III short (S1U with PC optic only), Type V Dimming: DALI 1/DALI 2, 0-10 VDC Surge protection: 6 kV / 3 kA · optional 10 kA / 20 kA module Cable entries: 1 x 3/4" NPS Mounting: Die-cast aluminium arm/pole bracket, Ø 42-60 mm pipe (1.66"-2.37"), -5°/0°/+5° tilt · slipfitter for vertical pole Ambient temperature: -40 °C to +65 °C Ingress protection: IP66/67, NEMA 4X Impact resistance: IK10 (PC optic and PC lens) · IK08 (glass) Lifetime: L70 > 150,000 h at 25 °C Effective projected area (EPA): 0.10 m² (1.11 sq ft) Weight: 12.0 - 15.5 kg Warranty: 10 years

industriale

dialight-safesite-bulkhead

# Europe version (CE / ATEX) Product type: LED bulkhead light for hazardous areas Luminous flux: From 2,600 to 6,400 lm depending on version Power: 22 - 48 W Power supply: 100-277 VAC, 120-250 VDC · emergency versions 230-240 VAC Colour temperature: 5000 K, 4000 K (CRI > 80), amber, green Optics: Circular, ultra-wide (walkway) Diffuser: Clear or diffused dome polycarbonate Emergency: Integral battery, 60/90/180 min duration Mounting: Flush wall/ceiling bracket · pole with 44 mm or 35 mm spigot Cable entries: 2 x M20 (optional 4 x M20) · pole versions 1 x M25 Zones: Zone 1, 2, 21, 22 (BHA/BZA/BPA) · Zone 2, 22 (BHB/BZB/BPB) Marking: Zone 1/21: Ex eb mb IIC T4 Gb / Ex tb IIIC T130°C Db · Zone 2/22: Ex ec IIC T4 Gc / Ex tc IIIC T130°C Dc Certificates: CSANe 21ATEX3245X · CSANe 21ATEX3246X · CSANe 21ATEX9272X · IECEx CSA 21.0047X · DNV TAE00004H1 Ambient temperature: from -40 °C to +65 °C · emergency versions from -20 °C to +55 °C Ingress protection: IP66/67 Dimensions: 350 x 220 x 118 mm · pole version 559 x 220 x 118 mm Weight: 6.8 - 8.8 kg # North America version (UL/CSA) Market: North America (UL/CSA) Classification: Class I Div 2 Groups A, B, C, D · Class I Zone 2 Group IIC · Class II Div 2 Groups F, G · Zone 22 · Class III Temperature class: T4 with Ta from -40 °C to +65 °C · T4A with Ta from -40 °C to +55 °C · battery versions Ta from -20 °C to +55 °C Certifications: UL 844, CSA C22.2 No. 137, UL 121201, CSA C22.2 No. 213 (Intertek ETL) · the UL datasheet also states IECEx Zone 2, 22 Luminous flux: 2,600 - 6,700 lm Power: 27 - 49 W Efficacy: Up to 149 lm/W Power supply: 100-277 VAC / 120-250 VDC · battery versions 100-277 VAC Colour temperature: 5000 K, 4000 K, 2700 K (CRI > 80) · amber · green Optics: Type V circular, Type I ultra-wide (walkway) Diffuser: Clear polycarbonate · diffused polycarbonate dome (green versions for emergency showers) Emergency: Integral battery, approx. 1,140 lm for 60 min, 1,100 lm for 90 min, 900 lm for 180 min Dimming: DALI 1.0 and 2.0, 0-10 VDC down to 10% Surge protection: 6 kV line-line and line-earth Cable entries: 2 x 3/4" NPT (optional 4 x 3/4" NPT) · pole versions 1 x 3/4" NPT Mounting: Flush wall/ceiling bracket · pole with Ø 35 mm entry (1.38", DN25), optional 44 mm (1.73", DN32) Ingress protection: IP66/67, NEMA 4X Impact resistance: IK10 Dimensions: 350 x 220 x 118 mm · pole version 559 x 220 x 118 mm Weight: 6.8 kg (7.7 kg with battery) · pole version 7.9 kg (8.8 kg with battery) Warranty: 10 years (battery excluded)

dialight-safesite-bulkhead-conveyor

# General Product type: LED bulkhead light for conveyors in hazardous areas # Certifications Zones: Zone 1, 2, 21, 22 (BZA/BPA) · Zone 2, 22 (BZB/BPB) Marking: Zone 1/21: Ex eb mb IIC T4 Gb / Ex tb IIIC T130°C Db · Zone 2/22: Ex ec IIC T4 Gc / Ex tc IIIC T130°C Dc Certificates: CSANe 21ATEX3245X · CSANe 21ATEX3246X · CSANe 21ATEX9272X · IECEx CSA 21.0047X · DNV TAE00004H1 # Lighting Luminous flux: 6,200 - 6,400 lm Colour temperature: 5000 K, 4000 K (CRI > 80) Optic: Ultra-wide (Type 1, walkway) Emergency: Integral battery, 60/90/180 min duration # Electrical Power: 45 - 48 W Power supply: 100-277 VAC, 120-250 VDC · emergency versions 230-240 VAC # Mechanical Mounting: On stanchion with 44 mm or 35 mm spigot mount Cable entries: 1 x M25 Dimensions: 559 x 220 x 118 mm (including spigot) Weight: 7.9 - 8.8 kg # Environmental Ambient temperature: from -40 °C to +65 °C · emergency versions from -20 °C to +55 °C Ingress protection: IP66/67

dialight-safesite-grp-linear

# General Product type: LED linear luminaire for hazardous areas # Certifications Zones: Zone 1, 2, 21, 22 (P_A) · Zone 2, 21, 22 (P_B) Marking: Zone 1/21: Ex II 2 GD Ex eb mb op is IIC T4 Gb / Ex tb op is IIIC T130°C Db · Zone 2/21/22: Ex II 3 GD Ex ec IIC T4 Gc / Ex tc IIIC T130°C Dc Certificates: Sira 19ATEX4226X · IECEx SIR 19.0068X · Sira 19ATEX4227X · Sira 19ATEX9228X · IECEx SIR 19.0069X # Lighting Luminous flux: 2,785 - 5,750 lm Colour temperature: 5000 K, 4000 K (CRI 80) · green (Shower-Safe) Emergency: 180 min duration as standard, 60/90 min configurable; 10-25% of luminous flux Dimming: DALI 1.0/2.0 compatible # Electrical Power: 25 - 51 W Power supply: 100-277 VAC 50/60 Hz, 120-250 VDC · emergency versions 230/240 VAC # Mechanical Length: 764 mm · 1,244 mm Body: Glass-reinforced polyester (GRP) Diffuser: Convex textured polycarbonate Cable entries: 2 x M25, through-wiring as standard Weight: 7.9 - 11.9 kg # Environmental Ambient temperature: from -40 °C to +65 °C · emergency versions from -20 °C to +50 °C Ingress protection: IP66/67 Impact resistance: IK08

dialight-safesite-n-series

# General Product type: LED linear luminaire for hazardous areas # Certifications Zones: Zone 1, 2, 21, 22 Marking: II 2 G Ex db eb mb IIC T6…T5 Gb / II 2 D Ex tb IIIC T80°C…T95°C Db Certificates: TPS 26 ATEX 138104 0001 X · IECEx TPS 26.0033X # Lighting Luminous flux: 4,450 · 7,400 lm Efficacy: Up to 148 lm/W Colour temperature: 5000 K, 4000 K (CRI 80) Optic: 115°, circular distribution Emergency: 10 W battery kit, 180 min duration # Electrical Power: 30 - 55 W Power supply: 100-277 VAC, 50/60 Hz # Mechanical Length: 2 ft (711 mm) · 4 ft (1,321 mm) Body: Fibre-reinforced plastic (FRP) Diffuser: Glass-fibre reinforced polycarbonate Cable entries: 4 x M20 x 1.5 Mounting: Ceiling, wall, pole Weight: 6.4 - 10.9 kg # Environmental Ambient temperature: from -40 °C to +60 °C · emergency versions from -5 °C to +55 °C Ingress protection: IP66 Impact resistance: IK10

dialight-safesite-low-intensity-ostacoli

# Europe version (CE / ATEX) Product type: Low-intensity LED obstruction light for hazardous areas Luminous intensity: 32.5 cd (ICAO Type B / FAA L-810) Operation: Steady burn Colours: Red (L-810) · blue, green, yellow (visual signal) Configuration: Single or double unit Power supply: 120 VAC · 230 VAC Power: 14.5 W (120 VAC) · 16.0 W (230 VAC) Zones: Zone 2 Certificates: Sira 06ATEX4372X · IECEx SIR 08.0018X Ambient temperature: from -55 °C to +55 °C Ingress protection: IP65/IP67 Body: Die-cast aluminium, glass dome Mounting: 1" NPT and 3/4" NPT threaded bottom hub Weight: 3.24 kg (single) · 7.28 kg (double) # North America version (UL/CSA) Market: North America (UL/CSA) Classification: 860-2 and FLS-2 series: Class I Div 2, Groups A, B, C, D · RTO-2 and RTO-ER: Class I Div 2 · RTO-D (area light): Class II Div 1 and Div 2, Groups E, F, G Temperature class: 860-2 T4A (Ta from -55 °C to +55 °C) · FLS-2 T4 (Ta up to +55 °C) or T3C (Ta up to +65 °C) · RTO T3C (Ta from -40 °C to +55 °C) Certifications: UL 844, UL 1598, CSA C22.2 No. 137 and No. 250.0 (Intertek ETL) · FLS: UL 1638 · L-810 860 series: FAA Luminous intensity: L-810 red 32.5 cd (FAA L-810) Operation: 860-2 steady burn · FLS-2 flashing (100:900 ms) Power supply: 120 VAC · 230 VAC (860-2, FLS-2) · 120-230 VAC (RTO-2) · 12-48 VDC (RTO-ER) · 100-277 VAC or 12-48 VDC (RTO area light) Power: 14.5 W at 120 VAC · 16.0 W at 230 VAC (860-2, FLS-2) · 6.5-8 W (RTO-2) · 3.5 W single / 7 W double (RTO-ER) · 8 W (RTO area light) Luminous flux: RTO area light 470 or 800 lm, 6000 K, CRI 75 Body: 860-2/FLS-2 die-cast aluminium, glass lens · RTO copper-free aluminium, UV-stabilised polycarbonate lens Mounting: 860-2/FLS-2 1" and 3/4" NPT threaded bottom hub or flat base with junction box · RTO 3/4" NPT pendant, pendant with 1"/3/4" NPT junction box or ceiling mount with 3/4" NPT box Ingress protection: IP65/66/67, NEMA 4X (860-2, FLS-2) · IP66 (RTO) Weight: 860-2/FLS-2 3.24 kg (single) · 7.28 kg (double) · RTO area light 0.36 - 1.45 kg Warranty: 5 years

atexor-slam-fixed-novo

Product type: Fixed linear LED luminaire for hazardous areas Versions: Novo 1LED · Novo 2LED (two independent LED units); type A pole mounting, type B through-wiring Ex marking: II 2G Ex eb mb op is IIC T4 Gb · II 2D Ex tb op is IIIC T90°C Db Certificates: ATEX CML 22 ATEX 3188X · IECEx CML 22.0026X · UKEX Luminous flux: 1595 lm (1LED) · 3140 lm (2LED) measured; 2825 / 5650 lm at source Power: < 25 W (1LED) · < 50 W (2LED) Power supply: 230 V AC/DC ±6%, 50/60 Hz Colour temperature: 4600-5700 K, CRI > 80 Ingress protection: IP66 Ambient temperature: -40 °C to +55 °C Material: Polycarbonate and TPE Dimensions and weight: 1LED A 614×112 mm, 1.8 kg · 1LED B 682×112 mm, 2.1 kg · 2LED A 1100×112 mm, 3.4 kg · 2LED B 1168×112 mm, 3.7 kg

Zone 1/21 ATEX, IECEx, UKEX 1595 or 3140 lm IP66, -40 to +55 °C Impact-resistant polycarbonate body Pole mounting or through-wiring

atexor-slam-fixed-nordic-ws

Product type: Fixed LED luminaire for hazardous areas, weather-resistant version Versions: Nordic 1LED WS · Nordic 2LED WS (two independent LED units) Ex marking: II 2G Ex e mb op is IIC T4 Gb · II 2D Ex tb op is IIIC T90°C Db Certification: ATEX Luminous flux: 1595 lm (1LED) · 3140 lm (2LED) measured; 2825 / 5650 lm at source Power: < 25 W (1LED) · < 50 W (2LED) Power supply: 110 V AC/DC or 230 V AC ±6%, 50/60 Hz Colour temperature: 4600-5700 K Ingress protection: IP66 Ambient temperature: -40 °C to +40 °C Dimensions and weight: 1LED 535×115 mm, 1.8 kg · 2LED 1020×115 mm, 3.4 kg

Zone 1/21 ATEX 1595 or 3140 lm IP66, -40 to +40 °C Outdoor version (WS) 110 V AC/DC or 230 V AC

atexor-semic-sp-sf

Product type: Portable LED inspection lamp (SP) and compact fixed or semi-portable luminaire (SF) Ex marking: II 2G Ex mb op is IIC T5 Gb (24-48 V) · II 2G Ex mb op is IIC T4 Gb (110-230 V) Certificates: ATEX EESF 20 ATEX 086X · IECEx EESF 21.0006X · UKEX CML 21UKEX51096X · INMETRO Luminous flux: 650 lm ±10% measured (1050 lm at source) Power: 9 W Power supply: 24-48 V AC/DC or 110-230 V AC/DC Colour temperature: 5000 K, CRI > 85 Ingress protection: IP68 Ambient temperature: -20 °C to +40 °C Cable: 5 m as standard, 10 m on request Dimensions and weight: SP 367 × Ø 64 mm, 1.2 kg · SF 192 × 50 mm, 1.0 kg

ATEX, IECEx, UKEX, INMETRO Zone 1 IP68, up to T5 650 lm, 9 W, CRI > 85 Portable and fixed versions Encapsulated dissipative construction

atexor-slam-neos

Product type: Portable LED lamps for temporary lighting in hazardous areas Versions: Neos 1LED · Neos 2LED (360°) · Neos Linear 2LED (180°) · Neos EM 1LED · Neos EXIT 1LED · Hornet 1LED 12V Ex marking: II 2G Ex eb mb op is IIC T4 Gb · II 2D Ex tb op is IIIC T90°C Db (EM and EXIT: Ex eb ib mb op is) Certificates: ATEX CML 22 ATEX 3188X · IECEx CML 22.0026X · UKEX · INMETRO (Hornet 12V: ATEX EESF 20 ATEX 072) Luminous flux: 1595 lm (1LED) · 3140 lm (2LED and Linear 2LED) measured · Hornet 12V 1340 lm Power: < 25 W (1LED) · < 50 W (2LED) · < 30 W (EM/EXIT) · 17 W (Hornet 12V) Power supply: 24 / 42 / 110 V AC/DC or 230 V AC · Hornet 12V: 9-15 V AC/DC Emergency: EM and EXIT with battery up to 3 h Colour temperature: 4600-5700 K (EM/EXIT 5000 K) Ingress protection: IP66 (version A) · IP54-IP66 depending on socket (version C) Ambient temperature: -40 °C to +55 °C (Hornet 12V -20 °C to +40 °C) Material: Dissipative PC/TPE Dimensions and weight: 1LED 595×125 mm, 2.1 kg · 2LED 1040×125 mm, 3.4 kg · EM/EXIT 725×125 mm, 3.1 kg

Zone 1/21 ATEX, IECEx, UKEX 1595 to 3140 lm Versions with 3 h emergency Linkable in series (version C) -40 to +55 °C, IP66

atexor-slam-star

Product type: Portable LED floodlight for hazardous areas Ex marking: II 2G Ex eb mb op is IIC T4 Gb Certificate: ATEX EESF 18 ATEX 045 Luminous flux: 5412 lm measured (approx. 7400 lm at source) Power: < 90 W Power supply: 100-250 V AC/DC or 20-50 V AC/DC, 0/50/60 Hz Colour rendering: CRI > 80 Ingress protection: IP66 Ambient temperature: -20 °C to +40 °C Adjustment: continuous 25° tilt Materials: Dissipative PC and PA6, double shell Dimensions: 412 × 356 × 492 mm Weight: 10.5 kg

Zone 1 ATEX 5412 lm, < 90 W 3 independent LED units Can be moved while on IP66

atexor-slam-tank-set

Product type: Temporary lighting kits for tanks and confined spaces Contents: SLAM lamps, Ex transformer, cables and Click'n Fix antistatic fixings Zones: Zone 1/21 (depending on components) Safety voltage: 12, 24 or 42 V AC depending on kit Certification: ATEX-certified components, Neos versions also IECEx Fixings: Magnetic brackets and antistatic straps, no equipotential bonding cables

Complete ready-to-use kits Zone 1/21 Safety extra-low voltage Antistatic fixings included Versions with emergency function

atexor-slam-clickn-fix-accessori

Product type: Antistatic fixings and accessories for SLAM portable lamps Click'n Fix: ATEX VTT 10 ATEX 001, temperature class T6, dissipative plastic with safety screws Ambient temperature Click'n Fix: -20 °C to +55 °C Protective film: polyester with dissipative coating, set of 10, -40 °C to +55 °C End protector: dissipative rubber for SLAM Hornet and Tube (not for Neos), minimum 10 pieces

ATEX certified Dissipative material No equipotential bonding cables Magnetic, scaffold, Unistrut Films and protectors

atexor-mica-torce-ex

Product type: Rechargeable LED torches for hazardous areas Versions: IL-800 Zone 0 · IL-800 Zone 1 · EM and BK (flashing) versions · ML-808 · ML-808EM Ex marking IL-800 Zone 0: II 1G Ex ia IIC T4 Ga Ex marking IL-800 Zone 1: II 2G Ex ib IIC T4 Gb · dust II 2D Ex tb IIIC T100°C IP67 Db Ex marking ML-808: II 2G Ex ib op is IIC T4 Gb · II 2D Ex ib op is IIIC T135°C Db Certificates: IL-800 ATEX TÜV 10 ATEX 7878 (Zone 0) and 7879 (Zone 1), IECEx TUR 11.0008 and 11.0009 · ML-808 ATEX EESF 18 ATEX 040 Luminous flux: IL-800 200 lm (high) / 80 lm (low) · ML-808 over 100 lm / 25 lm Runtime: IL-800 6 h (high) / 12 h (low) · ML-808 up to 15 h Battery: NiMH 6 V Ingress protection: IL-800 IP67 · ML-808 IP65 Ambient temperature: -20 °C to +40 °C Weight: IL-800 1.1 kg (buoyant) · ML-808 0.37 kg

Zone 0 or Zone 1, ATEX and IECEx Up to 200 lm Up to 15 h runtime Emergency versions IP67 (IL-800)

atexor-mica-torce-industriali

Product type: Rechargeable torches and signal lamps for industrial use (non-Ex) Versions: IL-640 · IL-640 EM · IL-640 CRI · IL-6400 · IL-6400 CRI · ML-600 · ML-601 · ML-602 Luminous flux: IL-640 760/177 lm · IL-6400 up to 1580 lm in boost · CRI versions 480/120 lm · ML-600 40.5 lm Runtime: IL-640/IL-6400 up to 24 h · ML-600 up to 8 h · ML-601/ML-602 6 h Battery: NiMH 6 V Signalling: ML-601 red LEDs visible from over 1.5 km · ML-602 red and green Standards: EN 45545-2 (ML-600, ML-601, ML-602) Ingress protection: IL-640 and IL-6400 IP67 Ambient temperature: IL -20 °C to +40 °C · ML -25 °C to +45 °C Weight: IL-640 1.4 kg · IL-6400 1.6 kg · ML-600 0.315 kg · ML-601/ML-602 0.275 kg

Industrial and railway use Up to 1580 lm (IL-6400) Up to 24 h runtime Red and green signalling EN 45545-2 (ML series)

industriale

atexor-mica-caricabatterie

Product type: Chargers and racks for MICA torches (installation in the safe area) Versions: ILC · ILC-VAC · ILC-LOC · MLC · IL-2 · CR-23 · CR-25 Power supply: ILC and MLC 12-24 V DC · ILC-VAC 85-264 V AC · ILC-LOC 18-60 V DC · IL-2 100-240 V AC · racks 100-230 V AC Approvals: e-17, EN 45545-2; ILC-LOC railway EMC EN 50121-3-2 Ingress protection: ILC IP44 Ambient temperature: 0 °C to +40 °C (racks from +5 °C) Dimensions: ILC 153 × 138 × 88 mm · MLC 142 × 83 × 72 mm · CR-23 210 × 500 × 63 mm · CR-25 210 × 840 × 63 mm

For MICA IL and ML torches Vehicle, mains or railway MLC fast charger Racks for 3 or 5 units Installation in the safe area

industriale

dialight-durosite-area-light

Product type: Industrial LED area light for outdoor and indoor areas Luminous flux: 4,000 - 7,000 lm Power: 38 · 58 · 68 W Efficacy: Up to 105 lm/W Power supply: 347/480 VAC Colour temperature: 5000 K (CRI 70 according to the code structure; CRI 75 in the photometric data) Optics: 360° or 180° distribution (45° mounting) Diffuser: Clear tempered glass or diffused polycarbonate with anti-scratch treatment Connection: 3 m 5-pole SOOW cable (pendant) or 0.4 m leads (adaptors) Mounting: 3/4" NPT pendant; Crouse-Hinds Champ retrofit adaptor; other brackets on request Surge protection: 6 kV, 2 Ohm line-line and line-earth THD: < 20% Power factor: > 0.9 Body: Copper-free aluminium, epoxy primer and polyester finish Certifications: UL 1598/A · CSA C22.2 No. 250 · NOM (ETL listed) Area: safe (non-classified) Market: North America (UL/CSA) Ambient temperature: -40 °C to +65 °C (-40 °F / +149 °F) Ingress protection: IP66/67, NEMA 4X Impact resistance: IK10 (polycarbonate) · IK07 (tempered glass) Lifetime: L70 > 100,000 hours at 25 °C Weight: 4.5 kg (polycarbonate) · 5.5 kg (glass); with stainless steel bracket 5.9 / 6.8 kg Warranty: 5 years

industriale

dialight-durosite-battery-backup-linear

Product type: Industrial LED linear luminaire with battery backup Length: 1.2 m (4 ft) Luminous flux: 7,000 lm Power: 85 W Efficacy: 82 lm/W Power supply: 120-277 VAC, 50/60 Hz Colour temperature: 5000 K, 4000 K (CRI 75) Optics: Medium Diffuser: Clear polycarbonate Emergency: 3.6 V 10 Ah NiMH battery, autonomy > 3 h at 25 °C, 450 lm in battery mode · sustained or maintained versions Certifications: UL 1598/A · UL 924 · CSA C22.2 No. 250 (ETL listed) Area: safe (non-classified) Market: North America (UL/CSA) Surge protection: 1 kV L-L / 2 kV L-E Body: Dual coating with chemical-resistant epoxy primer and polyester finish Cable entries: 1 x 3/4" NPT side · 2 x 3/4" NPT end Mounting: Optional LSXW4 adjustable bracket or LSXENDCAPKIT chain brackets Ambient temperature: -20 °C to +65 °C (-4 °F … +149 °F) Ingress protection: IP66 · NEMA 4X Lifetime: L70 > 100,000 h at 25 °C Weight: 8.2 kg (18 lb) Warranty: 3 years (ordering table; the certification list states 5 years)

industriale

dialight-durosite-high-bay

Product type: Industrial LED high bay luminaire Luminous flux: 12,280 - 36,830 lm (nominal classes 12,000 · 18,000 · 24,000 · 30,000 · 36,000 lm) Power: 91 · 126 · 177 · 228 · 273 W Efficacy: Up to 147 lm/W Power supply: 120-277 VAC · 347 VAC · 480 VAC Colour temperature: 5000 K, 4000 K (CRI 80) Optics: High-reflectance white reflector Diffuser: Diffused acrylic or diffused polycarbonate Dimming: 0-10 VDC as standard (10-100%) Sensor: Wattstopper FSP-221B PIR with daylight harvesting (optional), mounting height 2.4-12.2 m Surge protection: 2.5 kV THD: < 20% Power factor: > 0.9 Cable entries: 3 x 7/8" (22 mm) knockouts on top Mounting: V-hooks as standard; cable suspension kit or cast iron hub for 3/4" pendant Emergency battery: 10 W (optional, +2.3 kg) Finish: Grey / white Certifications: UL 1598 · CSA C22.2 No. 250 · DLC Area: safe (non-classified) – dry or damp locations Market: North America (UL/CSA) Ambient temperature: -40 °C to +40 °C (-40 °F / +104 °F); with battery 0 °C to +40 °C (+32 °F / +104 °F) Lifetime: L70 at 65,000 hours Weight: 4.5 kg (12") · 6.4 kg (18") · 8.2 kg (24") Warranty: 5 years

industriale

dialight-durosite-linear-nsf

Product type: Industrial LED linear luminaire for food processing and washdown environments Versions: FBL (standard and FBLE with battery backup) · PLL Length: 1.2 m (4 ft) · 2.4 m (8 ft) · FBL 1,229 / 2,407 mm (48.38 / 94.75 in) · PLL 1,191 / 2,311 mm (46.88 / 91.00 in) Luminous flux: 8,000 - 20,000 lm Power: 60 - 162 W Efficacy: 116 - 133 lm/W Power supply: 120-277 VAC Colour temperature: 5000 K, 4000 K (CRI 85) Connection: Quick-connect three-pole socket Body: Co-extruded copolyester/aluminium (FBL) · co-extruded copolyester (PLL) Certifications: UL 1598 (wet locations) · cULus listed · NSF (splash and non-food zones) Area: safe (non-classified) Market: North America (UL/CSA) Surge protection: 6 kV (FBL) · 4 kV (PLL) Mounting: Suspension clips included (FBL) · suspension (PLL); optional surface/wall kits Ambient temperature: FBL -40 °C to +60 °C (-40 °F … +140 °F) · FBLE 0 °C to +45 °C (+32 °F … +113 °F) · PLL -20 °C to +50 °C (-4 °F … +122 °F) Ingress protection: IP69K · NEMA 4X · FBL washdown 1,500 PSI Impact resistance: IK10 Lifetime: L70 > 140,000 h (FBL) · > 100,000 h (PLL) at 25 °C Weight: FBL 2.9 kg (4 ft) · 5.5 kg (8 ft) · PLL 1.9 kg (4 ft) · 3.6 kg (8 ft) Warranty: 5 years

industriale

dialight-durosite-linear

Product type: Low-profile industrial LED linear luminaire Length: 0.6 m (2 ft) · 1.2 m (4 ft) Luminous flux: 3,500 - 7,900 lm Power: 29 - 60 W Efficacy: Up to 133 lm/W Power supply: 100-277 VAC, 50/60 Hz Colour temperature: 5000 K, 4000 K (CRI 80) Optics: Medium Body: Copper-free aluminium, chemical-resistant epoxy primer and polyester finish Diffuser: Clear or diffused polycarbonate Cable entries: 4 x M25 Mounting: Factory-fitted LPXW4 316 stainless steel adjustable bracket Certifications: CE (EN 60598-1, EN 55015, EN 61547, EN 61000-3-2, EN 62031, EN 62471) Area: safe (non-classified) Ambient temperature: -40 °C to +65 °C Ingress protection: IP66/67 Impact resistance: IK09 Weight: 4.5 - 5.9 kg

industriale

dialight-durosite-wallpack

Product type: Full cut-off LED wall light (wallpack) for non-classified areas Luminous flux: 10,400 lm (80 W) · 15,600 lm (120 W) Power: 80 · 120 W Efficacy: 130 lm/W Power supply: 120-277 VAC Colour temperature: 3000 K / 4000 K / 5000 K field-selectable, CRI 70 Flux adjustment: 25 / 50 / 75 / 100 % field-selectable · 0-10 V dimming Optics: Type III full cut-off distribution Emergency: Versions with 4 W battery, 90 min autonomy Surge protection: 6 kV L-N · 10 kV L/N-PE Power factor: > 0.9 · THD < 20 % Lifetime: L70 at 50,000 h Cable entries: Conduit entry on 5 sides (optional) Mounting: Wall Finish: Grey · bronze Certifications: UL 1598 (wet location), CSA C22.2 No. 250, DLC Premium Area: safe (non-classified) Market: North America (UL/CSA) Ambient temperature: -30 °C to +40 °C (-22 °F … +104 °F) Ingress protection: IP65 Impact resistance: IK08 Weight: 2.0 kg (80 W) · 4.0 kg (120 W) · +0.9 kg with emergency battery (4.4 / 8.8 / 2 lb) Warranty: 5 years

industriale

raytec-spartan-bulkhead-exit

# General Product type: LED luminaire with integrated emergency and exit signage kit, for hazardous areas (SPARTAN) and industrial environments (WARRIOR) Versions: SPARTAN Zone 1/21 ATEX/IECEx (SPX) · SPARTAN Zone 2/22 ATEX/IECEx (SPZ) · SPARTAN Class I Div 2 (CID2) · WARRIOR industrial, non-classified area (SPI) Signage kit: Clear polycarbonate panel with stainless steel supports and exit legend, fitted on the front (included in -EXIT codes; SPX-BKT-EE1 to be ordered separately for the CID2 version) Warranty: 5 years # Certifications Zones: Zone 1, 2, 21, 22 (SPX) · Zone 2, 22 (SPZ) · Class I Div 2 (CID2) # Lighting Luminous flux: Standard 2,500 lm · High Output · Low Output 12 W Optics: 140°×140° (-EXIT versions) · 120°×50° (Class I Div 2) Emergency: Intelligent self-test emergency · up to 3 h at 25% of flux (EMX25) · 100% of flux in the Low Output version (EMX100) · 20 h recharge Colour temperature: 6500 K as standard (2700, 3000, 4000, 5000 K on request) # Electrical Power supply: 110-254 V AC 50/60 Hz Power: 37 W (emergency versions, while charging) # Mechanical Body: Powder-coated marine-grade aluminium, toughened glass Cable entries: M20 as standard, others on request Mounting: Wall or ceiling; optional stainless steel brackets Dimensions: 288 × 220 × 122 mm Weight: 6 kg # Environmental Ambient temperature: -20 °C to +46 °C (Zone 1/21) · up to +55 °C (Zone 2/22 and industrial) Ingress protection: IP66 & IP67 Impact resistance: IK07

industriale

dialight-emergency-exit-classified

Product type: LED exit signs and emergency light for hazardous locations Power supply: 120/277 VAC dual primary, 60 Hz Power: CXC and CXD signs 3 W · CMD emergency light 42 W (two 18 W heads) Colour temperature: 3000 K (CMD emergency light) Legend: Red EXIT, edge-lit (CXC and CXD signs) Emergency: Maintenance-free NiCad battery (CMD also lead-calcium); autonomy 180 min (CXC, CXD) or 90 min (CMD), 24 h recharge Functions: Self-diagnostics, brownout protection, low-voltage battery disconnect Classification: CXC: Class I Div 1, Groups C, D · Class II Div 1, Groups E, F, G · Class III · Class I Zone 1, Groups IIA, IIB · Zone 2, Groups IIA, IIB + H2, IIC — CXD: Class I Div 2, Groups A, B, C, D · Class II Div 2, Groups F, G · Class III — CMD: Class I Div 2, Groups A, B, C, D · Class I Zone 2, IIA, IIB, IIC Temperature class: T6 (85 °C) for CXC and CXD · T2B (Div 2) and T1/T2 (Zone 2) for CMD Certifications: NEC hazardous location classification (Class/Division and Class I Zone); Buy American Act compliant (signs) and ARRA (CMD) Market: North America (UL/CSA) Ambient temperature: CXC +10 °C to +50 °C (+50 °F … +122 °F) · CXD +10 °C to +55 °C (+50 °F … +131 °F) · CMD +10 °C to +40 °C (+50 °F … +104 °F) Ingress protection: IP65, suitable for wet and damp locations (CXC, CXD) · NEMA 4X (CMD) Body: Copper-free die-cast aluminium alloy with acrylic panels (CXC, CXD) · fibreglass with stainless steel mounting feet (CMD) Mounting: Wall or pendant with 1/2" NPT hubs (CXC, CXD) · wall with four stainless steel feet (CMD) Cable entries: 1/2" NPT hubs (CXC, CXD) · conduit entry on 5 sides (CMD) Finish: Grey Weight: CXC 6.8 kg (15 lb) · CXD 6.4 kg (14 lb) · CMD 4.5 kg (10 lb) Warranty: 5 years (CXC, CXD signs) · 3 years (CMD)

dialight-emergency-exit-nema-4x

Product type: LED exit signs, combination signs, emergency units and remote heads for non-classified areas Luminous flux: 219 lm per head (2 MR16 LED heads on ECN, EMN and remote head) Power: 3.3 W per head · ECN and EMN units 15 W Power supply: 120/277 VAC dual primary · remote head 6 VDC or 12 VDC from ECN or EMN unit Legend: 152 mm (6") EXIT letters with 19 mm (3/4") stroke, red Emergency: NiCad battery (EXN optional, ECN as standard) or lead-calcium/NiCad (EMN); 90 min autonomy, 24 h recharge Functions: Self-test/self-diagnostics, contactless magnetic test button (battery versions) Certifications: UL 924 for wet locations · UL-EPH (food industry) · NFPA 101, NEC, OSHA · CEC Title 20 Area: safe (non-classified) Market: North America (UL/CSA) Ambient temperature: EXN -20 °C to +50 °C (-4 °F … +122 °F) · ECN and EMN 12/15 W 0 °C to +50 °C (+32 °F … +122 °F) · remote head -25 °C to +50 °C (-13 °F … +122 °F) Ingress protection: IP66 · NEMA 4X Body: NEMA 4X polycarbonate, polycarbonate diffuser, stainless steel screws Mounting: EXN ceiling or end mount (wall single face only) · ECN ceiling, end or wall · EMN wall · remote head ceiling or wall Cable entries: EXN top or side (rear single face only) · ECN rear, side or top · EMN and remote head rear Finish: White · black Weight: EXN 3.1 kg (6.8 lb, +0.3 kg with NiCad battery) · ECN 6.2 kg (13.6 lb) · EMN 4.1 kg (9 lb) · remote head 2.2 kg (4.8 lb) Warranty: 5 years

industriale

dialight-prosite-floodlight-battery-backup

Product type: Industrial LED floodlight with integrated emergency battery Luminous flux: 12,000 · 18,000 · 30,000 lm (nominal classes) · in emergency mode 1,720 lm (PC optic) / 1,600 lm (glass) Power: 87 · 130 · 240 W Power supply: 230-240 VAC, 50/60 Hz Colour temperature: 5000 K and 4000 K (CRI 70) · 2700 K (CRI 80) · 2200 K Optics: Wide 125°, medium 56°, asymmetric Diffuser: Integrated PC optic or glass Dimming: DALI 1 / DALI 2, 0-10 VDC Emergency: Integrated 10 W NiMH battery, selectable 60/90/180 min autonomy, automatic self-test Brackets: Angled 316 stainless steel (standard), straight 316 stainless steel, pole slipfitter, 316 stainless steel Heavy-Duty Cable entries: 2 x M25 Area: safe (non-classified) Certifications: CE / ENEC · ATEX/IECEx Zone 2/21/22 version undergoing certification Ambient temperature: -20 °C to +55 °C Ingress protection: IP66/67 Impact resistance: IK10 (integrated PC optic) · IK08 (glass) Weight: 13 - 16 kg Market: North America (UL/CSA) Versions: F1U non-classified (UL 1598/A, UL 924) · F1D for hazardous locations (UL 844) Classification: F1D: Class I Div 2 Groups A, B, C, D · Class I Zone 2 Group IIC · Class II Div 2 Groups F, G · Zone 20, 21, 22 · Class III (Class II Div 1 Groups E, F, G with 'F' certification up to 18,000 lm) Area: safe (non-classified) for UL 1598/A versions (F1U) Certifications: UL 1598/A, CSA C22.2 No. 250, UL 924, CSA C22.2 No. 141 (F1U) · UL 844, CSA C22.2 No. 137 (F1D) Luminous flux: 12,200 - 31,600 lm Emergency flux: 1,490 - 1,720 lm Power: 87 · 130 · 181 · 240 W Efficacy: Up to 152 lm/W Power supply: 120-277 VAC, 50/60 Hz Emergency: Integrated battery, 90 min autonomy as standard (60 or 180 min field-selectable) Colour temperature: 5000 K, 4000 K (CRI 70) · 2700 K (CRI 80) · 2200 K · amber Optics: NEMA 4, NEMA 6, NEMA 7x6, asymmetric, wide asymmetric (F1U only) Dimming: DALI 1 and 2, 0-10 VDC Surge protection: 6 kV line-line and line-earth · optional 10 kA / 20 kA module Cable entries: 2 x 3/4" NPT Ambient temperature: -20 °C to +55 °C Ingress protection: NEMA 4X Impact resistance: IK10 (PC optic and PC lens) · IK08 (glass) Lifetime: L70 > 150,000 h at 25 °C Effective projected area (EPA): 0.19 m² (2.00 sq ft) Weight: 13 - 15 kg Warranty: 10 years (battery excluded)

industriale

dialight-prosite-high-mast

Product type: Industrial LED floodlight for high masts Luminous flux: 47,200 - 65,000 lm (nominal classes 48,000 · 60,000 lm) Power: 346 · 357 · 484 · 499 W Efficacy: Up to 147 lm/W Power supply: 120-277 VAC / 120-250 VDC · 347-480 VAC Colour temperature: 5000 K (CRI 70); 4000 K and 2200 K CRI 70, 2700 K CRI 80 on request Optics: NEMA 4, NEMA 6, NEMA 7x6, asymmetric, wide asymmetric Diffuser: Integrated polycarbonate optic/lens; optional glass or polycarbonate cover Dimming: DALI 1.0 and 2.0 / 0-10 VDC Surge protection: 6 kV / 3 kA as standard; additional 10 kA module (versions 8/9) THD: < 20% Power factor: > 0.9 Cable entries: 1 x 3/4" NPS Mounting: 4-bolt arm bracket with ±5° adjustment, for pipes 42-60 mm OD (1.66"-2.375") Effective projected area (EPA): 0.14 m² (1.50 ft²) Body: A360 die-cast aluminium, 316 stainless steel screws, dual epoxy and polyester finish Certifications: UL 1598/A · CSA C22.2 · NOM · DLC / DLC Premium (selected models) Area: safe (non-classified) Market: North America (UL/CSA) Ambient temperature: -40 °C to +65 °C (-40 °F / +149 °F); 60,000 lm up to +55 °C (+131 °F) Ingress protection: IP66/67, NEMA 4X Vibration: ANSI C136.31 and CALTRANS test 611 Lifetime: L70 > 100,000 hours at 50 °C Weight: 21.3 - 26.3 kg (47-58 lb) Warranty: 10 years

industriale

dialight-prosite-streetlight-battery-backup

Product type: Industrial LED street light with integrated emergency battery Luminous flux: 12,000 · 18,000 · 24,000 · 30,000 lm (nominal classes) · in emergency mode 1,600 lm (5000/4000 K) / 1,180 lm (2700 K) Power: 87 · 130 · 181 · 240 W Power supply: 230-240 VAC, 50/60 Hz Colour temperature: 5000 K and 4000 K (CRI 70) · 2700 K (CRI 80) Optics: Type III medium (roadway), Type V (symmetric) Diffuser: Integrated PC optic, optional additional glass Dimming: DALI 1 / DALI 2, 0-10 VDC Emergency: Integrated 10 W NiMH battery, 90 min autonomy (60/180 min selectable) Cable entries: 1 x M25 Area: safe (non-classified) Certifications: CE / ENEC · ATEX/IECEx Zone 2/21/22 version undergoing certification Ambient temperature: -20 °C to +55 °C Ingress protection: IP66/67 Impact resistance: IK10 (integrated PC optic) · IK08 (glass) Mounting: Die-cast aluminium arm/pole bracket, Ø 42.2-60.3 mm pipe · slipfitter for vertical pole Weight: 13.3 - 17.8 kg Market: North America (UL/CSA) Versions: S1U non-classified (UL 1598/A, UL 924) · S1D for hazardous locations (UL 844) Classification: S1D: Class I Div 2 Groups A, B, C, D · Class I Zone 2 Group IIC · Class II Div 2 Groups F, G · Zone 20, 21, 22 · Class III (Class II Div 1 Groups E, F, G with 'F' certification up to 18,000 lm) Area: safe (non-classified) for UL 1598/A versions (S1U) Certifications: UL 1598/A, CSA C22.2 No. 250, UL 924, CSA C22.2 No. 141 (S1U) · UL 844, CSA C22.2 No. 137 (S1D) Luminous flux: S1U 12,000 - 29,500 lm · S1D 10,300 - 25,300 lm Emergency flux: 1,515 - 1,635 lm Power: 87 · 130 · 181 · 240 W Efficacy: Up to 141 lm/W Power supply: 120-277 VAC, 50/60 Hz Emergency: Integrated battery, 90 min autonomy as standard (60 or 180 min field-selectable) Colour temperature: 5000 K, 4000 K (CRI 70) · 2700 K (CRI 80) · 2200 K · amber Optics: Type II medium, Type III medium, Type III short (S1U with PC optic only), Type V Dimming: 0-10 VDC Cable entries: 1 x 3/4" NPS Mounting: Die-cast aluminium arm/pole bracket, Ø 42-60 mm pipe (1.66"-2.37"), -5°/0°/+5° tilt · slipfitter for vertical pole Ambient temperature: -20 °C to +55 °C Ingress protection: NEMA 4X Impact resistance: IK10 (PC optic and PC lens) · IK08 (glass) Effective projected area (EPA): 0.11 m² (1.21 sq ft) Weight: S1U 13.3 - 17.8 kg · S1D 14.3 - 17.3 kg Warranty: 10 years (battery excluded)

industriale

dialight-reliant-high-bay

Product type: LED high bay luminaire for light industry Luminous flux: 10,600 · 13,400 · 16,900 · 22,800 · 28,200 · 33,800 lm Power: 71 · 91 · 114 · 159 · 191 · 232 W Efficacy: Up to 149 lm/W Power supply: 100-277 VAC, 50/60 Hz Colour temperature: 5000 K, 4000 K, CRI 80 Optics: Medium, aisle Diffuser: Clear polycarbonate (glass and acrylic on request) Dimming: DALI 1.0/2.0 and 0-10 VDC (100-5%), optional IntelliLED wireless Cable entries: 3 x M20, 5-pole terminal block 0.5-4 mm² Certifications: CE · ENEC Area: safe (non-classified) Ambient temperature: -40 °C to +55 °C Ingress protection: IP66 Impact resistance: IK10 (polycarbonate) · IK07 (glass) Surge protection: 6 kV/3 kA (IEEE C62.41) Lifetime: L70 > 100,000 h at 55 °C · L90 > 100,000 h at 25 °C Materials: Polycarbonate upper body, aluminium lower body, 304 stainless steel screws Mounting: 304 stainless steel hook bracket Weight: 9.3 kg Market: North America (UL/CSA) UL/CSA certifications: UL 1598, UL 8750, CSA C22.2 No. 250.0 · DLC Standard and Premium · Title 24 Area: safe (non-classified), damp locations UL codes: RHU UL flux: 16,200-34,550 lm single (123-244 W) · 47,000-69,100 lm tandem (325-487 W) UL power supply: 100-277 VAC or 277-480 VAC UL ambient temperature: -40 °C to +55 °C (-40 °F … +131 °F) · battery versions +10 °C to +35 °C (50-95 °F) UL surge protection: 6 kV (10 kV optional) at 100-277 VAC · 10 kV at 277-480 VAC UL lifetime: L90 > 100,000 h at 25 °C UL materials: halogen-free polycarbonate body, 304 stainless steel mounting tabs UL cable entries: 2 x 3/4" per side + 1 on top, 1 x 1/2" per side UL weight: 8.2 kg (18 lb) single · 18.6 kg (41 lb) tandem (polycarbonate, 120 VAC)

industriale

dialight-safesite-area-light-battery-backup

# General Product type: LED area light for classified areas with emergency battery (North America) Market: North America (UL/CSA) Warranty: 10 years # Certifications Certifications: UL 844 · UL 1598/A · UL 924 · CSA C22.2 No. 137 · CSA C22.2 No. 250 · CSA C22.2 No. 141 (ETL listed) Classification: Class I, Div. 2, Groups A, B, C, D · Class I, Zone 2, Group IIC · Class II, Div. 1, Groups E, F, G · Class II, Div. 2, Groups F, G · Class III, Div. 1 and 2 · Zones 20, 21, 22 Temperature class: not stated on the battery datasheet (the SafeSite ALD without battery is T4A up to +65 °C and T5 up to +45 °C) – to be confirmed # Lighting Luminous flux: 3,800 - 13,000 lm Efficacy: Up to 159 lm/W Emergency: Integral battery, 90-minute duration (UL 924) Colour temperature: 5000 K, 4000 K, 2700 K (CRI 80) Optics: Round, 360°, 180° (45° mounting), wide (0° mounting) Lifetime: L70 > 150,000 hours at 55 °C (> 100,000 hours for the 8,500 lm wide, 11,000 and 13,000 lm models) # Electrical Power: 35 · 45 · 57 · 69 · 71 · 77 · 79 · 82 W Power supply: 120-277 VAC, 50/60 Hz Connection: 3 m STOOW/SOOW 18/4 AWG cable (pendant) or 0.36 m leads (UMA) Surge protection: 6 kV / 3 kA line-line and line-earth THD: < 20% Power factor: > 0.9 # Mechanical Diffuser: Clear tempered glass or diffused polycarbonate with anti-scratch coating Mounting: 3/4" NPT pendant, UMA, 0°/45° wall brackets, ceiling, 45° pole, Crouse-Hinds Champ and GE Filtr-Gard retrofits Body: Copper-free aluminium, epoxy primer and polyester finish Weight: 9.1 kg (polycarbonate) · 10 kg (glass); versions with bracket up to 13.6 kg # Environmental Ambient temperature: from -20 °C to +55 °C (-4 °F / +131 °F) Ingress protection: IP66/67, NEMA 4X Impact resistance: IK10 (polycarbonate) · IK07 (tempered glass)

dialight-safesite-battery-backup-linear

# General Product type: LED linear luminaire with battery backup for hazardous locations Market: North America (UL/CSA) Warranty: 5 years # Certifications Classification: Class I Div 2, Groups A, B, C, D · Class II Div 1, Groups E, F, G · Class II Div 2, Groups F, G · Class III Temperature class: T4A from -20 °C to +65 °C (-4 °F … +149 °F) · T5 from -20 °C to +45 °C (-4 °F … +113 °F) Certifications: UL 844 · UL 924 · UL 1598/A · CSA C22.2 No. 137 · CSA C22.2 No. 250 # Lighting Luminous flux: 7,000 lm Efficacy: 82 lm/W Colour temperature: 5000 K, 4000 K (CRI 75) Optic: Medium Emergency: 3.6 V 10 Ah NiMH battery, duration > 3 h at 25 °C · sustained or maintained versions Lifetime: L70 > 100,000 h at 25 °C # Electrical Power: 85 W Power supply: 120-277 VAC, 50/60 Hz Surge protection: 1 kV L-L / 2 kV L-E # Mechanical Length: 1.2 m (4 ft) Diffuser: Clear polycarbonate Body: Dual coating with chemical-resistant epoxy primer and polyester finish Cable entries: 1 x 3/4" NPT side · 2 x 3/4" NPT end Mounting: Optional LSXW4 adjustable bracket or LSXENDCAPKIT chain brackets Weight: 8.2 kg (18 lb) # Environmental Ambient temperature: from -20 °C to +65 °C (-4 °F … +149 °F) Ingress protection: IP66 · NEMA 4X

dialight-safesite-linear-cid1

# General Product type: LED linear luminaire for Class I Div 1 hazardous locations Market: North America (UL/CSA) Warranty: 5 years # Certifications Classification: Class I Div 1, Groups C, D · battery backup version also Class I Div 2, Groups A, B, C, D Temperature class: T4A from -40 °C to +65 °C (-40 °F … +149 °F) · T5 from -40 °C to +45 °C (-40 °F … +113 °F) · battery backup T4A from -20 °C to +65 °C Certifications: UL 844 · UL 1598 · CSA C22.2 No. 137 · battery backup also UL 1598/A and CSA C22.2 No. 250 # Lighting Luminous flux: 3,600 · 7,250 lm Efficacy: 72 - 106 lm/W Colour temperature: 5000 K, 4000 K (CRI 75) Optic: Medium Emergency: LSC3C4MEGEX version with 3.6 V 10 Ah NiMH battery, duration > 3 h at 25 °C, 500 lm in battery mode Lifetime: L70 > 100,000 h at 25 °C # Electrical Power: 34 · 68 W (100-277 VAC) · 50 · 100 W (347/480 VAC) · 85 W (battery backup) Power supply: 100-277 VAC, 50/60 Hz · 347/480 VAC, 50/60 Hz · 120-277 VAC (battery backup) Surge protection: 4 kV (standard version) · 1 kV L-L / 2 kV L-E (battery backup) # Mechanical Length: 0.6 m (2 ft) · 1.2 m (4 ft) Diffuser: Tempered glass Body: Dual coating with chemical-resistant epoxy primer and polyester finish Cable entries: 1 x 3/4" NPT side · 2 x 3/4" NPT end Mounting: Optional LSXW5 adjustable bracket Weight: 0.6 m 7.9 kg (17.5 lb) · 1.2 m 11.8 kg (26 lb) · battery backup 14.5 kg (32 lb) # Environmental Ambient temperature: from -40 °C to +65 °C (-40 °F … +149 °F) · battery backup from -20 °C to +65 °C (-4 °F … +149 °F) Ingress protection: IP66 · NEMA 4X

dialight-safesite-linear-ul844

# General Product type: LED linear luminaire for hazardous locations (NEC Class/Division) Versions: Low Profile · Top Conduit Market: North America (UL/CSA) Warranty: 5 or 10 years depending on series # Certifications Classification: Class I Div 2, Groups A, B, C, D · Class II Div 1, Groups E, F, G · Class II Div 2, Groups F, G · Class III (10-year series also Class I Zone 2, Group IIC) Temperature class: T4A from -40 °C to +65 °C (-40 °F … +149 °F) · T5 from -40 °C to +45 °C (-40 °F … +113 °F) Certifications: UL 844 · UL 1598/A · CSA C22.2 No. 137 · CSA C22.2 No. 250 · 10-year series DLC Premium & Standard # Lighting Luminous flux: 2,700 - 9,600 lm depending on version Efficacy: up to 110 lm/W (5 years) · up to 139 lm/W (10 years) Dimming: 0-10 VDC as standard on the 10-year series (10 V = 100%, 0 V = 5%) Colour temperature: 5000 K, 4000 K (CRI 75 or 80) Optic: Medium · wide (10-year series) Lifetime: L70 > 100,000 h at 25 °C # Electrical Power: 33 · 66 W (5-year series) · 37 · 52 · 70 W (10-year series) Power supply: 100-277 VAC, 50/60 Hz · 10-year series also 120-250 VDC Surge protection: 4 kV (5 years) · 6 kV (10 years) # Mechanical Length: 0.6 m (2 ft) · 1.2 m (4 ft) Diffuser: Clear or diffused polycarbonate Body: Dual coating with chemical-resistant epoxy primer and polyester finish Cable entries: 4 x 3/4" NPT (Low Profile) · 3-4 x 3/4" NPT (Top Conduit) Mounting: Optional LPXW4/LPXW4LP (Low Profile) and LTXW4/LTXW4LP (Top Conduit) brackets Weight: 0.6 m 3.2 - 3.6 kg (7 - 8 lb) · 1.2 m 4.5 - 5.0 kg (10 - 11 lb) # Environmental Ambient temperature: from -40 °C to +65 °C (-40 °F … +149 °F) Ingress protection: IP66/67 (Low Profile) · IP66 (Top Conduit) · NEMA 4X

dialight-safesite-low-bay

# General Product type: LED low bay for classified areas (North America) Market: North America (UL/CSA) Warranty: 10 years (battery excluded) # Certifications Certifications: UL 844 · UL 1598/A (wet locations) · UL 8750 · UL 924 (battery versions) · CSA C22.2 No. 250.0 · CSA C22.2 No. 137 Classification: Class I, Div. 2, Groups A, B, C, D · Class I, Zone 2, Group IIC · Class II, Div. 1, Groups E, F, G (hardwired version only) · Class II, Div. 2, Groups F, G · Class III, Div. 1 and 2 Temperature class: T4 from -40 °C to +65 °C (-40 °F / +149 °F) · T5 from -40 °C to +50 °C (+122 °F) · battery versions T4A from -20 °C to +55 °C (-4 °F / +131 °F) # Lighting Luminous flux: 6,100 - 17,200 lm Efficacy: Up to 128 lm/W (standard) · up to 150 lm/W (Ultra-Efficient) Colour temperature: 5000 K, 4000 K (CRI 80) Optic: Ultra-wide Dimming: 0-10 VDC (10 V = 100%, 0 V = < 10%) Lifetime: L70 over 150,000 hours # Electrical Power: 43 - 156 W Power supply: 100-277 VAC, 120-250 VDC · 347-480 VAC · battery versions 120-277 VAC Connection: 3 m 18 AWG STOOW/SOOW cable (hardwired version) · wiring box with 2 x 3/4" NPT entries Surge protection: 8 kV / 4 kA (100-277 VAC) · 6 kV / 3 kA (347-480 VAC and battery versions), IEEE C62.41 # Mechanical Diffuser: Diffused polycarbonate dome (standard); clear or diffused polycarbonate Mounting: 3/4" NPT pendant; hook for the wiring box version Body: Copper-free aluminium, epoxy primer and polyester finish Weight: 8.2 kg (hardwired) · 9 kg (with wiring box) · up to 17.7 kg (with battery) # Environmental Ingress protection: IP66/67, NEMA 4X Impact resistance: IK10 (polycarbonate dome, Ultra-Efficient)

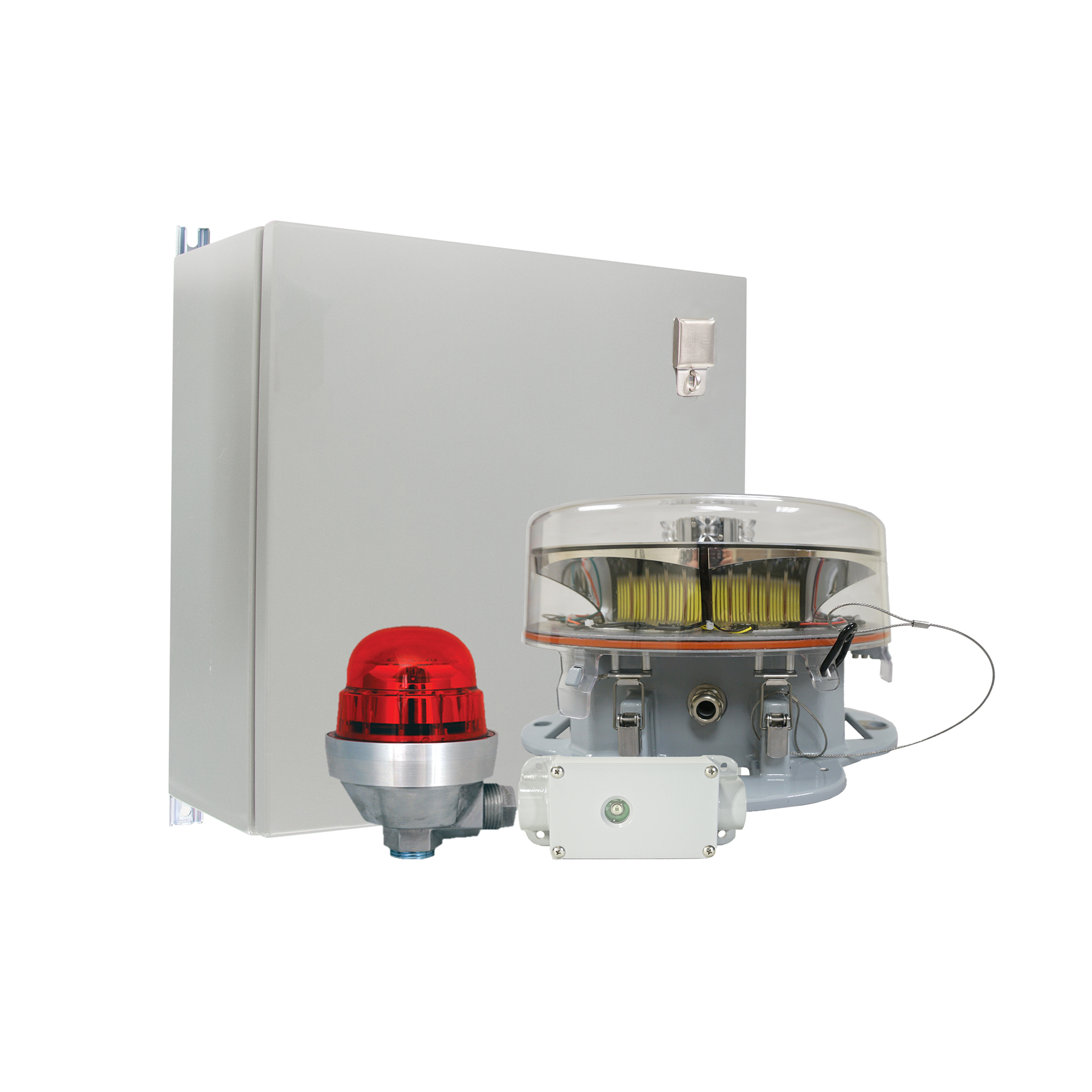

dialight-safesite-medium-intensity-ostacoli

# General Product type: Medium-intensity LED aircraft obstruction lighting system for hazardous locations Market: North America (UL/CSA) Warranty: 5 years # Certifications Aviation standards: FAA AC 150/5345-43G (L-864, L-865) · ICAO Annex 14 Type A, B, C · Transport Canada CAR 621 Classification: Class I Div 2, Groups A, B, C, D (beacon and flash head; flash head also Class II Div 2, Groups F, G) · DHZCCTD8C80x0 controllers and DHZCPSD4C8 power supply in explosion-proof enclosure Class I Div 1 and Div 2, Groups B, C, D · DHZCCTR2C8000 red controller Class I Div 2, Groups A, B, C, D Temperature class: T4A (beacon) · T5 (flash head) · T6 (dual system controllers and power supply) · T4 (red controller, 135 °C) Certifications: UL 844, UL 1598, UL 8750, UL 1203, CSA C22.2 No. 137, No. 250, No. 30 (Intertek ETL listing) # Lighting Luminous intensity: Red night 2,000 cd (L-864) · white day 20,000 cd, white twilight 20,000 cd, white or red night 2,000 cd (L-865/L-864) Operation: Flashing (20 flashes/min; red controller 20, 30 or 40 flashes/min) or steady (red beacon) # Electrical Power supply: Beacon and red controller 120-240 VAC 50/60 Hz · dual system controllers and power supply 120-277 VAC 50/60 Hz or 125 VDC Power: Beacon 20 W steady, 3.3 W flashing · power supply 85 W (white day), 35 W (white night), 25 W (red night) · dual system controller 15 W · red controller 5 W Power factor: > 0.9 # Mechanical Diffuser: High-strength polycarbonate with UV-resistant, anti-scratch and chemical-resistant coating Mounting: Standard base with FAA bolt pattern Weight: Beacon 9.1 kg (20 lb) · flash head 11.8 kg (26 lb) · red controller 36 kg (80 lb) · dual system controller and power supply 82 kg (180 lb) # Environmental Ambient temperature: from -40 °C to +55 °C (-40 °F … +131 °F) Ingress protection: IP66 · NEMA 4X

dialight-vigilant-area-light-battery-backup

# General Product type: Industrial LED area light with emergency battery Area: safe (non-classified) Market: North America (UL/CSA) Warranty: 10 years # Certifications Certifications: UL 1598/A · UL 924 · CSA C22.2 No. 250 · CSA C22.2 No. 141 (ETL listed) # Lighting Luminous flux: 3,800 - 13,000 lm Efficacy: Up to 159 lm/W Emergency: Integral battery, 90-minute duration (UL 924) Colour temperature: 5000 K, 4000 K, 2700 K (CRI 80) Optics: Round, 360°, 180° (45° mounting), wide (0° mounting) Lifetime: L70 > 150,000 hours at 55 °C (> 100,000 hours for the 8,500 lm wide, 11,000 and 13,000 lm models) # Electrical Power: 35 · 45 · 57 · 69 · 71 · 77 · 79 · 82 W Power supply: 120-277 VAC, 50/60 Hz Connection: 3 m STOOW/SOOW 18/4 AWG cable (pendant) or 0.36 m leads (UMA) Surge protection: 6 kV / 3 kA line-line and line-earth THD: < 20% Power factor: > 0.9 # Mechanical Diffuser: Clear tempered glass or diffused polycarbonate with anti-scratch coating Mounting: 3/4" NPT pendant, UMA, 0°/45° wall brackets, ceiling, 45° pole, Crouse-Hinds Champ and GE Filtr-Gard retrofits Body: Copper-free aluminium, epoxy primer and polyester finish Weight: 9.1 kg (polycarbonate) · 10 kg (glass); versions with bracket up to 13.6 kg # Environmental Ambient temperature: from -20 °C to +55 °C (-4 °F / +131 °F) Ingress protection: IP66/67, NEMA 4X Impact resistance: IK10 (polycarbonate) · IK07 (tempered glass)

industriale

dialight-vigilant-area-light

# Europe version (CE) Product type: Industrial LED area light for non-classified areas Luminous flux: From 3,400 to 9,000 lm depending on version Power: 30 · 40 · 52 · 64 · 66 W Efficacy: Up to 143 lm/W Power supply: 100-277 VAC 50/60 Hz, 120-250 VDC · surge protection 6 kV / 3 kA Colour temperature: 5000 K, 4000 K, 2700 K (CRI 80) Optics: 360°, 180° oval (45° mounting) or wide distribution for conveyors Dimming: 0-10 V down to 5% Diffuser: Tempered glass or polycarbonate with anti-scratch coating Connection: 3 m 5-conductor cable with cable gland or junction box with 5-pole push-down terminal block Mounting: 0-90° adjustable locking bracket in 316 stainless steel · 45° wall, 45° stanchion, 34 mm conveyor mount (APAC codes) Body: Copper-free aluminium, epoxy primer and polyester finish, 3,000 h salt spray (ASTM B117) Certifications: CE, ENEC (EN 60598-1, EN 60598-2-1, EN 60598-2-24, EN 62471) · CB IEC 60598 SE-87598 · ABS Area: safe (non-classified) Ambient temperature: from -40 °C to +65 °C Ingress protection: IP66/IP67 Impact resistance: IK10 (polycarbonate) · IK07 (glass) Weight: 5.2 kg (polycarbonate) · 6.2 kg (glass), with adjustable bracket # North America version (UL/CSA) Market: North America (UL/CSA) Area: safe (non-classified) Certifications: UL 1598/A (also for marine installation), CSA C22.2 No. 250.0, NOM · ETL listed (Intertek) Luminous flux: From 2,800 to 13,000 lm depending on version (up to 169 lm/W) Power: 24 · 30 · 40 · 52 · 64 · 66 · 72 · 74 · 77 W Power supply: 120-277 VAC 50/60 Hz, 120-250 VDC · surge protection 6 kV, 2 Ω Optics: Round, 360°, 180° (45° mounting), Wide (0° mounting) Colour temperature: 5000 K, 4000 K, 2700 K (CRI 80) Mounting: ¾" NPT pendant, 0-90° adjustable bracket in 316 stainless steel, UMA hub, 0°/45° wall, 45° stanchion, ceiling, retrofit adapters Connection: 3 m (10 ft) STOOW 18 AWG (1.02 mm²) cable for pendant and adjustable bracket Ambient temperature: from -40 °C to +65 °C (+55 °C for the 8,500 lm Wide, 11,000 and 13,000 lm classes) Ingress protection: IP66/IP67/IP69 · NEMA 4X Impact resistance: IK10 (polycarbonate) · IK07 (glass) Weight: 4.5 kg (polycarbonate) · 5.5 kg (glass) · with stainless steel bracket 5.9 / 6.8 kg Lifetime: L70 > 150,000 h at 65 °C Warranty: 10 years

industriale

dialight-vigilant-bulkhead-conveyor

# General Product type: Industrial LED bulkhead light for conveyors Area: safe (non-classified) # Certifications Certifications: CE, ENEC, UKCA (EN 60598-1, EN 60598-2-3) · DNV TAE00004GZ # Lighting Luminous flux: 6,400 lm Efficacy: Up to 142 lm/W Colour temperature: 5000 K, 4000 K (CRI > 80) Optic: Ultra-wide (Type 1, walkway) Emergency: Integral battery, 60/90/180 min duration Dimming: DALI 1.0 / 2.0, 0-10 VDC down to 10% # Electrical Power: 45 - 48 W Power supply: 100-277 VAC, 120-250 VDC · emergency versions 230-240 VAC # Mechanical Diffuser: Clear polycarbonate Mounting: On stanchion with 44 mm or 35 mm spigot mount Cable entries: 1 x M25 Body: A360 die-cast aluminium, epoxy primer and polyester finish, 316 stainless steel hardware Dimensions: 559 x 220 x 118 mm (including spigot) Weight: 7.9 - 8.8 kg # Environmental Ambient temperature: from -40 °C to +65 °C · emergency versions from -20 °C to +55 °C Ingress protection: IP66/67 Impact resistance: IK10

industriale

dialight-vigilant-bulkhead

# Europe version (CE) Product type: Industrial LED bulkhead light Luminous flux: From 2,600 to 6,700 lm depending on version Power: 22 - 48 W Efficacy: Up to 149 lm/W Power supply: 100-277 VAC, 120-250 VDC · emergency versions 230-240 VAC Colour temperature: 5000 K, 4000 K (CRI > 80), green Optics: Circular, ultra-wide (Type 1, walkway) Diffuser: Clear polycarbonate · diffused dome (green version) Emergency: Integral battery, 60/90/180 min duration Dimming: DALI 1.0 / 2.0, 0-10 VDC down to 10% Mounting: Flush wall/ceiling bracket · pole with 44 mm or 35 mm spigot Cable entries: 2 x M20 (optional 4 x M20) · pole versions 1 x M25 Body: A360 die-cast aluminium, epoxy primer and polyester finish, 316 stainless steel hardware Certifications: CE, ENEC, UKCA (EN 60598-1, EN 60598-2-1, EN 60598-2-3) · DNV TAE00004GZ Area: safe (non-classified) Ambient temperature: from -40 °C to +65 °C · emergency versions from -20 °C to +55 °C Ingress protection: IP66/67 Impact resistance: IK10 Dimensions: 350 x 220 x 118 mm · pole version 559 x 220 x 118 mm Weight: 6.8 - 8.8 kg # North America version (UL/CSA) Market: North America (UL/CSA) Area: safe (non-classified) Certifications: UL 1598/A (also for marine installation), CSA C22.2 No. 250.0 · Intertek Authorization to Mark 106183362CRT-001 Luminous flux: Up to 6,700 lm (white) · 4,200 lm (amber) · 2,900 lm (green) Power: 27-49 W depending on version Power supply: 100-277 VAC / 120-250 VDC (standard) · 100-277 VAC (with battery) · surge protection 6 kV Emergency: Integral battery, approx. 1,100 lm for 90 min (5000 K, Type V) Colour temperature: 5000 K, 4000 K, 2700 K (CRI > 80), amber, green Optics: Type V circular · Type I walkway (ultra-wide) Mounting: Flush wall/ceiling bracket (BHU) · pole with 35 mm entry, DN25 / 1" pipe (BPU) Cable entries: 2 x ¾" NPT (BHU, option 4) · 1 x ¾" NPT (BPU) Body: A360 die-cast aluminium, epoxy primer and polyester finish, 316 stainless steel hardware, polycarbonate diffuser Ambient temperature: from -40 °C to +65 °C (with battery from -20 °C to +55 °C) Ingress protection: IP66/IP67 · NEMA 4X Impact resistance: IK10 Weight: BHU 6.8 kg (7.7 kg with battery) · BPU 7.9 kg (8.8 kg with battery) Lifetime: L70 > 150,000 h at 65 °C Warranty: 10 years (battery excluded)

industriale

dialight-vigilant-grp-linear

# General Product type: Industrial LED linear luminaire Area: safe (non-classified) # Certifications Certifications: CE (IEC 60598-1, IEC 60598-2-1, IEC 61547, IEC 62031, IEC 61347-1, IEC 61347-2-11) # Lighting Luminous flux: 2,785 - 5,750 lm Efficacy: Up to 123 lm/W Colour temperature: 5000 K, 4000 K (CRI 80) · green (Shower-Safe) Emergency: 180 min duration as standard, 60/90 min configurable; 600-900 lm in emergency mode (11-25% of luminous flux) Dimming: DALI 1.0/2.0 compatible # Electrical Power: 25 - 51 W Power supply: 100-277 VAC 50/60 Hz, 120-250 VDC · emergency versions 230/240 VAC 50 Hz # Mechanical Length: 764 mm · 1,244 mm Body: Glass-reinforced polyester (GRP) Diffuser: Convex textured polycarbonate · optional textured flat glass Cable entries: 2 x M25 per side, through-wiring as standard Mounting: 2 M8 fixing points, optional 316 stainless steel brackets Weight: 7.7 - 11.8 kg # Environmental Ambient temperature: from -40 °C to +65 °C · emergency versions from -20 °C to +50 °C Ingress protection: IP66/67 Impact resistance: IK08

industriale

dialight-vigilant-high-bay

# Europe version (CE) Product type: Industrial LED high bay Luminous flux: From 10,700 to 27,500 lm depending on version Power: 80 · 100 · 130 · 185 W (emergency versions 86 · 106 · 136 · 191 W) Efficacy: Up to 152 lm/W Power supply: 100-277 VAC, 120-250 VDC · emergency versions 230/240 VAC Colour temperature: 5000 K, 4000 K, CRI 80 Optics: Medium, oval Diffuser: Clear glass, clear polycarbonate, diffused polycarbonate dome Dimming: 0-10 VDC as standard (min. < 10%) Connection: 3 m H07RN-F or H07BN4-F cable (HEE) or integral junction box with 0.5-4 mm² x 5 terminals (HWE) Cable entries: 3 x M25 (junction box versions) Emergency: Integral 20 W NiMH battery with self-test (HEE-…G…-NGH versions) Certifications: CE · ENEC (EN 60598-1, EN 60598-2-1, D marking EN 60598-2-24) · DNV Area: safe (non-classified) Ambient temperature: from -40 °C to +65 °C · emergency versions from -20 °C to +55 °C Ingress protection: IP66 Impact resistance: IK10 (polycarbonate) · IK06 (acrylic) · IK05 (glass) Surge protection: 8 kV/4 kA (IEEE C62.41) Lifetime: L70 > 150,000 h at 25 °C Mounting: Stainless steel hook (hardwired versions) · HBXW3 adjustable bracket (junction box versions) Weight: 8.2 kg (hardwired) · 9.1 kg (junction box) · 17.7 kg (with emergency) # North America version (UL/CSA) Market: North America (UL/CSA) UL/CSA certifications: UL 1598/A, UL 8750, CSA C22.2 No. 250.0 (Intertek ETL/cETL) · battery versions UL 924 Area: safe (non-classified) UL luminous flux: 9,900-27,500 lm (80-185 W, 191 W with battery), up to 152 lm/W UL codes: HEU (hardwired, 3/4" NPT) · HCU (integral wiring box) · HWU (hexagonal junction box) UL power supply: 100-277 VAC / 120-250 VDC or 347-480 VAC · battery versions 120-277 VAC UL ambient temperature: from -40 °C to +65 °C (-40 °F … +149 °F) · battery versions from -20 °C to +55 °C (-4 °F … +131 °F) UL ingress protection: IP66/67, NEMA 4X UL cable: 3 m (10 ft) 18 AWG STOOW/SOOW UL wiring box entries: 2 x 3/4" NPT UL surge protection: 8 kV/4 kA (100-277 VAC) · 6 kV/3 kA (347-480 VAC), IEEE C62.41 UL weight: 8.2 kg (18 lb) hardwired · 9 kg (20 lb) wiring box · 17.7 kg (39 lb) max with battery

industriale

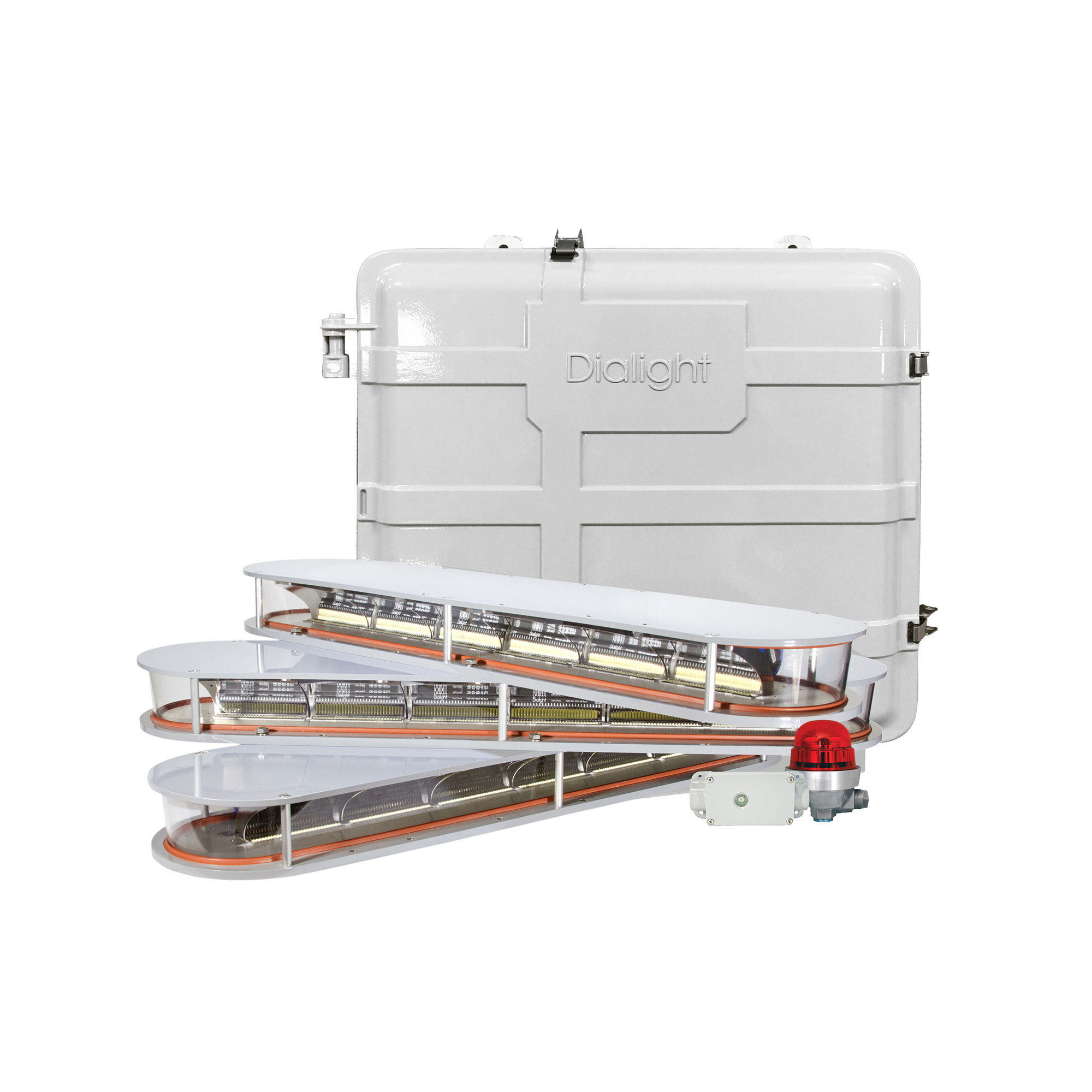

dialight-vigilant-high-intensity-ostacoli

# Europe version (CE) Product type: High-intensity LED obstruction lighting system Luminous intensity: White day 200,000 cd · white twilight 20,000 cd · white or red night 2,000 cd (EMEA catalogue) Operation: Synchronised flashing, day/twilight/night modes Colours: White/red + 850 nm infrared Configuration: 3 x 120° heads per level, up to 18 heads per controller Power supply: 208-277 VAC 50/60 Hz Power: White day 160 W · white twilight 30 W · white night 23 W · red night 30 W (EMEA catalogue) Certifications: ICAO Annex 14 Type A · FAA L-856/L-864 · Transport Canada; CE declaration not published Area: safe (non-classified) Ambient temperature: from -40 °C to +55 °C Ingress protection: IP66 (heads) · IP66/NEMA 4X (controller) Mounting: D266-BRKT-01 bracket adjustable from -3° to +8° with power supply housing Weight: Head 30 kg # North America version (UL/CSA) Market: North America (UL/CSA) Standard: FAA (Federal Aviation Administration, USA) · Transport Canada Area: safe (non-classified) Certifications: FAA AC 150/5345-43J L-856 / L-864 (D366-A57-SYS system, ETL verified by Intertek) · FAA EB 67D and 98 Luminous intensity: White day 270,000 cd · twilight 20,000 cd · night 2,000 cd · red 2,000 cd · IR 246 mW/sr (Americas brochure 2024) Power: White day 220 W · twilight 40 W · night 30 W · red/IR 33 W

industriale

dialight-vigilant-high-output-low-profile

# Europe version (CE) Product type: Industrial high-output LED high bay Luminous flux: 46,000 · 61,200 · 70,500 lm Power: 300 · 418 · 485 W Efficacy: Up to 153 lm/W Power supply: 120-277 VAC, 50/60 Hz · 415 VAC on request Colour temperature: 5000 K, 4000 K, CRI 80 Optics: Narrow, medium Diffuser: Glass Dimming: 0-10 VDC as standard · DALI optional Cable entries: 2 x M25 Certifications: CE · ENEC Area: safe (non-classified) Ambient temperature: from -40 °C to +65 °C Ingress protection: IP66/67 Impact resistance: IK10 (polycarbonate) · IK06 (glass) Surge protection: 6 kV/3 kA (IEC 61000-4-5) Lifetime: L70 > 150,000 h Materials: A360 die-cast aluminium body, 316 stainless steel hardware Mounting: Single suspension ring, factory-fitted secondary retention bracket Dimensions: Width 610 mm, height approx. 178 mm Weight: 21.8 kg (120-277 VAC) · 22.2 kg (415 VAC) # North America version (UL/CSA) Market: North America (UL/CSA) UL/CSA certifications: UL 1598/A, CSA C22.2 No. 250 (wet locations), Intertek ETL/cETL Area: safe (non-classified) UL codes: H7U UL power supply: 120-277 VAC or 277-480 VAC, 50/60 Hz (special codes 208, 347 and 480 VAC) UL luminous flux: 42,900-70,500 lm (300-494 W), up to 153 lm/W UL ambient temperature: from -40 °C to +65 °C (-40 °F … +149 °F) UL ingress protection: IP66/67 · IK10 (polycarbonate) · IK06 (glass) UL entries: 1 x 3/4" NPT top + 2 x 3/4" NPT side UL surge protection: 6 kV/3 kA (IEEE C62.41) UL weight: 21.8 kg (48 lb) 120-277 VAC · 22.2 kg (49 lb) 277-480 VAC

industriale

dialight-vigilant-linear

# General Product type: Industrial low-profile LED linear luminaire Area: safe (non-classified) Market: Europe (CE/ENEC) · North America (UL/CSA) UL codes: LGU · LHU · LJU · LKU # Certifications Certifications: CE (EN 60598-1, EN 60598-2-1, EN 62471) · ENEC # Lighting Luminous flux: 4,450 · 6,400 lm Efficacy: Up to 123 lm/W Colour temperature: 5000 K (CRI 80) Optic: Medium Dimming: 0-10 VDC (10 V = 100%, 0 V = 5%) # Electrical Power: 37 - 52 W Power supply: 100-277 VAC 50/60 Hz, 120-250 VDC # Mechanical Length: 0.6 m (2 ft) · 1.2 m (4 ft) Body: Copper-free aluminium, chemical-resistant epoxy primer and polyester finish Diffuser: Diffused polycarbonate with anti-scratch coating Cable entries: 4 x M25 (2 per side) Mounting: Factory-fitted LPXW4 adjustable bracket in 316 stainless steel (0°/30°/45°/60°/90°) Weight: 4.5 - 5.9 kg # Environmental Ambient temperature: from -40 °C to +65 °C Ingress protection: IP66/67 Impact resistance: IK10

industriale

dialight-vigilant-low-bay

# Europe version (CE) Product type: Industrial LED low bay Luminous flux: From 3,900 to 17,200 lm depending on version Power: 38 · 50 · 78 · 112 · 150 W (emergency versions 56 · 84 W) Efficacy: Up to 128 lm/W Power supply: 100-277 VAC 50/60 Hz, 120-250 VDC · emergency versions 230/240 VAC Colour temperature: 5000 K, 4000 K, CRI 80 Optics: Ultra-wide Diffuser: Diffused polycarbonate dome Dimming: 0-10 VDC as standard (min. < 5%) Connection: 3 m H07RN-F cable (LEE) or integral junction box with 4 mm² x 5 terminals (LWE) Cable entries: 3 x M25 (junction box versions) Emergency: Integral 10 W NiMH battery with self-test (LEE-LUCG-…-NGG versions) Certifications: CE · ENEC (EN 60598-1, EN 60598-2-1, EN 60598-2-24) Area: safe (non-classified) Ambient temperature: from -40 °C to +65 °C · emergency versions from -20 °C to +55 °C Ingress protection: IP66 Impact resistance: IK10 (polycarbonate) Surge protection: 8 kV/4 kA (IEEE C62.41) Lifetime: L70 > 150,000 h at 25 °C Mounting: Stainless steel hook (hardwired versions) · HBXW3 adjustable bracket (junction box versions) Weight: 8.2 kg (hardwired) · 9.1 kg (junction box) · 17.7 kg max (with emergency) # North America version (UL/CSA) Market: North America (UL/CSA) UL/CSA certifications: UL 1598/A, UL 8750, CSA C22.2 No. 250.0 (Intertek ETL/cETL) · battery versions UL 924 Area: safe (non-classified) UL luminous flux: 3,800-17,500 lm (38-150 W, 156 W with battery), up to 128 lm/W UL codes: LEU (hardwired, 3/4" NPT) · LCU (integral wiring box) UL power supply: 100-277 VAC / 120-250 VDC or 347-480 VAC (4K and 6K lm 100-277 VAC only) · battery versions 120-277 VAC UL diffusers: polycarbonate dome, clear or diffused polycarbonate, clear or diffused acrylic (acrylic dry locations only) UL ambient temperature: from -40 °C to +65 °C (-40 °F … +149 °F) · battery versions from -20 °C to +55 °C (-4 °F … +131 °F) UL ingress protection: IP66/67, NEMA 4X UL cable: 3 m (10 ft) 18 AWG STOOW/SOOW UL weight: 8.2 kg (18 lb) hardwired · 9 kg (20 lb) wiring box · 17.7 kg (39 lb) max with battery

industriale

dialight-vigilant-low-intensity-ostacoli

# Europe version (CE) Product type: Low-intensity LED obstruction light Luminous intensity: 32.5 cd (ICAO Type B/E, FAA L-810) · 10 cd (ICAO Type A, 860-5R02) · 50 cd (860-4R02-EU) Operation: 860 series steady · RTO series steady or flashing (20/30/40 flashes/min with controller) Colours: Red · red + 850 nm infrared (RTOCR) Configuration: Single, double or retrofit unit (RTO) Power supply: 860 series: 120 VAC, 230 VAC, 12/24/48 VDC · RTO series: 120-240 VAC, 277 VAC, 12-48 VDC (IR 24-48 VDC) Power: 860 series: 13-24 W (15 W at 120 VAC, 16 W at 230 VAC, 24 W at 12 VDC, 20 W at 24 VDC, 13 W at 48 VDC) · RTO series: 1.5-6.5 W single, 3-13 W double (IR 5.2-6 W single) Certifications: CE (EMC 2014/30/EU, RoHS 2011/65/EU; RTO -EU also EN 60598-1, EN 60598-2-1) · ICAO Annex 14 · FAA L-810 · STAC certificate 2008A003 for 860-5R02 Area: safe (non-classified) Ambient temperature: 860 series from -55 °C to +55 °C · RTO series from -40 °C to +55 °C Ingress protection: IP66 Impact resistance: IK10 (RTO series) Body: 860 series with glass dome · compact polycarbonate RTO series Mounting: 1" NPT threaded hub with 3/4" NPT reducer; optional tower brackets Weight: 860 series 3.23 kg (single) · 7.28 kg (double) · RTO series 0.56 kg (retrofit) · 0.91 kg (single) · 2.09 kg (double) # North America version (UL/CSA) Market: North America (UL/CSA) Standard: FAA (Federal Aviation Administration, USA) · Transport Canada Area: safe (non-classified) Certifications: FAA AC 150/5345-43J L-810 (ETL verified by Intertek) · FAA EB 67D and 98 · Transport Canada CL-810 (RTO6) · DGAC Mexico (RTO1R) Luminous intensity: Red 32 cd · IR 4 mW/sr (850 nm) Power supply: 120-240 VAC 50/60 Hz Ambient temperature: from -40 °C to +55 °C Ingress protection: IP66 · NEMA 4X

industriale

dialight-vigilant-medium-intensity-ostacoli

# Europe version (CE) Product type: Medium-intensity LED obstruction lighting system Luminous intensity: White day 20,000 cd · white night 2,000 cd · red night 2,000 cd (D1RW/D1CW head) · red 2,000 cd (D564 beacon) Operation: Flashing · white 40 flashes/min, red and IR 20/30/40 flashes/min · red beacon also steady Colours: White/red · white/red + 850 nm infrared · red Power supply: White/red system 120-277 VAC 50/60 Hz or 48 VDC · D564 beacon 120-240 VAC · red controllers AC or 24-48 VDC Power: White/red head: 36 W day (system 75 W), 4 W white night (system 10 W), 12 W red night (system 25 W), 15 W red IR (system 28 W) · red beacon 3.3 W (IR 7.0 W) with 16.7% duty cycle Certifications: CE (D564 and D5RB55CCTR declarations; D1RW/D1CW datasheet) · ICAO Annex 14 (Intertek verification D564) · FAA L-864/L-865 Area: safe (non-classified) Ambient temperature: from -40 °C to +55 °C Ingress protection: IP66 (heads) · IP66/NEMA 4X (controller) Impact resistance: IK10 (white/red head) Body: Powder-coated copper-free marine-grade aluminium, UV-stabilised hardened polycarbonate lens Cable entries: Head 1/2" NPT with cable gland included · controller 6 x 3/4" NPT entries Mounting: FAA 3-hole and 4-hole bolt pattern, galvanised and stainless steel hardware included Weight: White/red head 9.5 kg · white/red controller 22.5 kg # North America version (UL/CSA) Market: North America (UL/CSA) Standard: FAA (Federal Aviation Administration, USA) · Transport Canada Area: safe (non-classified) Certifications: FAA AC 150/5345-43J L-864 / L-865 (ETL verified by Intertek) · FAA EB 67D and 98 · D564A13001 beacon also UL 1598/A and CSA C22.2 No. 250.0 Luminous intensity: D664 red beacon 2,000 cd · IR 246 mW/sr (850 nm) Power supply: D664R13001 120-240 VAC (120-277 VAC according to the manual) · D664R54001 24-48 VDC Power: 15 W (50% duty cycle, L-864) · 3 W (L-810) · 30-32 W steady Ambient temperature: from -40 °C to +55 °C Ingress protection: IP66 · NEMA 4X Weight: D664 beacon 8.2 kg

industriale

dialight-vigilant-ultra-efficient-high-bay

# Europe version (CE) Product type: Industrial high-efficiency LED high bay Luminous flux: 28,000 - 38,200 lm depending on version Power: 165 · 195 · 230 W Efficacy: Up to 173 lm/W Power supply: 100-277 VAC, 120-250 VDC Colour temperature: 5000 K, CRI 80 Optics: Medium, wide Diffuser: Clear glass Dimming: 0-10 VDC (hardwired versions) · DALI 1.0/2.0 and 0-10 VDC (junction box versions) Connection: 3 m H07RN-F or H07BN4-F cable (VEE) or integral junction box with 0.5-4 mm² x 5 terminals (VWE) Cable entries: 3 x M25 (junction box versions) Certifications: CE (EN 60598-1, EN 60598-2-1, D marking EN 60598-2-24) Area: safe (non-classified) Ambient temperature: from -40 °C to +65 °C Ingress protection: IP66 Impact resistance: IK10 (polycarbonate) · IK06 (acrylic) · IK05 (glass) Surge protection: 8 kV/4 kA (IEEE C62.41) Lifetime: L70 > 150,000 h at 25 °C Mounting: Stainless steel hook (hardwired versions) · HBXW3 adjustable bracket (junction box versions) Weight: 8.2 kg (hardwired) · 9.1 kg (junction box) # North America version (UL/CSA) Market: North America (UL/CSA) UL/CSA certifications: UL 1598/A, UL 8750, CSA C22.2 No. 250.0 (Intertek ETL/cETL) · battery versions UL 924 Area: safe (non-classified) UL luminous flux: high bay 10,800-44,300 lm (65-270 W) · low bay 6,100-16,700 lm (43-115 W) UL codes: VEU (hardwired, 3/4" NPT) · VCU (integral wiring box, hook) · VWU (integral junction box) UL power supply: 100-277 VAC / 120-250 VDC · 347-480 VAC · 250-480 VAC / 250-480 VDC (DC Crane version, temporary overvoltage 600 VAC / 778 VDC) UL efficacy: up to 181 lm/W (high-efficiency round optic, glass) UL ambient temperature: from -40 °C to +65 °C (-40 °F … +149 °F) · max +55 °C (131 °F) for size K (44,200 lm) and for size J at 250-480 V · sensor versions from -20 °C to +65 °C UL ingress protection: IP66/67, NEMA 4X · IP6X sensor versions (dry locations only) UL cable: 3 m (10 ft) 18 AWG STOOW/SOOW UL weight: 8.2 kg (18 lb) hardwired · 9 kg (20 lb) wiring box

industriale

ecom-lite-ex-pl-30e

# Certifications ATEX: II 1G Ex ia IIC T4 Ga IP65 · II 1D Ex ia IIIC T130°C Da IP65 IECEx: Ex ia IIC T4 Ga IP65 · Ex ia IIIC T130°C Da IP65 # Performance Light source: 1 x 3 W LED Luminous intensity: 5,000 lux at 1 m Luminous flux: approx. 204 lumens Operating time: approx. 48 hours continuous operation # General Power supply: 3 x LR14 batteries (approved) Ambient temperature: -20 °C to +50 °C Storage temperature: -30 °C to +60 °C Ingress protection: IP65 ESD protection: antistatic body Dimensions: approx. 55/42 x 220 mm Weight: approx. 530 g

Zone 0/20 – Ex ia 3 W LED, 5,000 lux, ~204 lm 48 hours of operation Ring switch usable with gloves IP65, antistatic body

ecom-lite-ex-pl-10e

# Certifications ATEX: II 1G Ex ia IIC T4 Ga IP65 · II 1D Ex ia IIIC T130°C Da IP65 IECEx: Ex ia IIC T4 Ga IP65 · Ex ia IIIC T130°C Da IP65 # Performance Light source: high-performance LED Luminous intensity: 3,000 lux at 1 m Luminous flux: approx. 64 lumens Operating time: approx. 55 hours # General Power supply: 3 x LR03 / AAA batteries (approved) Ambient temperature: -20 °C to +50 °C Storage temperature: -30 °C to +60 °C (without batteries) Ingress protection: IP65 · IP67 according to EN/IEC 60529 ESD protection: antistatic body Dimensions: 147 x 36 mm Weight: approx. 120 g with batteries

Zone 0/20 – Ex ia 3,000 lux, ~64 lm 55 hours of operation Ring switch IP65/IP67, only 120 g

ecom-lite-ex-pl-10e-h

# Certifications ATEX: II 1G Ex ia IIC T4 Ga IP65 · II 1D Ex ia IIIC T130°C Da IP65 IECEx: Ex ia IIC T4 Ga IP65 · Ex ia IIIC T130°C Da IP65 # Performance Light source: high-performance LED Luminous intensity: 3,000 lux at 1 m (6° optics) · 1,800 lux at 1 m (25° optics) Luminous flux: approx. 64 lumens Operating time: approx. 55 hours # General Power supply: 3 x LR03 / AAA batteries (approved) Ambient temperature: -20 °C to +50 °C Ingress protection: IP65 · IP67 according to EN/IEC 60529 Dimensions: approx. 60 x 87 x 69 mm (H x W x D) Weight: approx. 180 g with strap

Zone 0/20 – Ex ia Hands-free, helmet mounting 6° or 25° optics 55 hours of operation IP65/IP67

ecom-3aa-eled-cpo-et12p

# Certifications ATEX: II 1G Ex ia IIC T4 Ga · II 1D Ex ia IIIC T200 135°C Da # Performance Light source: 2 W LED Luminous flux: 150 lumens (high power) · 22 lumens (low power) Operating time: 6-8 hours (high power) · 6-30 hours (low power) # General Power supply: 3 x LR06 / AA batteries (approved) Ambient temperature: -20 °C to +40 °C Storage temperature: -40 °C to +50 °C Ingress protection: IP67 Dimensions: approx. 134 x 41 x 35 mm Weight: approx. 150 g with batteries

Zone 0/20 – Ex ia CPO optics, 150 lumens Two light levels Thermal Recovery Technology IP67, approx. 150 g

ecom-2aaa-eled-pen

# Certifications ATEX: II 2G Ex ib IIB T4 Gb · II 2D Ex ib IIIC T60 °C Db # Performance Light source: 0.5 W LED Luminous intensity: approx. 1,000 lux at 1 m Luminous flux: approx. 35 lumens Operating time: 3 hours continuous operation # General Power supply: 2 x LR03 / AAA batteries (approved) Ambient temperature: -20 °C to +40 °C Storage temperature: -40 °C to +60 °C Ingress protection: IP67 Dimensions: approx. 135 x 25 x 22 mm Weight: approx. 102 g with batteries

Zone 1/21 – Ex ib IIB Pen-shaped, pocket-sized Wide, uniform beam IP67 Only 102 g

fhf-skyline-alpha

# General Standard: ICAO Annex 14, ch. 6, table 6-3, low intensity type A # Electrical Power supply: 115/230 VAC # Environmental Ingress protection: IP65 Ambient temperature: -20 °C to +50 °C

ICAO Annex 14, low intensity type A (>10 cd) LED, 70 mA consumption IP65, insulation class II 115/230 VAC

industriale

ceag-torce-lampade-portatili

# Certifications Stabex HF LED: BVS 11 ATEX E 174 — II 1G Ex ia IIC T4 Ga Stabceag 0: BVS 13 ATEX E 021 X — II 1G Ex ia IIC T4 Ga HE 9 LED: BVS 11 ATEX E 087 — II 2G Ex ib IIC T4 Gb SEB 10: BVS 15 ATEX E 122 X — II 2G Ex e ib mb IIC T4 Gb · II 2D Ex tb IIIC T85 °C Db # Performance Stabex HF LED: approx. 70 lm, 9 h · Stabceag 0: approx. 70 lm, 15 h · SEB 10: 230/365 lm, 5.5-6 h # Environmental Ambient temperature: -20 °C to +40 °C

Stabex HF LED and Stabceag 0 certified Ex ia for Zone 0 Compact aluminium Stabex mini LED, 3 AA batteries HE 9 LED lamp with Li-ion battery, approx. 8 h SEB 10 lamp with twin LED up to 365 lm, work light and flashing mode Desktop and vehicle chargers, spare batteries

ceag-lampade-mano-macchina

# Certifications HL 43 d LED · TL 43/60 LED: BVS 14 ATEX E 106 X · IECEx BVS 14.0068X — II 2G Ex d IIC T5 Gb · II 2D Ex tb IIIC T95 °C Db ML LED M 100 de: BVS 15 ATEX E 003 X · IECEx BVS 15.0014X # Electrical Voltage: 85-264 V AC/DC · 12-24 V AC/DC # Environmental Ingress protection: IP68

ATEX and IECEx certified for Zone 1, 2, 21 and 22 LED from 6 to 36 W, from 200 to 4,780 lm, 180° or 360° light output Power supply 85-264 V AC/DC or 12-24 V AC/DC for confined spaces Polycarbonate protective tube, IP68 Temporary lights and fixing accessories

ceag-exlin-led

# Certifications ATEX: BVS 18 ATEX E 037 X — II 2G Ex eb ib op is q IIC T4/T5 Gb · II 2D Ex tb op is IIIC T80/110°C Db IECEx: IECEx BVS 18.0028X # Electrical Voltage: 110-277 V AC/DC (7L/10L: 220-277 V AC/DC) Luminous flux/power: 3L 3,060 lm/24 W · 5L 5,890 lm/47 W · 7L 9,030 lm/70 W · 10L 11,780 lm/88 W Colour temperature: 3000/4000/5000 K, CRI 70 or 80 # Mechanical Housing: glass-fibre reinforced polyester, tempered glass cover Dimensions: 770 × 201 × 115 mm (931 mm for 5L-2/7L-2/10L-2) # Environmental Ingress protection: IP66/IP67, IK10 Ambient temperature: -40 °C to +55 °C (10L: +45 °C)

ATEX and IECEx certified for Zone 1, 2, 21 and 22 3L, 5L, 7L and 10L packages from 3,060 to 11,780 lm, above 124 lm/W NE+ version with self-contained battery and version for CEAG central battery systems Single-ended (1/6) or through wiring (2/6), M25 plastic or M20 metal entries IP66/67 and IK10, ambient temperature up to +55 °C L90 lifetime approx. 100,000 h at 25 °C

ceag-ellk-92-led

# Certifications ATEX: BVS 09 ATEX E 034 — II 2G Ex db eb mb op is IIC T4 Gb · II 2D Ex tb IIIC T80 °C Db IECEx: IECEx BVS 09.0033 # Electrical Voltage: 110-254 V AC / 110-250 V DC (NE: 220-254 V AC) Power/luminous flux: 400A 30 W 3,230 lm · 800A 50 W 6,120 lm NE emergency: 1.5 h or 3 h, recharge ≥ 14 h # Mechanical Enclosure: glass-fibre reinforced polyester, polycarbonate cover Dimensions: 760 × 188 × 130 mm (400A) · 1360 × 188 × 130 mm (800A) # Environmental Ingress protection: IP66/IP67 Ambient temperature: -25 °C to +55 °C

ATEX and IECEx certified for Zone 1, 2, 21 and 22 LED 400A (30 W, 3,230 lm) and LED 800A (50 W, 6,120 lm), 4000 or 5700 K NE version with self-contained NiCd battery, 1.5 h or 3 h selectable in the field V-CG-S version for CEAG central battery systems eLLM version for pole mounting Lifetime L70 = 110,000 h at 25 °C

ceag-ellk-92-fluorescenza

# Certifications ATEX: BVS 09 ATEX E 034 — II 2G Ex db eb IIC T4 Gb · II 2D Ex tb IIIC T80 °C Db IECEx: IECEx BVS 09.0033 # Electrical Voltage: 110-254 V AC / 110-250 V DC Lamps: 2 × T8 18 W 2,700 lm · 1 × T8 36 W 3,350 lm · 2 × T8 36 W 6,700 lm # Mechanical Enclosure: glass-fibre reinforced polyester, polycarbonate cover Dimensions: 760 × 188 × 130 mm (18 W) · 1360 × 188 × 130 mm (36 W) # Environmental Ingress protection: IP66 Ambient temperature: -25 °C to +55 °C

ATEX and IECEx certified for Zone 1, 2, 21 and 22 2 × 18 W, 1 × 36 W and 2 × 36 W T8 lamps NE version with self-contained battery and V-CG-S version monitored by a central battery system eLLM 92 version for pole mounting IP66, ambient temperature up to +55 °C

ceag-vll

# Certifications Certificates: SEV 22 ATEX 0584X · IECEx NEP 21.0020X · IECEx SEV 22.0001X Ex marking: II 2G Ex eb mb IIC T5 Gb / Ex db eb ib mb IIC T5 Gb (EM) · II 2D Ex tb IIIC T80 °C Db # Electrical Voltage: 100-240 V AC 50/60 Hz · 108-250 V DC Flux/power: 3L 3,100 lm/25 W · 5L 6,400 lm/50 W · 7L 7,400 lm/60 W # Mechanical Housing: GRP, polycarbonate diffuser, silicone gaskets # Environmental Ingress protection: IP66 Ambient temperature: -40 °C to +55 °C (emergency: -25 °C to +50 °C)

ATEX and IECEx certified for Zone 1, 2, 21 and 22 VLL-3L 3,100 lm/25 W, VLL-5L 6,400 lm/50 W, VLL-7L 7,400 lm/60 W Emergency EM1 (1.5 h) and EM2 (3 h) at 25% of luminous flux Colour temperature 4000 or 5000 K Single 1/6 or through-wiring 2/6 DALI / DALI-2 option

ceag-hll

# Certifications Certificates: SEV 20 ATEX 0379 X · IECEx NEP 19.0003X · IECEx SEV 19.0053X Marking: Ex db eb ib mb IIC T6 Gb · Ex tb IIIC T80 °C Db # Electrical Voltage: 100-240 V AC · 108-250 V DC, power factor > 0.9 # Mechanical Enclosure: aluminium Length: 735 mm (2-3L) · 1335 mm (4-5L) # Environmental Ingress protection: IP66 Ambient temperature: -40 °C to +55 °C

ATEX and IECEx certified for Zone 1, 2, 21 and 22 HLL-2-3L approx. 2,800 lm (< 30 W) and HLL-4-5L approx. 5,700 lm (< 60 W) HLL-EM with 1.5 h (EM1) or 3 h (EM2) emergency Aluminium enclosure, 316 stainless steel mounting accessories Temperature class up to T6

ceag-kll

# Note Full datasheet available on request: contact us for photometric data and certificates.

KLL 1 for Zone 1, 2, 21 and 22; KLL 2 for Zone 2 and 22 5L, 6L and 9L LED packages (approx. 31 to 65 W) Single-ended 1/5 or through wiring 2/5 Plastic M25 or metal M20 entries

ceag-nllk-15

# Certifications ATEX: CCH 15 ATEX 1044 X — II 3G Ex ec IIC T4 Gc · II 3D Ex tc IIIC T80 °C Dc # Electrical Voltage: 220-240 V AC/DC Flux/power: 600 2,400 lm/18 W · 1200 5,100 lm/36.5 W · 1500 8,000 lm/49 W # Mechanical Housing: glass-fibre reinforced polyester, M25 plastic cable glands # Environmental Ingress protection: IP66, IK10 Ambient temperature: -25 °C to +50 °C

For Zone 2 and 22 (II 3G Ex ec IIC T4 Gc · II 3D Ex tc IIIC T80 °C Dc) Lengths 600, 1200 and 1500 mm, from 2,400 to 8,000 lm N version with self-contained emergency 1.5 h or 3 h DALI and V-CG-S versions nLLM 15 for pole mounting IP66, IK10

ceag-nhll

# Mechanical Housing: copper-free aluminium, polycarbonate lens # Environmental Ingress protection: IP66 Ambient temperature: -40 °C to +55 °C

For Zone 2, 21 and 22 3L, 5L and 8L LED packages Temperature class up to T6 Copper-free aluminium body, polycarbonate lens Single 1/6 or through-wiring 2/6

ceag-llk-industriali

# Electrical LLK 98 LED: 220 V AC, 2,200 / 4,600 lm LLK 15 LED: 220-240 V AC/DC, 1,845 to 8,208 lm # Environmental Ingress protection: IP66 Ambient temperature: LLK 98 -20 °C to +40 °C · LLK 15 -40 °C to +50 °C

For non-hazardous areas (non-Ex), IP66 LLK 98: T8 G13 LED tubes, 600, 1200 and 1500 mm LLK 15 LED: Aura UltiLED G5 tubes, DALI dimming available Single or through-wiring Glass-fibre reinforced polyester housing (LLK 15)

industriale

ceag-incasso-rlf-hrl

# Certifications RLF LED A: FTZÚ 17 ATEX 0002X — II 2G Ex eb mb op is IIC T4 Gb · II 2D Ex tb op is IIIC T67 °C Db HRL LED: Ex e mb IIC T6 Gb · Ex tb IIIC T80 °C Db # Electrical RLF LED A: 110-254 V AC / 220-250 V DC HRL LED: 100-240 V AC · 108-250 V DC, DALI-2 option # Environmental Ingress protection: RLF IP65 · HRL IP66 Ambient temperature: RLF -20 °C to +60 °C · HRL -40 °C to +55 °C

Certified for Zone 1, 2, 21 and 22 RLF LED A: 600 and 1200 mm, from 3,434 to 13,730 lm HRL LED: 3060, 3012 and 6060 sizes, from 2,900 to 6,000 lm Self-contained emergency versions 1.5 h or 3 h White painted steel housing (stainless steel on request)

ceag-pxled

# Certifications ATEX: BVS 17 ATEX E 013 X — II 2G Ex db eb op is q IIC T4 Gb · II 2D Ex tb op is IIIC T100 °C Db IECEx: IECEx BVS 17.0004 X # Electrical Voltage: 110-277 V AC / 127-270 V DC Flux/power: 5L 49 W · 10L 98 W 10,772 lm · 20L 196 W 21,544 lm · 30L 294 W 32,316 lm # Mechanical Body: copper-free anodised aluminium, toughened glass, 316L stainless steel bracket # Environmental Ingress protection: IP66/IP67 Ambient temperature: -50 °C to +55 °C

ATEX and IECEx certified for Zone 1, 2, 21 and 22 6 sizes from 5L to 30L, from approx. 5,400 to 32,300 lm Narrow, wide and asymmetric optics, 5700 K Voltage 110-277 V AC / 127-270 V DC (24-48 V version available) IP66/67, -50 °C to +55 °C Lifetime 60,000 h at 55 °C

ceag-hfl

# Certifications ATEX: SGSNA25ATEX031301X · IECEx NEP 24.0045X Marking: II 2G Ex db eb mb IIC T4…T3 Gb · II 2D Ex tb IIIC T80/T85 °C Db # Electrical Voltage: 100-277 V AC · 125-300 V DC Flux/power: 12L 12,556 lm/89 W · 20L 19,319 lm/133 W · 30L 31,541 lm/220 W · 40L 37,215 lm/260 W # Environmental Ingress protection: IP66, IK10 Ambient temperature: -40 °C to +55 °C

ATEX and IECEx certified for Zone 1, 2, 21 and 22 HFL-12L, 20L, 30L and 40L, from 12,556 to 37,215 lm Efficacy over 140 lm/W EM version with 1.5 h or 3 h emergency IP66, IK10, -40 °C to +55 °C DALI-2 option, 316L stainless steel bracket

ceag-vmv-pvml

# Certifications VMV: IECEx UL 13.0052X (3L-11L) · IECEx UL 14.0031X (13L-25L) Ex marking: II 3G Ex nA IIC Gc · II 2D Ex tb IIIC Db # Electrical Voltage: 100-277 V AC · 127-250 V DC # Mechanical Body: die-cast aluminium with epoxy coating, glass # Environmental Ingress protection: IP66 / Type 4X Ambient temperature: -40 °C to +65 °C

VMV: Zone 2, 21 and 22, also Class I Div 2 PVML: industrial version for non-hazardous areas 9 sizes from 3,000 to 25,000 lm, up to 127 lm/W Type I, III and V optics Optional 90 min emergency battery IP66, -40 °C to +65 °C

industriale

ceag-fmva-pfma

# Certifications FMVA: DEMKO 15 ATEX 1377X · IECEx UL15.0029X — II 3G Ex ec mb IIC T5/T4 Gc · II 2D Ex tb IIIC T65/T80 Db # Mechanical Body: die-cast aluminium # Environmental Ingress protection: IP66 / Type 4X Ambient temperature: -40 °C to +65 °C

FMVA: Zone 2 and 22, also Class I Div 2 PFMA: industrial version for non-hazardous areas 11 sizes from 3,000 to 50,000 lm 5000 K / CRI 70 or 3000 K / CRI 80 IP66 / Type 4X, -40 °C to +65 °C Lifetime 60,000 h at 55 °C

industriale

ceag-kfl-7

# Certifications ATEX: LOM 02 ATEX 2035 — II 2G Ex d e IIC T6 Gb · II 2D Ex tb IIIC T85 °C Db # Electrical Voltage: 220-240 V AC or 12/24 V DC Lamp: LED 8-10 W (GU10 or GU5.3) # Mechanical Body: powder-coated copper-free aluminium, borosilicate glass Weight: 3 kg (portable 6 kg) # Environmental Ingress protection: IP66 Ambient temperature: -50 °C to +55 °C

ATEX certified for Zone 1, 2, 21 and 22 (Ex d e IIC T6) Mounting on inspection windows to DIN 28120 GU10 or GU5.3 LED lamp up to 10 W Portable version with handle IP66, -50 °C to +55 °C

ceag-hpl-hpln

# Certifications HPLN: Presafe 19 ATEX 09286X · IECEx PRE 19.0058X — II 2G Ex db eb mb op is IIC T4 Gb HPL: EPT 16 ATEX 2405X · IECEx CQM 15.0054X — II 2G Ex db eb mb op is IIC T6 Gb NLE: EPT 16 ATEX 2452X · IECEx CQM 16.0013X — II 3G Ex nR IIC T5/T6 Gc # Electrical Voltage: 100-240 V AC · 108-250 V DC # Mechanical Body: copper-free aluminium, tempered glass globe # Environmental Ingress protection: IP66 Ambient temperature: -40 °C to +55 °C

HPLN: Zone 1/21, 8 sizes from 3,000 to 25,000 lm, up to 136 lm/W HPL: Zone 1/21, from 3,561 to 8,135 lm, EM version with 1.5 h emergency NLE: Zone 2/22, from 3,188 to 7,869 lm PLE: industrial version for non-hazardous areas 100-240 V AC / 108-250 V DC, IP66

industriale

ceag-armature-ab-spg

# Certifications AB 05 LED: BVS 09 ATEX E 014 X · IECEx BVS 09.0032X — II 2G Ex d IIB T6/T5 Gb AB 12 LED: LOM 02 ATEX 2013 X — II 2G Ex d IIB T6 Gb AB 50 / SPG 1N: LOM 02ATEX2018X/6 · IECEx BKI 07.0032X — II 2G Ex db IIC T4..T6 Gb # Mechanical Enclosure: painted light alloy # Environmental Ingress protection: IP66

Ex d enclosures for Zone 1, 2, 21 and 22 AB 05 LED: 22 W LED module, 2,000 lm, -55 °C to +55 °C AB 12 LED: 2 T8 LED tubes up to 56 W AB 50 and SPG 1N: LED lamp up to 20 W, group IIC M20, M25 or NPT entries

ceag-accessori-illuminazione

# EFS MS1 sensor Certification: LOM 03 ATEX 2034 — II 2G Ex d IIC T6 Gb · II 2D Ex t IIIC T85 °C Db Range: up to 15 m · breaking capacity 400 VA Ingress protection: IP67

Galvanised or stainless steel mounting material for CEAG luminaires Brackets and accessories for floodlights EFS MS1 Ex d motion sensor, range up to 15 m

industriale

ceag-exit-zona-1

# Certifications ATEX: BVS 09 ATEX E 029 — II 2G Ex e ib mb IIC T6/T5 Gb · II 2D Ex tb IIIC T80 °C Db IECEx: IECEx BVS 13.0017 # Electrical EXIT / EXIT N: 110-277 V AC / 110-250 V DC EXIT 24 V: 12-24 V DC · EXIT V-CG-S: 220-254 V AC / 195-250 V DC EXIT N emergency: approx. 3 h, recharge 24 h # Mechanical Enclosure: polycarbonate RAL 7035, 356 × 175 × 76 mm # Environmental Ingress protection: IP66 Ambient temperature: -20 °C to +50 °C

ATEX and IECEx certified for Zone 1, 2, 21 and 22 EXIT N with self-contained NiCd battery, approx. 3 h EXIT V-CG-S for CEAG central battery systems EXIT 24 V for 12-24 V DC supply ISO 7010 pictograms with 3, 6 or 9 o'clock arrow, 28 m viewing distance Polycarbonate RAL 7035, IP66

ceag-exit-zona-2

# Certifications ATEX: BVS 15 ATEX E 074 — II 3G Ex e ic mc IIC T6/T5 Gc · II 3D Ex tc IIIC T80 °C Dc IECEx: IECEx BVS 15.0065 # Electrical As EXIT series: 110-277 V AC / 110-250 V DC · 12-24 V DC (24 V) # Environmental Ingress protection: IP66

ATEX and IECEx certified for Zone 2 and 22 EXIT 2 N with self-contained battery, approx. 3 h EXIT 2 V-CG-S for central battery systems, EXIT 2 24 V ISO 7010 pictograms with 3, 6 or 9 o'clock arrow IP66

ceag-ex-lite

# Note For certificates and electrical data of the chosen version, request the datasheet: we will send it together with the quote.

For Zone 1 and 21 Mains, self-contained N and V-CG-S versions for central battery systems Pictograms with 3, 6 or 9 h arrow according to ISO 7010, EN 1838 or DIN 4844 Entries with cable gland or metal thread

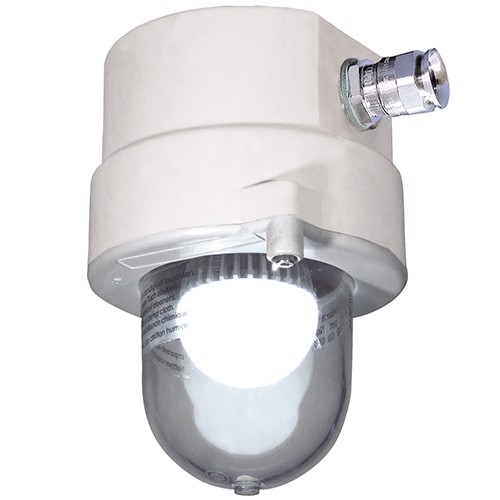

ceag-dklk-planete

# Certifications dKLK 23 LED: BVS 10 ATEX E 003 · IECEx BVS 10.0003 — II 2G Ex d IIC T6 Gb · II 2D Ex tb IIIC T80 °C Db Planete 400: LOM 03 ATEX 2036 X — II 2G Ex d IIC T6 Gb AB 12108: LOM 02 ATEX 2013 X · IECEx BKI 07.0008 X # Environmental Ingress protection: dKLK IP66 · Planete and AB 12108 IP67

Ex d enclosures for Zone 1, 2, 21 and 22 dKLK 23 LED: clear or coloured dome, V-CG-S version, optional flash module Planete 400 LED: 5.5 W LED with self-contained battery, IP67 AB 12108: 8 W lamp that can be monitored by a CEAG central system Pictogram films and accessories

qlight-qlex-350

# General Product type: explosion-proof tubular LED luminaire Ex d, 350 mm Brand: Qlight (South Korea) Illuminance: about 230 lux at 1 m Light colour: cool daylight # Electrical Supply voltage: 24 VDC # Ex protection Marking KCs: Ex d IIC T6 Marking NEPSI / CCC: Ex db IIC T6 Gb Ingress protection: IP66 / IP67 Ambient temperature: -40 °C to +60 °C # Mechanical Dimensions: 110 × 93 × 350 mm Materials: aluminium (end caps and bracket), PC (lens), NBR (seals)

Marking: Ex d IIC T6 Supply: 24 VDC Protection: IP66 / IP67

qlight-qlex-slm

# General Product type: ATEX/IECEx explosion-proof linear LED luminaire, 250 or 650 mm Brand: Qlight (South Korea) Light colour: cool daylight # Electrical Supply voltage: 24 VDC · 220 VAC # Ex protection Marking ATEX: II 2G Ex db IIC T6 Gb Marking IECEx: Ex db IIC T6 Gb Ingress protection: IP66 / IP67 Ambient temperature: -40 °C to +60 °C (250 mm) · -40 °C to +55 °C T6 / +60 °C T5 (650 mm) # Mechanical Dimensions: 105 × 65 × 250–650 mm Materials: aluminium (end caps and bracket), PC (lens) Cable entry: M12×1.5

Marking: II 2G Ex db IIC T6 Gb Supply: 24 VDC / 220 VAC Protection: IP66 / IP67

qlight-qlex-slm-650-emg

# General Product type: explosion-proof LED luminaire with emergency battery, 650 mm Brand: Qlight (South Korea) Emergency duration: max 2 h (2,700 mAh battery) Charging time: min 12.5 h Illuminance: about 700 lux at 1 m # Electrical Supply voltage: 110–230 VAC # Ex protection Marking KCs: Ex d IIC T6, IP66 Ingress protection: IP66 Ambient temperature: -20 °C to +60 °C # Mechanical Dimensions: 187/90 × 110 × 792 mm Materials: aluminium (housing and covers), PC (lens), aluminium/stainless (bracket) Cable entry: 1/2" NPT

Marking: Ex d IIC T6, IP66 Supply: 110–230 VAC Protection: IP66

qlight-qlex-nec-250

# General Product type: NEC/IECEx explosion-proof linear LED luminaire, 250 mm Brand: Qlight (South Korea) Illuminance: about 310 lux at 1 m # Electrical Supply voltage: 24 VDC # Ex protection Marking IECEx: Ex db IIC T6 Gb Marking NEC (Intertek): Class I Div 2 Groups A-D T6 · Class I Zone 1 AEx db IIC T6 Gb Ingress protection: IP66 / IP67 Ambient temperature: -40 °C to +60 °C (IECEx) · -20 °C to +40 °C (NRTL) # Mechanical Dimensions: 105 × 70 × 250 mm Materials: aluminium (end caps and bracket), PC (lens) Cable entry: M20×1.5 or 1/2" NPT

Marking: Ex db IIC T6 Gb Supply: 24 VDC Protection: IP66 / IP67
