Enclosures, junction boxes and control stations

pepperl-fuchs-ricambi-stazioni-comando-cfp

# General Product type: Components and spares for control stations Brand: Pepperl+Fuchs Series: CFP (Ex e), CFS / CFM (Ex d) Actuator head material: Polyamide; flap and shroud in AISI 316 stainless steel # Certifications CFP actuator heads: II 2 GD Ex e IIC Gb / Ex tb IIIC Db CFP contact blocks: II 2 G Ex de IIC Gb Ex ia LED modules: II 1 G Ex ia IIC Ga CFS / CFM assemblies: II 2 GD Ex db IIC Gb / Ex tb IIIC Db # Electrical Contact blocks: 250 V max, 16 A max, 2.5 mm² terminals CFS assemblies: 250 V max, 6 A max Buzzers: 10…28 V or 20…250 V AC/DC # Mechanical Actuator head protection: IP66 Ambient temperature: −40…+55 °C (typical)

Use: Ex e / Ex d control stations Heads: buttons, selectors, lamps Contacts: 2 or 4 pole, 250 V LED modules: Ex e / Ex ia Head protection: IP66

pepperl-fuchs-operatori-pannello-pm

# General Product type: Ex e panel-mount control unit Brand: Pepperl+Fuchs Series: PM (PMP, PMI, PMS, PML, PMR) Mounting: Panel, 1…6 mm thick, 30.6 mm hole Material: Polyamide (PA), black # Certifications ATEX: CML 16 ATEX 3106X – II 2 GD Ex de IIC T6 Gb / Ex tb IIIC T80 °C Db IECEx: IECEx CML 16.0046X UKCA: CML 21 UKEX 21275X # Electrical Operating voltage: 250 V max (potentiometers 200 V max) Operating current: 16 A max Utilisation categories: AC12 16 A, AC15 10 A (12…250 V AC); DC13 1 A (12…110 V DC) Terminals: 2 x 2.5 mm² # Mechanical Cable entry: 1 M20 cable gland, Ø 5.5…13 mm Degree of protection: IP66 Ambient temperature: −40…+50 °C

Mounting: panel, 30.6 mm hole Protection: Ex de IIC T6 Gb / Ex tb Contacts: 250 V / 16 A Entry: integrated M20 cable gland Rating: IP66

pepperl-fuchs-gr-cassette-morsetti-giunzione-grp

# General Product type: Junction boxes and fibre optic splice boxes Brand: Pepperl+Fuchs Series: GR.T* Material: Carbon-loaded antistatic glass-fibre reinforced polyester (GRP) Colour: Black Ambient temperature: -40 … +60 °C (standard versions), down to -60 °C depending on version # Certifications ATEX certificate: CML 17 ATEX 3255X IECEx certificate: IECEx CML 17.0144X Marking: II 2 GD Ex eb IIC T* Gb / Ex ia IIC T* Gb / Ex op pr IIC T* Gb, Ex tb IIIC T** °C Db Temperature class: T6/T80 °C at Ta +40 °C, T4/T130 °C at Ta +60 °C # Electrical Operating voltage: up to 690 V AC/DC (Ex e), 60 V AC/DC (Ex i) Operating current: up to 350 A depending on size # Mechanical Dimensions: from 99×99×65 to 359×719×166.5 mm Degree of protection: IP66 Cover seal: Foamed silicone Cover screws: A4 stainless steel Cable entries: Polyamide cable glands M12…M25 depending on version

Material: Antistatic GRP Protection: Ex eb, ia, op pr, tb Zones: 1, 2, 21, 22 IP rating: IP66 Max. voltage: 690 V AC/DC

pepperl-fuchs-sr-cassette-morsetti-giunzione-inox

# General Product type: Junction boxes and fibre optic splice boxes Brand: Pepperl+Fuchs Series: SR.T* Material: AISI 316L (1.4404) stainless steel, 1.5 mm Finish: Brushed Ambient temperature: -40 … +60 °C (standard versions), -60 … +65 °C depending on version # Certifications ATEX certificate: CML 20 ATEX 3156X IECEx certificate: IECEx CML 20.0094X Marking: II 2 GD Ex eb IIC T* Gb, Ex tb IIIC T** Db or Ex ia IIC T* Gb Temperature class: T6/T80 °C at Ta +40 °C, T5/T95 °C at Ta +55 °C, T4/T130 °C at Ta +60 °C # Electrical Operating voltage: up to 1100 V AC/DC Operating current: up to 350 A depending on size and certification # Mechanical Dimensions: from 102×116×86 to 600×600×260 mm Degree of protection: IP66 Impact resistance: IK09, IK10 Cover screws: A4 stainless steel Earthing: M6 internal/external nickel-plated brass earth stud

Material: AISI 316L stainless steel Protection: Ex eb, ia, op pr, tb Zones: 1, 2, 21, 22 IP rating: IP66, IK09/IK10 Max. voltage: 1100 V AC/DC

pepperl-fuchs-gr-custodie-vuote-grp-ex-e

# General Product type: Empty Ex e enclosure Brand: Pepperl+Fuchs Series: GR*-U* Material: Carbon-loaded antistatic glass-fibre reinforced polyester (GRP) Colour: Black Ambient temperature: -60 … +85 °C # Certifications ATEX certificate: CML 17 ATEX 3084U IECEx certificate: IECEx CML 17.0039U Marking: II 2 GD Ex eb IIC Gb, Ex tb IIIC Db North American approval: cULus E499269, Class I and II Division 2 # Electrical Operating voltage: up to 690 V AC/DC depending on size Operating current: up to 350 A depending on size # Mechanical Dimensions: from 99×99×65 to 479×599×241.5 mm Degree of protection: IP66 Impact resistance: IK09 (IK10 from GR.18.18.10) Cover seal: Foamed silicone

Material: Antistatic GRP Certificate: Ex eb, Ex tb component Zones: 1, 2, 21, 22 IP rating: IP66 Sizes: 13, up to 479×599 mm

pepperl-fuchs-sr-custodie-vuote-inox-ex-e

# General Product type: Empty Ex e enclosure Brand: Pepperl+Fuchs Series: SRS, SRM, SRL, SRX Material: AISI 316L (1.4404) stainless steel, 1.5 mm Finish: Brushed Ambient temperature: -60 … +120 °C depending on installed components # Certifications ATEX certificate: CML 20 ATEX 3118U IECEx certificate: IECEx CML 20.0076U Marking: II 2 GD Ex eb IIC Gb, Ex tb IIIC Db North American approval: cULus E499269, Class I and II Division 2 # Electrical Operating voltage: up to 1100 V AC/DC (ATEX/IECEx) Operating current: up to 350 A depending on terminals and equipment # Mechanical Dimensions: from 102×116×86 to 1300×800×300 mm Degree of protection: IP66, Type 4X Impact resistance: IK09, IK10 Cover fixing: A4 stainless steel hexagon head screws, optional quarter-turn locks Gland plates: Optional, 3 mm or 6 mm AISI 316L

Material: AISI 316L stainless steel Certificate: Ex eb, Ex tb component Zones: 1, 2, 21, 22 IP rating: IP66, IK09/IK10 Max. size: 1300×800×300 mm

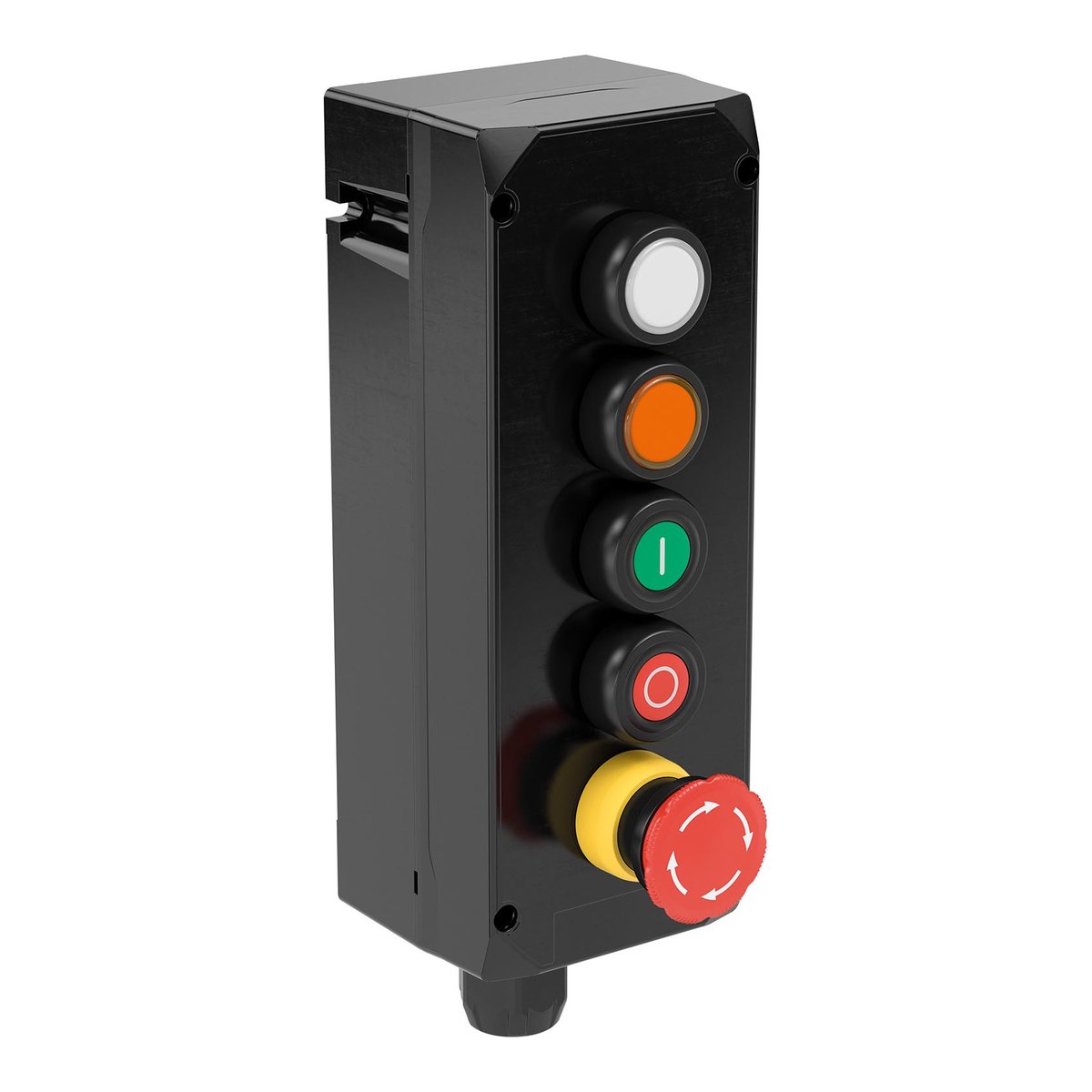

pepperl-fuchs-lrp-lrs-stazioni-di-comando-locali

# General Product type: Local control unit Brand: Pepperl+Fuchs Series: LRP*, LRS* Enclosure material: Polyamide (LRP) or brushed AISI 316L stainless steel (LRS) Number of functions: 1 … 5 (LRP), 1 … 4 (LRS) Ambient temperature: -40 … +55 °C (-50 °C on request) # Certifications ATEX certificate: CML 16 ATEX 3009X IECEx certificate: IECEx CML 16.0008X Marking: II 2 GD Ex db eb ib mb IIC T* Gb, Ex tb IIIC T** °C Db Temperature class: T4/T130 °C at Ta +55 °C (T6/T80 °C at Ta +40 °C on request) # Electrical Operating voltage: 250 V max. (contacts) Operating current: 13 A max. (6 A with LED indicator) Utilisation categories: AC12 12 … 250 V 13 A, AC15 12 … 250 V 10 A, DC13 12 … 110 V 1 A Terminal capacity: 2.5 mm² # Mechanical LRP dimensions: from 90×88×85 (LRP1) to 260×100×85 mm (LRP5L) LRS dimensions: from 102×116×87 (LRS1) to 222×116×87 mm (LRS4) Degree of protection: IP66 Cable entries: Polyamide M20 or M25 cable gland, optional plug

Enclosure: Polyamide or 316L steel Protection: Ex db eb, Ex tb Zones: 1, 2, 21, 22 Functions: 1 to 5 IP rating: IP66

pepperl-fuchs-ejb-custodie-antideflagranti-alluminio

# General Product type: Flameproof enclosure Brand: Pepperl+Fuchs Series: EJB* Material: Copper-free aluminium alloy Finish: RAL 7005 epoxy coating (grey) Ambient temperature: -60 … +60 °C depending on installed components # Certifications ATEX certificate: INERIS 14 ATEX 0022X, INERIS 14 ATEX 9010U IECEx certificate: IECEx INE 14.0029X, IECEx INE 14.0028U Marking: II 2 GD Ex db IIB+H2 T* Gb, Ex tb IIIC T** °C Db Temperature class: T6/T85 °C to T3/T200 °C depending on configuration and power dissipation North American approval: cULus E482035 (empty enclosure) # Electrical Operating voltage: up to 1000 V AC / 1500 V DC (ATEX/IECEx) Operating current: up to 1600 A Power dissipation: from 51 W (EJB0) to 1616 W (EJB20A) at T4/+40 °C # Mechanical Dimensions: from 201×136×150 (EJB0) to 937×687×499 mm (EJB20A) Degree of protection: IP66, IP66/IP67 with O-ring Cover fixing: Stainless steel socket cap screws Entry threads: Metric 1.5 mm pitch or NPT

Material: Copper-free aluminium Protection: Ex db IIB+H2, Ex tb Zones: 1, 2, 21, 22 IP rating: IP66, IP66/IP67 Sizes: EJB0 to EJB20A

pepperl-fuchs-ejbx-custodie-antideflagranti-inox

# General Product type: Flameproof enclosure Brand: Pepperl+Fuchs Series: EJBX* Material: AISI 316L stainless steel Finish: Shot-peened Ambient temperature: -60 … +60 °C depending on installed components # Certifications ATEX certificate: INERIS 14 ATEX 0022X, INERIS 14 ATEX 9010U IECEx certificate: IECEx INE 14.0029X, IECEx INE 14.0028U Marking: II 2 GD Ex db IIB+H2 T* Gb, Ex tb IIIC T** °C Db Temperature class: T6/T85 °C to T3/T200 °C depending on configuration and power dissipation # Electrical Operating voltage: up to 1000 V AC / 1500 V DC Operating current: up to 1600 A Power dissipation: from 51 W to 1616 W at T4/+40 °C # Mechanical Dimensions: from 198×133×141 (EJBX0) to 922×672×435.5 mm (EJBX20A) Degree of protection: IP66, IP66/IP67 with O-ring Cover fixing: Stainless steel socket cap screws

Material: AISI 316L stainless steel Protection: Ex db IIB+H2, Ex tb Zones: 1, 2, 21, 22 IP rating: IP66, IP66/IP67 Sizes: EJBX0 to EJBX20A

pepperl-fuchs-gub-custodie-antideflagranti-iic-alluminio

# General Product type: Flameproof enclosure Brand: Pepperl+Fuchs Series: GUB* Material: Copper-free aluminium alloy Finish: RAL 7005 epoxy coating (grey) Minimum temperature: down to -60 °C depending on version # Certifications ATEX certificate: INERIS 14 ATEX 0035X, INERIS 16 ATEX 9005U IECEx certificate: IECEx INE 14.0042X, IECEx INE 16.0051U Marking: II 2 GD Ex db IIC T* Gb, Ex tb IIIC T** °C Db Temperature class: T6/T85 °C to T3/T200 °C depending on configuration and power dissipation North American approval: cULus E482035 (empty enclosure) # Electrical Operating voltage: up to 1000 V AC / 1500 V DC Operating current: up to 1600 A (recommended) Power dissipation: from 48 W (GUB00) to 749 W (GUB5) at T4/+40 °C # Mechanical Dimensions: from 119×119×137 (GUB00) to 555×555×400 mm (GUB5) Cover: Round threaded, with or without window Degree of protection: IP66, IP66/IP67 with O-ring Entry threads: Metric 1.5 mm pitch or NPT

Material: Copper-free aluminium Protection: Ex db IIC, Ex tb Zones: 1, 2, 21, 22 IP rating: IP66, IP66/IP67 Sizes: GUB00 to GUB5

pepperl-fuchs-gubx-custodie-antideflagranti-iic-inox

# General Product type: Flameproof enclosure Brand: Pepperl+Fuchs Series: GUBX* Material: AISI 316L stainless steel Finish: Shot-peened Ambient temperature: -60 … +60 °C depending on installed components # Certifications ATEX certificate: INERIS 14 ATEX 0035X, INERIS 16 ATEX 9005U IECEx certificate: IECEx INE 14.0042X, IECEx INE 16.0051U Marking: II 2 GD Ex db IIC T* Gb, Ex tb IIIC T** °C Db Temperature class: T6/T85 °C to T3/T200 °C depending on configuration and power dissipation # Electrical Operating voltage: up to 1000 V AC / 1500 V DC Power dissipation: from 48 W (GUBX00) to 749 W (GUBX5) at T4/+40 °C # Mechanical Dimensions: from 112×112×131 (GUBX00) to 540×540×376 mm (GUBX5) Cover: Round threaded, with or without window Degree of protection: IP66, IP66/IP67 with O-ring Entry threads: Metric 1.5 mm pitch or NPT

Material: AISI 316L stainless steel Protection: Ex db IIC, Ex tb Zones: 1, 2, 21, 22 IP rating: IP66, IP66/IP67 Sizes: GUBX00 to GUBX5

pepperl-fuchs-seb-so-e-custodie-strumenti-contattori-expc

# General Product type: Instrument housings and flameproof contactors Brand: Pepperl+Fuchs Series: SEB, SO-E, EXPC Material: Copper-free aluminium alloy Ambient temperature: -50 … +60 °C (SEB, SO-E), -20 … +50 °C (EXPC) # Certifications SEB/SO-E ATEX certificate: INERIS 01ATEX0023 SEB/SO-E marking: II 2GD Ex d IIC / Ex tD A21 EXPC ATEX certificate: INERIS 14 ATEX 0022X EXPC IECEx certificate: IECEx INE 14.0029X EXPC marking: II 2 GD Ex d IIB+H2 T* Gb, Ex tb IIIC Db # Electrical EXPC contactor current: 18, 25, 32, 40 A EXPC coil: 120 V AC, 220 V AC, 24 V DC EXPC auxiliary contact: 1 NO # Mechanical SEB dimensions: Ø90 × 100 mm SO-E dimensions: Ø90 × 100 mm, height with cover 144 mm SEB/SO-E entries: 2 to 5, 1/2" or 3/4" NPT Degree of protection: IP66 (IP67 with O-ring for SEB/SO-E)

Material: Copper-free aluminium Protection: Ex d IIC (SEB, SO-E) Zones: 1, 2, 21, 22 Entries: 1/2" or 3/4" NPT EXPC contactors: 18 to 40 A

pepperl-fuchs-fc4-fwi-fw-f7-scatole-comando-ex-d

# General Product type: Ex d control boxes, isolators, signalling devices and junction boxes Brand: Pepperl+Fuchs Series: FC4, FWI, FW, F7 # Electrical Isolator current: 20 A, 32 A, 50 A, 63 A Bell voltage: 240 V AC, 24 V DC FW24M-G5 box terminals: 4 or 6 × 4 mm² # Mechanical FW24M/FW34M boxes: Ø64 × 41 mm FC4 boxes: Ø104 × 60 mm Entries: M20, M25 or M32 depending on model

Protection: Ex d Isolators: 20 to 63 A Bells: 240 V AC, 24 V DC Entries: M20, M25, M32 Boxes: Ø64 and Ø104 mm

pepperl-fuchs-bebco-eps-serie-1000-purge-type-y-z

# General Product type: Pneumatic Type Y/Z purge and pressurisation system Brand: Pepperl+Fuchs Series: Bebco EPS 1000 (1001A, 1001B, 1001C, 1002, 1003, 1004, 1005, 11, 1011, 1012) Reference standards: NEC (NFPA 70) Article 500, NFPA 496, ISA 12.4 Protective gas: instrument air or inert gas Max enclosure volume: 1001A, 11, 1011 2 ft³ (Class I) / 10 ft³ (Class II); 1001B 50 ft³; 1001C 250 ft³; 1002 and 1012 15 ft³; 1003 75 ft³; 1004 200 ft³; 1005 450 ft³ Safe pressure: 0.25" wc (Class I), 1.0" wc (Class II) Class I purging: 4 enclosure volume exchanges Leakage compensation flow: 0.1–3.5 SCFH (2.8–99 l/h) Mounting: LH, RH, TM, BM, WM, FM, PM (PM LPS only); UM, FM, PM for 1011 and 1012 Options: VX (vortex cooler indicator gauge), ECK (enclosure connection kit) # Certifications Type Y: Division 1 to Division 2 Type Z: Division 2 to non-hazardous Approvals: FM, cULus (1011 and 1012: cULus) Class I: Groups A, B, C, D (LPS, WPSA); Groups C, D (WPS) Class II: Groups E, F, G (1001A, 1001B, 1001C); Groups F, G (11, 1011) # Electrical WPS pressure switch contacts: 120 V AC, 15 A WPSA pressure switch contacts: 120/220 V AC; 24 V DC, 10 A; 125 V DC, 50 mA WPSA supply: 120 V AC standard; 24 V DC, 220 V AC, 240 V AC on request Pressure switch conduit entry: 1/2" FPT # Mechanical Supply pressure: 5–120 psi with EPV vent (1001A, 1001B, 1001C, 11, 1011); 80–120 psi (1002–1005, 1012) Rapid Exchange purge flow: 4 SCFM (1002, 1012), 10 SCFM (1003), 30 SCFM (1004), 60 SCFM (1005) Ambient temperature: -29 to 49 °C (model 11: 4.4 to 49 °C) Mounting plate: 316 stainless steel, 14 ga Tube fittings: 316 stainless steel forged body Mass: from 2.3 kg (1001A-LPS, 11-LPS) to 11.3 kg (1005-WPS)

Protection: Type Y / Type Z Standard: NFPA 496 Area: Class I and II, Div. 1 and 2 Enclosure volume: 2–450 ft³ Approvals: FM, cULus

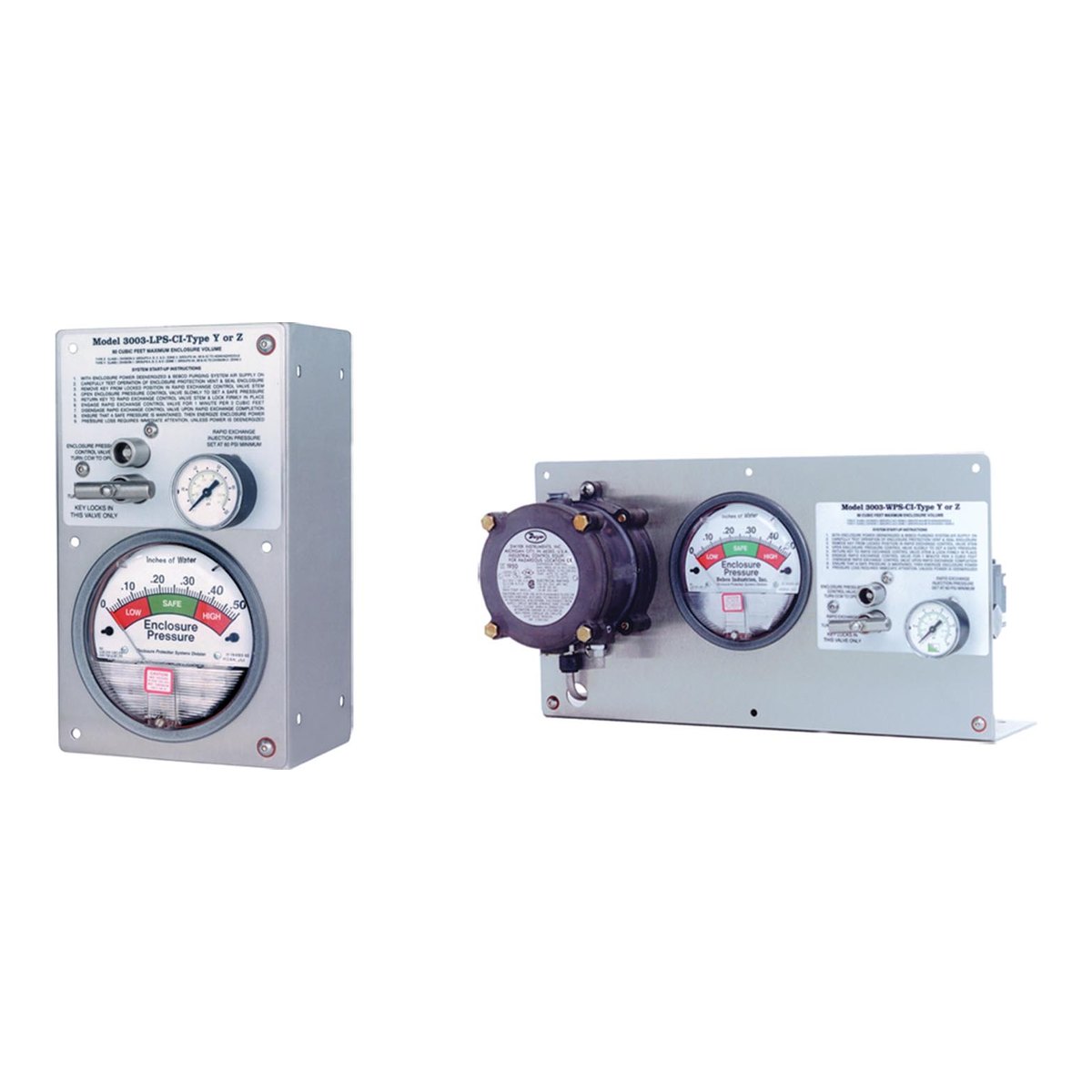

pepperl-fuchs-bebco-eps-serie-3000-purge-type-y-z

# General Product type: Type Y/Z Rapid Exchange purge and pressurisation system Brand: Pepperl+Fuchs Series: Bebco EPS 3000 (3003, 3004) Reference standards: NEC (NFPA 70), NFPA 496, ISA 12.4 Protective gas: instrument air or inert gas Max enclosure volume: 3003 90 ft³ (2.54 m³); 3004 250 ft³ Required vent: EPV-3 (3003), EPV-4 (3004) Safe pressure: 0.25" wc (6.35 mm) Leakage compensation flow: 0.1–3.5 SCFH (2.8–99 l/h) 3003 exchange time: 1 min per 3.0 ft³ (4 exchanges), 1 min per 2.4 ft³ (5 exchanges) Mounting: VML, VMR, HMT, HMB, VPM, HPM, WM, CK (CK LPS only) # Certifications Type Y: Class I, Division 1 to Division 2 Type Z: Class I, Division 2 to non-hazardous Approvals: FM, cULus Groups: A, B, C, D (LPS, WPSA); C, D (WPS) # Electrical WPS pressure switch contacts: 120 V AC, 15 A WPSA pressure switch contacts: 120/220 V AC; 24 V DC, 10 A; 125 V DC, 50 mA WPSA supply: 120 V AC standard; 24 V DC, 220 V AC, 240 V AC on request Pressure switch conduit entry: 1/2" FPT # Mechanical Supply pressure: 80–120 psi (5.5–8.3 bar) 3003 purge flow: 12 SCFM / 720 SCFH (regulator set to min. 60 psi) 3003 ports: system supply 1/4" FPT, enclosure supply 1/2" FPT, reference 1/4" tube Ambient temperature: -29 to 49 °C Materials: anodised aluminium manifold, 316 stainless steel valves and fittings, 316 stainless steel face plate 3003 mass: 4.5 kg (LPS), 6.8 kg (WPS)

Protection: Type Y / Type Z Standard: NFPA 496 Area: Class I, Div. 1 and 2 Enclosure volume: up to 250 ft³ Approvals: FM, cULus

pepperl-fuchs-bebco-eps-6000-type-x-ex-pxb

# General Product type: Type X / Ex pxb automatic purge and pressurisation system Brand: Pepperl+Fuchs Series: Bebco EPS 6000 Type of protection: Type X, Ex pxb Area: Class I or II, Div. 1 → non-hazardous; Zone 1/21 → non-hazardous Atmosphere: gas and dust Max enclosure volume: 12.7 m³ (450 ft³) Components: control unit (WH, CK), EPCU, UIC, DV manifold, IS board, temperature hub and sensors Vent: EPV-6000 digital, anodised 6063T aluminium (AA) or 316L stainless steel (SS) # Certifications Approvals: DEMKO, UL, cULus, IECEx, CCC ATEX: UL/Demko 07 ATEX 0705753X IECEx: IECEx UL 08.0003X Marking: II 2 G Ex db ib [ib Gb] [pxb Gb] IIC T4 Gb # Electrical Rated voltage: 90–264 V AC, 48–62 Hz; 20–30 V DC Versions: standard or high current Enclosure contacts: up to 12 A per contact Interface: backlit 2-line × 20-character LCD, status LEDs # Mechanical Dimensions: 183 × 367.5 × 152.5 mm Mass: 11.4 kg Material: 316L stainless steel Degree of protection: Type 4X, IP66 Operating temperature: -20 to +60 °C

Protection: Type X / Ex pxb Area: Div. 1, Zone 1/21 Atmosphere: gas and dust Voltage: 90–264 V AC / 20–30 V DC Housing: 316L stainless, IP66

pepperl-fuchs-bebco-eps-6500-6100-ex-pxb-ex-pyb

# General Product type: Ex pxb / Ex pyb automatic purge and pressurisation system Brand: Pepperl+Fuchs Series: Bebco EPS 6500; EPV-6100 vents for 6100 series Type of protection: Ex pxb, Ex pyb Area: Zone 1/21 Atmosphere: gas and dust Max enclosure volume: 12.75 m³ Components: control unit, EPCU, UIC, DV/PV manifold, manifold block Mounting: external (EXT), panel (PM01, PM02) Vent: EPV-6500, aluminium (AA) or stainless steel cap (SS) Protective gas: industrial-grade air or inert gas # Certifications Approvals: ATEX, IECEx, CCC ATEX: DEMKO 16 ATEX 1640X IECEx: IECEx UL 16.0003X Functional safety: SIL 2 (exida) Valves: ATEX/IECEx digital, ATEX proportional # Electrical Rated voltage: 100–240 V AC, 48–62 Hz; 20–30 V DC Communication: RS-485/HART, Bluetooth Interface: intrinsically safe LCD touch pad # Mechanical Dimensions: 150 × 150 × 145 mm Mass: approx. 5 kg Materials: 316L stainless steel housing and hardware, UIC display cover in Makrolon FI Degree of protection: IP66 Operating temperature: -20 to +70 °C

Protection: Ex pxb / Ex pyb Zones: 1 and 21 Functional safety: SIL 2 Communication: HART, Bluetooth Temperature: -20 to +70 °C

pepperl-fuchs-bebco-eps-7500-5500-type-z-ex-pzc

# General Product type: Type Z / Ex pzc purge and pressurisation system Brand: Pepperl+Fuchs Series: Bebco EPS 7500, 5500 Type of protection: Type Z, Ex pzc Area: Class I or II, Div. 2 and Zone 2/22 → non-hazardous Atmosphere: gas and dust Max enclosure volume: 12.7 m³ (450 ft³) (7500) Protective gas: compressed air or inert gas, 40 µm filter, oil-free (7500) Supply pressure: 1.4–8.2 bar (20–120 psig) (7500) 7500 enclosure pressure: 0–12.9 mbar (0–5" wc) Vents: EPV-7500, EPV-5500 in aluminium (AA) or with stainless steel cap (SS) 5500 cable entries: PSC/PBC 3 x M20 glands, PSH 3 x 1/2" NPTF entries, LSC/LBC 3 x M12 glands, PNO/LNO no glands # Certifications 7500: UL, cULus, IECEx, ATEX, CCC; DEMKO 18 ATEX 2025X 7500 marking: II 3 G Ex ec mc nC [pzc Gc] IIC T6…T4 Gc; II 3 D Ex mc tc [pzc Dc] IIIC T60 °C…T80 °C Dc 7500 cULus: Class I Div. 2 Groups A, B, C, D; Class II Div. 2 Groups F, G 5500: DEMKO 14 ATEX 1282X, IECEx UL 14.0019X, cULus 5500 marking: II 3 (3) G Ex ic ec nC [ic Gc] [pzc Gc] IIC T4 Gc # Electrical 7500 supply: 90–250 V AC, 50–60 Hz; 20–30 V DC 7500 outputs: K1 enclosure and K2 alarm contacts 5 A at 250 V AC / 30 V DC; SV1 solenoid 0.5 A 5500 supply: 100–240 V AC or 20–30 V DC Manifolds: 5500 at 24 V DC, 120 V AC, 230 V AC; 7500-MAN-BK at 115 V AC (T4), 230 V AC (T6), 24 V DC (T4); 7500-MAN-MV-01 manual # Mechanical 7500 housing: A380, A356 or 6061-T6 aluminium, Type 4X / IP66 5500 housing: 316 stainless steel, Type 4X / IP66 7500 temperature: -40 to +50 °C (T6), -40 to +65 °C (T5), -40 to +70 °C (T4) 5500 temperature: -20 to +60 °C (T4) 7500 unit mass: approx. 0.71 kg

Protection: Type Z / Ex pzc Area: Div. 2, Zone 2/22 Operation: automatic or manual Enclosure volume: up to 12.7 m³ Certifications: ATEX, IECEx, cULus

pepperl-fuchs-bebco-eps-enviro-line-10e

# General Product type: Environmental pressurisation system for non-hazardous areas Brand: Pepperl+Fuchs Series: Bebco EPS Enviro-Line 10E Installation area: non-hazardous areas only (does not meet NFPA 496) Enclosures: Type 4 or Type 12, up to 7.2 m³ (250 ft³) Protective gas: instrument air or inert gas Enclosure pressure: 0.5" wc (12.5 mm wc, 1.25 mbar) Leakage compensation flow: 0.1–3.5 SCFH (2.83–99.12 l/h) Versions: LGS (no pressure switch), WGS (with GP pressure switch); WRR (redundant regulator), WVT (with EPV-3-GP vent) Mounting: UM universal, PM panel (PM not with WRR) # Electrical Connection: terminal blocks Output (WGS): pressure switch contacts Contact rating: 15 A at 120–480 V AC, 60 Hz resistive load; 1/8 HP at 125 V AC # Mechanical Supply pressure: 5–120 psi (0.34–8.3 bar) Connections: supply GBC-6 3/8", reference GBC-4 1/4"; nylon or polyethylene tubing Materials: 316L 14 ga stainless steel mounting plate; enamelled zinc regulator body; nickel-plated brass fittings Ambient temperature: -28.9 to 48.9 °C Mass: 3.18 kg (10E-LGS-WRR) to 6.35 kg (10E-WGS-WVT)

Area: non-hazardous (industrial) Enclosure pressure: 0.5" wc Enclosure volume: up to 250 ft³ Gas: instrument air or inert gas Mounting: universal or panel

industriale

pepperl-fuchs-bebco-eps-sfiati-epv-purge

# General Product type: Protection vent for pressurised enclosures Brand: Pepperl+Fuchs Series: Bebco EPS EPV-1, EPV-2, EPV-3, EPV-4, EPV-5 Connection: 1/2" (EPV-1), 3/4" (EPV-2), 1-1/4" (EPV-3), 1-1/2" (EPV-4), 2" (EPV-5) Versions: SA spark arrestor, GP general purpose Mounting: top (00), side (90) Cracking pressure: 0.65" wc (16.5 mm wc) Operating pressure: 2–5" wc, max 5–7" wc Matching systems: 11, 1011, 1001A, 1002, 1012, 1003, 3003, 1004, 3004, 1005; EPV-3-GP for Enviro-Line 10E # Certifications Certification: only as a component of the relevant Type Y/Z purge system GP versions: not certified # Mechanical Materials: 3003 aluminium cap, die-cast aluminium base, 316 stainless steel valve and spark arrestor Ambient temperature: -29 to 49 °C Mass: from 1.81 kg (EPV-1/2-GP) to 5.44 kg (EPV-5-GP)

Type: spark arrestor vent Connection: 1/2" to 2" Cracking pressure: 0.65" wc Mounting: top or side Systems: 1000, 3000, 10E series

pepperl-fuchs-bebco-eps-accessori-purge

# General Product type: Accessories and spare parts for purge and pressurisation systems Brand: Pepperl+Fuchs Series: Bebco EPS Fittings: stainless steel SC (straight) and NC (90°), 1/4" to 1/2" Tubing: 316 stainless steel, 0.035" wall, 3 ft; polyethylene 1/4", 4 ft TR-10 / TR-10-G regulator: pre-regulation of the supply to 5 psi Remote filters: RCF-4 (1/4"), RCF-8 (1/2") Mounting kits: SMK-1/2/3-SS, SMK-4, SMK-6, SMK-8, SMK-10, SMK-6M, SMK-8M, PMK-1, PMK-2 Remote alarms: RAH (Div. 1 horn), RAB-1 (Div. 1 beacon), RAB-2 (Div. 2 red strobe) # Electrical Solenoid coils: 24 V DC, 110 V AC V31-WM-BK5M-PUR-ABG cordset: M8 female angled, 4-pin, A-coded, max 30 V AC/DC, 4 A # Mechanical V31-WM-BK5M-PUR-ABG cable: PUR, shielded, 4 x 0.34 mm², 5 m, IP66/IP68

Type: purge accessories and spares Fittings: stainless, 1/4" to 1/2" Tubing: 316 stainless and PE Regulator: TR-10 tamper-proof Mounting: SMK and PMK kits

ceag-stazioni-comando-ghg41

# Certifications ATEX: PTB 00 ATEX 3117 — II 2G Ex ed ib m IIC T6 · II 2D Ex tD A21 IP66 T80 °C IECEx: IECEx BKI 04.0003 # Electrical 690 V AC, 16 A # Mechanical Enclosures: black polyamide · light alloy · 316L stainless steel # Environmental Ingress protection: IP66 Ambient temperature: -20 °C to +40 °C (option -55 °C to +55 °C)

ATEX and IECEx certified for Zone 1, 2, 21 and 22 1 to 4 positions, 690 V AC / 16 A Enclosures in polyamide (GHG 411/412), light alloy (413), 316L stainless steel (414) Pushbuttons, mushroom-head pushbuttons, selector switches, indicator lights, potentiometers IP66, optional ambient temperature -55 °C to +55 °C

ceag-strumenti-misura-ghg41

# Certifications ATEX: PTB 00 ATEX 3117 · IECEx BKI 04.0003 # Electrical Instrument: AM 72, moving iron, class 2.5 # Mechanical Enclosures: polyamide · light alloy · 316L stainless steel # Environmental Ingress protection: IP66

ATEX and IECEx certified for Zone 1 and 21 Moving-iron instrument, class 2.5 Scales from 0-1 A to 0-100 A, direct measurement or via CT Enclosures in polyamide, light alloy or 316L stainless steel IP66

ceag-componenti-418

# Certifications Complete apparatus: PTB 99 ATEX 1034 — II 2G Ex de IIC T6 Component: IBExU 14 ATEX 1030 U · IECEx IBE 14.0005 U # Electrical 400-500 V AC, 16 A # Environmental Ingress protection: IP66 Ambient temperature: -55 °C to +50 °C

Ø 30.5 mm mounting hole, panels up to 5 mm Push-buttons, double push-buttons, emergency-stop mushroom-head and key-operated push-buttons Selector switches, indicator lights, potentiometers, AM 45/AM 72 instruments Up to 16 A (gold contacts 0.4 A) Ambient temperature -55 °C to +50 °C, IP66

ceag-efs

# Certifications ATEX: LOM 03 ATEX 2034 — II 2G Ex d IIC T6 · II 2D IP67 T85 °C IECEx: IECEx BKI 07.0027 # Electrical Max 660 V AC, 20 A # Mechanical Enclosure: die-cast aluminium, 3/4" Ex d entries # Environmental Ingress protection: IP67 Ambient temperature: -20 °C to +55 °C

ATEX and IECEx certified for Zone 1, 2, 21 and 22 Up to 3 control or signalling devices Max 660 V AC, 20 A Die-cast aluminium, IP67 EFS MS1 motion sensor for lighting also available

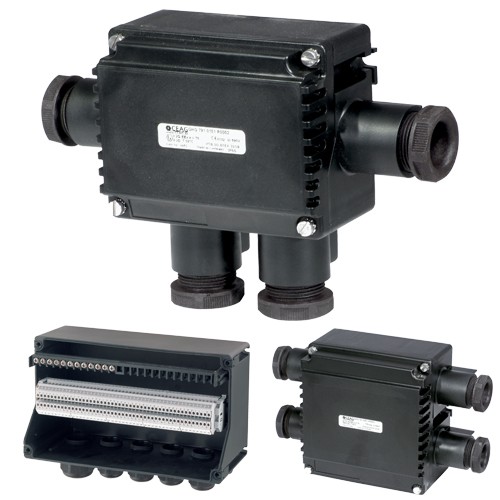

ceag-cassette-ghg79

# Certifications ATEX: BVS 16 ATEX E 031 — II 2G Ex e IIC T5/T6 Gb · II 2D Ex tb IIIC T80 °C Db IECEx: IECEx BVS 16.0024 # Electrical Voltage: 690 V Current: GHG 791 01 max 32 A · GHG 791 02 max 28 A # Mechanical Material: black polyamide # Environmental Ingress protection: IP66 Ambient temperature: -20 °C to +40 °C (option -55 °C to +55 °C)

ATEX and IECEx certified for Zone 1, 2, 21 and 22 GHG 791 01: 81.5 × 100 × 61 mm, up to 6 terminals, max 32 A GHG 791 02: 117.5 × 113.5 × 73.5 mm, up to 12 terminals, max 28 A Ex e and Ex i versions Black polyamide, IP66, up to 690 V

ceag-cassette-ghg73-72

# Certifications GHG 731: BVS 13 ATEX E 037X · IECEx BVS 13.0045X GHG 721: BVS 13 ATEX 013X · IECEx BVS 13.0031X Marking: II 2G Ex e IIC T4/T5/T6 Gb · II 2D Ex tb IIIC T80/T95 °C Db # Electrical Voltage: 690 V # Mechanical Material: glass-fibre reinforced polyester, black # Environmental Ingress protection: IP66 Ambient temperature: -20 °C to +40 °C (option -55 °C to +55 °C)

ATEX and IECEx certified for Zone 1, 2, 21 and 22 GHG 731 11 (140 × 120 × 95 mm) and 731 12 (140 × 182.5 × 95 mm), up to 24 terminals GHG 721 00 (165 × 165 mm) and 721 10 (165 × 285 mm), up to 48 terminals Ex e and Ex i versions, drilled or undrilled Black GRP, IP66, up to 690 V

ceag-cassette-ghg74

# Certifications ATEX: BVS 12 ATEX E 118X — II 2G Ex e IIC T4/T5/T6 Gb · II 2D Ex tb IIIC T80/T95 °C Db IECEx: IECEx BVS 12.0071X # Mechanical Dimensions: GHG 744 01 271 × 134 × 136 mm · 745 02 271 × 271 × 136 mm · 746 03 544 × 271 × 136 mm · 749 04 817 × 271 × 136 mm Material: glass-fibre reinforced polyester # Environmental Ingress protection: IP66 Ambient temperature: -20 °C to +40 °C (option -55 °C to +55 °C)

ATEX and IECEx certified for Zone 1, 2, 21 and 22 Sizes from 271 × 134 mm (GHG 744) to 817 × 271 mm (GHG 749) Ex e and Ex e ib versions with intrinsically safe circuits GRP with silicone gasket and stainless steel cover screws IP66

ceag-gbox

# Certifications Empty enclosure: TÜV 19 ATEX 8392U · IECEx TUR 19.0040U Terminal box: BVS 18 ATEX E 077X · IECEx BVS 18.0065X · CSA 80050990 Marking: II 2G Ex eb IIC T6/T5/T4 Gb · II 2D Ex tb IIIC T80/T95/T110 °C Db # Mechanical Material: glass-fibre reinforced polyester RAL 9011, 304 stainless steel screws # Environmental Ingress protection: IP66

ATEX, IECEx and CSA certified for Zone 1, 2, 21 and 22 Empty versions and versions with terminals already fitted With or without brass internal earth plate Silicone gasket from -60 °C to +110 °C Black GRP RAL 9011, captive 304 stainless steel screws, IP66

ceag-ex-cell-stb

# Certifications Ex-Cell: BAS 15ATEX0099U · IECEx BAS15.0071U S-TB: BVS13ATEXE015U · IECEx BVS 13.0025U Marking: II 2G Ex eb IIC Gb · II 2D Ex tb IIIC Db # Mechanical Material: 316L stainless steel, silicone gasket # Environmental Ingress protection: IP66 / NEMA 4X

ATEX, IECEx and cULus certified for Zone 1, 2, 21 and 22 Electropolished 316L stainless steel (304 or painted steel on request) Foamed-in-place silicone gasket Ex-Cell: over 100 sizes, up to 1600 × 1200 × 400 mm IP66 / Type 4X

ceag-ejb

# Certifications Empty enclosure: LOM 02ATEX3060U — II 2G Ex d IIB Assembled: LOM 03ATEX2004X — II 2G Ex d IIB T4…T6 # Electrical Up to 690 V, 1,200 A # Mechanical Material: aluminium, epoxy coating # Environmental Ingress protection: IP65 Ambient temperature: -20 °C to +55 °C

Ex d IIB enclosures for Zone 1, 2, 21 and 22 Aluminium with internal and external epoxy coating Components: windows, handles and operators, through-cover push-buttons Up to 690 V and 1,200 A IP65

ceag-cassette-exd-gub-c3

# Certifications GUB: LOM 03ATEX3107U (empty) · LOM 04ATEX2018 (assembled) — II 2GD Ex d IIC T4…T6 C30/C31: LOM 02 ATEX 2037 X — Ex d IIC T6 · Ex tD A21 IP67 T85 °C # Electrical Up to 690 V # Mechanical Material: aluminium / light alloy # Environmental Ingress protection: IP67 Ambient temperature: GHG -20 °C to +55 °C · C30/C31 -50 °C to +55 °C

Ex d IIC for Zone 1, 2, 21 and 22 GUB: painted aluminium, up to 690 V and 250 A C30/C31: light alloy, 1/2" or 3/4" entries, terminals up to 4 mm² IP67

ceag-cassette-exlink

# Certifications GHG 791: PTB 00 ATEX 3108 · IECEx BKI 07.0034 GHG 731 11: PTB 99 ATEX 1044 # Environmental Ingress protection: IP66 Ambient temperature: -20 °C to +40 °C (option from -55 °C)

ATEX and IECEx certified for Zone 1 and 21 GHG 791 boxes in polyamide or GHG 731 in GRP Up to 16 A per connector, up to 7 poles Ethernet / Fast Ethernet compatible IP66
